Specs
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Comes with:
- Processors - 4 x Intel® Xeon® E7-8893v3
- Memory - 256GB (16x16GB DIMMs) PC4- 2133P-R DIMMs (DDR4) installed in (8) Memory Cartridges
- Network Controller - HPE FlexFabric 10Gb 2P 534FLR-SFP+ Adapter
- Storage Controller - HPE Smart Array P830i/4GB FBWC 12Gbps SAS controller
- Hard Drive - 5 SFF HDD/SSD drive bays. No drives ship standard.
- Optical Drive - None
- PCIe Slots - 9 PCIe Gen3.0 I/O Expansion slots (5x16 slots, 4x8 slots)
- Power Supply - (4) HPE 1500W Common Slot Platinum Plus Hot Plug Power Supplies
- Fans - 4 hot plug fans (eight rotors with N+1 redundancy)
- Management - iLO Management (standard), Intelligent Provisioning (standard), iLO Advanced (standard), Insight Control (optional), HPE OneView (standard)
- Energy Start - N/A
- Form Factor - Rack (4U), rail kit and cable management arm are included
Looking to Customize?
Not seeing the exact specs you need?
Start your build today with Express Computer Systems!
Start Customizing Today!
Spec Sheet 4
| Technical specifications | HP ProLiant DL580 Gen9 Server |
|---|---|
| Compute | Two, three, or four Intel Xeon E7 4800/8800 v3 processors; 4/8/10/12/14/16/18 cores; up to 3.2 GHz and 45 MB L3 cache |

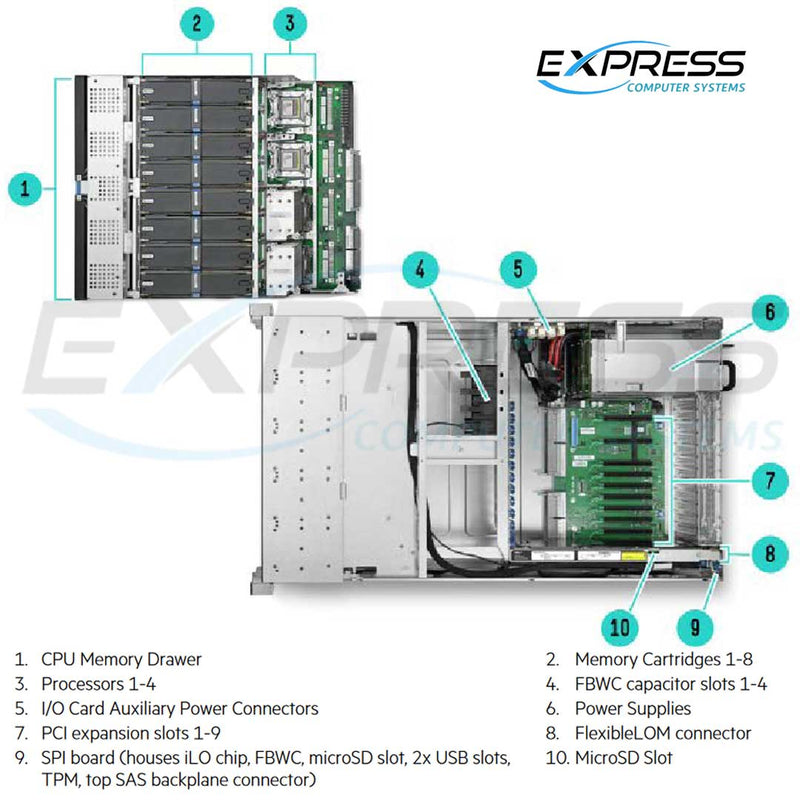

| Memory | HP SmartMemory (96) DDR4 DIMM slots and 6 TB maximum memory with 64 GB DIMMs (supports both R-DIMMs and LR-DIMMs up to 1,866 MHz) |
| Storage | HP Smart Array P830i 12 Gbps SAS Controller |
| Flash-backed write cache (FBWC) | 2 GB or 4 GB FBWC |

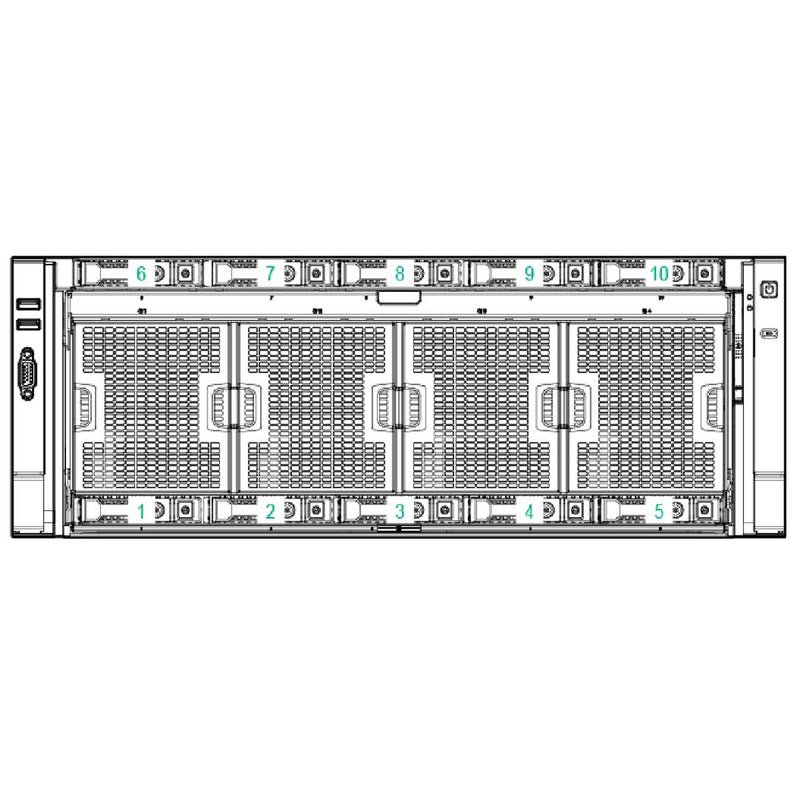

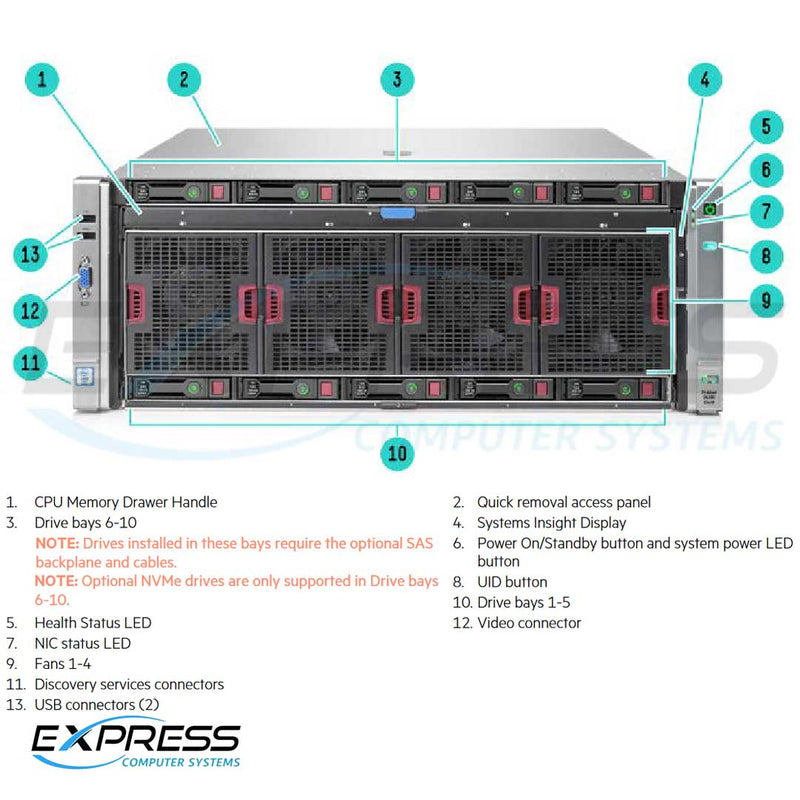

| HP SmartDrives | Up to 10 SFF max, HDD/SSD (20 TB max), and optional 5 NVMe PCIe SSD support |

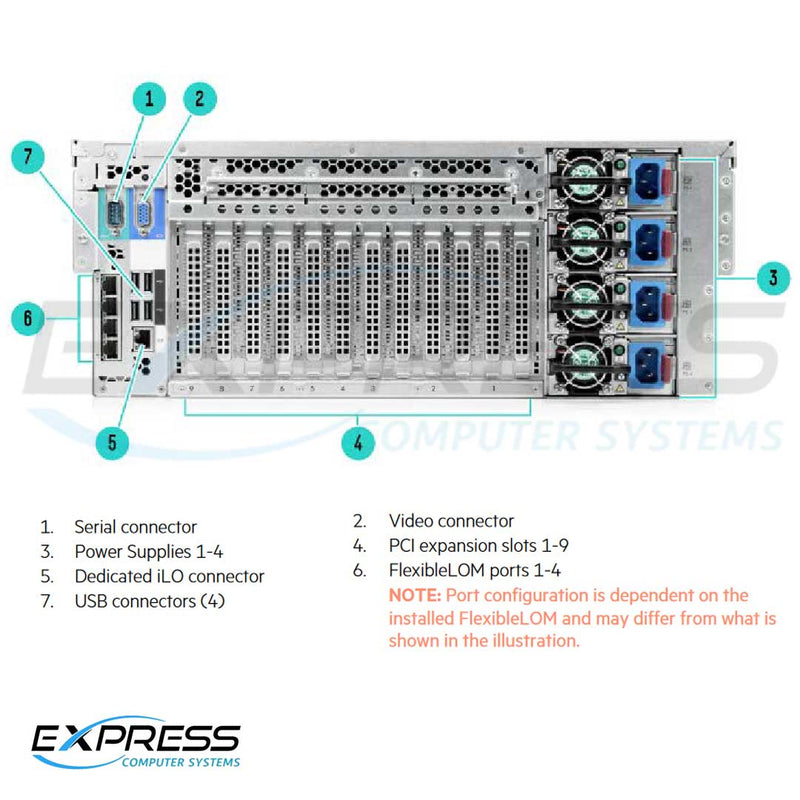

| I/O expansion | Nine PCIe Gen3.0 FL/FH slots standard (four x8 and five x16 lanes slots); FlexibleLOM and Embedded SAS RAID Controller
provide two additional I/O devices for a total of 11 PCIe devices per system. Note: Slot availability is dependent on the number of processors installed. |
| Networking | FlexibleLOM; choice of 4 x 1GbE, 2 x 10GbE, or 2 x 10 Gbps CNA or 2 x FDR InfiniBand |
| VGA/serial/USB ports/SD | Two video (1f, 1r); eight USB (2f, 2i, 4r); 3/5 NIC; one microSD; Dual microSD (optional); external USB optical drive (optional) |
| GPU Support | Up to 4 double-wide GPGPUs |
| System ROM | UEFI and Legacy BIOS |
| Converged management | HP OneView with HP iLO Advanced |
| Support management | HP Insight Online with enhanced mobile app |
| Embedded management | HP iLO 4, HP Intelligent Provisioning, HP System Update Manager (SUM), HP RESTful Interface Tool, HP Scripting Tools for Microsoft ® Windows ® PowerShell |
| Power supplies | Up to four 1,500 W or 1,200 W (N+N redundant), 94 percent efficient (Platinum Plus); common slot 1,200 W power supplies: max power consumption—120 VAC–1,012 VA, 3,408 BTU, 230 VAC–1,332 VA, 4,447 BTU 1,500 W power supplies: max power consumption—230 VAC–1672 VA, 5,637 BTU |
| Fans | Four hot plug (eight rotors with N+1 redundancy); front accessible |
| Security | Secure Boot, Intel Secure Key, and TPM option |
| System RAS features | HP Advanced Error Recovery, HP Memory Quarantine, HP Advanced Error Containment, HP Advanced Fault Resiliency, HP Advanced Event Detection and Reporting, and HP Qualified Options |
| Industry compliance | ASHRAE A3 and A4 configurations supported |
| Power discovery services | Supported |
| Location discovery services | Supported |
| Form factor/chassis depth | Rack (4U), 29" |
| Serviceability — Easy install rails | Standard with CMA |
