Specs
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Comes with:
- Processors - 4 x Intel® Xeon® E5-4640v4
- Memory - 128GB (8x16GB Registered DIMMs, 2400 MHz)
- Network Controller - HPE FlexFabric 10Gb 2P 533FLR-T Adapter
- Storage Controller - HPE Flexible Smart Array P840/4G Controller
- Hard Drive - None ship standard

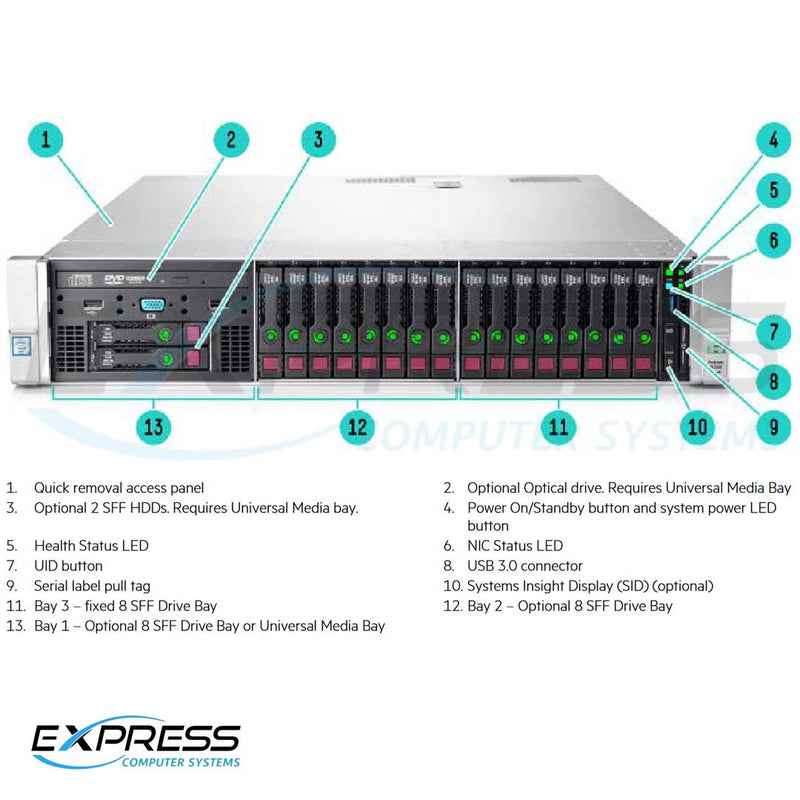

- Internal Storage - 16 SFF drive bays
- Optical Drive Bay - Optional via Universal Media Bay
- Optical Drive - Optional DVD-ROM (726536-B21) or DVD-RW (726537-B21) via Universal Media Bay Kits (795090- B21 or 794379-B21)
- PCIe Slots - 7 PCIe 3.0 slots available; Secondary riser kit (793474-B21) installed
- Power Supply - (2) HPE 1200W Common Slot Platinum Plus Hot Plug Power Supplies
- Fans - 6 hot plug fans, redundant
- Management - iLO Management (standard), Intelligent Provisioning (standard), iLO Advanced (standard), HPE OneView Advanced (standard)
- Energy Start - Meets Energy Star requirements
- Form Factor - Rack (2U), HPE Easy Install Rails with CMA
Looking to Customize?
Not seeing the exact specs you need?
Start your build today with Express Computer Systems!
Start Customizing Today!
Spec Sheet 4
| Technical specifications | HP ProLiant DL560 Gen9 Server |
|---|---|
| Compute | One or two or four Intel Xeon E5-4600 v3 processors; 6/10/12/14/16/18 cores; up to seven available slots (PCIe 3.0) |
| Memory | HP SmartMemory (48) DDR4 DIMM slots and 3.0 TB maximum memory (supports both RDIMMs and LRDIMMs up to 2,133 MHz) with support for memory mirroring |
| Storage | HP Embedded SATA Controller. Choice of HP Flexible Smart Array P440ar or latest HP Smart Array or Smart HBA Controllers for performance or additional features. |
| Flash-backed write cache (FBWC) | 2 GB DDR3-1,866 MHz, 72-bit wide bus at 14.9 GB/s on P440ar 4 GB FBWC options also available via dedicated stand up cards |
| Battery | HP DL/ML/SL 96 W Smart Storage Battery |
| HP SmartDrives | Up to 24 SFF max, HDD/SSD (48 TB max), M.2 enabled and optional 6 NVMe PCIe SSD support, optional HP Universal Media bay (optional two SFF SAS/SATA or optical; video and USB 2.0 standard) |

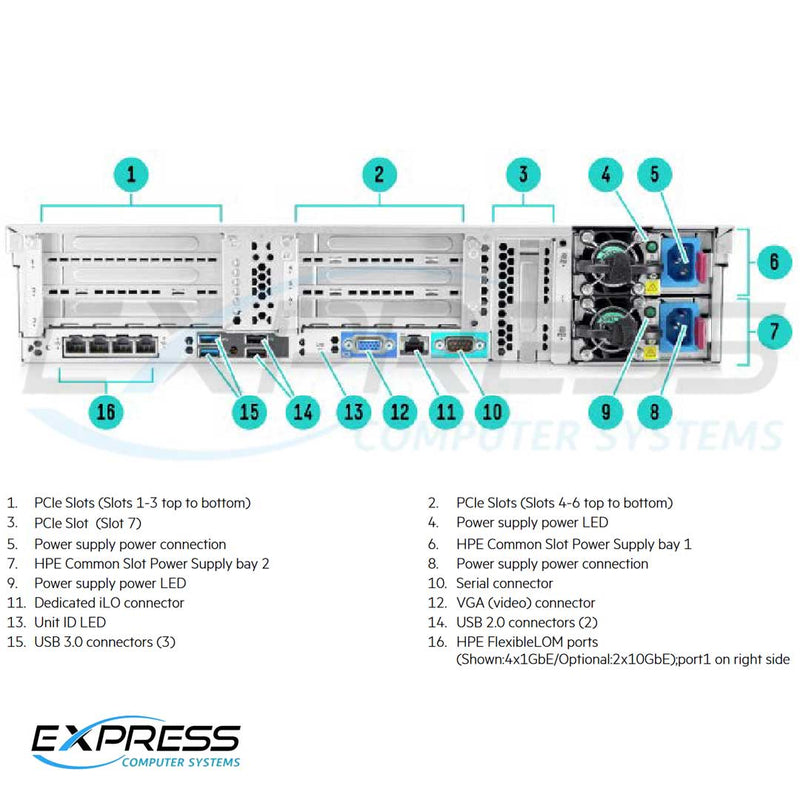

| I/O expansion | Seven PCIe 3.0 (6 FH/1 LP) Note: Slot availability is dependent on the number of processors installed Note: The I/O Expansion slots are in addition to the HP Flexible Smart Array and FlexibleLOM slots |
| Networking | 1 x 8 PCIe 3.0 FlexibleLOM slot, for either 2 x 10GbE or 4 x 1GbE; additional standup networking cards available |
| VGA/serial/USB ports/SD | Four USB 3.0 (one internal), five USB 2.0 (two optional, one internal), microSD, Dual microSD (optional) |
| GPU Support | Two 9.5" single wide cards |
| System ROM | UEFI and legacy BIOS |
| Converged management | HP OneView with HP iLO Advanced |
| Support management | HP Insight Online with enhanced mobile app |
| Embedded management | HP iLO 4, HP Intelligent Provisioning, HP SUM, HP RESTful Interface Tool, HP Scripting Tools for WS PowerShell |
| Power supplies | 94 percent efficient (Platinum Plus), 1,200 W Common Slot PS, N+1 redundant; 1,500 W optional |
| Fans | Six hot plug and redundant fans |
| Industry compliance | ASHRAE A3 and A44 and ENERGY STAR® configurations supported |
| Power discovery services | Supported |
| Location discovery services | Supported |
| Form factor/chassis depth | Rack (2U), 29.5" (SFF) |
| Serviceability — Easy install rails | Standard |
