Memory 2 | One of the following depending on model Type | DIMM Slots available | Maximum capacity (LRDIMM) | Maximum capacity (RDIMM) | Maximum capacity (NVDIMM) |
|---|
SmartMemory Registered (RDIMM), Load Reduced (LRDIMM) | 48 | With 2nd gen processors | With 3rd gen processors | With 2nd gen processors | With 3rd gen processors | With 2nd gen processors Not supported | With 3rd gen processors |
|
Memory protection | HPE Server memory options RAS feature |
Network controller | The HPE ProLiant DL560 Gen10 servers offer a flexible network technology - FlexibleLOMs, which offers users a choice of 1Gb, 10Gb, 25Gb or 10Gb and 100Gb base-T ethernet or converged networking in their embedded adapter. A range of NIC cards are also available to enhance networking capabilities The HPE ProLiant DL560 Gen10 servers offer a flexible network technology Model | Adapter |
|---|
Entry model | HPE Ethernet 1Gb 4-port 331FLR adapter | Base model | HPE FlexFabric 10Gb 2P 533FLR-T adapter | Performance model | HPE FlexFabric 10/25Gb 2P 640FLR-SFP28 adapter |
|
Storage controllers 4 | Software (SW) RAID: Essential RAID: HPE Smart Array E208i-a SR G10 LH controller HPE Smart Array E208i-p SR Gen10 controller HPE Smart Array E208e-p SR Gen10 controller
Performance RAID: HPE Smart Array P408i-a SR G10 LH controller HPE Smart Array P408i-p SR Gen10 controller HPE Smart Array P408e-p SR Gen10 controller HPE Smart Array P816i-a SR G10 LH controller HPE Smart Array P824i-p MR Gen10 controller
|
Internal storage devices 5 | |
Maximum internal storage | Storage | Capacity | Configuration |
|---|
Hot Plug SFF SATA HDD | 48TB | 24 x 2TB | Hot Plug SFF SAS HDD | 58TB | 24 x 2.4TB | Hot Plug SFF SATA SSD | 184TB | 24 x 7.68TB | Hot Plug SFF SAS SSD | 367TB | 24 x 15.3TB | SFF NVMe SSD | 184TB | 12 x 15.36TB |
|
Power supply | One of the following depending on model |
Interfaces | Serial: 1 rear Video: 1 front (Optional with universal media bay),1 rear HPE iLO remote management network port: 1 HPE iLO front service port: 1 Micro SD slot:1 (Internal), 2 (Optional, internal)8 USB 2.0 ports: 4 (2 front (optional), 2 rear) USB 3.0 ports: 5 (1 front, 2 rear, 2 internal)9
|
Industry standard compliance | ACPI 6.1 compliant PCIe 3.0 compliant WOL support Microsoft logo certifications Preboot Execution Environment (PXE) support USB 3.0 compliant (Internal) USB 2.0 compliant (External ports VIA SUV) SMBIOS 3.1 UEFI 2.6 Redfish API
|
Graphics | Integrated video standard Video modes up to 1920 x 1200 - 60 Hz (32 b/p) 16MB video memory HPE iLO 5 on system management memory 32MB flash 4Gb DDR 3 with ECC protection
|
HPE Server UEFI/Legacy ROM 10 | Unified Extensible Firmware Interface (UEFI) enables numerous new capabilities specific to HPE ProLiant servers such as: Secure boot and secure start enable for enhanced security Operating system specific functionality Support for > 2.2TB (Using GPT) boot drives USB 3.0 stack Embedded UEFI shell Mass configuration deployment tool using iLO RESTful API that is Redfish API conformant PXE boot support for IPv6 networks Workload profiles for simple performance optimization
UEFI boot mode only: TPM 2.0 support NVMe boot support Platform Trust Technology (PTT) can be enabled iSCSI software initiator support HTTP/HTTPs boot support as a PXE alternative Boot support for option cards that only support a UEFI option ROM
|
Embedded management | |
Server utilities | Active health system Active health system viewer Smart update iLO amplifier pack HPE iLO mobile application RESTful Interface Tool Scripting tools HPE OneView standard HPE Systems Insight Manager (HPE SIM)
|
Security 11 | UEFI secure boot and secure start support Immutable silicon root of trust FIPS 140-2 validation (iLO 5 certification in progress) Common criteria certification (iLO 5 certification in progress) Configurable for PCI DSS compliance Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser Support for Commercial National Security Algorithms (CNSA) Granular control over iLO interfaces Smart card (PIV/CAC) and kerberos based 2-factor authentication Tamper-Free updates - Components digitally signed and verified Secure recovery - Recover critical firmware to known good state on detection of compromised firmware Ability to rollback firmware Secure erase of NAND/User data Trusted Platform Module (TPM) 1.2 option TPM 2.0 option bezel locking kit Chassis intrusion detection option
|
NOTE: 1. Entry, base and performance Pre-Configured models ship with Gen10 easy install rail kits and cable management assembly 2. - Only 2666 MT/s memory SKUs are supported with 1st gen processors (81xx, 61xx and 51xx)
- 2933 MT/s memory SKUs are supported with 2nd gen processors (82xx,62xx and 52xx)
- The 2933 MT/s memory SKUs offer a transfer rate of 2933 MT/s at 1 DIMM per channel and 2666 MT/s at 2 DIMMs per channel
- Mixing of RDIMM and LRDIMM memory is not supported
- The maximum memory speed is a function of the memory type, memory configuration, and processor model
- Intel memory processors (With suffix M) are needed for supporting 1.5TB memory per socket on 1st gen processors
- Intel memory processors (With suffix M or suffix L) are needed for supporting more than 1TB memory per socket on 2nd gen processors
- Maximum of 6 NVDIMMs are supported per processor on the 1st gen processors
- NVDIMMs are not supported on the 2nd gen processors
3. - The secondary and tertiary risers need the 2nd processor to be installed

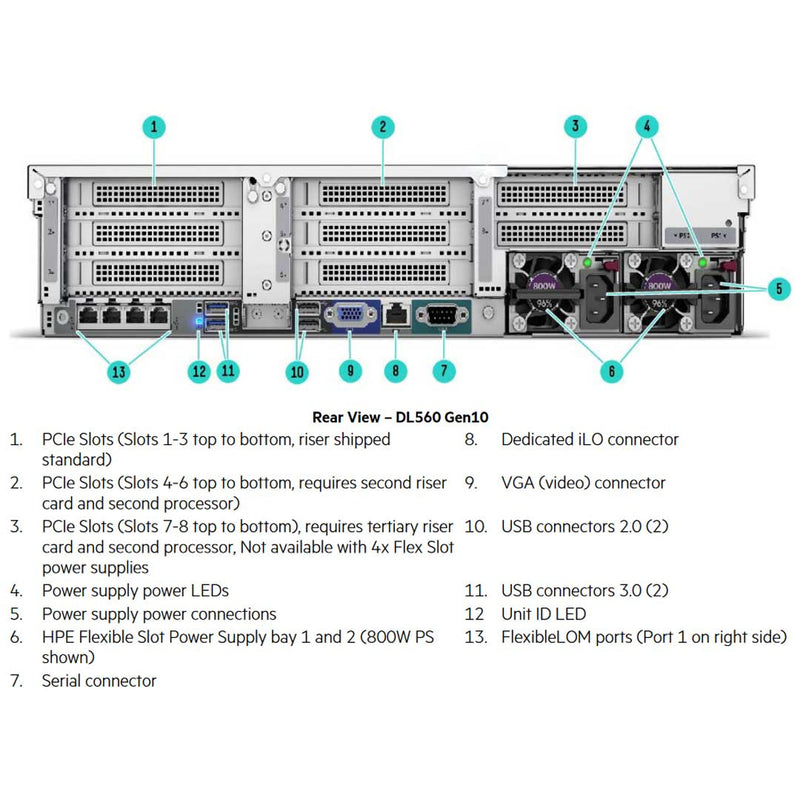

- The expansion slots at the back are numbered in ascending order from top to bottom and from left to right
- Some riser kits (826704-B21, 873418-B21, 873420-B21) have FIO options with separate numbers and they do not ship with riser cages. Please review the FIO section for details

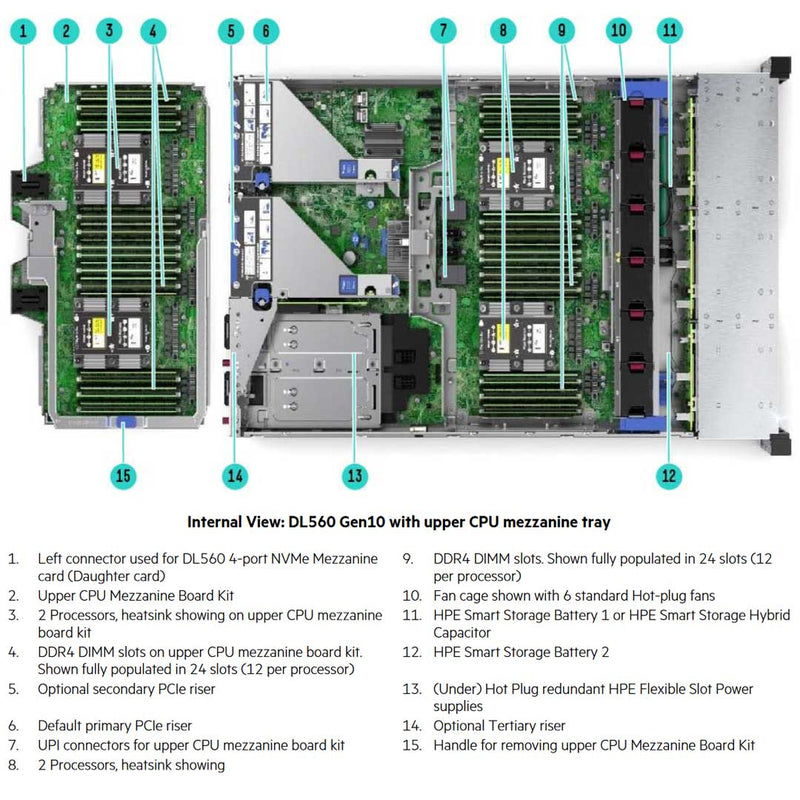

- The optional 4-port NVMe mezzanine card 874633-B21 supports a maximum of 8 NVMe drives and does not consume a PCIe slot. It goes on top of the HPE DL5x0 Gen10 CPU mezzanine board kit (872222-B21) and requires a four processor configuration
- It goes on top of the HPE DL5x0 Gen10 CPU mezzanine board kit (872222-B21) or HPE DL5x0 Gen10 CPU version 2 mezzanine board kit (P07991-B21) and requires a four processor configuration
- The tertiary risers can only be installed when using two PSUs. There is no space for tertiary risers when the four PSU’s are installed. If a secondary riser is required it needs to be ordered separately
- A maximum of 1 primary, 1 secondary and 1 tertiary riser can be installed in one server
- Slimline riser kit (873418-B21) does not contain any additional PCIe slots
4. - HPE Smart Array S100i SR Gen10 SW RAID will operate in UEFI mode only. For legacy support an additional controller will be needed, and for CTO orders please also select the legacy mode settings part, 758959-B22
- HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled. For enabling, please select HPE FIO enable Smart Array SW RAID (784308-B21)

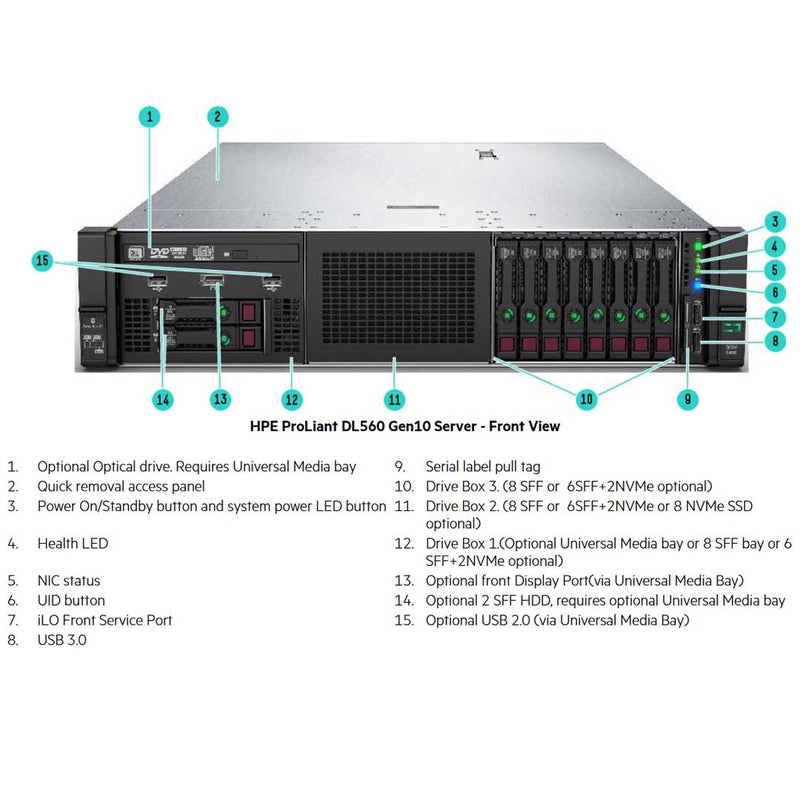

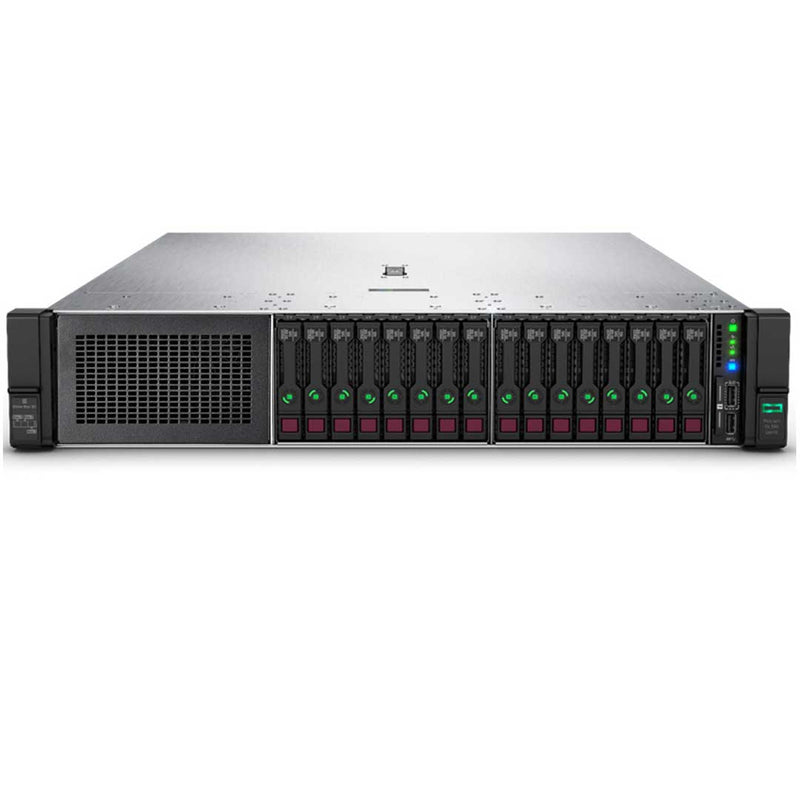

5. - Box 3 is populated by 8 SFF SAS/SATA bay and shipped as default
- The 8 NVMe drive option can only placed in bay 2
- The Universal media bay (872267-B21) not available with the 24 SFF front end, and can only be populated in box 1

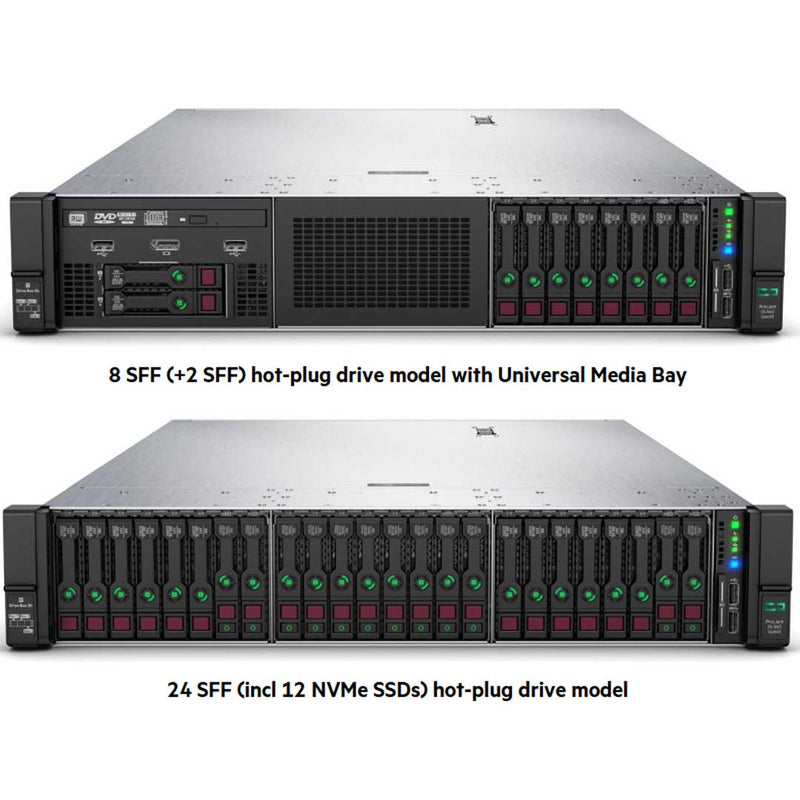

- The 8 SFF can be upgraded with a drive cage to 16 or 24 SFF with field upgrades. For optimal upgrade box 2 should be populated second, with box 1 the last to be populated for a field upgrade to 24 SFF
- A maximum of 12 NVMe drives can be supported with 2 NVMe drives in bay 1, 8 NVMe drives in bay 2 and 2 NVMe drives in bay 3
- All Pre-Configured models come with embedded software RAID support for 10 SATA drives. Optional HPE Smart Array controllers can be added
6. - Available in 94% and 96% efficiency
- Also available in -48 V dc and 227 V ac/380 V dc power inputs
- Must order 4 x 800 W flex slot PSU
7. - Available in 94% efficiency
- 1600 W power supplies only support high line voltage (200 - 240 V ac)
8. Requires the optional HPE Dual Micro SD 8GB USB kit 9. 2 front (Optional) USB 2.0 ports need the HPE DL560 Gen10 universal media bay kit (872267-B21). 10. - For UEFI boot mode, boot environment and OS image installations should be configured properly to support UEFI
- UEFI FIO setting (758959-B22) can be selected to configure the system in legacy mode in the factory for users HPE ProLiant Gen10 server
11. - HPE TPM 2.0 option (864279-B21) works with Gen10 servers with UEFI mode and not legacy mode. The TPM 2.0 option can be configured to the 1.2 version through the UEFI BIOS to support TPM 1.2 functionality
- HPE server systems can have a TPM module (Of any type) installed only once. It cannot be replaced with any other TPM module
|
