Specs
Quick Specs
1U Full Width Blade server
2 sleds per FX2 Enclosure
4x Intel Xeon E5-2600v4
Memory | Max: 1.5TB48 DDR4 RDIMM 2400Mhz
Boot Device:IDSDM
Storage | Max: N/A8x 2.5" SATA (HDD/SSD)
Networking:2x bNDC Supported
Mezzanine Storage Controllers:S140 (SW RAID)
miniPERC H330, H730, H730P
4x PCIe 3.0 (x8) expansion slots
When a Single FC830 is paired with two FD332 storage modules, the full-width sled server has access to all eight PCIe slots on the FX2s chassis.
None
Ideal for:
- High-Performance Computing (HPC)
- Virtualization
- Web Tech
This is one of the supported Node Servers, the PowerEdge FX2 or PowerEdge FX2s must be configured separately.
The PowerEdge FC640 delivers powerful performing processors, large memory capacity and highly scalable I/O capability that meet virtualization, server consolidation, scale-out, private cloud or hybrid cloud needs.
- PowerEdge FX2s: “switched” configuration supporting up to eight low-profile PCIe 3.0 expansion slots
- PowerEdge FX2: lower-cost “unswitched” configuration that does not offer expansion slots.
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
| Feature | Technical specification | |
|---|---|---|
| Form factor | Full-width – supports up to 2 sleds per PowerEdge FX2 enclosure | |
| Dimensions | W: 48.8 cm (19.2 in) D: 37.6 cm (14.8in) H: 5.1 cm (2 in) | |
| Processor | Intel® Xeon® processor E5-4600 v4 product family Processor sockets: 4 Cache: 2.5MB per core; core options: 4, 6, 8, 10, 12, 16, 18, 22 Chipset: Intel C610 series | |
| Memory1 | Up to 1.5TB (48 DIMM slots): 4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s | |
| I/O mezzanine cards | Access to 4 x PCIe 3.0 (x8) expansion slots, (up to 8 for certain configurations) | |
| RAID controllers | Internal controllers: PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P | |

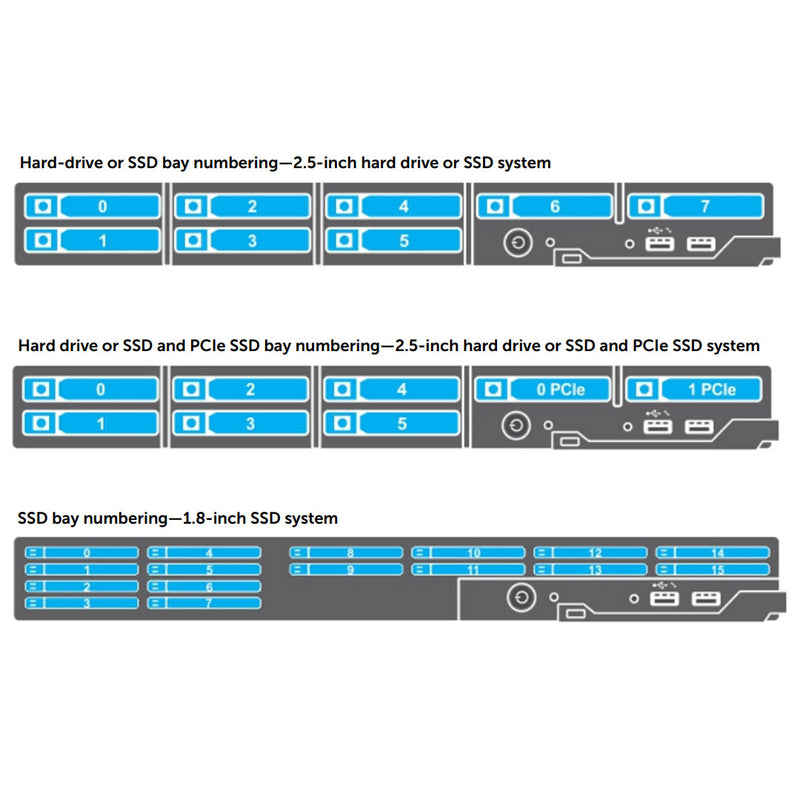

| Primary storage | Hot-plug hard drive options: PowerEdge Express Flash NVMe PCIe, SATA HDD/SSD or SAS HDD/SSD Up to 16 x 1.8" SSD or 8 x 2.5" | |
| Optional adapters | Optional NICs and HBAs | |
| Power supplies | Chassis level – PowerEdge FX2 hot-plug PSU: 2000W or 1600W AC in 1+1 redundant or 2+0 non-redundant configurations | |
| Video card | Video type Matrox® G200 (integrated with iDRAC8) Video memory: 16MB shared with iDRAC8 application memory | |
| Systems management | • FX uses Chassis Management Controller (CMC) to manage all resources (server nodes and shared infrastructure) in a single web console • OpenManage portfolio for FX supports local and remote management, consistent with other PowerEdge products • CMC and iDRAC are available with either Enterprise or Express licensing to best suit specific management needs • Server nodes each contain proven iDRAC8 with Lifecycle Controller for agent-free, automated systems management | |
| Operating systems | Microsoft® Windows Server® 2008 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 Novell® SUSE® Linux Enterprise Server Red Hat® Enterprise Linux VMware® ESX® For more information on the specific versions and editions, visit Dell.com/OSsupport. | |
