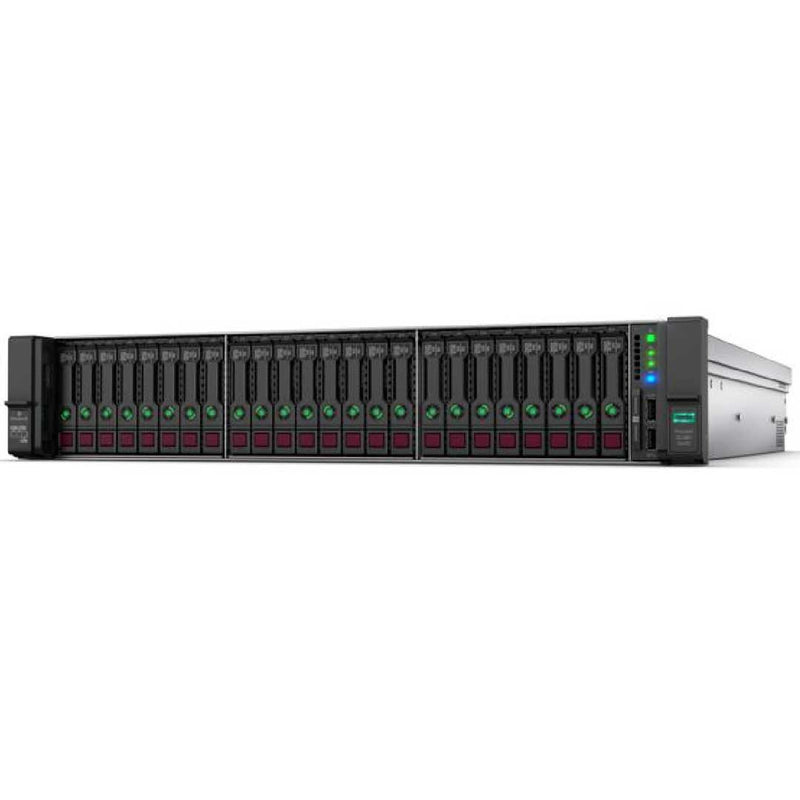

-*Image may differ from actaul product

HPE ProLiant DL380 (G10) 4210R 2.4GHz 10C 1P 32GB-R MR416I-P 8SFF Bc 800W PS Server | P56961-B21

Refurbished HPE ProLiant DL380 Gen10 Configure to Order Rack Server

HPE ProLiant DL380 (G10) 4210R 2.4GHz 10C 1P 32GB-R MR416I-P 8SFF Bc 800W PS Server | P56961-B21

Price: Request a Quote

Brand:

HPE

MPN:

P56961-B21

Type:

Server

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

HPE ProLiant DL380 (G10) 4210R 2.4GHz 10C 1P 32GB-R MR416I-P 8SFF Bc 800W PS Server | P56961-B21

Comes with:

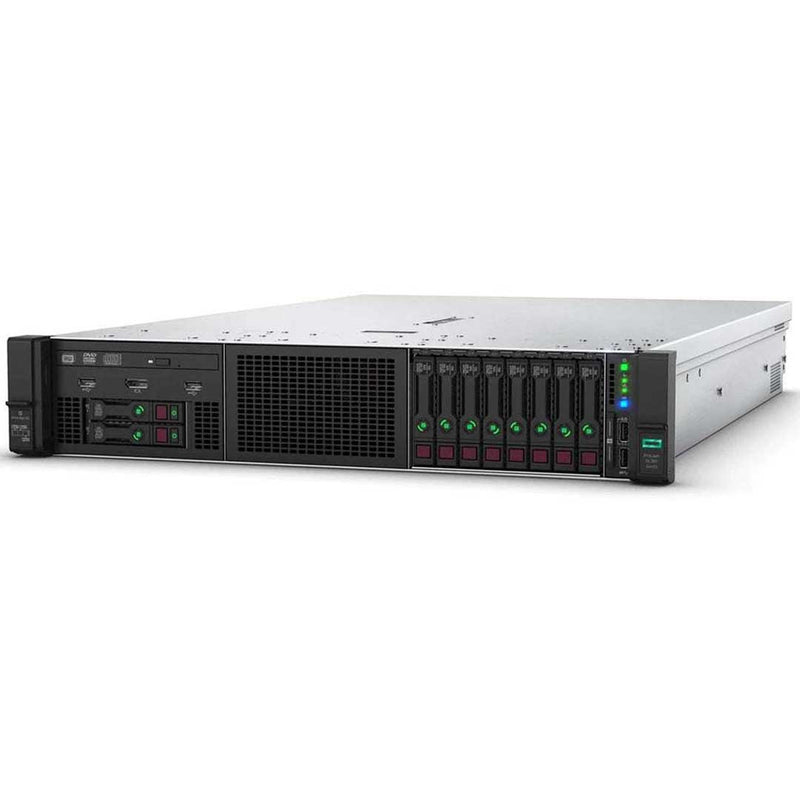

Chassis - 8SFF BC Chassis (P56970-B21)
Processors - 1 x 4210R (10 core, 2.4GHz, 100W)
Memory - 32 GB RDIMM 2R 2933 MT/s (1x 32GB)
Network Controller - Embedded 4 x 1GbE Ethernet Adapter
Storage Controller - Broadcom MegaRAID MR416i-p 4GB and Smart Storage Battery (SAS/SATA only)
Hard Drive - None Included
Supports only SAS/SATA Basic Carrier drives. Does not support Smart Carrier drives or NVMe drives.
Internal Storage - 8 SFF Chassis (upgradeable to 24 SFF front + 2SFF rear)
PCIe Slots - 3-slots (x8, x16, x8 with dual m.2) as standard; upgradeable to 8-slots in a 2 processor configuration
Power Supply - 1x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
Fans - 4 - Standard
Management - HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced, HPE iLO Advanced Premium Security Edition and HPE OneView Advanced (require licenses)
Energy Start -Energy Star 3.0
Form Factor - 2U Rack SFF Easy Install Rail Kit; cable management arm

Looking to Customize?

Not seeing the exact specs you need?
Start your build today with Express Computer Systems!

Start Customizing Today!

HPE ProLiant DL380 (G10) 4210R 2.4GHz 10C 1P 32GB-R MR416I-P 8SFF Bc 800W PS Server | P56961-B21 Spec Sheet

Manuals

Base Standard Capabilities

Product features

Feature

Description

Form factor

2U Rack

Chassis types ¹

8 SFF With optional universal media bay, and optional SFF or NVMe Options.
24 SFF bay with additional 6SFF rear drive bay option to total 30 SFF drives.
8 LFF With universal media bay
12 LFF Plus optional 4 LFF Mid-Plane or 3LFF + 2 SFF rear drive bay to total 19 LFF drives + 2 SFF drives.

System fans ²

Standard - Fan types included

1P models typically ship with 4 standard fans. The second processor option kit contains 2 additional fans. 1P Models have (4) (N+1 redundancy standard).
2P models typically ship with 6 standard fans. 2P Models have (6) (N+1 redundancy standard).
The 12 LFF and 24 SFF chassis ship with 6 High performance fans as standard.
The 8LFF chassis ships with 6 standard fans as standard.
High performance fan kit is available to meet ambient temperature environments.
High performance fan kits are required for rear drives, Graphics (GPU) card or NVMe configurations.

Chipset

Intel C621 chipset³

On system management chipset

HPE iLO 5 ASIC⁴

Memory ⁵

One of the following depending on model:

Type

HPE DDR4 SmartMemory, Registered Dual In-line Memory Module (RDIMM), Load Reduced Dual In-line Memory Module (LRDIMM)

Dual In-line Memory Module (DIMM) slots available

12 DIMM slots per processor, 6 channels per processor, 2 DIMMs per channel

Maximum capacity (LRDIMM)

3.0TB

24 x 128GB LRDIMM @ 2933 MT/s

Maximum capacity (RDIMM)

1.54TB

24 x 64 GB RDIMM @ 2933 MT/s

Maximum capacity (HPE Persistent memory)

6.0TB

12 X 512 GB Memory Modules @ 2666 MT/s

192GB

12 x 16 GB NVDIMM @ 2666 MT/s

Memory protection

For details on the HPE Server memory options RAS feature, please check the link below:

Expansion Slots	Technology	Bus Width	Connector Width	Slot Form Factor	Notes
1	PCIe 3.0	X8	X8	Full-Height, Full-Length slot	Proc 1
2	PCIe 3.0	X16	X16	Full-Height, Full-Length slot	Proc 1
3	PCIe 3.0	X8	X8	Full-Height, Half-Length slot	Proc 1

Expansion Slots	Technology	Bus Width	Connector Width	Slot Form Factor	Notes
1	PCIe 3.0	X8	X8	Full-Height, Full-Length slot	Proc 2
2	PCIe 3.0	X16	X16	Full-Height, Full-Length slot	Proc 2
3	PCIe 3.0	X8	X8	Full-Height, Half-Length slot	Proc 2

Specs 1

Interfaces

Serial

Optional, rear

Display port

1 (SFF 1 Front, optional via universal media bay, 826708-B21), 8 LFF Chassis standard

FlexibleLOM network ports

4 x 1GbE embedded (if equipped/depending on model) One (1) FlexibleLOM slot available on all chassis types (supporting various NIC adapters)

HPE iLO remote management network port

1Gb Dedicated

Front iLO service port

1 Standard (Not available on 12 LFF Chassis or when Systems Insight Display (SID) is ordered)

Micro SD slot⁶

1 Micro SD

USB 3.0

Up to 5 total: 1 front, 2 rear, 2 internal (Secure), 2 optional USB 2.0 front via universal media bay, or standard on 8 LFF Chassis

SID

Optional⁷

UEFI boot mode only:

TPM 2.0 Support

iSCSI Software initiator support

NVMe Boot support

HTTP/HTTPs Boot support as a PXE alternative

Platform Trust Technology (PTT) can be enabled

Boot support for option cards that only support a UEFI option ROM

Industry standard compliance

ACPI 6.1 Compliant

Microsoft Logo certifications

PCIe 3.0 Compliant

PXE Support

WOL Support

VGA/Display Port

Energy star

Triple Data Encrytion Standard (3DES)

SMBIOS 3.1

SNMP v3

UEFI 2.6

TLS 1.2

Redfish API

DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)

IPMI 2.0

Active directory v1.0

Secure digital 2.0

ASHRAE A3/A4

Energy star

3 Triple Data Encrytion Standard (DES)

Storage controllers

Software RAID
- HPE Smart Array S100i SR Gen10 SW RAID
Essential RAID Controller
- HPE Smart Array E208i-a SR Gen10 Controller
- HPE Smart Array E208i-p SR Gen10 Controller
- HPE Smart Array E208e-p SR Gen10 Controller
Performance RAID Controller ⁸
- HPE Smart Array P408i-a SR Gen10 Controller
- HPE Smart Array P408i-p SR Gen10 Controller
- HPE Smart Array P408e-p SR Gen10 Controller
- HPE Smart Array P816i-a SR Gen10 Controller

Optical drive

Ships standard in performance models

Optional: DVD-ROM, DVD-RW

Hard drives

None ship standard

Maximum internal storage

Internal Storage	Capacity	Configuration
Hot Plug SFF SAS HDD	72.0TB	24+6 x 2.4TB (With optional rear SFF drive cage)
Hot Plug SFF SATA HDD	60.0TB	24+6 x 2TB (With optional SFF drive cage)
Hot Plug LFF SAS HDD	273.68TB	12+4+3 x 14TB + 2 x 3.84TB (With optional Mid -Tray and rear LFF drive cage, plus 2 SFF SSD rear)
Hot Plug LFF SATA HDD	273.68TB	12+4+3 x 14TB + 2 x 3.84TB (With optional Mid -Tray and rear LFF drive cage, plus 2 SFF SSD rear)
Hot Plug SFF SAS SSD	459TB	24+6 x 15.3TB (With optional rear SFF drive cage)
Hot Plug SFF SATA SSD	115.2TB	24+6 x 3.84TB (With optional rear SFF drive cage)
Hot Plug LFF SATA SSD	80.64TB	12+4+3 x 3.84TB + 2 x 3.84TB (With optional Mid-Tray and rear LFF drive cage, plus 2 SFF SSD rear)
Hot Plug LFF SAS SSD	44.16TB	12+4+3 x 1.92TB + 2 x 3.84TB (With optional Mid-Tray and rear LFF drive cage, plus 2 SFF SSD rear)
Hot Plug SFF NVMe PCIe SSD	153.6TB	20 x 7.68TB NVMe

Graphics

Integrated video standard
- Video modes up to 1920 x 1200 @ 60 Hz (32 bpp)
- 16MB video memory
HPE iLO 5 on system management memory
- 32MB Flash
- 4Gb DDR3 with ECC Protection

HPE Server UEFI/legacy ROM ¹²

UEFI is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen10 servers have a UEFI Class 2 implementation and support both UEFI Mode (Default) and legacy BIOS mode.

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

Secure boot and secure start enable for enhanced security	Embedded UEFI Shell
Operating System (OS) specific functionality	Mass configuration deployment tool using iLO RESTful API that is Redfish API conformant
Support for > 2.2TB (Using GPT) boot drives	PXE boot support for IPv6 networks
USB 3.0 stack	Workload profiles for simple performance optimization

Embedded management

HPE Integrated Lights-Out (HPE iLO)
UEFI
Intelligent provisioning
iLO RESTful API

Server utilities

Active Health System (AHS)
AHS viewer
Smart update
iLO amplifier pack
HPE iLO mobile application
RESTful interface tool
Scripting tools
HPE OneView standard
HPE Systems Insight Manager (HPE SIM)

Security

UEFI secure boot and secure start support
Immutable silicon toot of trust
FIPS 140-2 validation (iLO 5 Certification in progress)
Common criteria certification (iLO 5 Certification in progress)
Configurable for PCI DSS compliance
AES and 3DES on browser
Support for Commercial National Security Algorithms (CNSA)
Tamper-Free updates - Components digitally signed and verified
Secure recovery - Recover critical firmware to known good state on detection of compromised firmware
Ability to rollback firmware
Secure erase of NAND/user data
Trusted Platform Module (TPM) 1.2 option
TPM 2.0 option
Bezel locking kit option
Chassis intrusion detection option

Server management

HPE iLO advanced
HPE InfoSight for Servers
HPE OneView advanced
HPE insight Cluster Management Utility (CMU)

Accelerator and GPU information

HPE supports various accelerators on select HPE Proliant servers to support different workloads. The accelerators enable seamless integration of GPU computing with HPE ProLiant Servers for High-Performance computing, large data center graphics, deep learning and virtual desktop deployments. These accelerators deliver all of the standard benefits of GPU computing while enabling maximum reliability and tight integration with system monitoring and management tools such as HPE Insight CMU.

Rack and power infrastructure

HPE G2 advanced and enterprise racks are perfect for the server room or today’s modern data center with enhanced airflow and thermal management, flexible cable management, and a 10-year warranty to support higher density computing.
HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°, include color-coded outlets and load segments and a low-profile design for optimal access to the rack and support for dense rack environments.
HPE Uninterruptible Power Systems (UPS) are cost-effective power protection for any type workload. Some UPS include options for remote management and extended runtime modules so the critical dense data center is covered in power outages.

One config simple (SCE)

SCE is a guided Self-Service tool to help sales and Non-Technical people provide end users with initial configurations in 3 to 5 minutes. User may then send the configuration on for configuration help, or use the existing ordering processes.

NOTE:

- The 3 LFF rear drives will consume space for the secondary riser.
- The 12 LFF chassis also supports 2 SFF rear which allows for the second riser.
- The 8 NVMe drive option (826689-B21) can only be leveraged in the SFF chassis and replaces box 1, 2 or 3, however there is a maximum of 20 NVMe drives supported with partial population of box1.
- The premium cage (826690-B21, 6 SAS/SATA+2 NVMe) can only be leveraged in the SFF chassis and replaces box 1, 2 or 3.
- The universal media bay (826708-B21) not available with the LFF chassis or the 24 SFF front end, and can only be populated in box1.
- The 8 SFF can be upgraded with a drive cage to 16 or 24 SFF. For optimal upgrade box2 should be populated second, with box 3 the last to be populated for a field upgrade to 24 SFF. For CTO builds requiring 24 SFF pluse use the 24 SFF chassis (868704-B21). Note a field upgrade to 24 SFF will require a high performance fan kit (867810-B21).
- The 8 LFF chassis cannot be upgraded to 12 LFF front in the field; however the 4-LFF mid plane (826686-B21) is supported, but will also require a performance fan kit (867810-B21).
- All Pre-Configured chassis come with embedded software RAID support for 14 SATA drives. Optional HPE Smart Array controllers can be added.
- 1P models typically ship with 4 standard fans. The second processor option kit contains 2 additional fans.
- The 12 LFF and 24 SFF chassis ship with 6 high performance fans as standard.
- High performance fan kit is available to meet ambient temperature environments.
- High performance fan kits are required for rear drives or NVMe configurations.
Please check the below for the quickspecs on HPE Integrated Lights-Out (iLO)
- The maximum memory by socket is limited by the processor selection.
- Mixing of RDIMM and LRDIMM memory is not supported.
- The maximum memory by socket is limited by the processor selection.
- Mixing of RDIMM and LRDIMM memory is not supported.
Performance RAID controllers require the HPE Smart Storage battery which is sold separately.
This support is on the optional universal media bay.
For additional technical thermal details regarding ambient temperatures, humidity and features support please visit:
UEFI is the default for the DL380 Gen10. Legacy mode can be selected in the field or as a CTO option (758959-B22).
The UEFI System utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information please check the link below:

top

Specs 2

Software overview

Feature	Description
OS and Virtualization Software Support for ProLiant Servers	1st Generation Intel Xeon Scalable Processor Family	2nd Generation Intel Xeon Scalable Processor Family
	Windows Server 2019: Essentials, Standard and Datacenter Windows Server 2016 : Essentials, Standard and Datacenter Windows Server 2012 R2: Essentials, Standard and Datacenter Micrsoft Hyper-V Server: 2012 R2, 2016 and 2019 VMware vSphere 6.0 U3, 6.5 and 6.7 ClearVM: 2.0 Red Hat Enterprise Linux (RHEL) 6.9 and 7.3 SUSE Linux Enterprise Server (SLES) 11 SP4, 12 SP2 and 15 (Includes Xen)	Windows Server 2019: Essentials, Standard, Datacenter Windows Server 2016: Essentials, Standard, Datacenter Windows Server 2012 R2: Essentials, Standard, Datacenter Microsoft Hyper-V Server: 2012 R2, 2016 and 2019 VMware vSphere 6.0 U3, 6.5 U2 and 6.7 U1 ClearVM: 7.6 and 8.0 Red Hat Enterprise Linux (RHEL) 7.6 w/ Kbase SUSE Linux Enterprise Server (SLES) 12 SP4 and 15 SP1 (Includes Xen)
NOTE: ClearOS allows users to build a fully functional server that is just right for end users at no upfront cost For more information on HPE Certified and supported ProLiant Servers for OS and virtualization software and latest listing of software drivers available for the server

top

Physical specifications

Features	Description
Dimensions	SFF drives: 8.73 x 44.55 x 67.94 cm (3.44 x 17.54 x 26.75 in)
Dimensions	LFF drives: 8.73 x 44.55 x 73.02 cm (3.44 x 17.54 x 28.75 in)
Weight (Approximate)	Maximum: 19.5 kg (43.00 lb) Minimum: 14.9 kg (32.75 lb) Minimum: 8 SFF chassis with 1x SFF HDD and 7 HDD blanks, 2x Drive Bay blanks, 1x processor including standard heatsink, 1x power supply (plus blank), 1x Smart Array, 1x Riser installed, cables for the above)
Weight (Approximate)	Maximum: 24.5 kg (54 lb) Minimum: 17.1 kg (37.75 lb) Maximum: 12 LFF hard drives (no rear drives), 2x processors, 2x power supplies, 1x Smart Array, 2x Risers installed)

top

Electrical specifications

Feature	Description
Rated line voltage	For 1600 W (Platinum) power supply 200 - 240 V ac For 800 W power supply Titanium 200 - 240 V ac Platinum 100 - 240 V ac Universal 200 - 277 V ac -48 V dc -40 V dc to -72 V dc For 500 W (Platinum) power supply 100 - 240 V ac
BTU Rating	Maximum For 1600 W power supply 5918 BTU/hr (At 200 V ac) 5888 BTU/hr (At 220 V ac) 5884 BTU/hr (At 240 V ac) For 800 W power supply Titanium 2905 BTU/hr (At 200 V ac) 2899 BTU/hr (At 220 V ac) 2893 BTU/hr (At 240 V ac) Platinum 3067 BTU/hr (At 100 V ac) 2958 BTU/hr (At 200 V ac) 2949 BTU/hr (At 240 V ac) Universal 2964 BTU/hr (At 200 V ac) 2951 BTU/hr (At 230 V ac) 2936 BTU/hr (At 277 V ac) -48 V dc 2983 BTU/hr (At -40 V dc) 2951 BTU/hr (At -48 V dc) 2912 BTU/hr (At -72 V dc) For 500 W power supply 1902 BTU/hr (At 100 V ac) 1840 BTU/hr (At 200 V ac) 1832 BTU/hr (At 240 V ac)
Rated steady-state power	For 1600 W power supply 1600 W (At 240 V ac) 1600 W (At 240 V dc) for China only For 800 W power supply Titanium 800 W (At 200 V ac) 800 W (At 240 V ac) 800 W (At 240 V dc) for China only Platinum 800 W (At 100 V ac) 800 W (At 240 V ac) 800 W (At 240 V dc) input for China only Universal 800 W (At 200 V ac) 800 W (At 277 V ac) -48 V dc 800 W (At -40 V dc) 800 W (At -72 V dc) For 500 W power supply 500 W (At 100 V ac) 500 W (At 240 V ac) 500 W (At 240 V dc) input for China only
Maximum peak power	For 1600 W power supply 1600 W (At 240 V ac) 1600 W (At 240 V dc) for China only For 800 W power supply Titanium 800 W (At 200 V ac) 800 W (At 240 V ac) 800 W (At 240 V dc) for China only Platinum 800 W (At 100 V ac) 800 W (At 240 V ac) 800 W (At 240 V dc) input for China only Universal 800 W (At 200 V ac) 800 W (At 277 V ac) -48 V dc 800 W (At -40 V dc) 800 W (At -72 V dc) For 500 W power supply 500 W (At 100 V ac) 500 W (At 240 V ac) 500 W (At 240 V dc) input for China only

top

Environmental specifications

Feature	Description
Standard operating temperature	10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°Cper every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight Maximum rate of change is 20°C/hr (36°F/hr) The upper limit and rate of change may be limited by the type and number of options installed System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F)
Extended ambient	Operating 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the below website: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the below website: Non-operating -30° to 60°C (-22° to 140°F) Maximum rate of change is 20°C/hr (36°F/hr)
Relative humidity (Rh)	Operating 8% to 90% - Rh 28°C (82°F) maximum wet bulb temperature Non-condensing Non-operating 5% to 95% - Rh 38.7°C (101.7°F) maximum wet bulb temperature Non-condensing
Altitude	Operating 3050 m (10,000 ft) This value may be limited by the type and number of options installed Maximum allowable altitude change rate is 457 m/min (1500 ft/min) Non-operating 9144 m (30,000 ft) Maximum allowable altitude change rate is 457 m/min (1500 ft/min)
Acoustic noise¹	Idle LWAd 4.8 B entry 4.4 B base 4.6 B perf LpAm 37 dBA entry 31 dBA base 31 dBA perf Operating LWAd 4.8 B entry 4.4 B base 4.6 B perf LpAm 37 dBA entry 31 dBA base 31 dBA perf
NOTE: Acoustics levels presented here are generated by the test configuration only. Acoustics levels will vary depending on system configuration. Values are subject to change without notification and are for reference only Product conformance to cited product specifications is based on sample (Type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels

top

Safety certifications

Feature	Description
Emissions Classification (EMC) - Regulatory information	To view the regulatory information for the product, view the safety and compliance information for Server, Storage, power, Networking, and rack products, available at the Hewlett Packard Enterprise support center:

top

Spec Sheet 4

Technical specifications	HPE ProLiant DL380 Gen10 server
Processor name	Intel
Processor family	Intel® Xeon® Scalable 8100/8200 series Intel® Xeon® Scalable 6100/6200 series Intel® Xeon® Scalable 5100/5200 series Intel® Xeon® Scalable 4100/4200 series Intel® Xeon® Scalable 3100/3200 series
Processor core available	4 to 28 core, depending on model
Processor cache	8.25 - 38.50 MB L3, depending on processor model
Processor speed	3.9 GHz, maximum depending on processor
Expansion slots	8, for detailed descriptions reference the QuickSpecs
Maximum memory	3.0 TB with 128 GB DDR4, depending on processor model 6.0 TB with HPE 512GB 2666 Persistent Memory Kit, depending on processor model
Memory, standard	1.54 TB (24 X 64 GB) RDIMM 3.0 TB (24 X 128 GB) LRDIMM 6.0 TB (12 X 512 GB) Persistent Memory
Memory slots	24 DIMM slots
Memory type	HPE DDR4 Smart Memory with optional Intel® Optane™ persistent memory 100 series for HPE, depending on processor model selected. Intel Optane Persistent Memory for HPE only supported on select 2nd Generation Intel Scalable Series Processors, to include: 82xx, 62xxR, 62xx, 52xxR, 52xx series processors, and the 4215R and 4215 processors.
System fan features	Hot-plug redundant fans, standard
Network controller	HPE 1 Gb 331i Ethernet adapter 4-ports per controller and/or optional HPE FlexibleLOM, depending on model
Storage controller	1 HPE Smart Array S100i and/or 1 HPE Smart Array P408i-a and/or 1 HPE Smart Array P816i-a and/or 1 HPE Smart Array E208i-a, depending on model
Product Dimensions (imperial)	17.54 x 28.75 x 3.44 in
Weight	32.6 lb
Infrastructure management	HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, and HPE OneView Advanced (optional requires licenses)
Drive supported	8 or 12 LFF SAS/SATA/SSD 8, 10, 16, 18 or 24 SFF SAS/SATA/SSD 2 M.2 SATA SSD standard on primary riser, depending on configuration 6 SFF rear drive optional or 3 LFF rear drive optional and 2 SFF or 2 Dual UFF rear drive optional 20 SFF NVMe optional NVMe support via Express Bay will limit maximum drive capacity

Shipping Information

Express Computer Systems can ship to virtually any address in the world and provides you with the best shipping rates possible. Cost of shipping varies depending on what service you require, your destination and size of the shipment. Shipping costs will be calculated separately from your order and billed to you post purchase. In the notes section of your order please provide us with your preferred shipping method and we will get back to you.

Custom configured orders ship within 2 business days after all required products are in stock.

Please allow 3 business days for products that are not in stock to arrive to our facility in Irvine, California.

Domestic Shipments

Standard Ground
- Shipping time: 2-7 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-10 business days
- Excludes weekends, holidays or weather delays.
3 Business Days
- Shipping time: 3 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 3-6 business days
- Excludes weekends, holidays or weather delays.
2 Business Days
- Shipping time: 2 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-5 business days
- Excludes weekends, holidays or weather delays.
Overnight / Next Business Day
- Shipping time: 1 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 1-4 business days
- Excludes weekends, holidays or weather delays.

International Shipments

International Economy
- Shipping time: 4-6 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 5-9 business days
- Excludes weekends, holidays or weather delays.
International Priority
- Shipping time: 1-3 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-6 business days
- Excludes weekends, holidays or weather delays.

For more information on shipping view our Shipping Information page or send us a message

ECS Warranty Information

Express Computer Systems (ECS) provides a 1 year parts warranty against defects in material or workmanship that will affect the products functionality. All refurbished items are tested prior to shipping to guarantee up-time upon arrival. If you are having issues with an item we provided please Contact Us and we will do our best to assist you.

What does our ECS warranty cover?
We offer 1 year warranty as standard and additional years can be added to fit your needs. Please reach out to a sales associate via the Contact Us page or live chat for more information on extended coverage options. During the coverage period if your product fails we will offer a Next Business Day replacement. If we are unable to replace the product we will refund its original selling price. Shipping costs and tax are not refundable. Express Computer Systems retains the right to decide whether the goods will be replaced or refunded.

What is not covered by our warranty?
Our warranty does not cover any problem caused by the following conditions:

accidents; misuse; carelessness; electrostatic discharge; shock; temperature or humidity beyond the specifications of the product; improper installation; operation; modification;
any improper use that contravenes the instructions in the user manual;
problems caused by other equipment. Our warranty is void if the product is returned with damaged, removed, counterfeit labels, or any modifications (including any component or external cover removal). Our warranties do not cover data loss or damages to any other equipment. In addition, our warranties do not cover incidental damages, consequential damages, or costs related to data recovery, removal, and installation.

Important notes:

Please ask for additional warranty/coverage that you may require in addition to the standard 1 ECS warranty prior to final purchase. Requesting additional warranty after your purchase can be denied.
FREE technical support is provided on purchased items via phone, email, or live chat.

About Express Computer Systems

Express Computer Systems is committed to transforming our customers’ IT infrastructure with high quality products at affordable costs. Our sales reps and customer support engineers understand our customers rely heavily on advanced technology to run their business but need to do so without breaking the bank.

We specialize in building custom server configurations, custom storage solutions, networking solutions, and components from top manufacturers including HPE, Dell, Cisco, NetApp, Dell EMC, HPE Nimble and many others.

Same-Day Shipping

At Express Computer Systems, we know hardware emergencies can happen at anytime. We also understand that you want to receive the best hardware as quickly as possible. At Express Computer Systems we'll ship the majority of our orders out the same day payment is made. Curious if the item you need will make it out on time? Feel free to contact us directly via the Contact Us link at the bottom, Live Chat feature or (800) 327-0730.

Buy, Sell, Rent, Lease, Trade-In

At Express Computer Systems we not only will sell you equipment at a great value, but we'll also purchase your used Dell, Cisco, NetApp or other networking equipment. Feel free to contact us with the model of the items you're looking to sell and we'll get you a quote ASAP. We also have flexible financing options for your purchasing needs.

In-House Configuration and Testing Lab

Every item we sell is tested on-site in our state-of-the-art hardware engineering lab. We use certified technicians to test every piece of equipment as well as updating all necessary firmware. The highest quality of testing and certification is guaranteed. We warranty all of our items we sell. Ask us today about warranty for a specific item.

Leave a Message

HPE ProLiant DL380 (G10) 4210R 2.4GHz 10C 1P 32GB-R MR416I-P 8SFF Bc 800W PS Server | P56961-B21

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

HPE ProLiant DL380 (G10) 4210R 2.4GHz 10C 1P 32GB-R MR416I-P 8SFF Bc 800W PS Server | P56961-B21

Comes with:

Looking to Customize?

Manuals

Manuals

Product Specs

Base Standard Capabilities

Product features

Specs 1

Specs 2

Software overview

Physical specifications

Electrical specifications

Environmental specifications

Safety certifications

Spec Sheet 4

Shipping Information

ECS Warranty Information

About Express Computer Systems

Shop with Confidence

HPE ProLiant DL380 (G10) 4210R 2.4GHz 10C 1P 32GB-R MR416I-P 8SFF Bc 800W PS Server | P56961-B21

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

HPE ProLiant DL380 (G10) 4210R 2.4GHz 10C 1P 32GB-R MR416I-P 8SFF Bc 800W PS Server | P56961-B21

Comes with:

Looking to Customize?

Manuals

Manuals

Product Specs

Base Standard Capabilities

Product features

Specs 1

Specs 2

Software overview

Physical specifications

Electrical specifications

Environmental specifications

Safety certifications

Spec Sheet 4

Shipping Information

ECS Warranty Information

About Express Computer Systems

Related Items

Your Recently Viewed Items

Subscribe

Shop with Confidence
