Quick Specs
Form Factor:
Full Height, Single Width Blade Server
Processor | Max: 28 Cores2 x 2nd Gen Intel Xeon Scalable
Memory | Max: 1.5TB/3TB24 DDR4 RDIMM/LRDIMM 2933Mhz
DCPMM/NVDIMM Both Supported
6 SFF SAS/SATA (HDD/SSD), NVMe SSD
Storage Controller:S140 (SW RAID)
HBA330 MX, H730p MX, H745p MX, HBA330 Mini-Mezzanine (For MX5016s)
2 PCIe 3.0 x 16 mezzanine slots (Fabric A and B)
1 PCIe 3.0 x 16 mini-mezzanine slot (Fabric C)
iDRAC9 with Lifecycle Controller and vFlash
Boot Options:BOSS-S1
ISDSM
USB
Key features include:
- Boot options include BOSS-S1 or Internal Dual SD Modules (IDSDM)
- Two PCIe mezzanine card slots for connecting to network Fabric A and B
- One PCIe mini-mezzanine card slot for connecting to storage Fabric C
- iDRAC with Lifecycle Controller
Ideal for:
- Virtualization

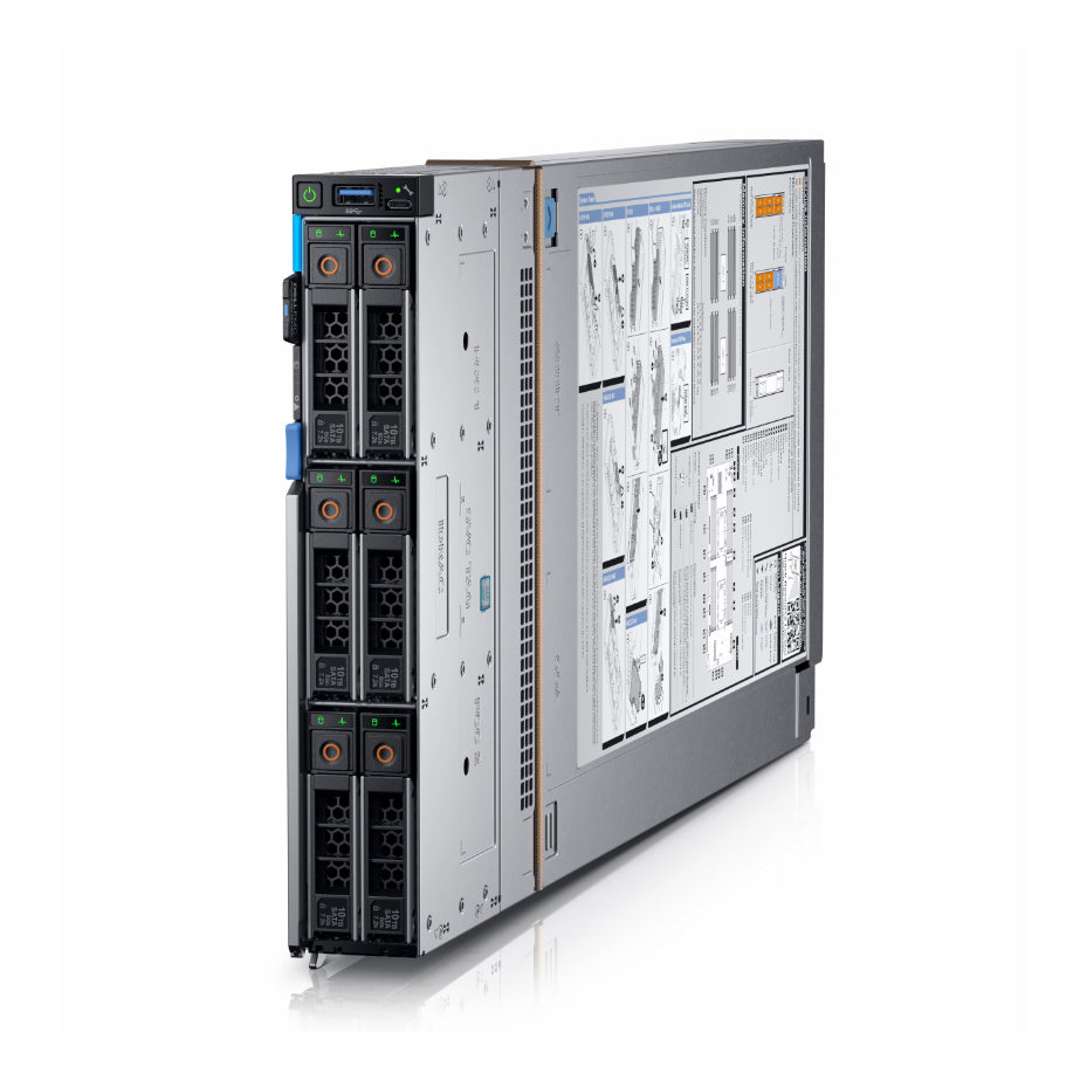

The Refurbished PowerEdge MX740c is a two-socket, full-height, single-width compute sleds that offer impressive performance and scalability. The MX740c is ideal for dense virtualization environments and can serve as a foundation for collaborative workloads. An MX7000 chassis can support up to eight MX740c sleds. Mixing compute sleds of different generations is supported.

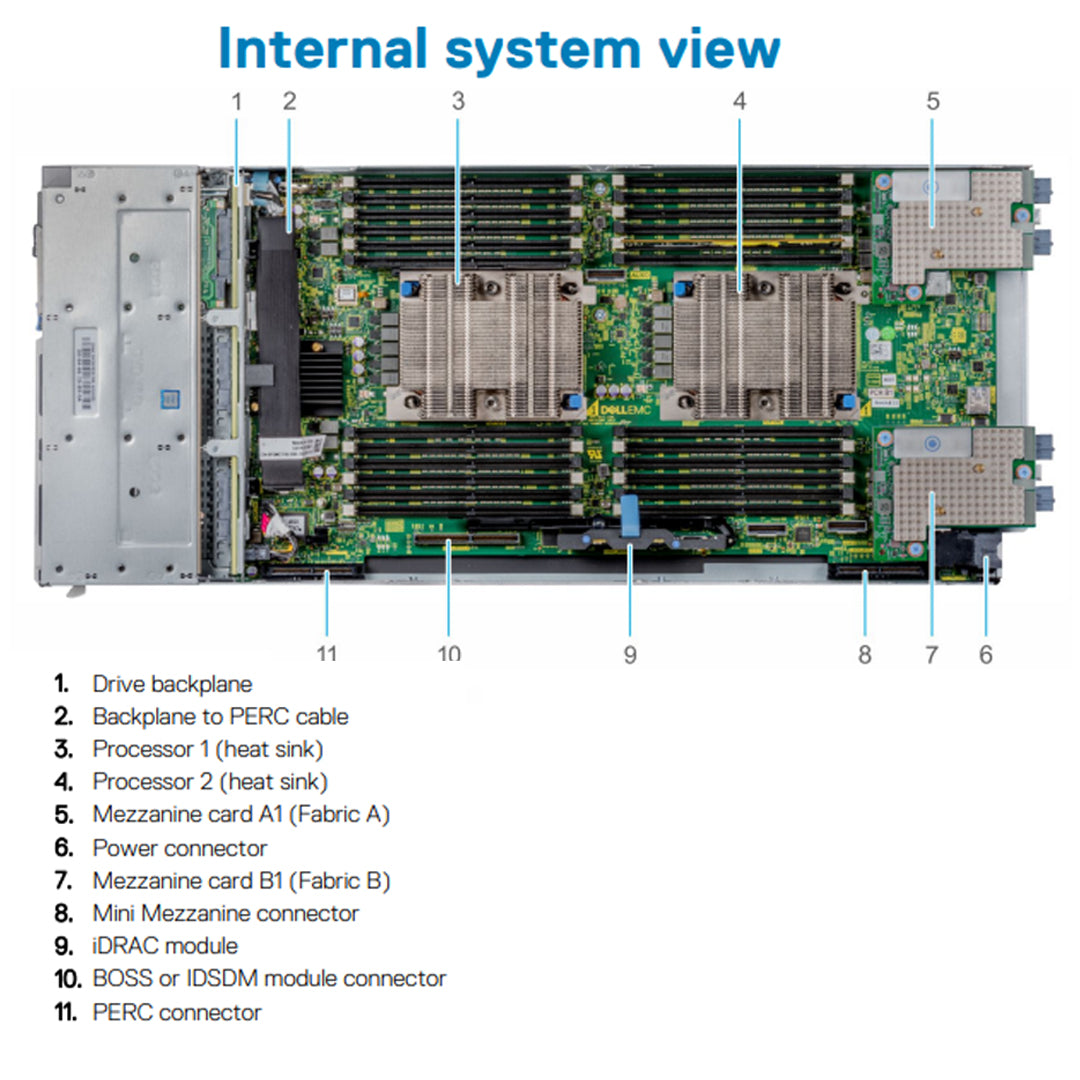

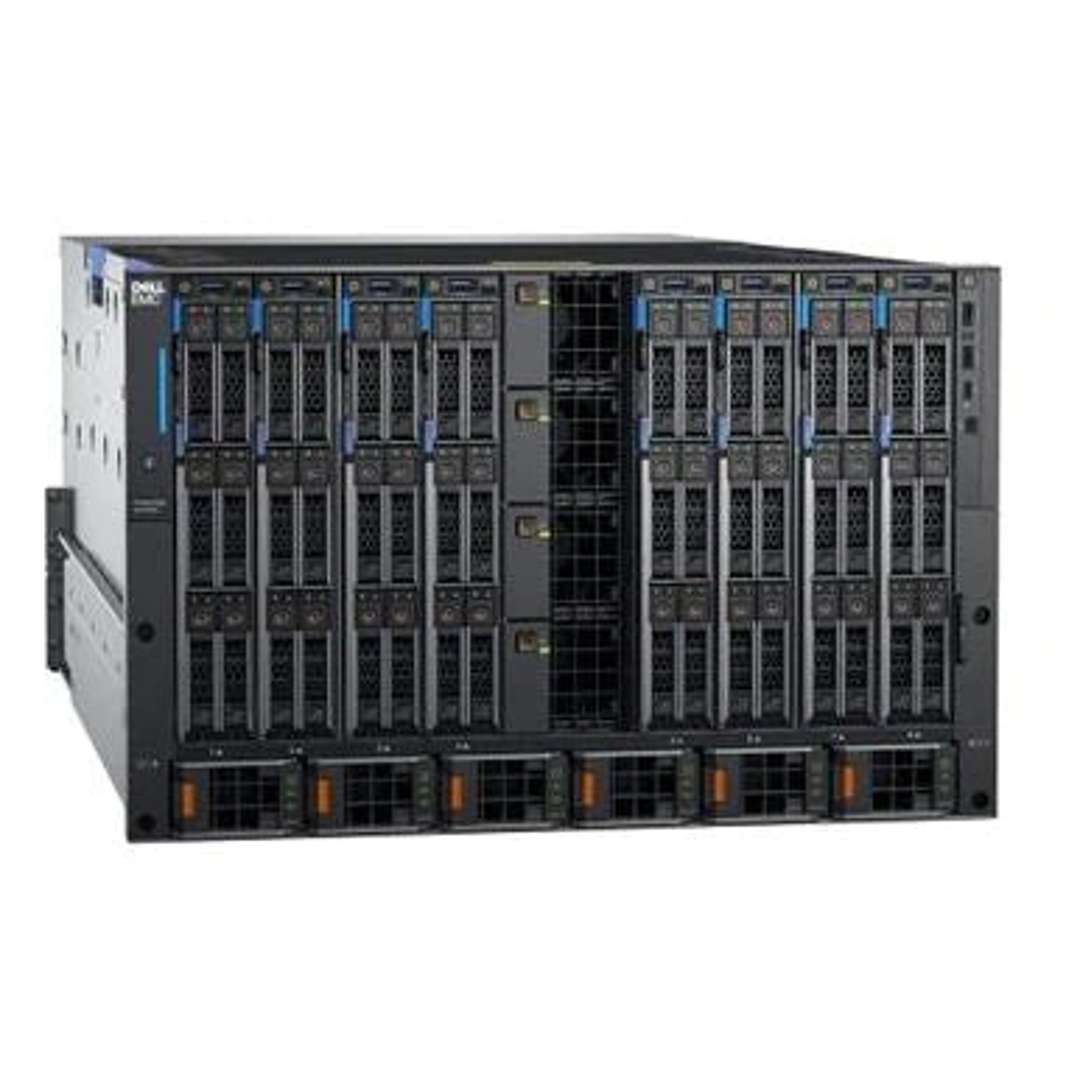

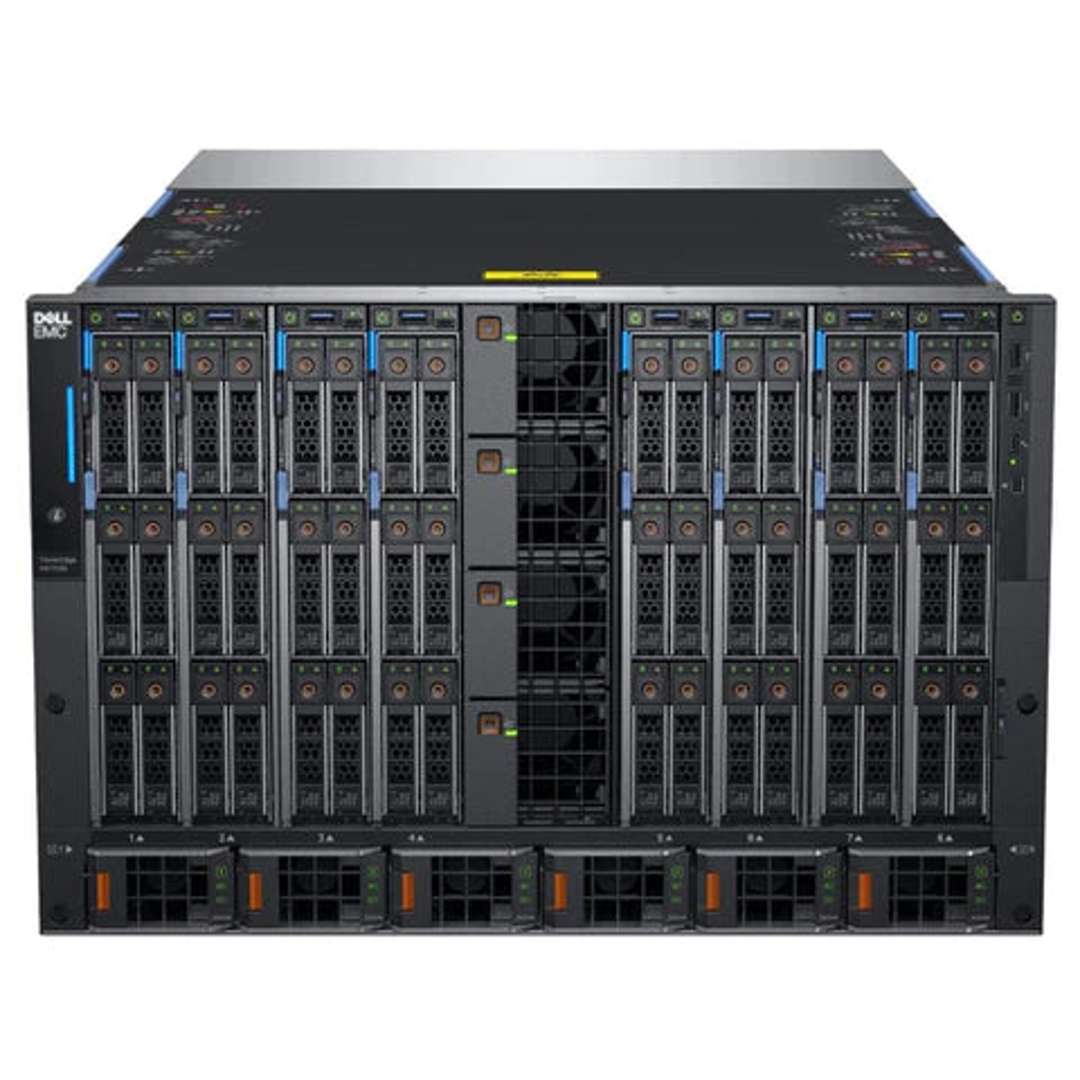

MX7000 Supported Sled Options
Dell PowerEdge MX Series
- Dell PowerEdge MX7000 Modular CTO Enclosure Chassis
-
Dell PowerEdge MX740c CTO Compute Sled Up to 8
- Dell PowerEdge MX750c CTO Compute Sled Up to 8
- Dell PowerEdge MX760c CTO Compute Sled Up to 8
- Dell PowerEdge MX840c CTO Compute Sled Up to 4
- Dell PowerEdge MX5016s CTO Storage Sled Up to 7 Requires a minimum of 1 compute node in a chassis with storage sleds
Each Node is a separate CTO you must configure.
Dell PowerEdge MX740C CTO Compute Sled
A fully configurable single-width compute sled powered by up to two-28-core 2nd Generation Intel Xeon Scalable processors. A maximum of eight MX740c servers can be installed in the PowerEdge MX7000 chassis.
- Flexible memory configurations from capacities of up to 1.5TB (RDIMM) or 3TB (LRDIMM); support up to 192GB NVDIMM for large in-memory applications
- Supports up to 12 slots for Intel® OptaneTM DC persistent memory DCPMM (6.1TB) with a maximum total capacity of 7.68TB per server
- Choice of optional M.2 Boot Optimized Storage Solution (BOSS) or Internal Dual microSD Module (IDSDM), to streamline operating system and data storage
- Option of Express Flash NVMe PCIe SSD for high performing direct attached storage requirements
Intelligently automate to accelerate operations
As with every PowerEdge server, embedded, agent-free integrated Dell Remote Access Controller (iDRAC) 9 with Lifecycle Controller (LC) simplifies server systems management. Dell EMC OpenManage Enterprise – Modular Edition (OME-Modular) provides comprehensive in-system management within the PowerEdge MX7000 server chassis. Delivering key abilities of OpenManage Enterprise systems management, OME-Modular unified web/RESTful API interface manages the entire PowerEdge MX environment, including computer, storage and networking.
- Deploy, monitor, manage, configure, update, troubleshoot and remediate Dell EMC servers from any location, regardless of operating system or hypervisor presence or state.
- Speed systems management performance with enhanced iDRAC9 processor, up to four times better performance over the prior generation.
Building blocks for the modern data center
Optimized for Dell EMC’s PowerEdge MX kinetic infrastructure ecosystem, the PowerEdge MX740c server, with dense compute, large memory capacity and rich set of storage subsystem options, delivers the flexibility and agility needed in today’s software-defined data centers.
- Single-width; up to eight sleds per PowerEdge MX7000 chassis.
- One or two, up to 28-core 2nd Generation Intel Xeon Scalable processors per sled, up to 448 cores per chassis.
- Up to 24 DDR4 DIMMs slots, 3TB max memory and speeds up to 2933MT/s; up to 192 DIMMS per chassis for up to 24.5TB max memory.
- Supports up to 12 slots for Intel Optane DC persistent memory DCPMM (6.1TB) with a maximum total capacity of 7.68TB per server.
- Up to six 2.5" drive bays for SAS/SATA (HDD/SDD) and NVMe PCIe SSD support plus optional M.2 boot.
Dynamically provision to maximize workload performance and drive efficient infrastructure
Disaggregate and granularly reassign resources with the PowerEdge MX architecture to maximize utilization and minimize overprovisioning and stranded infrastructure. PowerEdge MX740c fully configurable, no compromise compute provides impressive performance in compact customizable configurations for workload optimization.
- Scale compute resources with second-generation Intel Xeon Scalable processors and tailor performance based on your unique workload requirements.
- Flexible memory configurations from capacities of 8GB to 3TB; RDIMMs and LRDIMMs for reduced memory loading and greater density.
- High performance Express Flash NVMe PCIe SSD delivers exceptional endurance in demanding enterprise environments.
Memory
RDIMM
Registered DIMM – Provides for higher capacity options and advanced RAS features. It is the most commonly used DIMM type, and offers the best mix of frequency, capacity, and rank structure choices.
LRDIMM
Load Reduced DIMM – Provides maximum capacity beyond that of an RDIMM but at a higher power consumption. Uses a buffer to reduce memory loading to a single load on all DDR signals, allowing for greater density
DCPMM
(also known as Intel Optane DC persistent memory): Provides a large memory capacity at an affordable price. Any application can take advantage of DCPMM in Memory Mode with a compatible operating system. Unlock more performance and persistency when using an application that supports App Direct Mode. DCPMM is used along with RDIMMs or LRDIMMs and a maximum number of 6 DCPMMs can be used per CPU. This persistent memory technology does not require a battery.
NVDIMM
Non-Volatile DIMM – Provides a persistent memory solution with NAND and DRAM that maintains data in power loss, system crash, or normal shutdown. This solution requires a battery as a power source for an AC loss condition. It can be used along with RDIMMs.
Mezzanine & PERCs
The system can support 1 Mini-Mezz and 1 Internal PERC or is can handle 1 Jumbo PERC which will do the work of both the Mini-Mezz and the Internal PERC. This Fabric C slot is how you are able to connect the MX5016s Storage Array to this compute sled.
Mini-Mezzanine
The Mini-Mezzanine is install in the rear of the system near the Fab A and B Mezzanine Cards. This Mini Mezzanine gets connect to the Fab C in the MX7000 Enclosure. Only certain cards are supported here.
Internal PERC
This Internal PERC Module is considered the MX version of the PERC cards. This card controls the internal drives on this compute sled. There is a dedicated slot for this PERC near the front of the system. This is not supported if a JUMBO PERC is installed. They use the same SCREW to connect to the chassis.
JUMBO PERC
The Jumbo PERC is very unique it does the action of both the Mini-Mezzanin card and the Internal PERC. Not only can this control the internal drives but with also controls the External Storage Arrays that are connected to the Fab C in the back of the MX7000 Enclosure. This is one way to connect to the MX5016s Storage Array. If this is installed, the system does not support the Mini-Mezzanine or the Internal PERC.
BOOT Options & Remote Management
The MX740c has the option to install the OS with the BOSS Module. If you're trying to boot the Hypervisor you can install the IDSDM. These two cards can't be installed together. They take up the same slot. Likewise, you are able to manage the iDRAC Remote Management with the vFlash Module.
iDRAC 9 vFlash
This iDRAC vFlash Module lets you install and manage the system remotely. You are also able to easily upgrade to the enterprise software with a Micro SD vFlash card that controls this all.
IDSDM
The Internal Dual SD Module supported up to 2 Micro SD cards for redundancy when loading the Hypervisor OS system. This is not suitable for loading a full OS. The Boss card will do that. The IDSDM and the BOSS card can not be installed together.
BOSS
This Boot Optimized Sub System is ideal for loading the OS on to any server. It saves a drive from being allocated for this job and does not take up any PCIe slots. The BOSS and IDSDM can not be installed together.
