Home / 2 / Dell PowerEdge FC630 Blade Server Chassis (2x2.5")
SKU: DPE-FC630-2x2.5-Chassis

Dell PowerEdge FC630 Blade Server Chassis (2x2.5")

Dell

| Chassis
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor:

Half-Height Blade Server - 4 Sleds per FX2

Processor | Max: 44 cores

2 x Intel Xeon E5-2600v4

Memory | Max: 1.5TB

24 DDR4 RDIMM 2400Mhz

Storage | Max: N/A

2x 2.5" SFF SAS/SATA/NVMe or
8x 1.8" SFF SAS/SATA/NVMe

PCIe:

2 x PCIe 3.0 Mezzanine Slots,
1 x bNDC,
1 x IDSSM/rSPI

GPU:

None

Ideal for:

  • Database
  • Virtualization

This is one of the supported Node Servers, the PowerEdge FX2 or PowerEdge FX2s must be configured separately.

Dell PowerEdge FX Architecture Server Options
The FX2 Sled Options:
The FX2 chassis has two versions:
  • PowerEdge FX2s: “switched” configuration supporting up to eight low-profile PCIe 3.0 expansion slots
  • PowerEdge FX2: lower-cost “unswitched” configuration that does not offer expansion slots.
Supported Chassis Options

An impressively powerful two-socket FX converged architecture server, the Dell PowerEdge FC630 is designed to be a workhorse for data centers looking for new levels of efficiency and density in an incredibly small footprint

FC630 8x 1.8" Blade Server View FC630 Blade Server

Form Factor:

Half-Height Blade Server - 4 Sleds per FX2

Processor | Max: 44 Cores

2 x Intel Xeon E5-2600v4

Memory | Max: 1.5TB

24 DDR4 RDIMM 2400Mhz

Storage | Max: N/A

8x 1.8" SFF SAS/SATA/NVMe

PCIe:

2 x PCIe 3.0 Mezzanine Slots,
1 x bNDC,
1 x IDSSM/rSPI

GPU:

None

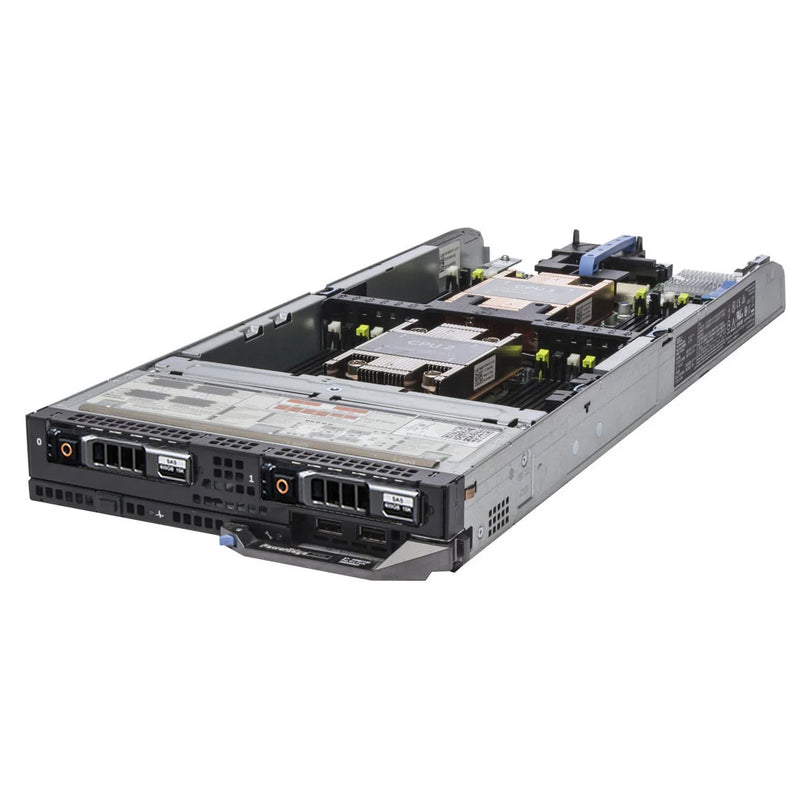

FC630 2x 2.5" Blade Server View FC630 Blade Server

Form Factor:

Half-Height Blade Server - 4 Sleds per FX2

Processor | Max: 44 Cores

2 x Intel Xeon E5-2600v4

Memory | Max: 1.5TB

24 DDR4 RDIMM 2400Mhz

Storage | Max: N/A

2x SFF SAS/SATA/NVMe

PCIe:

2 x PCIe 3.0 Mezzanine Slots,
1 x bNDC,
1 x IDSSM/rSPI

GPU:

None

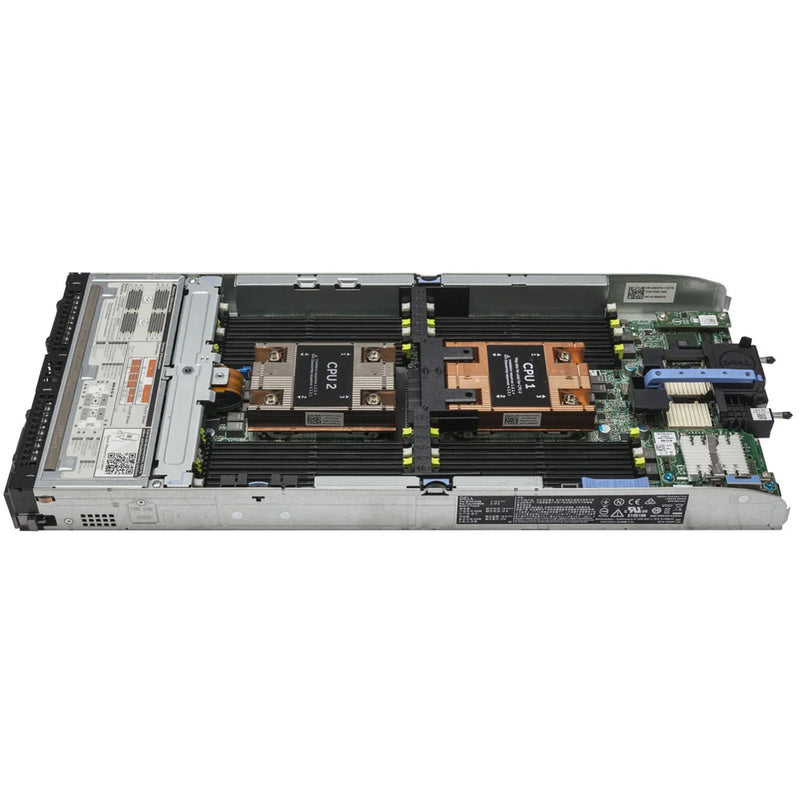

With powerful processors, impressively large memory and highly scalable I/O capabilities, the PowerEdge FC630 excels at running applications for midsize and large businesses, like enterprise resource planning and customer relationship management. Combining exceptional performance and functional flexibility, the FC630 is also ideal for large databases or substantial virtualization environments.

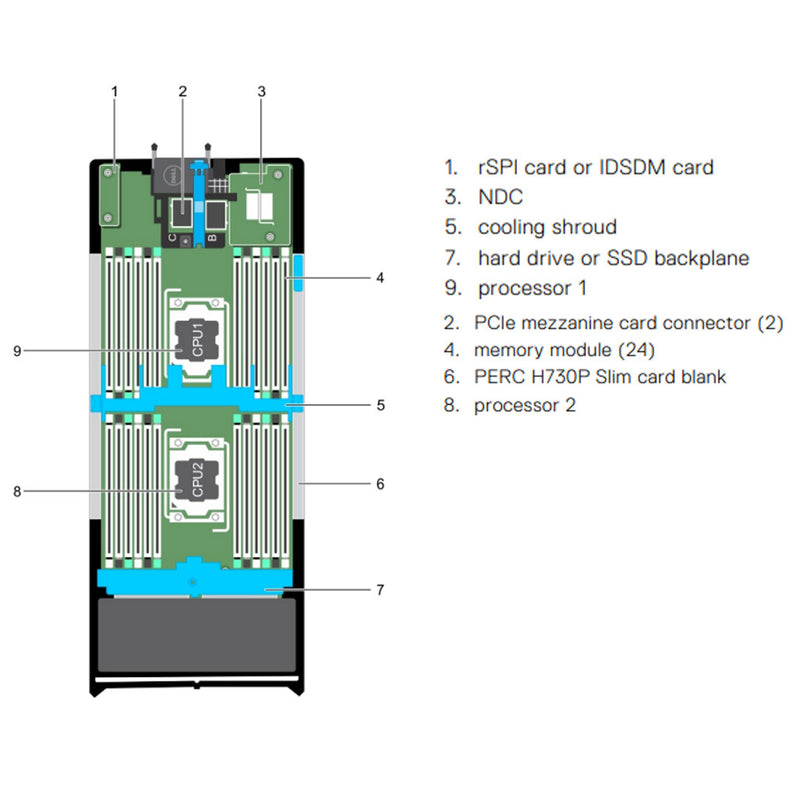

Flexible, scalable, powerful

Powered by up to two 22-core Intel Xeon E5-2600 v4 processors, each FC630 has 24 DIMMs of memory, two 2.5-inch or eight 1.8-inch front-access drives, a 10GB SNA and access to two PCI Express (PCIe) expansion slots in the shared chassis.

Fit the infrastructure to the job

With the capability to handle demanding business applications and the databases that support them, the future-ready FC630 is the perfect building block for the core of a corporate data center. Offering exceptional performance and a rich set of storage options, including the FD332 storage block with up to 16 direct attached drives, the FX architecture enables you to build an infrastructure that is tailor-made to suit your unique IT requirements.

The efficiencies of shared infrastructure

FC630 servers are housed in the FX2 enclosure — a 2U rack-based converged platform that delivers the density of a blade architecture with the simplicity and cost benefits of rack-based systems — all in a compact modular design. The FX2 delivers efficiency through shared power, cooling, networking, and management, as well as PCIe expansion slots and I/O module options that enable DAS, SAN or NAS storage.

Memory
Memory module sockets Memory capacity Minimum RAM Maximum RAM Speed
PowerEdge FC630 64 GB quad rank (LRDIMMs) 4 GB with single processor Up to 768 GB with a single processor
Up to 1536 GB with a dual processor		 2400 MT/s, 2133 MT/s, or 1866 MT/s, DDR4 DIMMs
32 GB quad rank (LRDIMMs) 2133 MT/s, or 1866 MT/s,, DDR4 DIMMs
4 GB, 8 GB, 16 GB or 32 GB single rank (RDIMMs) 2400 MT/s, 2133 MT/s, or 1866 MT/s, DDR4 DIMMs
8 GB, 16 GB and 32 GB dual rank (RDIMMs) 2400 MT/s, 2133 MT/s, or 1866 MT/s, DDR4 DIMMs

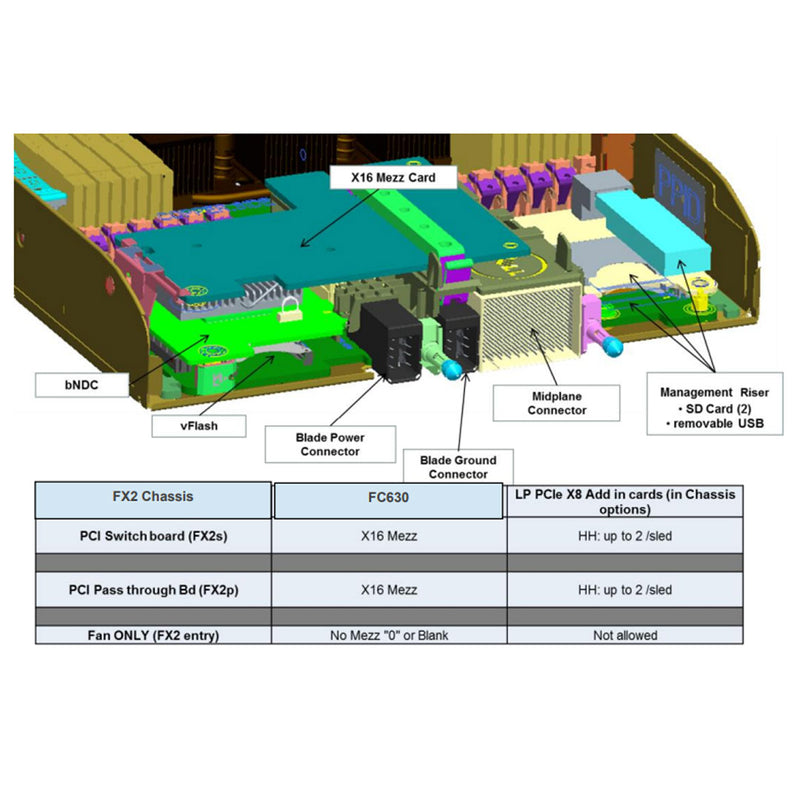

Storage Controllers
Image of the Storage controllers for the FC630 Node Server
Storage Controller Placement

The Mezzanine storage controller slot is placed under the Drive bays next to the backplane port connector. Only Mezzanine style PERC cards are supported in this node server.

Image of the slim card H730p Storage controllers for the FC630 Node Server
H730p Slim Card
The PERC H730P slim card is supported only on systems with eight 1.8-inch SSDs and two processors.

The FC630 has a special slot on the side of the chassis near the DIMMs for the H730p MX Slim Line PERC. The image will display the slot position if you plan to install this PERC.

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

FeatureTechnical specification
Form factorHalf-width – supports up to 4 sleds per PowerEdge FX2 enclosure
DimensionsH: 4.03 cm (1.58 in)
W: 21.09 cm (8.3 in)
D: 50.83 cm (20.01 in)
ProcessorIntel® Xeon® processor E5-2600 v4 product family
Processor sockets: 2
Cache:2.5MB per core; core options: 4, 6, 8, 10, 12, 16, 18, 22
Chipset: Intel C610 series
MemoryUp to 1.5TB (24 DIMM slots): 4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s
I/O mezzanine cardsAccess to 2 x PCIe 3.0 (x8) expansion slots
RAID controllersInternal controllers: PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P
Primary storageHot-plug hard drive options:
PowerEdge Express Flash NVMe PCIe SSD, SATA HDD/SSD or SAS HDD/SSD
Up to 8 x 1.8" SSD or 2 x 2.5"
Optional adaptersOptional NICs and HBAs
Power suppliesChassis level – PowerEdge FX2 hot-plug PSU: 2000W, 1600W AC or 1100W AC in 1+1 redundant or 2+0
non-redundant configurations
Video cardVideo type Matrox® G200 (integrated with iDRAC8)
Video memory: 16MB shared with iDRAC8 application memory
Systems management• FX uses Chassis Management Controller (CMC) to manage all resources (server nodes and shared infrastructure) in a single web console
• OpenManage portfolio for FX supports local and remote management, consistent with other PowerEdge products
• CMC and iDRAC are available with either Enterprise or Express licensing to best suit specific management needs
• Server nodes each contain proven iDRAC8 with Lifecycle Controller for agent-free, automated systems management
Operating systemsMicrosoft® Windows Server® 2008 R2
Microsoft Windows Server 2012
Microsoft Windows Server 2012 R2
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux
VMware® ESX®
For more information on the specific versions and editions, visit Dell.com/OSsupport.

Spec Sheet 4

Feature FX2 FM120x4 FC430 FC630 FD332
Form Factor 2U chassis in height Half-width: up to 4 FM120 per FX2 chassis Quarter-width: up to 8 FC430 per FX2 chassis Half-width: up to 4 FC630 per FX2 chassis Half-width: up to 16 x SFF 2.5” storage devices; Up to 3 FD332 per FX2 chassis
Processors N/A 4 x Intel® Atom™ processor C2000 product family Intel Xeon processor E5-2600 v3 product family Intel Xeon processor E5-2600 v3 product family N/A
Processor sockets N/A 1 2 2 N/A
Cache N/A - 2.5MB per core;
core options: 4, 6, 8, 10, 12, 14		 2.5MB per core;
core options: 4, 6, 8, 10, 12, 16, 18		 N/A
Chipset N/A SoC Intel C610 series Intel C610 series N/A
Memory (1) N/A 2 x DIMMs DDR3 memory per SOC, UDIMM only, 8 per sled Up to 256GB (8 DIMM slots):
4GB/8GB/16GB/32G B DDR4 up to 2133MT/s		 Up to 768GB (24 DIMM slots):
4GB/8GB/16GB/32G B DDR4 up to 2133MT/s		 N/A
PCIe slots FX2s:
Up to 8 PCIe 3.0 slots		 N/A Access to 1 x PCIe 3.0 slot Access to 2 x PCIe 3.0 slots N/A
RAID controller N/A PERC S110 (SW RAID) Internal controllers: PERC S130 (SW RAID) PERC S130 (SW RAID),
PERC H330
PERC H730
PERC H730P		 FD33xS (Single PERC),
FD33xD (Dual PERC)
Storage N/A 1 x 2.5" SATA HDD/SSD or
2 x 1.8" uSATA SSD per Intel Atom processor		 Up to 2 x 1.8” uSATA SSDs PowerEdge Express Flash NVMe PCIe SSD, SATA HDD/SSD or
SAS HDD/SSD;
Up to 8 x 1.8” SSD or
2 x 2.5”		 SATA HDD/SSD or SAS HDD/SSD;
Up to 16 x SFF storage devices per FD332
Power supply 2000W AC, 1600W or 1100W AC power supplies in 1+1 redundant, redundancy alerting only, 2+0 non-redundant configurations.
Systems management • FX uses CMC to manage all resources (server nodes and shared infrastructure) in a single web console
• OpenManage portfolio for FX supports local and remote management, consistent with other PowerEdge products
• CMC and iDRAC are available with either Enterprise or Express licensing to best suit specific management needs
• Server nodes each contain proven iDRAC with Lifecycle Controller for agent-free, automated systems management
Operating systems N/A • Microsoft® Windows Server® 2008 R2 SP1 (includes Hyper-V®)
• Microsoft Windows Server 2012
• Microsoft Windows Server 2012 R2 (includes Hyper-V)
• Novell® SUSE® Linux Enterprise Server
• Red Hat® Enterprise Linux®		 N/A
