SKU: UCSC-C240-M6N

Cisco Ucs C240 M6 Sff 12 Nvme Drive | UCSC-C240-M6N

Cisco

| Chassis
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

What's New for Cisco C240 M6 12 NVMe SFF Chassis
  • (2) Intel Xeon 3rd Gen Scalable Processors
  • (32) 3200MT/s DDR4 DIMMs
  • Support for Intel® Optane™ Persistent Memory (PMem)
  • (12) SFF NVMe Only
  • (2) Rear NVMe Drives
  • (8) PCIe 4.0 Slots
  • (5) GPU Support
  • Dedicated mLOM Slot
  • Dedicated Cisco 12G SAS Modular RAID controller Slot
  • Embedded 2 x 10GBASE-T LAN-on-motherboard (LOM)
  • (6) Hot Swap Fans
  • PCIe NVMe drives are controlled directly from the CPUs
  • There is no RAID support for NVMe drives.
Other Versions:

(Click to View)

Ideal for:

  • Artificial Intelligence (AI)
  • Big Data Analytics
  • Cloud Servers
  • Data Analytics
  • Database
  • Deep Learning (DL)
  • High-Performance Computing (HPC)
  • Machine Learning (ML)
  • Virtualization

The Cisco UCS C240 M6 Rack Server is a 2-socket, 2-Rack-Unit (2RU) rack server offering industry-leading performance and expandability. It supports a wide range of storage and I/O-intensive infrastructure workloads, from big data and analytics to collaboration. Cisco UCS C-Series M6 Rack Servers can be deployed as standalone servers or as part of a Cisco Unified Computing System (Cisco UCS) managed environment, and now with Cisco Intersight is able to take advantage of Cisco’s standards-based unified computing innovations that help reduce customers’ Total Cost of Ownership (TCO) and increase their business agility.

The server accommodates up to 12 front facing SAS-only LFF drives, up to 4 mid-plane SAS-only LFF drives, and up to 4 rear-facing SFF drives (SAS or SATA or NVMe).

If a Midplane is installed GPUs are not supported.

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Spec Sheet 4

Capability/Feature Description
Chassis Two rack unit (2RU) chassis
CPU One or two Intel® Xeon® Ice Lake® processor family CPUs
If NVMe drives are selected, you must also select 2 CPUs.
Chipset Intel® C621A series chipset
Memory 32 slots for registered DIMMs (RDIMMs) or load-reduced DIMMs (LRDIMMs) and support for Intel® Optane™ Persistent Memory Modules (PMem)
Multi-bit Error Protection This server supports multi-bit error protection.
Video The Cisco Integrated Management Controller (CIMC) provides video using the Matrox G200e video/graphics controller:
  • Integrated 2D graphics core with hardware acceleration
  • DDR2/3 memory interface supports up to 512 MB of addressable memory (8 MB is allocated by default to video memory)
  • Supports display resolutions up to 1920 x 1200 16bpp @ 60Hz
  • High-speed integrated 24-bit RAMDAC
  • Single lane PCI-Express host interface running at Gen 1 speed
Power subsystem Up to two of the following hot-swappable power supplies:
  • 1050 W (AC)
  • 1050 W (DC)
  • 1600 W (AC)
  • 2300 W (AC)
One power supply is mandatory; one more can be added for 1 + 1 redundancy.
Front Panel A front panel controller provides status indications and control buttons
ACPI This server supports the advanced configuration and power interface (ACPI) 6.2 standard.
Fans Six hot-swappable fans for front-to-rear cooling
Infiniband The InfiniBand architecture is supported by the PCIe slots.

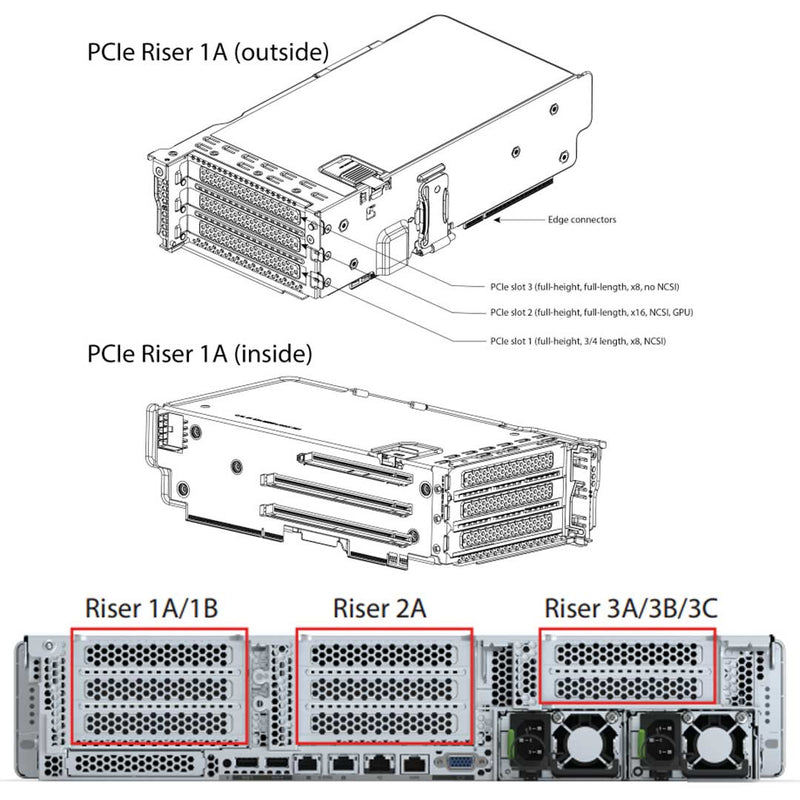

Expansion slots
  • Riser 1A (3 PCIe slots)
  • Riser 1B (1 PCIe slot reserved for a drive controller and 2 HDD slots)
  • Riser 2A (3 PCIe slots)
  • Riser 3A (2 PCIe slots)
  • Riser 3B (2 HDD slots)
  • Riser 3C (1 full-length, double-wide GPU)
Note: Not all risers are available in every server configuration option.
One or two dedicated slots (depending on the server type) for a SATA interposer or storage controller(s).
Interfaces
  • Rear panel
    • One 1Gbase-T RJ-45 management port
    • Two 10Gbase-T LOM ports
    • One RS-232 serial port (RJ45 connector)
    • One DB15 VGA connector
    • Two USB 3.0 port connectors
    • One flexible modular LAN on motherboard (mLOM) slot that can accommodate various interface cards
  • Front panel
    • One KVM console connector (supplies two USB 2.0 connectors, one VGA DB15 video connector, and one serial port (RS232) RJ45 connector)
Internal storage devices
  • UCSC-C240-M6S (Option 1):
    • Up to 12 front SFF SAS/SATA hard drives (HDDs) or SAS/SATA solid state drives (SSDs).
    • Optionally, up to four front SFF NVMe PCIe SSDs. These drives must be placed in front drive bays 1, 2, 3, and 4 only. The rest of the bays (5 - 12) can be populated with SAS/SATA SSDs or HDDs. Two CPUs are required when choosing NVMe SSDs.
    • Optionally, one front-facing DVD drive
    • Optionally, up to two SFF rear-facing SAS/SATA/NVMe drives
    • If using a SATA Interposer, up to 8 SATA-only drives can be installed in slots 1-8.
  • UCSC-C240-M6SX (Option 2):
    • Up to 24 front SFF SAS/SATA hard drives (HDDs) or SAS/SATA solid state drives (SSDs).
    • Optionally, up to four front SFF NVMe PCIe SSDs. These drives must be placed in front drive bays 1, 2, 3, and 4 only. The rest of the bays (5 - 24) can be populated with SAS/SATA SSDs or HDDs. Two CPUs are required when choosing NVMe SSDs.
    • Optionally, up to four SFF rear-facing SAS/SATA/NVMe drives
  • UCSC-C240-M6N (Option 3):
    • Up to 12 front NVMe (only) drives
    • Optionally, up to 2 rear NVMe (only) drives
    • Two CPUs are required when choosing NVMe SSDs
  • UCSC-C240-M6SN (Option 4):
    • Up to 24 front NVMe drives (only).
    • Optionally, up to 2 rear NVMe drives (only)
    • Two CPUs are required when choosing NVMe SSDs
Other Storage:
  • A mini-storage module connector on the motherboard supports a boot-optimized RAID controller carrier that holds up to two SATA M.2 SSDs. Mixing different capacity SATA M.2 SSDs is not supported.
  • 8GB FlexMMC utility storage for staging of firmware and other user data. 8GB FlexMMC storage is built into the motherboard on M6.
Integrated management processor Baseboard Management Controller (BMC) running Cisco Integrated Management Controller (CIMC) firmware.

Depending on your CIMC settings, the CIMC can be accessed through the 1GE dedicated management port, the 1GE/10GE OCP/mLOM ports, or a Cisco virtual interface card (VIC).

CIMC manages certain components within the server, such as the Cisco 12G SAS HBA.
Storage controllers One SATA Interposer board, one 12G SAS RAID controller, or one or two 12G SAS HBAs plug into a dedicated slot.
  • SATA Interposer board
    • AHCI support of up to eight SATA-only drives (slots 1-8 only)
    • Supported only on the UCSC-C240-M6S server
  • Cisco 12G RAID SAS RAID controller with 4GB FBWC (for UCSC-240-M6S server)
    • RAID support (RAID 0, 1, 5, 6, 10) and SRAID0
    • Supports up to 16 internal SAS/SATA drives
  • Cisco M6 12G SAS RAID controller with 4GB FBWC (for UCSC-240-M6SX server)
    • RAID support (RAID 0, 1, 5, 6, 10) and SRAID0
    • Supports up to 28 internal SAS/SATA drives
  • Cisco M6 12G SAS HBA (for UCSC-240-M6S and UCSC-240-M6SX servers)
    • No RAID support
    • JBOD/Pass-through Mode support
    • Each HBA supports up to 16 SAS/SATA internal drives
Modular LAN on Motherboard (mLOM) slot The dedicated mLOM slot on the motherboard can flexibly accommodate the following cards:

■ Cisco Virtual Interface Cards
Intersight Intersight provides server management capabilities
CIMC Cisco Integrated Management Controller 4.2(1) or later
Notes: 1. If NVMe drives are selected, you must also select 2 CPUs.
