Specs
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Quick Specs
What's New for ML350e Gen8
- Support for 12G SAS High Endurance Hot Plug SFF (2.5-inch) Enterprise Performance and Enterprise Mainstream SSD Drives
- Support for an Intel® Xeon® E5-2400 Processor Family
- Up to 12 DIMM slots available for higher memory capacity
- Up to 24 SFF hard drives or 18 LFF hard drives for expanded storage
- 4 PCIe 3.0 and 2 PCIe 2.0 I/O slots
- HP iLO (Firmware: HP iLO4)

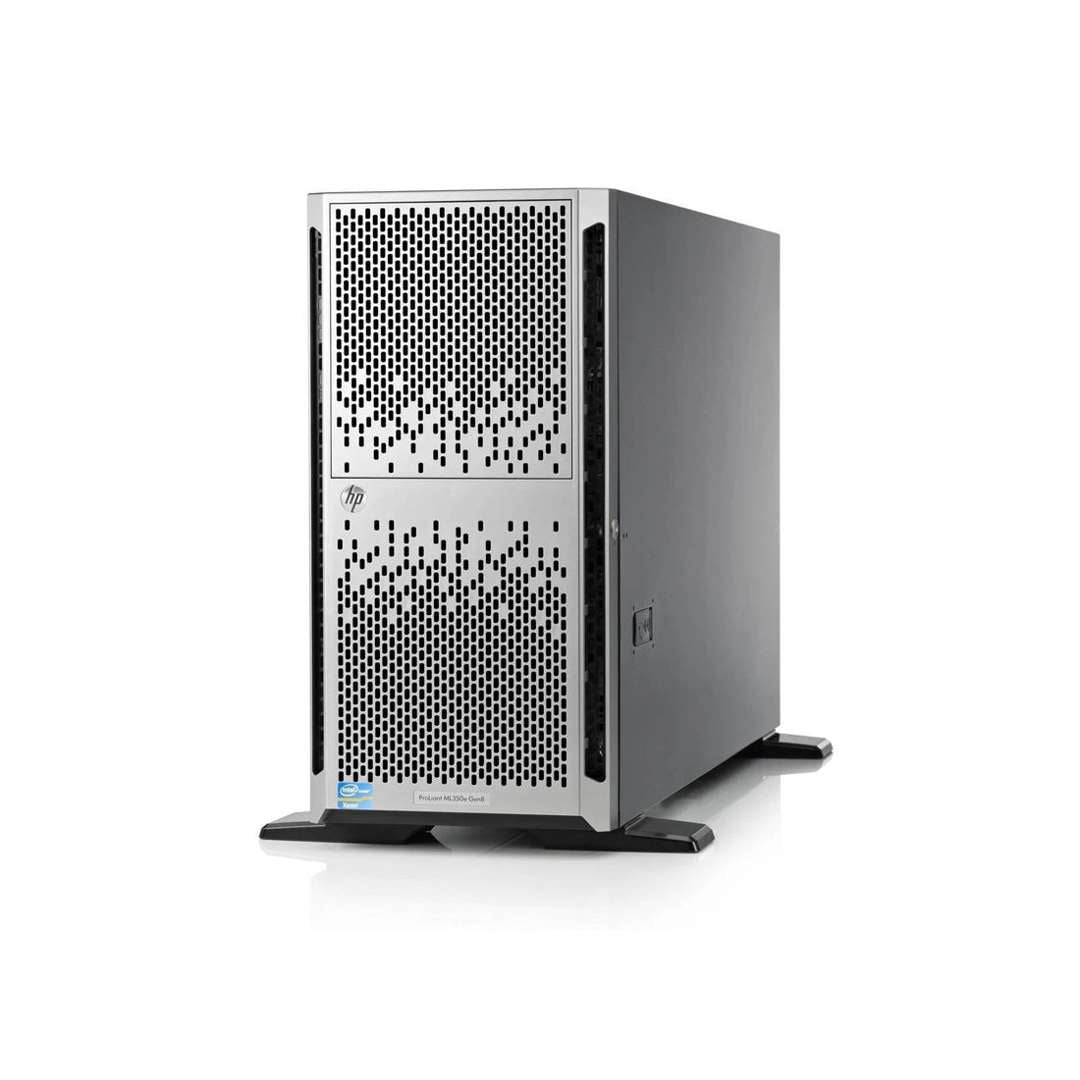

The refurbished HPE ProLiant ML350e Gen8 is a dual processor tower platform, which is built on the latest Intel Xeon E5-2400 processors to create unique system architecture. The HPE ProLiant ML350e Gen8 delivers the industry's most powerful embedded management technology with HPE integrated Lights-Out 4 (iLO4), which allows businesses to manage the servers anytime and from anywhere.
Ideal for:
- Corporate IT
- Database
Looking to Customize?
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
Product features
Feature | Description | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Processor (one of the following depending on model) | Eight-core processors 1
Six-Core processors 2
Quad-Core processors 3
| |||||||||||||||||||||
Cache memory (one of the following depending on model) |
| |||||||||||||||||||||
Chipset |
| |||||||||||||||||||||
Upgradeability |
| |||||||||||||||||||||
On system management chipset | HPE iLO (Firmware: HPE iLO4)9 | |||||||||||||||||||||
Memory protection |
| |||||||||||||||||||||
Memory (one of the following depending on model)10 |
| |||||||||||||||||||||
Network controller | HPE Ethernet 1Gb 2-port 361i Adapter | |||||||||||||||||||||
Internal storage devices 11 | ||||||||||||||||||||||
Optical drives (One of the following depending on model) | HPE Half-Height SATA DVD-ROM Optical Drive | |||||||||||||||||||||
Hard drives | None ship standard | |||||||||||||||||||||
Hard drive bays (One of the following depending on model) | Up to 24 SFF hard drive bays or 18 LFF hard drive bays | |||||||||||||||||||||
Maximum internal storage (one of the following depending on model) |
| |||||||||||||||||||||
Interfaces 12 |
| |||||||||||||||||||||
System fans 13 | Two (2) Non-hot plug, non-redundant fans ship standard (support up to 4 fans). | |||||||||||||||||||||
Graphics | Integrated Matrox G200 video standard
HPE iLO 4 On System Management Memory
| |||||||||||||||||||||
Form factor |
| |||||||||||||||||||||
Industry standard compliance |
| |||||||||||||||||||||
NOTE: 1. All support up to 1600 MHz DDR3 memory speeds. 2. All support up to 1333 MHz DDR3 memory speeds. 3. All support up to 1066 MHz DDR3 memory speeds. 4. For Eight-core processors. 5. For Six-core processors. 6. For Quad-core processors. 7. . Disclaimer: One or more of the links above will take you outside the Hewlett-Packard Enterprise web site, HPE does not control and is not responsible for information outside of the HPE web site. 8. Total 8, 12 or 16 cores. 9. Click here for more information on HPE iLO Management Engine . 10. Click here for Memory Population table or the Online Memory Configuration tool 11. All Pre-configured Models come populated with some hard drive blanks installed. Should the customer need additional hard drive blanks, they can order more using either P/N 666987-B21: HPE SFF Gen8 Hard Drive Blank Kit or P/N 666986-B21: HPE LFF Gen8 Hard Drive Blank Kit. These part numbers for single HDD blanks below are also provided should the customer require replacement HDD blanks for their server. 12. The SD slot is not a hot-pluggable device. User should not attempt to plug an SD card into the SD slot while the server is powered. 13.Redundant Enablement Kit (part # 664046-B21) is required when redundant fans are needed. | ||||||||||||||||||||||
Specs 1
Software overview
Feature | Description |
|---|---|
Operating systems and virtualization software support for ProLiant Servers |
|
Other software | HPE Insight Management software |
For more information on Operating systems and virtualization software support for ProLiant Servers, click here to visit the Operating System product site . | |
Physical specifications
Specifications | Description |
|---|---|
Dimensions (H x W x D) (with feet/bezel) | 46.2 x 21.8 x 74.0 cm (18.19 x 8.58 x 29.13 in) |
Weight (approximate) |
|
Electrical specifications
Specifications | Description |
|---|---|
Input requirements (per power supply) | |
Rated line voltage | 100 to 240 V ac |
Rated input current | 7.1 A (at 120 V ac) to 3.5 A (at 240 V ac) |
Rated input frequency | 50 to 60 Hz |
Rated input power | 852 W |
Power supply output (per power supply) | |
Rated steady-state power |
|
Maximum peak power |
|
BTU rating (maximum) |
|
Environmental specifications
Specifications | Description |
|---|---|
System inlet temperature | |
Operating | 10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per 304.8 m (1.8°F per 1000 ft) above sea level to a maximum of 3048 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed. System performance may be reduced if operating with a fan fault or above 30°C (86°F). |
Non-operating | -30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr) |
Relative humidity (non-condensing) | |
Operating | 10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing. |
Non-operating | 5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing. |
Altitude | |
Operating | 3048 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min) |
Non-operating | 9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min) |
Acoustic noise 1 | |
Idle |
|
Operating |
|
Emissions classification 2 (EMC) | |
FCC rating | Class B |
Normative standards | CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1 |
NOTE: 1. Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C (73.4ºF) ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). Configurations tested for entry models included Windows 2008 Enterprise 64-bit. Configurations tested for base models included one (1) 1TB non-hot plug LFF SATA HDD and Windows 2008 Enterprise 64-bit. The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels. 2. Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements. | |
