Specs
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Comes with:
- Processors - 1 x Intel® Xeon® E5-2603v4
- Memory - 8GB (1x8GB Registered DIMMs, 2400 MHz)
- Network Controller - HPE Embedded Dual Port 361i Adapter Network Interface
- Storage Controller - HPE Dynamic Smart Array B140i
- Hard Drive - None ship standard
- Internal Storage - 8 LFF HDD Bays
- Optical Drive Bay - Not Available
- Optical Drive - None
- PCIe Slots - 3 Standard (1-FL/FH, 2-FH/HL)
- Power Supply - (1) HPE 550W FIO Power Supply
- Fans - 2 hot swap fans, non-redundant
- Management - iLO Management (standard), Intelligent Provisioning (standard), iLO Essentials (optional), iLO Scale-out (optional only for DL), iLO Advanced (optional)
- Energy Start - N/A
- Form Factor - Rack (2U), HPE Easy Install Rails

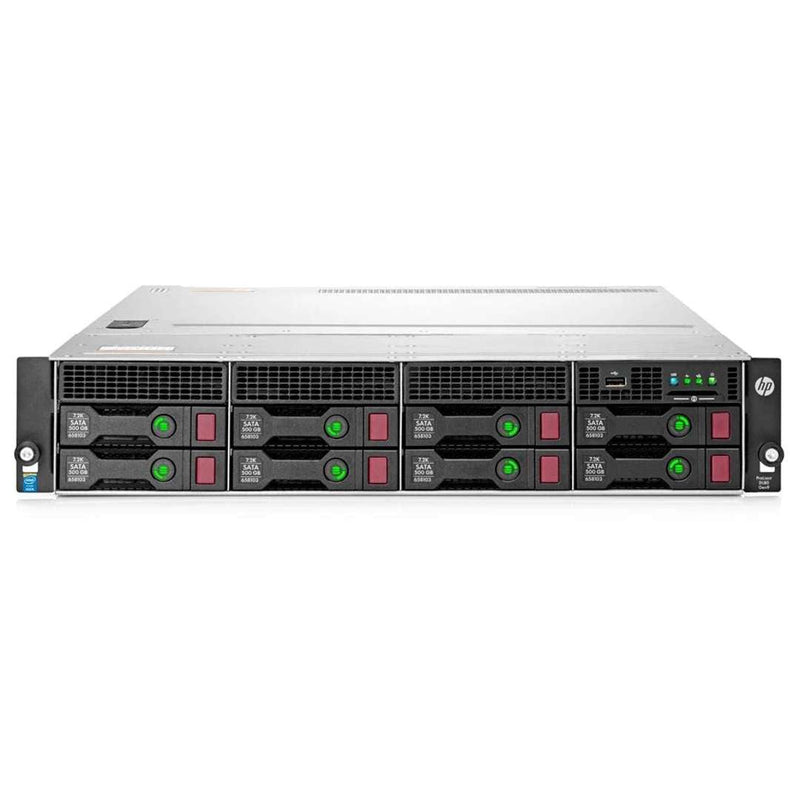

Designed with just the right balance of scalability and performance, the refurbished HP ProLiant DL180 Gen9 Server is an optimized 2U model that helps growing businesses, data centers, and service providers alike manage their infrastructures more efficiently. With high availability and efficiency for dense storage applications, this server allows for more agile management that enables accelerated service delivery.
What's New for DL180 Gen9
- Intel Xeon E5-2600v4 processor support (Up to 120 W)
- New 900 W/240 V power supply
- HPE Trusted Platform Module (TPM) 2.0
- New HDD offerings
- Support for ClearOS – an easy to use OS with an application marketplace
Scalability and Performance To Meet the New Standard of Growing Data Center Needs
The HPE ProLiant DL180 Gen9 Server provides ample storage capacity on demand with drive configurations ranging from (4) to (12) Large Form Factor (LFF) or (8) to (16) Small Form Factor (SFF) HPE SmartDrives, with flexibility of LFF non-hot plug (NHP) options at the right economics.
It supports up to two Intel Xeo processor E5-2600 v3/v4 processors with up to (12) cores and (16) DIMM slots of HPE DDR4 SmartMemory offering improved performance and efficiency.
Comes standard with 2x1GbE and choice of HPE FlexibleLOM or PCIe standup 1GbE or 10GbE Adapters provide you flexibility of networking bandwidth and fabric so you can adapt and grow to changing business needs.
Up to six PCIe 3.0 riser slots to support a wide range of GPUs and networking cards offering increased IO bandwidth and seamless expandability.
Embedded SATA HPE Dynamic Smart Array B140i Controller for boot and data. Choice of HPE Smart Array Controllers with increased performance, data availability with 12 Gb/s SAS technology or HPE Smart HBAs with reliable high performance SAS connectivity capable of running HBA mode or simple RAID mode.
Know your Server - CTO Configuration Support
Not seeing the exact specs you need?
Start your build today with Express Computer Systems!
Start Customizing Today!
Spec Sheet 4
| Technical specifications | HP ProLiant DL180 Gen9 Server |
|---|---|
| Compute | Up to 2 Intel® Xeon® E5-2600 v3 Series, 4/6/8/10/12 Cores, PCIe 3.0, up to 6 available slot(s) |
| Memory | HP SmartMemory (16) DDR4, up to 2133 MHz (512 GB max) |
| Storage | Standard HP Dynamic Smart Array B140i, optional HP Smart Array Controllers, and HP Smart HBAs via PCIe stand-up cards |
| Battery | HP DL/ML/SL 96 W Smart Storage Battery to support the standup controllers |
| HP SmartDrives | 16 SFF/12 LFF max, HDD/SSD |
| Networking | Embedded 2x 1GbE, optional FlexibleLOM slot on riser |
| VGA/serial/USB ports/SD | 1 VGA, 1 Serial, 6 USB 3.0, 1 microSD |
| GPU Support | Single-Wide and Active |
| On Premise management | HP OneView and HP iLO Advanced |
| On Cloud management | HP Insight Online with enhanced mobile application |
| On System management | HP iLO, HP SUM, Intelligent Provisioning and scripting tools; plus the new UEFI and HP RESTful Interface Tool |
| Power and cooling | Up to 94 percent efficient (Platinum), 550 W multi-output, 900 W RPS1 Hot swap fans with optional redundancy |
| Industry compliance | ASHRAE A3 and A4, ENERGY STAR® |
| Form factor/Chassis depth | ASHRAE A3 |
| Form factor/chassis depth | Rack (2U), 23.9" (SFF), 23.9" (LFF) |
| Serviceability — Easy install rails | Standard |
