Base Standard Capabilities
Product features
Feature | Description | |||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Form factor | 1U rack | |||||||||||||||||||||||||||||||||||||||||
Chassis types |
| |||||||||||||||||||||||||||||||||||||||||
System fans | Standard - Fan types included - Non-Redundant
| |||||||||||||||||||||||||||||||||||||||||
Processors |
| |||||||||||||||||||||||||||||||||||||||||
Chipset | Intel C622 chipset | |||||||||||||||||||||||||||||||||||||||||
On system management chipset | HPE iLO 5 ASIC | |||||||||||||||||||||||||||||||||||||||||
Memory | One of the following depending on model
| |||||||||||||||||||||||||||||||||||||||||
Memory protection | For details on the HPE Server memory options RAS feature, visit: Click here to view the Memory RAS technologies forHPE ProLiant/Synergy/Blade Gen10servers with Intel Xeon Scalableprocessors for more infomration . | |||||||||||||||||||||||||||||||||||||||||
Expansion slots |
| |||||||||||||||||||||||||||||||||||||||||
Storage controllers | The Gen10 controller naming framework has been updated to simplify identification as depicted below. For a more detailed breakoutof the available Gen10 smart array controllers visit the Click here to view the HPE Smart Array Gen10Controllers for more information . | |||||||||||||||||||||||||||||||||||||||||
Software RAID | HPE Smart array S100i SR Gen10 SW RAID | |||||||||||||||||||||||||||||||||||||||||
Essential RAID controller |
| |||||||||||||||||||||||||||||||||||||||||
Performance RAID controller | HPE Smart array P408i-a SR G10 LH controller | |||||||||||||||||||||||||||||||||||||||||
Internal storage devices | Hard drives - None ship standard | |||||||||||||||||||||||||||||||||||||||||
Maximum internal storage |
| |||||||||||||||||||||||||||||||||||||||||
Power supply | HPE 500 W Flex slot platinum hot plug low halogen power supply kit | |||||||||||||||||||||||||||||||||||||||||
Interfaces | Video | 1 Rear - Video Graphics Array (VGA) port (Standard) | ||||||||||||||||||||||||||||||||||||||||
Network ports | 2 x 1 GbE ports embedded on board with optional FlexibleLOM | |||||||||||||||||||||||||||||||||||||||||
HPE iLO Remote managementnetwork port | 1Gb Dedicated | |||||||||||||||||||||||||||||||||||||||||
Front iLO service port | 1 Standard | |||||||||||||||||||||||||||||||||||||||||
Micro SD slot | 1 Micro SD | |||||||||||||||||||||||||||||||||||||||||
USB 3.0 | Up to 4 total: 1 front, 2 rear, 1 internal | |||||||||||||||||||||||||||||||||||||||||
Industry standard compliance |
| |||||||||||||||||||||||||||||||||||||||||
Graphicsintegrated video standard |
| |||||||||||||||||||||||||||||||||||||||||
HPE iLO 5 on system management memory |
| |||||||||||||||||||||||||||||||||||||||||
HPE Server Unified Extensible Firmware Interface (UEFI)/legacy ROM | UEFI is an industry standard that provides better manageability and more securedconfiguration than the legacy ROM while interacting with users server at boot time. HPE ProLiant Gen10 servers have a UEFI Class 2implementation and support both UEFI mode (Default) and legacy BIOS mode.
| |||||||||||||||||||||||||||||||||||||||||
Embedded management |
| |||||||||||||||||||||||||||||||||||||||||
Server utilities |
| |||||||||||||||||||||||||||||||||||||||||
Security |
| |||||||||||||||||||||||||||||||||||||||||
Specs 1
Software overview
Feature | Description |
|---|---|
OS |
|
Physical specifications
Specification | Description |
|---|---|
Dimensions (H x W x D) | 4.29 x 43.46 x 61.49 cm (1.69 x 17.11 x 24.21 in) |
Weight (Approximate) | SFF Minimum: 8 SFF chassis with 1x SFF HDD, 1 X memory DIMM, 3 fans, 1 processor with heatsink, 1 power supply
SFF Maximum: 8 SFF chassis with 8 SFF HDD, 1 X memory DIMM, 6 fans, 2 processor with heatsink, 2 power supplies
|
LFF Minimum: 4 LFF chassis with 1X LFF Hard Drive, 1X memory DIMM, 3 fans, 1 processor with heatsink, 1 power supply
LFF Maximum: 4 LFF chassis with 4X LFF Hard Drive, 1X memory DIMM, 6 fans, 2 processor with heatsink, 2 power supplies
|
Electrical specifications
Specification | Description |
|---|---|
Input requirements | Rated line voltage
|
BTU rating | Maximum: For 500 W Power supply: 1979 BTU/hr (At 100 V ac), 1911 BTU/hr (At 200 V ac), 1965 BTU/hr (At 240 V dc) for china only |
Power supply output | Rated Steady-State power
Maximum peak power
|
Environmental specifications
Specification | Description | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
System inlet temperature | 10° to 35° C (50° to 95° F) | |||||||||||||||||||||
Extended ambient operating support | 5° to 10° C (41° to 50° F) and 35° to 40° C (95° to 104° F) | |||||||||||||||||||||
Non-Operating temperature | -30° to 60° C (-22° to 140° F). Maximum rate of change is 20° C/hr (36° F/hr) | |||||||||||||||||||||
Operating relative humidity | 8% to 90% - Relative humidity, 28°C maximum wet bulb temperature, Non-Condensing | |||||||||||||||||||||
Non-Operating relative humidity | 5 to 95% - Relative humidity, 38.7°C (101.7°F) maximum wet bulb temperature, Non-Condensing | |||||||||||||||||||||
Operating altitude | 3050 m (10,000 ft) | |||||||||||||||||||||
Non-Operating altitude | 9144 m (30,000 ft) | |||||||||||||||||||||
Acoustic noise | Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels. Please have users HPE representative provide information from the HPE EMESC website for further technical details regarding the configurations listed below.
| |||||||||||||||||||||
Safety certifications
Specification | Description |
|---|---|
Emissions Classification (EMC) | To view the regulatory information for users product, view the safety and compliance information for server, storage, power, networking, and rack products, available at the Hewlett Packard Enterprise Support Center: Hewlett Packard Enterprise Support Center for Enterprise Safety and Compliance . |
Spec Sheet 4
| Technical specifications | HPE ProLiant DL160 Gen10 server |
|---|---|
| Processor family | Intel® Xeon® Scalable 3200-8200 series & Intel® Xeon® Scalable 3100-8100 series |
| Processor core available | 4 to 26 core, depending on processor |
| Processor cache | 8.25-35.75 MB L3, depending on processor |
| Processor speed | 3.8 GHz maximum depending on processor |
| Power supply type | Up to 2 HPE Flexible Slot Power Supplies |
| Expansion slots | 3, for detailed descriptions reference the QuickSpecs |
| Maximum memory | 1.0 TB with 64 GB DDR4 |
| Memory, standard | 16 GB (1 X 16 GB) RDIMM |
| Memory slots | 16 DIMM slots |
| Memory type | HPE DDR4 SmartMemory |

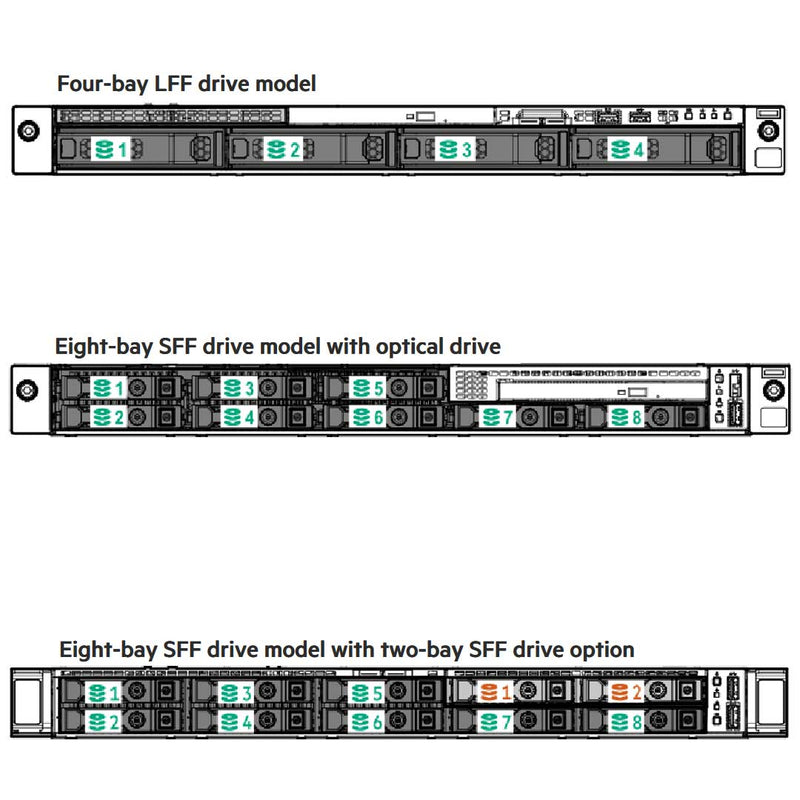

| Included hard drives | None ship standard, 4 LFF drives and 8-10 SFF drives supported |
| Optical drive type | Optional: DVD-ROM or DVD-RW |
| System fan features | Standard single rotor hot swap fans |
| Network controller | HPE embedded 2-port 1 GbE Ethernet adapter and optional HPE FlexibleLOM, Media Module Adapter, or PCIe stand-up card |
| Storage controller | HPE Smart Array S100i and/or HPE Essential or Performance RAID controllers, depending on model |
| Product Dimensions (imperial) | 4.29 x 43.46 x 61.49 cm |
| Weight | 10.97 kg minimum, 15.74 kg maximum |
| Infrastructure management | HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download), Optional- HPE iLO Advanced, and HPE OneView Advanced (require licenses) |
| Drive supported | 4 LFF SAS/SATA, 8 SFF SAS/SATA + 2 additional SAS/SATA (optional) depending on model |
