Dell PowerEdge R260 Rack Server CTO

Name: Dell PowerEdge R260 Rack Server CTO
Brand: Dell
SKU: DPE-R260-CTO
Availability: InStock

Dell

| CTO Servers |

DPE-R260-CTO

.price-ui--loading { display: block !important; opacity: 1 !important; }

Configure for Pricing

READ ME

Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
“Quote” items can be added to your cart and sent to us via the cart page
Click the blue bar to close/open a section from view after choosing your options

Select Chassis

Dell PowerEdge R260 Rack Server (2x 3.5" SAS/SATA) Quote Dell PowerEdge R260 Rack Server (6x 2.5" SAS/SATA) Quote

Select Processor

Intel Xeon E-2400 series processor

Bezel (Optional)

The Filter Bezel is for Edge Services.

Dell (G16) 1U Front Security Bezel $40.00 Dell (G16) 1U Filter Edge Bezel Quote

Memory

Supports up to (4) DDR5 DIMMs. | Max: 128 GB

Dell 16GB DDR5 5600MHz 1Rx8 UDIMM Quote Dell 32GB DDR5 5600Mhz 2Rx8 UDIMM Quote

Risers Configurations (Optional)

Supports up to (2) PCI-e Slots on an Butterfly Riser
Slot 1 is x8 PCI-e LP/HL
Slot 2 is x16 PCI-e LP/HL

Dell PowerEdge R260 Riser RC1 Butterfly Riser Quote

Storage Controller (Optional)

Must install the Riser to install an aPERC
Embedded S160 software RAID

Dell PERC 11 H755 RAID Controller $625.00 Dell PERC 11 H355 PCIe RAID Controller $350.00 Dell HBA355i Non-RAID Controller $150.00 Dell HBA355e Non-RAID Controller $395.00

Drives LFF (3.5") (Optional)

The 3.5" (2) Bay Chassis are Cabled Drives. These are not Hot-Swapable.

Dell Enterprise Class 3.5" 2TB 7.2K SATA 6Gbps HDD $46.00 Dell Enterprise Class 3.5" 4TB 7.2K SATA 6Gbps HDD $74.75 Dell Enterprise Class 3.5" 4TB 7.2K SAS 12Gbps HDD $135.00 Dell Enterprise Class 3.5" 8TB 7.2K SATA 6Gbps HDD $145.00 Dell Enterprise Class 3.5" 8TB 7.2K SAS 12Gbps HDD $140.00 Dell Enterprise Class 3.5" 12TB 7.2K SATA 6Gbps HDD $195.00 Dell Enterprise Class 3.5" 12TB 7.2K SAS 12Gbps HDD $265.00 Dell Enterprise Class 3.5" 16TB 7.2K SATA 6Gbps HDD $250.00 Dell Enterprise Class 3.5" 16TB 7.2K SAS 12Gbps HDD $395.00

BOSS-N1 (Optional)

Supports up to (2) M.2 SSD Drives

Dell BOSS Module Boot Optimized Storage Subsystem $224.25 Dell Enterprise Class 480GB M.2 (2280) NVMe SSD Quote Dell Enterprise Class 960GB M.2 (2280) NVMe SSD Quote

Internal USB Module (Optional)

The Internal USB.

Dell Internal USB Stick Quote

Rail Kit (Optional)

Dell A4 Stab-In Static ReadyRails Rail Kit | C597M Quote

Trusted Platform Module (TPM) (Optional)

TPM Trusted Platform Module 2.0 $75.00

iDRAC9 Lifecycle controller (Optional)

(Default) iDAC9 with lifecycle controller: Express

Dell iDRAC 9 Enterprise License $125.00 Dell iDRAC 9 Datacenter License $295.00

Power Supplies

Supports (1) PSU

Dell Platinum 450W Cabled Power Supply Unit (PSU) Quote Dell Titanium 80+ 700W 60mm Power Supply Unit (PSU) $295.00

Select Warranty

ECS-1-Year - ECS 1-Year NBD Parts Replacement Warranty *Included as Standard for USA Customers* $1.00 ECS-2-Year - ECS 2-Year NBD Parts Replacement Warranty (Ask for Quote) Quote ECS-3-Year - ECS 3-Year NBD Parts Replacement Warranty (Ask for Quote) Quote ECS-4-Year - ECS 4-Year NBD Parts Replacement Warranty (Ask for Quote) Quote ECS-5-Year - ECS 5-Year NBD Parts Replacement Warranty (Ask for Quote) Quote

Helpful Tip: Once desired configuration is selected click "Add to Cart".
From the cart page you can submit a submit a quote request for best pricing

Quick Specs

Form Factor:

1U rack server

Processor | Max: 2 or 8 Cores

1 x Intel Xeon E-2400 series processor or
1 x Intel Pentium G7400/G7400Ts

Memory | Max: 128GB

4 DDR5 UDIMM 4400 MT/s
Supports unregistered ECC DDR5 DIMMs only

Networking LOM:

2 x 1GbE with BCM5720 LAN controller

Storage | Max: 30.72TB

2x 3.5" cable SAS/SATA HDD, Max 32 TB
6x 2.5" hot-plug SAS/SATA HDD/SSD, Max 46.08TB

Storage Controllers:

Software Controller: S160
Internal Controllers: HBA355i Adpt, PERC H355 Adpt, PERC H755 Adpt
External HBAs (non-RAID): HBA355e Adpt

Boot Options:

Boot Optimized Storage Subsystem (BOSS-N1) HWRAID 2 x M.2 SSDs
Internal USB 3.0

PCIe Slots:

2x PCIe 4.0
1 x8 Gen4 (x16 connector) low profile, half length
1 x8 Gen4 (x8 connector) low profile, half length

GPU:

None

Remote Management:

iDRAC9 with Lifecycle Controller

Other Versions

(Click to View)

Ideal for:

Data Analytics
Edge Servers
Mail

R260 is the newly-designed short-depth rack server with filter bezel for NearEdge customers. Featuring the latest Intel Xeon-E 2400 series processors, DDR5 memory, NVMe BOSS, and Energy Star 4.0 PSU, the R260 is ready to support customers growing businesses.

More Flexibility and Protection for Near-Edge Deployment

For Near-Edge applications including deployment in warehouses, retail offices, or a simple desk or shelf, the R260 adapts to any environment with its short-depth, 17-inch chassis. In addition, the R260 is equipped with an easy-to-manage filter bezel that shields the inner hardware from dust and grease, ensuring unobstructed airflow to main components resulting in fewer failures or performance issues, better acoustics, and efficient power consumption.

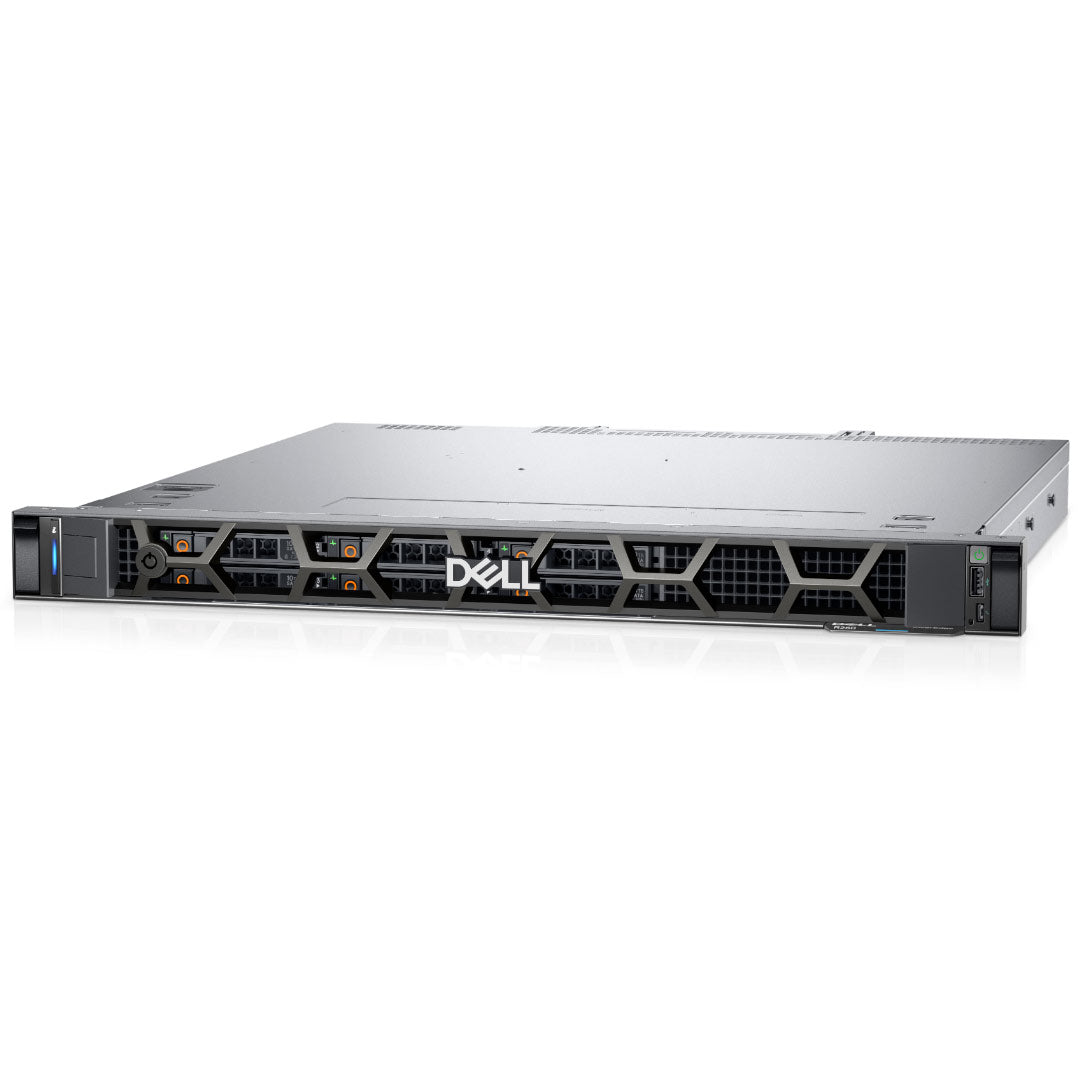

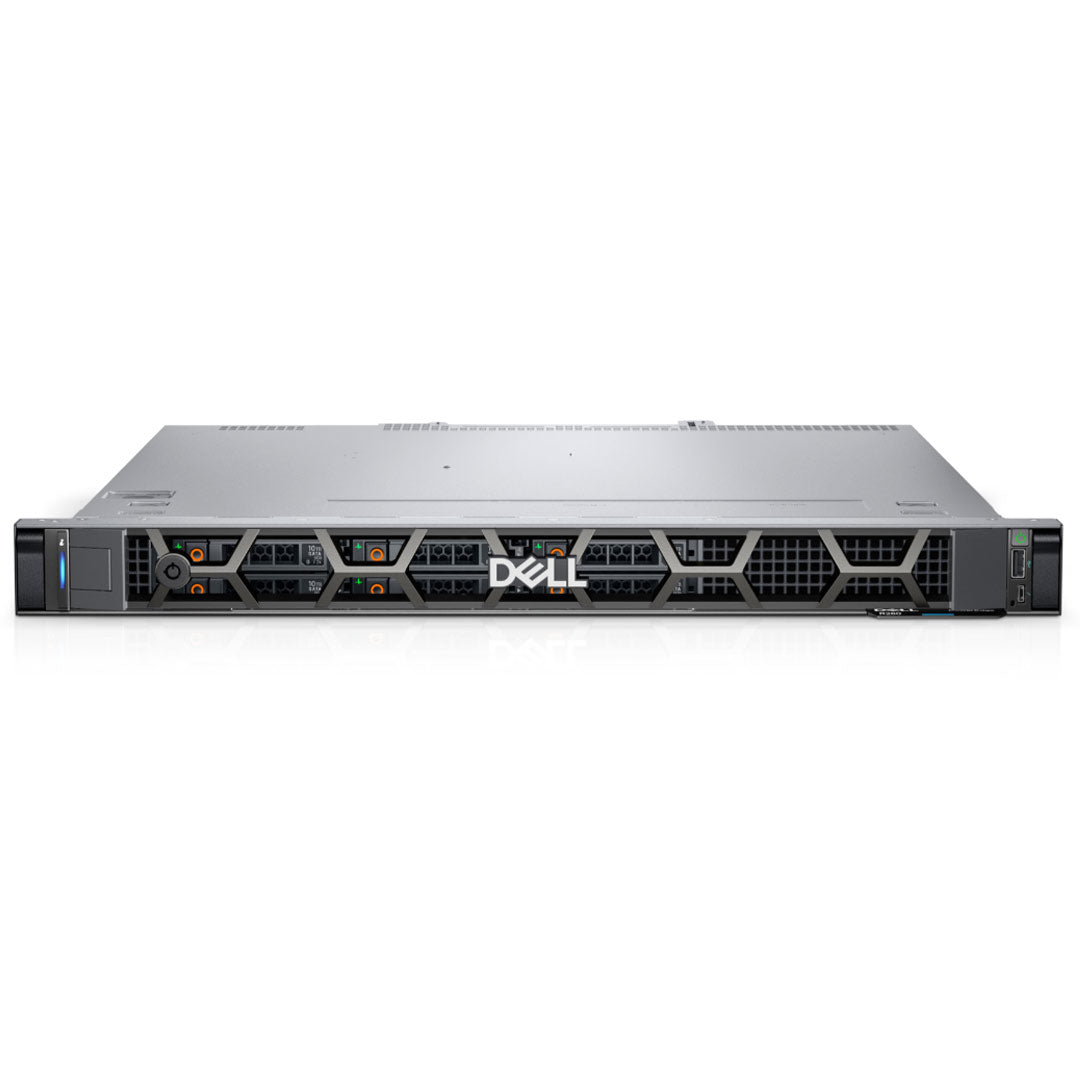

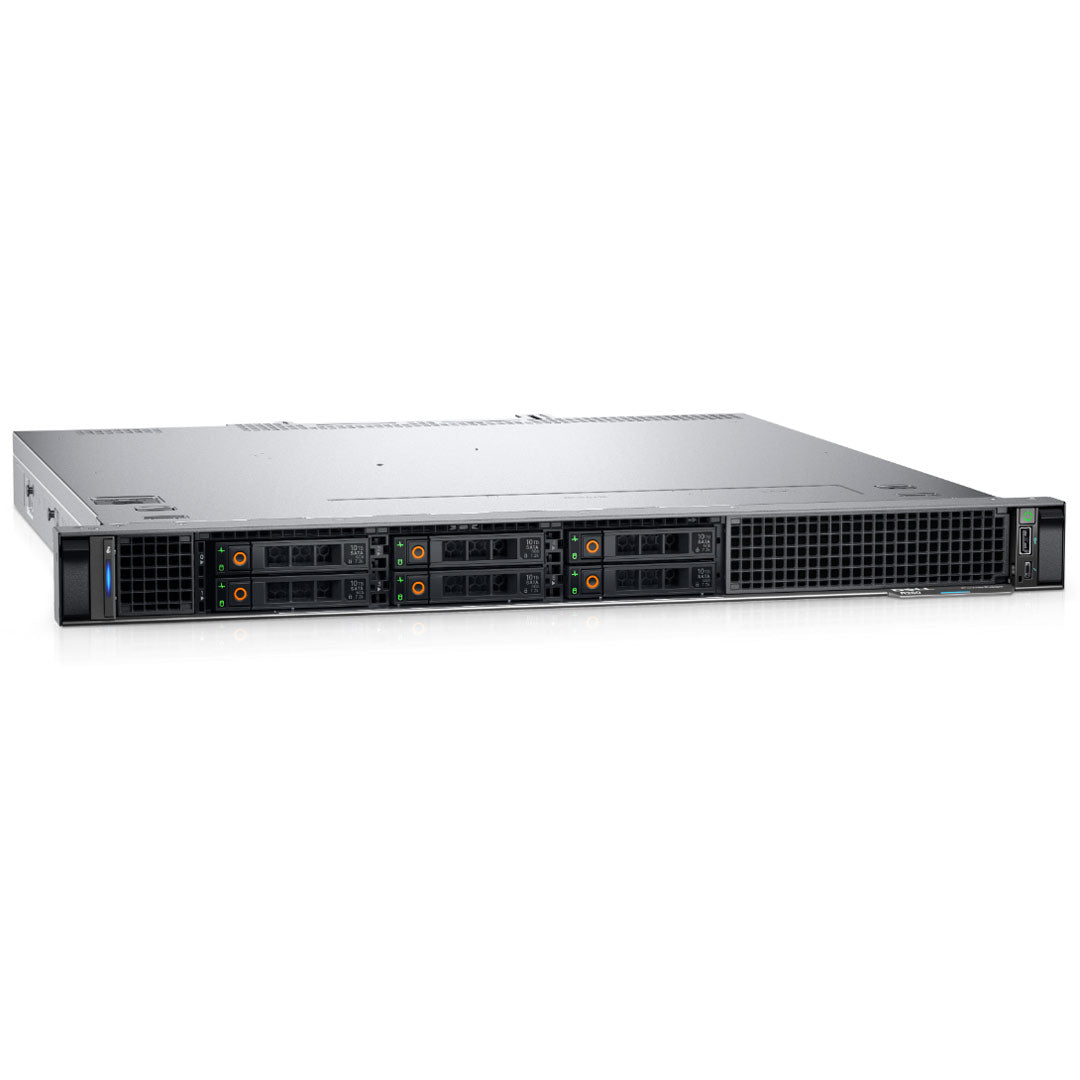

Image of the Dell PowerEdge R260 Rack Server

Affordable Entry Rack Server with Enterprise-level Features and Capabilities

Affordability does not compromise performance. The R260 is an enterprise-level server that features reliable hardware, latest-generation processors and memory, advanced boot options and secure IT infrastructure. In addition, the R260 supports different upgrade options for both hardware and software to meet a wide range of customer needs.

Chassis Options & Fans

PowerEdge R260 supports the following internal storage configurations:

6 x 2.5" SAS/SATA RAID
2 x 3.5" SAS/SATA RAID

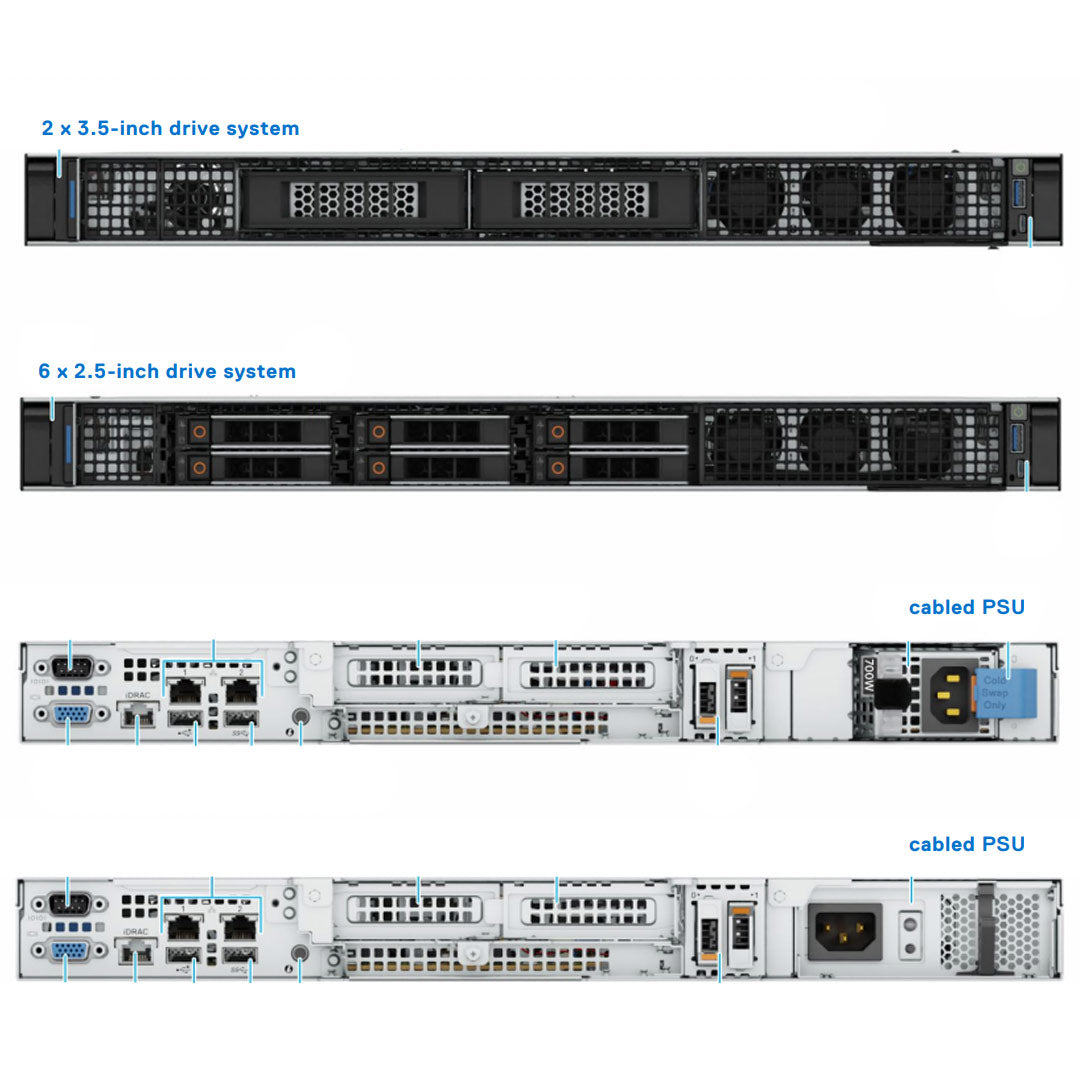

Image of the Chassis type for the R260 Rack Server by Dell.

The PowerEdge R260 system supports up to a maximum of six fans, five Standard (STD), and one High performance (HPR) cooling fan based on the system configuration. These fans are not hot-swappable. The Number of fans changes based on which Chassis you select. When the 6 x 2.5" Chassis is selected. Two more Fans slots must be filled behind the drive cage. The one high performance Fan is required when the BOSS-N1 Module is installed.

Number of Fans in the 2 Bay Chassis of the R260 Rack Server by Dell.

Number of Fans in the 6 Bay Chassis of the R260 Rack Server by Dell.

Memory | 4 x ECC DDR5 UDIMM 4400 MT/s

DIMM type	Rank / Width	Capacity	DIMM rated voltage and speed	Operating Speed
DIMM type	Rank / Width	Capacity	DIMM rated voltage and speed	1 DIMM per channel (DPC)	2 DIMM per channel (DPC)
ECC UDIMM	1 R / 8	16 GB	DDR5 (1.1 V), 5600 MT/	4400 MT/s	4000 MT/s
ECC UDIMM	2 R / 8	32 GB	DDR5 (1.1 V), 5600 MT/	4400 MT/s	3600 MT/s

Networking Options

The system supports up to two 10/100/1000 Mbps Network Interface Controller (NIC) ports embedded on the LAN on Motherboard (LOM) and up to four ports integrated on the optional network cards.

Feature	Specifications
LOM	1 Gb x 2
Network Card (optional)	1 Gb x 4, 10 Gb x 2, 10 Gb x 4

Boot Options

Image of the BOSS-N1 Module on the R260 Rack Server by Dell.

BOSS-N1 NVMe Module

The Boot Optimized Storage Sub-system is the perfect way to load the OS on this server. Otherwise, you will have to allocate 1 of the drives. This is not ideal when the storage in the system is so limited and the mixing of drive types is not supported. The BOSS module has a dedicated slot with 2 Hot-Swap M.2 Drives.

Internal USB

The Second option is an embedded USB slot on the system board. This USB drive can handle any OS you need to load. View the Manual for more information on the internal USB.

PCIe ButterFly Riser | 2x PCIe 4.0

Configuration No.	Riser Configuration	No. of Processors	PERC type supported on riser	Rear Storage Possible
RC0	No Riser	1	N/A	No
RC1	1x Riser (Gen4)	1	aPERC	No

Image of the RC1 Top View thats in the Dell PowerEdge R260 Rack Server.

Riser RC1 Top View

Image of the RC1 Bottom View thats in the Dell PowerEdge R260 Rack Server.

Riser RC1 Bottom View

Storage Controllers

Dell's RAID controller options offer performance improvements, including the Adapter PERC solution. Adapter PERC provides a base RAID HW controller without consuming a PCIe slot by using a small form factor and high-density connector to the base planar.

The Adapter PERC (aPERC) can only be installed in one of the PCIe slots. You must install the RC1 Butterfly Riser that supports 2 PCIe 4.0 slots.

Model and Form Factors	Interface Support	PCI Suppo rt	SAS Connection	Cach e Mem ory Size	Write Back Cache	RAID Levels	Max Drive Support	RAID Support
PowerEdge Server-Storage Controllers (PERC and SAS HBA) Series 11
H755 Adapter	12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA Gen3 (8 GT/s) NVMe Gen4 (16 GT/s) NVMe	PCIe Gen 4	16 ports- 2x8 Internal	8 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	16/controller 50 with SAS Expander	Hardware
HBA355i Adapter	12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA	PCIe Gen 4	16 ports- 2x8 Internal	N/A	N/A	N/A	16/ controller 50 with SAS Expander	N/A
HBA355e Adapter	12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA	PCIe Gen 4	16 ports- 4x4 external	N/A	N/A	N/A	240	N/A
H355 Adapter	12Gb/s SAS 6Gb/s SAS/SATA	PCIe Gen 4	16 ports- 2x8 Internal	No Cache	No Cache	0,1,10	Up to 32 RAID, or 32 Non- RAID	Hardware
S160 Software RAID	Gen4 (16 GT/s) NVMe	PCIe Gen 4	N/A	No Cache	No Cache	0,1,5,10	Up to 8	Software RAID - Windows only

Power & Dimensions

Power

450 W WRAC Platinum (AC only) cabled non-redundant 106mm
700 W mixed mode HLAC Titanium 60mm
WRAC - Wide Range AC 100 VAC - 240 VAC
HLAC - High Line AC 200 VAC - 240 VAC

Dimensions

Height: 42.8 mm (1.685")
Width: 482.0 mm (18.976")
Max Depth: 496.74 mm 19.555")
Max Weight: 9.61 kg (21.18Lbs)
