Specs
Quick Specs
Form Factor:
1U rack server
Processor | Max: 2 or 8 Cores1 x Intel Xeon E-2400 series processor or
1 x Intel Pentium G7400/G7400Ts
4 DDR5 UDIMM 4400 MT/s
Supports unregistered ECC DDR5 DIMMs only
2 x 1GbE with BCM5720 LAN controller
Storage | Max: 32TB2x 3.5" cable SAS/SATA HDD, Max 32 TB
Software Controller: S160
Internal Controllers: HBA355i Adpt, PERC H355 Adpt, PERC H755 Adpt
External HBAs (non-RAID): HBA355e Adpt
Boot Optimized Storage Subsystem (BOSS-N1) HWRAID 2 x M.2 SSDs
Internal USB 3.0
2x PCIe 4.0
1 x8 Gen4 (x16 connector) low profile, half length
1 x8 Gen4 (x8 connector) low profile, half length
None
Remote Management:iDRAC9 with Lifecycle Controller
Ideal for:
- Data Analytics
- Edge Servers
R260 is the newly-designed short-depth rack server with filter bezel for NearEdge customers. Featuring the latest Intel Xeon-E 2400 series processors, DDR5 memory, NVMe BOSS, and Energy Star 4.0 PSU, the R260 is ready to support customers growing businesses.
More Flexibility and Protection for Near-Edge Deployment
For Near-Edge applications including deployment in warehouses, retail offices, or a simple desk or shelf, the R260 adapts to any environment with its short-depth, 17-inch chassis. In addition, the R260 is equipped with an easy-to-manage filter bezel that shields the inner hardware from dust and grease, ensuring unobstructed airflow to main components resulting in fewer failures or performance issues, better acoustics, and efficient power consumption.
Affordable Entry Rack Server with Enterprise-level Features and Capabilities
Affordability does not compromise performance. The R260 is an enterprise-level server that features reliable hardware, latest-generation processors and memory, advanced boot options and secure IT infrastructure. In addition, the R260 supports different upgrade options for both hardware and software to meet a wide range of customer needs.
Looking to Customize?
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
| Feature | Technical Specifications | |
|---|---|---|
| Processor | One Intel Xeon E-2400 series processor with up to 8 cores or One Intel Pentium G7400/G7400T processor with 2 cores | |
| Memory |
| |
| Storage controllers |
| |
| Drive Bays | Front bays:
| |
| Power Supplies |
| |
| Cooling Options | Air cooling | |
| Fans |
| |
| Dimensions |
| |
| Form Factor | 1U rack server | |
| Embedded Management |
| |
| Bezel | Security bezel or optional Filter bezel* | |
| OpenManage Software |
| |
| Mobility | OpenManage Mobile | |
| OpenManage Integrations |
| |
| Security |
| |
| Embedded NIC | 2 x 1 GbE LOM | |
| GPU Options | N/A | |
| Ports | Front Ports
| Rear Port
|
Internal Ports
| ||
| PCIe | Up to two PCIe Gen4 slots on the Gen4 Riser
| |
| Operating System and Hypervisors |
| |
Spec Sheet 4
| Features | PowerEdge R260 | PowerEdge R250 | ||
|---|---|---|---|---|
| Processors | One Intel Xeon E-2400 series processors with up to 8 cores or one Intel Pentium processor with up to 2 cores | One Intel ® Xeon E-2300 series processor with up to 8 cores per processor | ||
| Memory | Up to 4 x DDR5 ECC UDIMMs DIMM Speed: Up to 4400 MT/s NOTE: Operating speed of the DIMM is limited due to the processor. |
Up to 4 x DDR4 UDIMMs DIMM Speed: Up to 3200MT/s | ||
| Storage Controllers | Internal Controllers: PERC H355, PERC H755, HBA355i | Internal Controllers: PERC H345, PERC H355, PERC H755, HBA355i | ||
| External Controllers: HBA355e | External Controllers: HBA355e | |||
| BOSS-N1 | BOSS-S1 | |||
| Software RAID: S160 | Software RAID: S150 | |||

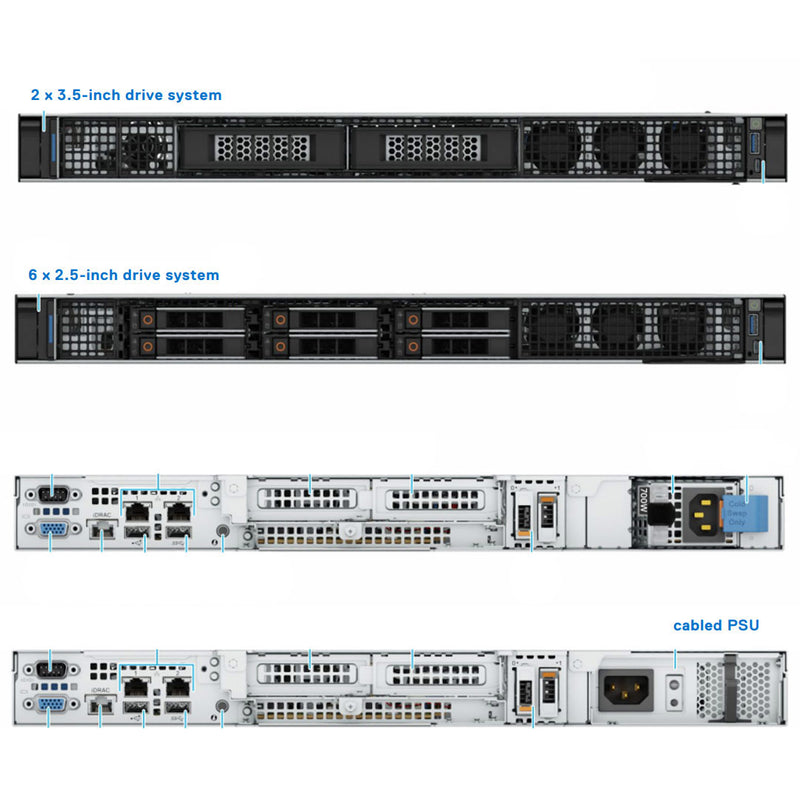

| Drive Bays | Front: Up to 2 x 3.5-inch SAS/SATA (HDD) Up to 6 x 2.5-inch SAS/SATA (HDD/SSD) |
Front: Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) Up to 2 x 3.5-inch SAS/SATA (HDD/SSD) |
||
| Power Supplies | 450 W Platinum 100 V-240 V AC, cabled non
redundant 700 W Mixed Mode Titanium 200 V-240 V AC or 240 V DC, non cabled |
450 W Bronze 100-240 V AC, cabled 450 W Platinum 100-240 V AC, cabled 700 W Mixed Mode Titanium 200 V-240 V AC or 240V DC. non cabled |
||
| Cooling Options | Air cooled | Air cooled | ||
| Fans | Up to Five Standard (STD) fans and One optional High Performance (HPR) fan. NOTE: All fans are cabled. |
Up to Three Standard (STD) fans and One optional High Performance (HPR) fan. NOTE: All fans are cabled. |
||
| Dimension | Height : 42.8 mm (1.68 inches) | Height : 42.8 mm (1.68 inches) | ||
| Width : 482.0 mm (18.97 inches) | Width : 482.0 mm (18.97 inches) | |||
| Depth: 461.14 mm (18.15 inches) without bezel | Depth: 585 mm (23.02 inches) without bezel | |||
| Depth : 496.8 mm (19.55 inches) with bezel | Depth: 598.64 mm (23.56 inches) with bezel | |||
| Depth - 426.6 mm (16.80 inches) with cable PSU and without bezel | ||||
| Form Factor | 1U | 1U | ||
| Embedded Management |
|
|
||
| OpenManage Software |
|
|
||
| Mobility | OpenManage Mobile | OpenManage Mobile | ||
| Integrations and Connections | OpenManage Integrations
|
Integrations:
|
Connections:
|
|
| Security |
|
|
||
| Embedded NIC | 2 x 1GbE LOM | 2 x 1GbE LOM | ||
| Networking Options | Optional Network Card | Optional Network Card | ||
| GPU Options | None | None | ||
| Ports | Front Ports:
|
Rear Ports:
|
Front Ports:
|
Rear Ports:
|
| Internal : 1 x USB 3.2 Gen1 | Internal : 1 x USB 3.0 (optional) | |||
| PCIe | Up to 2 x PCIe Slots Gen4 on Riser | Up to 2 x PCIe Slots Gen4 | ||
| Operating System and Hypervisors |
|
|
||
