SKU: 823402-B21

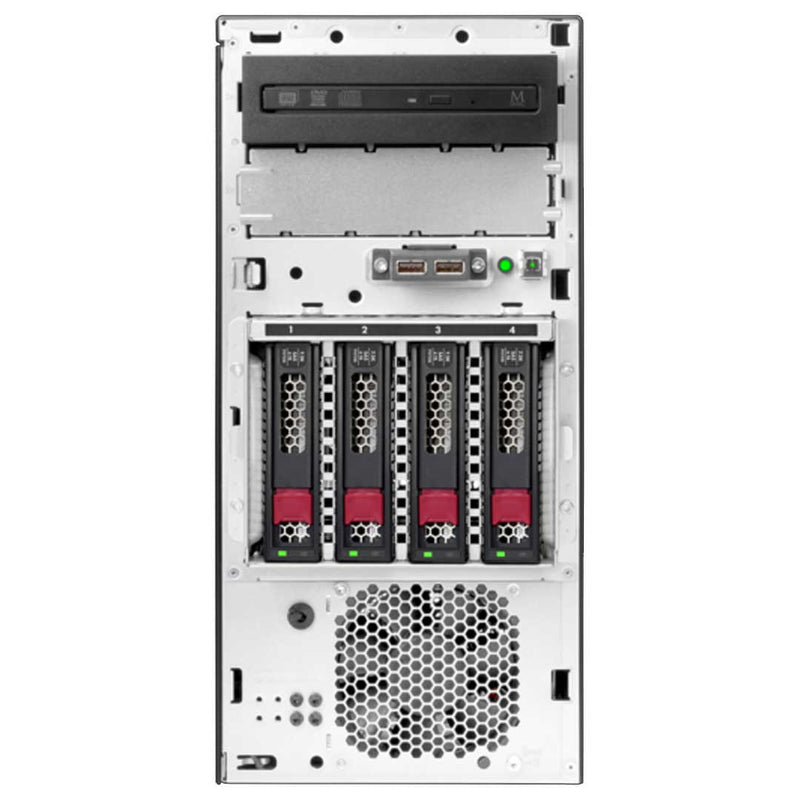

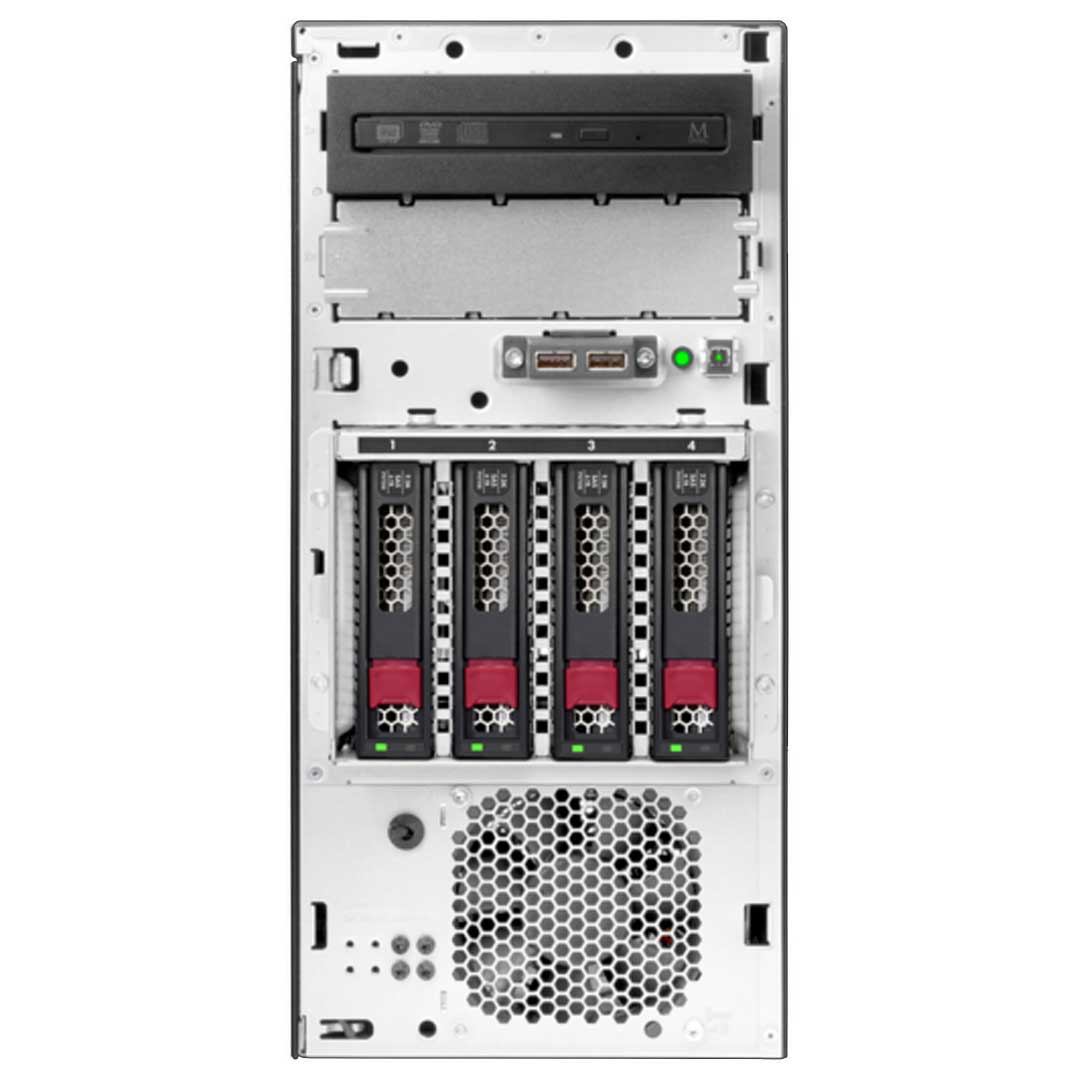

Hpe Proliant Ml30 Gen9 Tower Server 4 Lff Chassis | 823402-B21

HPE

| Chassis
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

What's New for ML30 Gen9
  • (1) Intel E3-1200 v5 or v6
  • (4) DDR4 UDIMM Slots
  • Broadcom 5720 Dual-port 1GbE
  • 4 PCIe 3.0 slots
  • iLO Management (standard),
  • Intelligent Provisioning (standard)
  • 1 non hot plug, non-redundant

The HPE Tower server ML30 is a high-performance server that comes equipped with one CPU and four DIMMs, providing ample processing power and memory to handle a range of workloads. This server also features support for two form factor drives, allowing you to choose between either four LFF HDDs or eight SFF SSD/HDDs.

This flexibility makes it easy to customize the server to meet your specific storage needs. Additionally, the HPE Tower server ML30 features a compact tower design, making it easy to deploy and manage in a variety of environments. Whether you're running a small business or a larger enterprise, the HPE Tower server ML30 is a versatile and reliable choice for all of your computing needs.

Other Versions:

Ideal for:

  • Corporate IT
  • Database

CTO Configuration Support

Need help with the configuration? Contact us today!

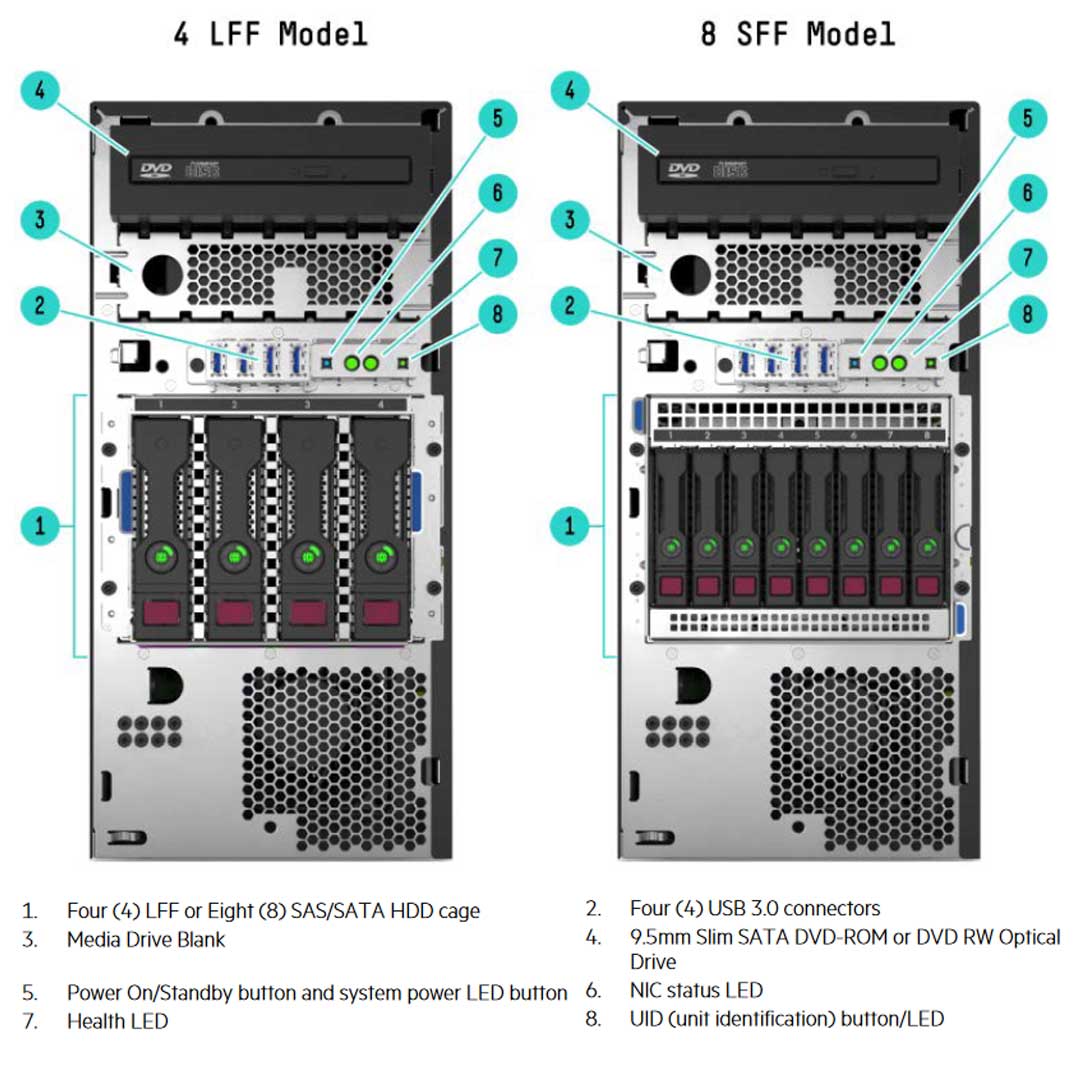

Chassis Options
[Chassis]
HPE ProLiant ML30 Gen9 Non-hot Plug 4LFF Configure-to-order Server HPE ProLiant ML30 Gen9 Hot Plug 4LFF Configure-to-order Server HPE ProLiant ML30 Gen9 Hot Plug 8SFF Configure-to-order Server
SKU Number 823401-B21 823402-B21 823403-B21
Processor 1
DIMM Slots 4 DIMM slots for UDIMM DDR4 Memory
Storage Controller HPE Dynamic Smart Array B140i with 4 SATA ports support HPE Dynamic Smart Array B140i with 4 SATA ports support, choice of HPE SAS Controller or Smart HBA
PCIe 4 PCIe 3.0 slots
Drive Cage 4LFF Non Hot Plug 4LFF Hot Plug 8SFF Hot Plug
Network Controller Broadcom 5720 Dual-port 1GbE
Fans 1 non hot plug, non-redundant
Management iLO Management (standard), Intelligent Provisioning (standard)
USB 4 front, 4 rear, 2 internal
4 Non Hot-Plug Drive Cage 4 Non Hot-Plug Drive Cage
Controller

HPE Dynamic Smart Array B140i with 4 SATA ports support

Max Capacity

SATA | 4 x 4TB = 16TB

4 Hot-Plug Drives Cage / Backplane 4 Hot-Plug Drives Cage / Backplane
Controller

HPE Dynamic Smart Array B140i with 4 SATA ports support, choice of HPE SAS Controller or Smart HBA

Max Capacity

SAS | 4 x 12TB = 48TB

SATA | 4 x 12TB = 48TB

SATA | 4 x 1.92GB = 7.68TB

8 Hot-Plug Drives Cage / Backplane 8 Hot-Plug Drives Cage / Backplane
Controller

HPE Dynamic Smart Array B140i with 4 SATA ports support, choice of HPE SAS Controller or Smart HBA

Max Capacity

SAS | 8 x 2.4TB = 19.2TB

SATA | 8 x 2TB = 16TB

SATA | 8 x 3.84TB = 30.72TB

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Product features

Feature
Description
Processor (One of the following depending on model)
Model
CPU Frequency
Cores
L3 Cache
Power
DDR4 Hz
G4560
3.5 GHz
2
3MB
54 W
2400
G4600
3.6 GHz
2
3MB
51 W
2400
i3-7100
3.9 GHz
2
3MB
51 W
2400
i3-7300
4.0 GHz
2
3MB
51 W
2400
E3-1220v6
3.0 GHz
4
8MB
72 W
2400
E3-1230v6
3.5 GHz
4
8MB
72 W
2400
E3-1240v6
3.7 GHz
4
8MB
72 W
2400
E3-1270v6
3.8 GHz
4
8MB
72 W
2400
E3-1280v6
3.9 GHz
4
8MB
72 W
2400
Cache memory (One of the following depending on model)

  • 8MB (1 x 8MB) level 3 cache (For quad-core intel xeon processors)

  • 3MB (1 x 3MB) level 3 cache (For dual-core intel pentium core i3 processors)

Chipset
Intel C236 chipset
On system management chipset
HPE iLO (Firmware HPE iLO4 2.0) 4GB NAND
Memory protection
ECC
Memory
Type
DDR4 unbuffered (UDIMM)
DIMM Slots available
4 (4 DIMM slots per processor; 2 channels per processor, 2 DIMMs per channel)
Maximum capacity (UDIMM)
64GB (4 x 16GB UDIMM 2133 MHz)
Network controller
HPE Ethernet 1Gb 2-port NC332i adapter

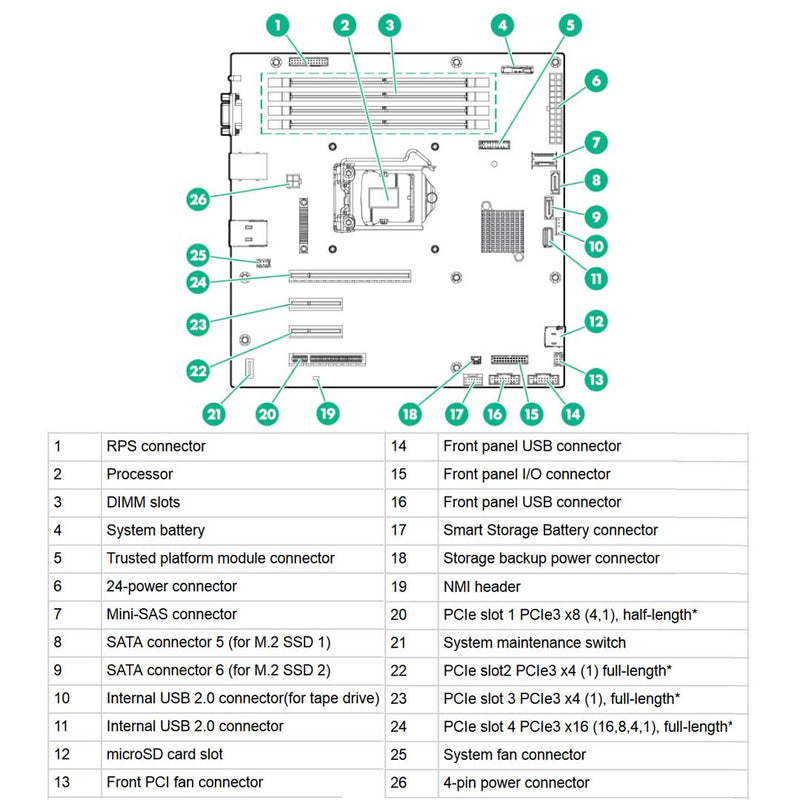

Expansion slots
Expansion Slots Number
Technology
Bus Width
Connector Width
Form Factor
4
PCIe 3.0
x16
x16
Full length/full height
3
PCIe 3.0
x1
x4
Full length/full height
2
PCIe 3.0
x1
x4
Full length/full height
1
PCIe 3.0
x4
x8
Half length/full height
NOTE: Bus width indicates the number of physical electrical lanes running to the connector
Storage controller (One of the following depending on model)
Base models
HPE Dynamic smart array B140i controller
Performance models
HPE Dynamic smart array B140i controller
NOTE: B140i can not mix with any standup internal controller
Internal storage devices (One of the following depending on model)
Optical drives

  • Optional SATA 9.5 mm DVD-ROM optical drive

  • Optional SATA 9.5 mm DVD RW optical drive

Hard drives
None ship standard
Hard drive bays

  • 4 LFF drive bays (Non-hot-plug and hot-plug)

  • 8 SFF hot-plug drive bays

NOTE:
  • HPE ProLiant ML30 Series servers offer both SFF and LFF versions in CTO.
  • All pre-configured models come populated with some hard drive blanks installed. Should the end user need additional hard drive blanks, they can order more using either Part Number (P/N) 666987-B21: HPE SFF HDD blank kit or P/N 666986- B21: HPE LFF HDD blank kit
Maximum internal storage
Drives
Capacity
Configuration
Hot plug LFF SAS
48TB
4x12TB
Hot plug SFF SAS
19.2TB
8x24TB
Hot plug LFF SATA
48TB
4x812TB
Hot plug SFF SATA
16TB
8x2TB
Non-hot plug LFF SATA
16TB
4x4TB
Hot plug SFF SATA SSD
30.72TB
8x3.84GB
Hot plug LFF SATA SSD
7.68TB
4x1.92GB
System fans
Non-redundant
Redundant
1P model system fan
One (1) Non-redundant system fan
NA
1P model PCIe fan
One (1) Non-redundant PCIe fan
NA
Power supply

  • HPE 350 W ATX-Gen9 power supply FIO kit

  • HPE 460 W redundant power supply

  • HPE Entry-Level power supplies provide lower-cost options for users trying to balance their need for enterprise class efficiency and reliability while maintaining lowest possible hardware costs

System fans
Model
Non-redundant
Redundant
1P model system fan
One (1) non-redundant system fan
NA
1P model PCIe fan
One (1) non-redundant PCIe fan
NA
Upgradeability

  • Upgradeable to 4 cores (Total 2 or 4 cores)

  • Up to 4 DIMM slots available for higher memory capacity

  • Up to 8 SFF hard drive bays; or 4 LFF hard drive bays

  • All PCIe 3.0 I/O slots for additional communications and storage expansion

  • Redundant power supply

  • Optical drive bay (Up to 2.)

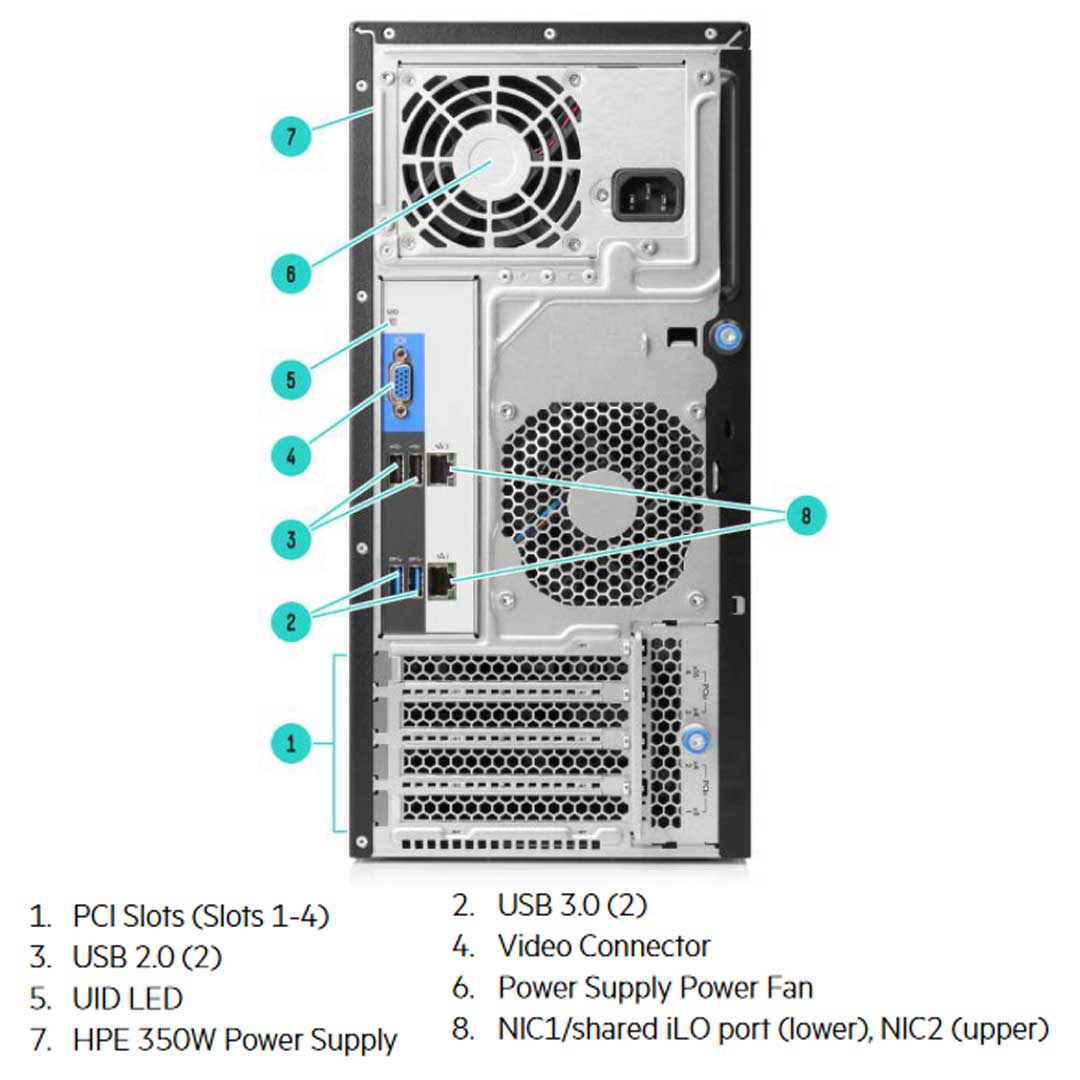

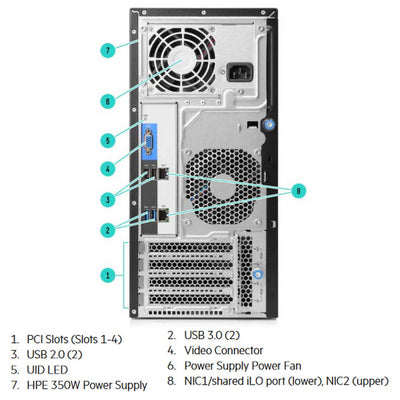

Interfaces
Video
1 (Rear)
USB 3.0
6 (4 front, 2 rear)
USB 2.0
4 (2 rear, 1 internal standard USB, 1 internal USB header)
Micro SD slot
1 Internal
NOTE: The Micro-SD slot is not a hot-pluggable device. End users should not attempt to plug a Micro-SD card into the Micro-SD slot while the server is powered.
Network RJ-45 (Ethernet)
2 (1 shared for HPE integrated lights-out)
Industry standard compliance

  • ACPI 2.0b compliant

  • PCIe 3.0 compliant

  • PXE support

  • WOL support

  • Microsoft logo certifications

  • USB 2.0 /3.0 support

Graphics
Integrated Matrox G200 video standard

  • 1280 x 1024 (32 b/p)

  • 1920 x 1200 (16 b/p)

HPE iLO 4 on system management memory

  • 16MB flash

  • 256MB DDR 3 with ECC (112MB after ECC and video)

HPE NVIDIA Quadro M2000 GPU Module
Security

  • Power-ON password

  • Setup password

  • Power switch security

  • Administrator's password

  • TPM 1.2

  • TPM 2.0

  • UEFI

Form factor
Micro ATX Tower (4U) chassis with feet/bezel:
  • 36.82 x 17.5 x 47.52 cm (14.5 x 6.89 x 18.71 in)
8 SFF drive bay cage:
  • 11.74 x 14.57 x 12.15 cm (4.6 x 5.74 x 4.79 in)
4 LFF drive bay cage:
  • 11.72 x 14.57 x 17.54 cm (4.6 x 5.74 x 6.90 in)
HPE Server UEFI / legacy ROM
UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

  • Secure boot

  • OS specific functionality

  • Support for > 2.2TB (Using GPT) boot drives

  • USB 3.0 stack

  • Embedded UEFI shell

  • Mass configuration deployment tool using RESTful API for iLO 4

  • PXE boot support for IPv6 networks

  • Boot support for option cards that only support a UEFI option ROM

  • Network stack configurations

Embedded management

  • HPE IntegratedLights-Out(HPE iLO)

  • UEFI

  • RESTful API

  • Intelligent provisioning

  • Embedded remote support

Server utilities

  • Smart update

  • HPE Systems Insight Manager(HPE SIM)

  • Scripting ToolKit and Windows PowerShell

  • RESTful interface tool

  • HPE iLO mobile application

  • HPE Insight online

Storage software

  • Data protection and recovery software

  • Data archive and migration software

  • Storage Resource Management Software (SRM)

  • Data replication software

  • Storage device management software

  • HPE StoreVirtual VSA

top

Specs 1

Software overview

Feature
Description
Operating systems and virtualization software support

  • Microsoft Windows Server

  • Red Hat Enterprise Linux (RHEL)

  • SUSE Linux Enterprise Server (SLES)

  • VMware

  • ClearOS

top

Physical specifications

Specification
Description
Dimensions (H x W x D):
36.82 x 17.5 x 47.52 cm (14.50 x 6.89 x 18.7 in)
Weight

  • Maximum: 15.4 kg (30.8 Ib)

  • Minimum: 13.56 kg (27.1 lb)

top

Electrical specifications

Specification
Description
Rated line voltage
100 - 120 V ac
Rated input current
2.5 - 6 A
Rated input frequency
47 - 63 Hz
Rated input power

  • 412 W - 526 W at 115 V ac

  • 412 W - 523 W at 230 V ac

BTU rating
460 W - 1773 BTU/hr (At 120 V ac), 1715 (At 240 V ac)
Rated steady-state power

  • 350 W (At 115 V ac)

  • 350 W (At 230 V ac)

Peak power

  • 350 W (At 115 V ac)

  • 350 W (At 230 V ac)

top

Environmental specifications

Specification
Description
Operating temperature
10°C to 35°C (50°F to 95°F)
Non-operating temperature
-30°C to 60°C (-22°F to 140°F)
Operating relative humidity
10% to 90% non-condensing
Non-operating relative humidity
5% to 95% non-condensing
Operating altitude
3048 m (10,000 ft)
Non-operating altitude
9144 m (30,000 ft)
Acoustic noise
Idle
Operating
LWAd

  • 4.2 Bels (1P LFF base)

  • 3.7 Bels (1P LFF performance)

LpAm

  • 27 dBA (1P LFF base)

  • 23 dBA (1P LFF performance)

LWAd

  • 4.2 Bels (1P LFF base)

  • 3.8 Bels (1P LFF performance)

LpAm

  • 27 dBA (1P LFF base)

  • 23 dBA (1P LFF performance)

NOTE:
  • Configurations tested for 1P LFF base models include one (1) 1TB LFF SATA Midline (MDL) HDD and Windows 2012 Enterprise 64-bit
  • Configurations tested for 1P LFF performance models include one (1) 1TB LFF SATA MDL HDD and Windows 2012 Enterprise 64-bit
  • The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels
  • Levels presented do not account for non-Hewlett Packard Enterprise installed hardware

top

Safety certifications

Specification
Description
Emissions Classificatio (EMC)
FCC rating
Class B
Normative standards
CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003;CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3;EN 60950-1; IEC 60950-1
NOTE: Product conformance to cited product specifications is based on sample (Type) testing, evaluation or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.
