Home / 8 Core / Dell PowerEdge R350 Rack Server Chassis (4x3.5")
SKU: DPE-R350-4x35-Chassis

Dell PowerEdge R350 Rack Server Chassis (4x3.5")

Dell CTO

| Chassis
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

CTO Item

This part is strictly for configuring Dell servers. If you have landed on this page and you're looking for a specific part number. Please send us a "Request a Quote" with the part number you need.

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

FeatureTechnical Specification
ProcessorOne Intel Xeon E-2300 series processor with up to 8 cores or one Intel Pentium processor with up to 2 cores
Memory
  • Four DDR4 DIMM slots, supports UDIMM 128 GB max, speeds up to 3200 MT/s
  • Supports unregistered ECC DDR4 DIMMs only
Note: For Pentium processor, the maximum memory speed is 2666 MT/s.
Storage controllers
  • Internal controllers (RAID): PERC H355, PERC H355f, PERC H345, PERC H345f, H755, H755f, HBA355i, HBA355f, S150
  • Internal Boot: Internal Dual SD Module or USB or Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs
  • External HBAs (non-RAID): HBA355e

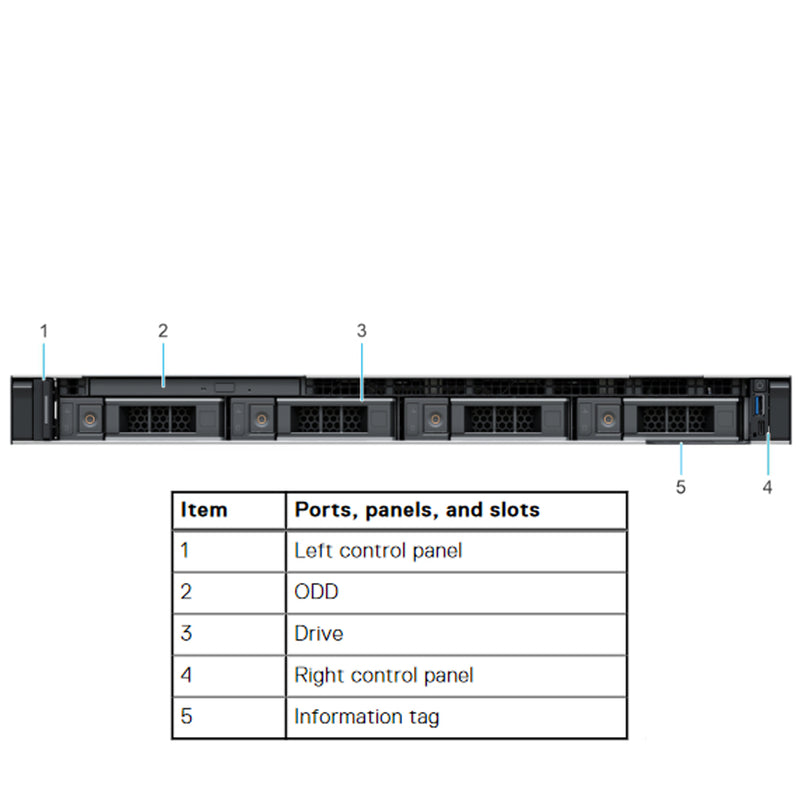

Drive baysFront bays:
  • Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB
  • Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 128 TB
Power supplies600W Platinum 100-240 VAC or 240 VDC redundant, hot swap
Cooling optionsAir Cooling
FansUp to four fans with full redundancy
DimensionsHeight: 42.8 mm (1.68 inches)
Width: 482 mm (18.97 inches)
Depth: 585.3 mm (23.04 inches) without bezel
598.94 mm (23.58 inches) with bezel
Form Factor1U Rack Server
Embedded mgmt
  • iDRAC9
  • iDRAC Direct
  • iDRAC RESTful API with Redfish
  • iDRAC Service Manual
BezelOptional LCD bezel or security bezel
OpenManage™ Software
  • OpenManage Enterprise
  • OpenManage Power Manager plugin
  • OpenManage SupportAssist plugin
  • OpenManage Update Manager plugin
MobilityOpenManage Mobile
Integrations and ConnectionsOpenManage Integrations
  • BMC Truesight
  • Microsoft System Center
  • Red Hat Ansible Modules
  • VMware vCenter and vRealize Operations Manager
OpenManage Connections
  • IBM Tivoli Netcool/OMNIbus
  • IBM Tivoli Network Manager IP Edition
  • Micro Focus Operations Manager
  • Nagios Core
  • Nagios XI
Security
  • Cryptographically signed firmware
  • Secure Boot
  • Secure Erase
  • Silicon Root of Trust
  • System Lockdown
  • TPM 1.2/2.0, TCM 2.0 optional
Embedded NIC2 x 1 GbE LOM
Network OptionsN/A
PortsFront Ports:
  • 1 x USB 2.0
  • 1 x iDRAC Direct (Micro-AB USB) port
Internal Ports
  • 1 x USB 3.0 (optional)

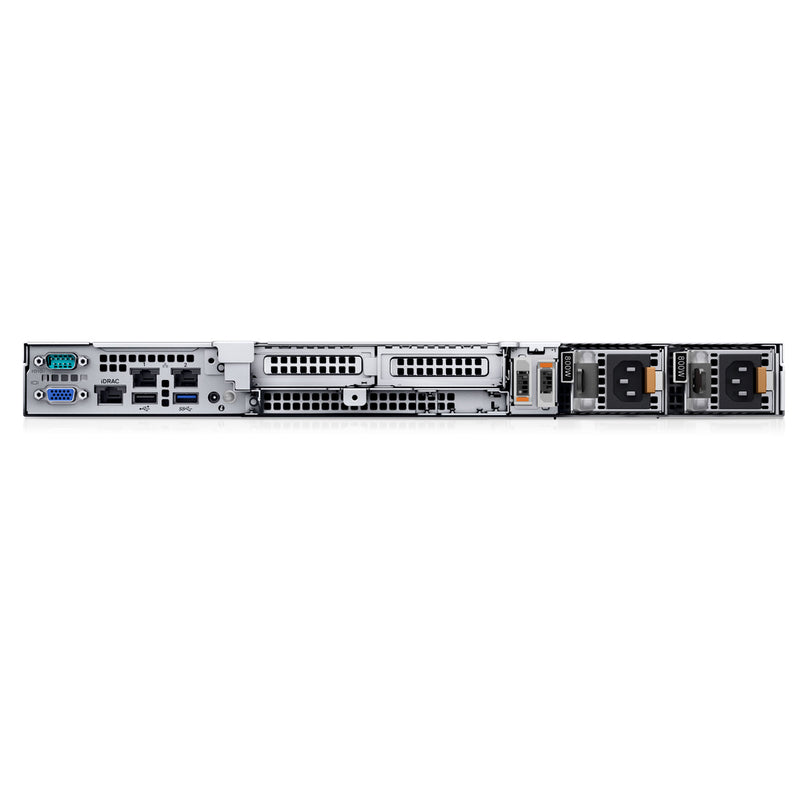

Rear Ports
  • 1 x USB 2.0
  • 1 x iDRAC ethernet port
  • 1 x USB 3.0
  • 1 x VGA
  • 1 x Serial port
PCIe3 PCIe slots:
  • 1 x8 Gen4 (x16 connector) low profile, half length
  • 1 x8 Gen4 (x8 connector) low profile, half length
  • 1 x8 Gen4 (x8 connector) for dedicated PERC only
Operating System and Hypervisors
  • Canonical Ubuntu Server LTS
  • Citrix Hypervisor
  • Microsoft Windows Server with Hyper-V
  • SUSE Linux Enterprise Server
  • Red Hat Enterprise Linux

Spec Sheet 4

Feature PowerEdge R350 PowerEdge R340
Processor One Intel Xeon E-2300 series processors with up to 8 cores or one Intel Pentium processor with up to 2 cores Coffee Lake-S E3-1200 V6 series. Pentium and celeron up to 95 W
Memory 4 DDR4 DIMM slot, supports UDIMM 128 GB max, speeds up to 3200 MT/s Supports unregistered ECC DDR4 DIMMs only DDR4 up to 2666 MT/s, memory support 8,16 GB DDR4 UDIMMs
Storage Drives ● Up to 4 x 3.5-inch SAS/SATA (HDD/ SSD)
● Up to 8 x 2.5-inch SAS/SATA (HDD/ SSD)
● Max 80TB for 4 HDD configurations		 ● Up to 8 x 2.5-inch hot-plug SAS/ SATA (SSD)
● Up to 4 x 3.5-inch hot-plug SAS/ SATA (SSD)
Storage Controllers Internal Controllers
● PERC H355, PERC H355f, PERC H345, PERC H755, PERC H755f, HBA355i, PERC H345f, HBA355f External Controllers
● HBA355e Software RAID
● S150 		Internal Controllers
● PERC H330, H730p, HBA330 External Controllers
● 12Gbps SAS HBA Software RAID
● S140
PCIe Slots 3 x PCIe Gen4 slots
● 1x8 Gen4 (x16 connector) low profile, half length
● 1x8 Gen4 (x8 connector) low profile, half length
● 1x4 Gen4 (x8 connector) for dedicated PERC only		 2 x PCIe Gen3 slots
● 1x8 Gen4 (x16 connector) low profile/Full-height, half length
● 1x8 Gen4 (x8 connector) low profile, half length
Embedded NIC (LOM) 2 x 1GbE LOM 2 x 1GbE LOM
USB ports Front Ports
● 1 x iDRAC Direct (Micro-AB USB) port
● 1 x USB 2.0 Rear Ports
● 1 x USB 2.0
● 1 x USB 3.0 Internal Ports
● 1 x USB 3.0 (Optional)		 Front Ports
● 2 x USB 2.0 Rear Ports
● 2 x USB 3.0 Internal Ports
● 1 x USB 3.0
Rack Height 1U 1U
Power Supplies ● 600 W Platinum 100-240 V AC or 240 V DC redundant, hot swap
● 700 W Titanium 100-240 V AC or 240 V DC redundant, hot swap		 Single or dual 350 W or 550 W hotplug redundant platinum power supplies (100–240 V AC)
Embedded management ● iDRAC9
● iDRAC Direct
● iDRAC Service Module
● iDRAC RESTful API with Redfish		 ● iDRAC Direct
● iDRAC RESTful API with Redfish
● iDRAC9 Enterprise
Front IO ● Power button w/LED x1
● ID button w/LED x1
● USB 2.0 x1
● iDRAC MGMT USB x1
● System Status LED x1		 ● Power button w/LED x1
● ID button w/LED x1
● USB 2.0 x1
● iDRAC MGMT USB x1
● System Status LED x1
