Home / 8 Core / Dell PowerEdge FM120x4 Microserver 4x2.5" SSD Chassis
SKU: DPE-FM120x4-25-Chassis

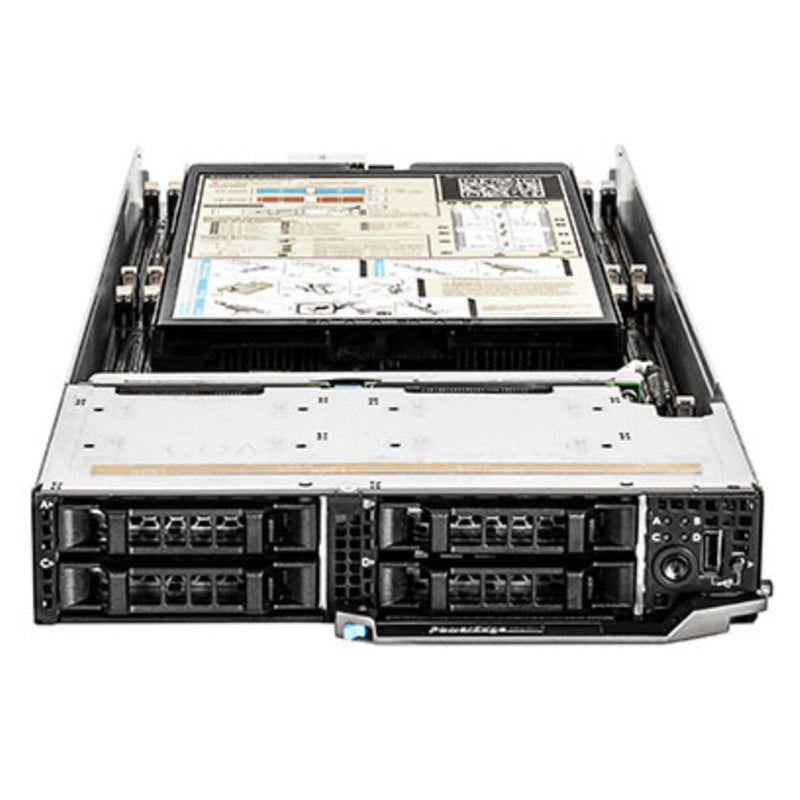

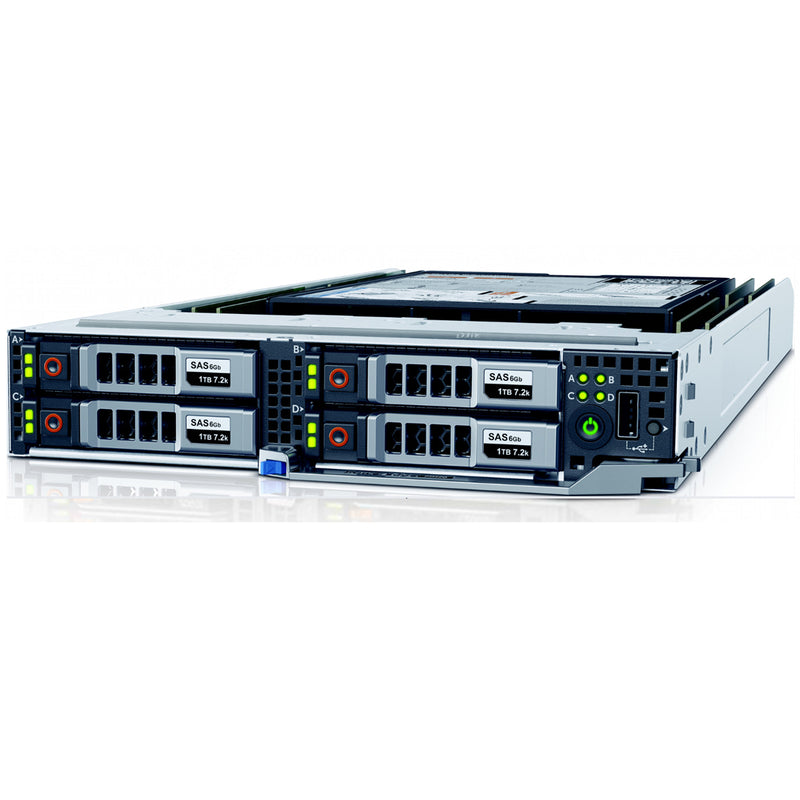

Dell PowerEdge FM120x4 Microserver 4x2.5" SSD Chassis

Dell

| Chassis
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

World’s first enterprise-class microserver.

Form Factor:

Half-width – 4N/2U

Processor | Max: 8 Cores

4 x Intel Atom processor C2000 product family

Memory | Max: 64GB

8x DDR3 1600MHz UDIMM

Storage | Max: N/A

4x 2.5" SAS/SATA (HDD/SSD) or
8x 1.8" NVMe SSD

Storage Controller

S110 (SW RAID 0, 1 or Non-RAID for 1.8" Drives)

iDRAC:

iDRAC8 with Lifecycle Controller

Ideal for:

  • Data Analytics
  • Web Tech

This is one of the supported Blade Servers, the PowerEdge FX2.

The PowerEdge FM120x4 blade server is actually 4 Micro servers in one Half-Width Blade. Hence the x4 in the FM120x4 Name. Each FM120 Micro Server runs the low-power Intel® Atom™ C2000 processors. Its System-on-a-chip (SoC) design lets it pack 4 processors in each half-width sled, providing a high-density, low-cost solution, ideal for web serving and dedicated hosting.

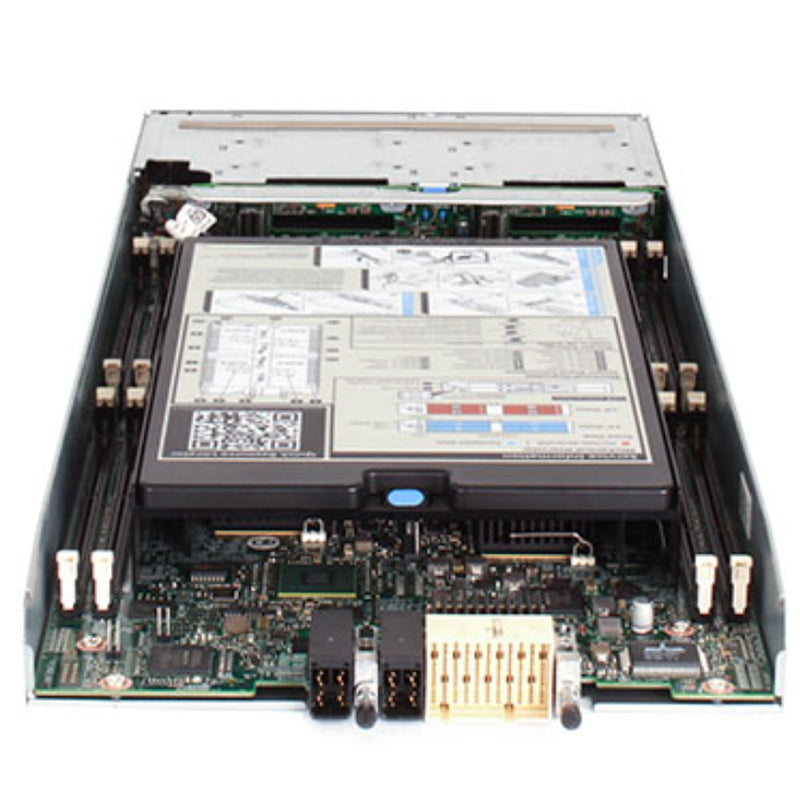

Each Micro-Server holds One CPU, Two DIMMs, and supports One 2.5" drive or Two 1.8" drive.

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

FeatureTechnical specification
Form factorHalf-width – supports up to four (4) sleds per PowerEdge FX2 enclosure
DimensionsH: 4.03 cm (1.58 in), W: 10.27 cm (4.04 in), D: 47.17 cm (18.57 in)
Processor4 x Intel Atom processor C2000 product family Cache: 1MB shared L2 between two cores – 4MB total cache for eight cores; core options: 2, 4, 8
Integrated NIC2 x 1Gb controllers embedded in the SOC
Memory2 x DIMMs DDR3 memory per SOC, UDIMM only, 8 per sled.
RAID controllersSW RAID
Storage1 x 2.5" front access hard drives or 2 x 1.8" SSD drives - (Per Processor)
CommunicationsNo PCIe slots (Up to 2 pass-through modules, 1Gb capable via the FX2 chassis)
Power Supplies1100W power supply via FX2 chassis
Systems management• FX uses Chassis Management Controller (CMC) to manage all resources (server nodes and shared infrastructure) in a single web console
• OpenManage portfolio for FX supports local and remote management, consistent with other PowerEdge products
• CMC and iDRAC are available with either Enterprise or Express licensing to best suit specific management needs
• Server nodes each contain proven iDRAC8 with Lifecycle Controller for agent-free, automated systems management
Operating systemsMicrosoft® Windows Server® 2008 R2
Microsoft Windows Server 2012
Microsoft Windows Server 2012 R2
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux
VMware® ESX®

Spec Sheet 4

Feature FX2 FM120x4 FC430 FC630 FD332
Form Factor 2U chassis in height Half-width: up to 4 FM120 per FX2 chassis Quarter-width: up to 8 FC430 per FX2 chassis Half-width: up to 4 FC630 per FX2 chassis Half-width: up to 16 x SFF 2.5” storage devices; Up to 3 FD332 per FX2 chassis
Processors N/A 4 x Intel® Atom™ processor C2000 product family Intel Xeon processor E5-2600 v3 product family Intel Xeon processor E5-2600 v3 product family N/A
Processor sockets N/A 1 2 2 N/A
Cache N/A - 2.5MB per core;
core options: 4, 6, 8, 10, 12, 14		 2.5MB per core;
core options: 4, 6, 8, 10, 12, 16, 18		 N/A
Chipset N/A SoC Intel C610 series Intel C610 series N/A
Memory (1) N/A 2 x DIMMs DDR3 memory per SOC, UDIMM only, 8 per sled Up to 256GB (8 DIMM slots):
4GB/8GB/16GB/32G B DDR4 up to 2133MT/s		 Up to 768GB (24 DIMM slots):
4GB/8GB/16GB/32G B DDR4 up to 2133MT/s		 N/A
PCIe slots FX2s:
Up to 8 PCIe 3.0 slots		 N/A Access to 1 x PCIe 3.0 slot Access to 2 x PCIe 3.0 slots N/A
RAID controller N/A PERC S110 (SW RAID) Internal controllers: PERC S130 (SW RAID) PERC S130 (SW RAID),
PERC H330
PERC H730
PERC H730P		 FD33xS (Single PERC),
FD33xD (Dual PERC)
Storage N/A 1 x 2.5" SATA HDD/SSD or
2 x 1.8" uSATA SSD per Intel Atom processor		 Up to 2 x 1.8” uSATA SSDs PowerEdge Express Flash NVMe PCIe SSD, SATA HDD/SSD or
SAS HDD/SSD;
Up to 8 x 1.8” SSD or
2 x 2.5”		 SATA HDD/SSD or SAS HDD/SSD;
Up to 16 x SFF storage devices per FD332
Power supply 2000W AC, 1600W or 1100W AC power supplies in 1+1 redundant, redundancy alerting only, 2+0 non-redundant configurations.
Systems management • FX uses CMC to manage all resources (server nodes and shared infrastructure) in a single web console
• OpenManage portfolio for FX supports local and remote management, consistent with other PowerEdge products
• CMC and iDRAC are available with either Enterprise or Express licensing to best suit specific management needs
• Server nodes each contain proven iDRAC with Lifecycle Controller for agent-free, automated systems management
Operating systems N/A • Microsoft® Windows Server® 2008 R2 SP1 (includes Hyper-V®)
• Microsoft Windows Server 2012
• Microsoft Windows Server 2012 R2 (includes Hyper-V)
• Novell® SUSE® Linux Enterprise Server
• Red Hat® Enterprise Linux®		 N/A
