SKU: DPE-R510-4x3.5-Chassis

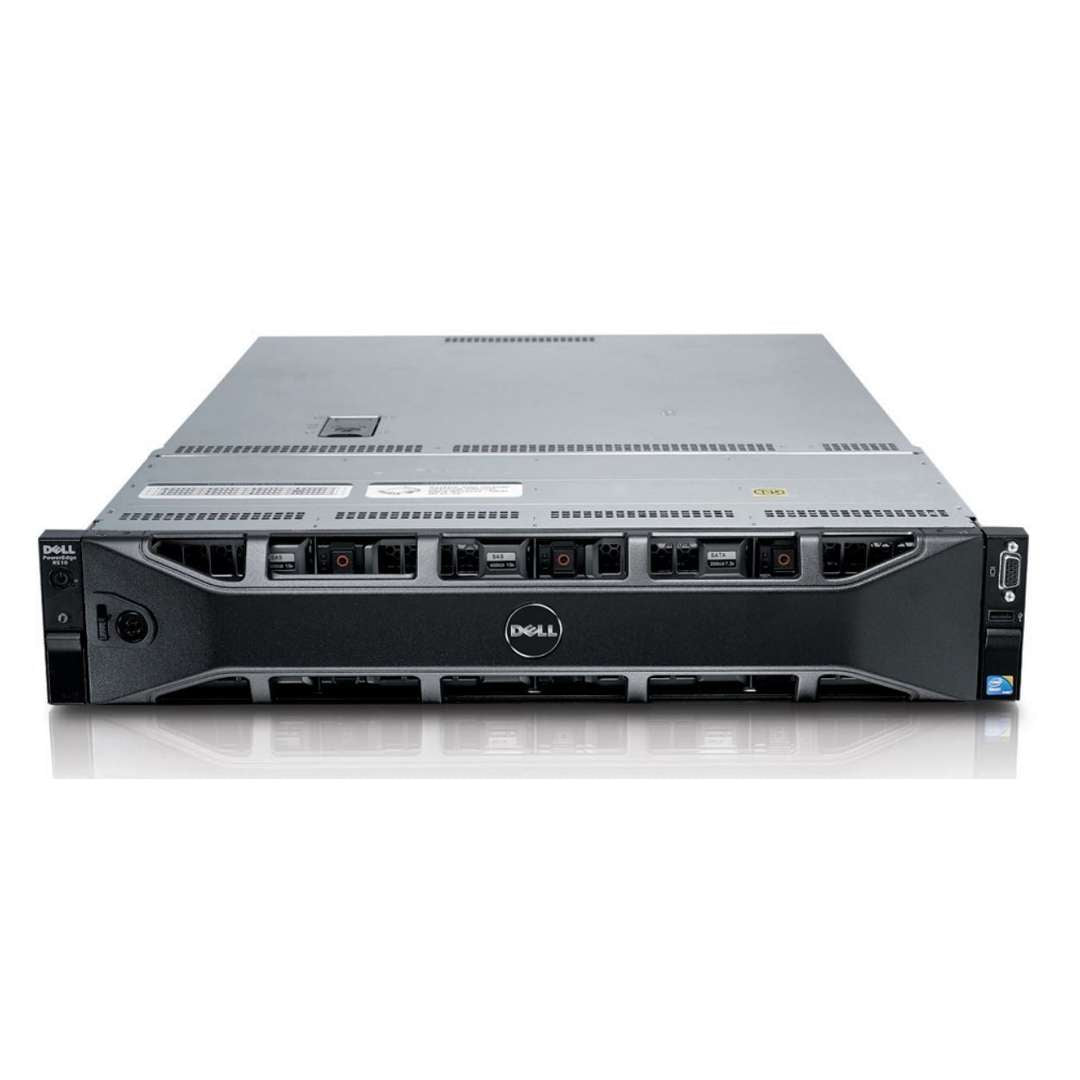

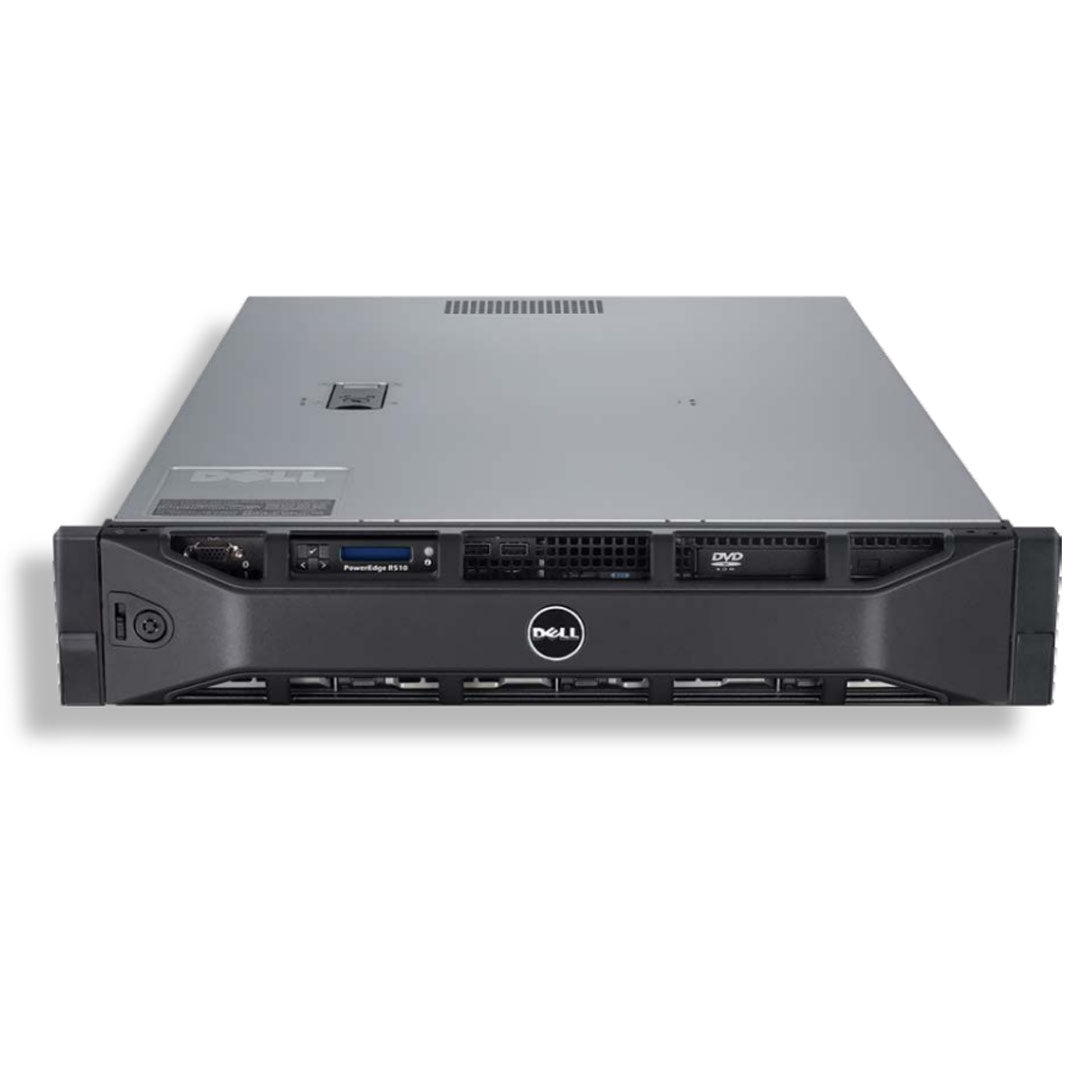

Dell PowerEdge R510 Rack Server Chassis (4x3.5")

Name: Dell PowerEdge R510 Rack Server Chassis (4x3.5")
Brand: Dell
SKU: DPE-R510-4x3.5-Chassis
Availability: OutOfStock

Dell

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor:

2U rack server

Processor | Max: 4 or 6 Cores

2 x Intel Xeon 5500 or 5600

Memory | Max: 128GB

8 DDR3 UDIMM 1333Mhz

Storage | Max: 12-37.8TB

4x 3.5" Cabled SAS/SATA
8x 3.5" SAS/SATA (HDD/SSD)
12x 3.5" SAS/SATA (HDD/SSD) + 2x Internal Cabled 2.5" HDD

RAID Controller:

S100 (SW RAID)
S300 (SW RAID), H200, H700, H800, 6Gb/s SAS HBA

Remote Management:

Baseboard Management Controller (BMC - Default)
iDRAC6 with Lifecycle Controller (Optional with vFlash)

PCIe Slots:

3x PCIe 2.0

GPU:

Yes

Other Versions

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Feature	PowerEdge R510 Technical Specification
Form Factor	2U rack
Processors	Quad-core or six-core Intel® Xeon® processors 5500 and 5600 series
Processor Sockets	2
Front Side Bus or HyperTransport	Intel QuickPath Interconnect (QPI)
Cache	4MB, 8MB and 12MB
Chipset	Intel 5500
Memory	Up to 128GB (8 DIMM slots): 1GB/2GB/4GB/8GB/16GB DDR3 up to 1333MHz

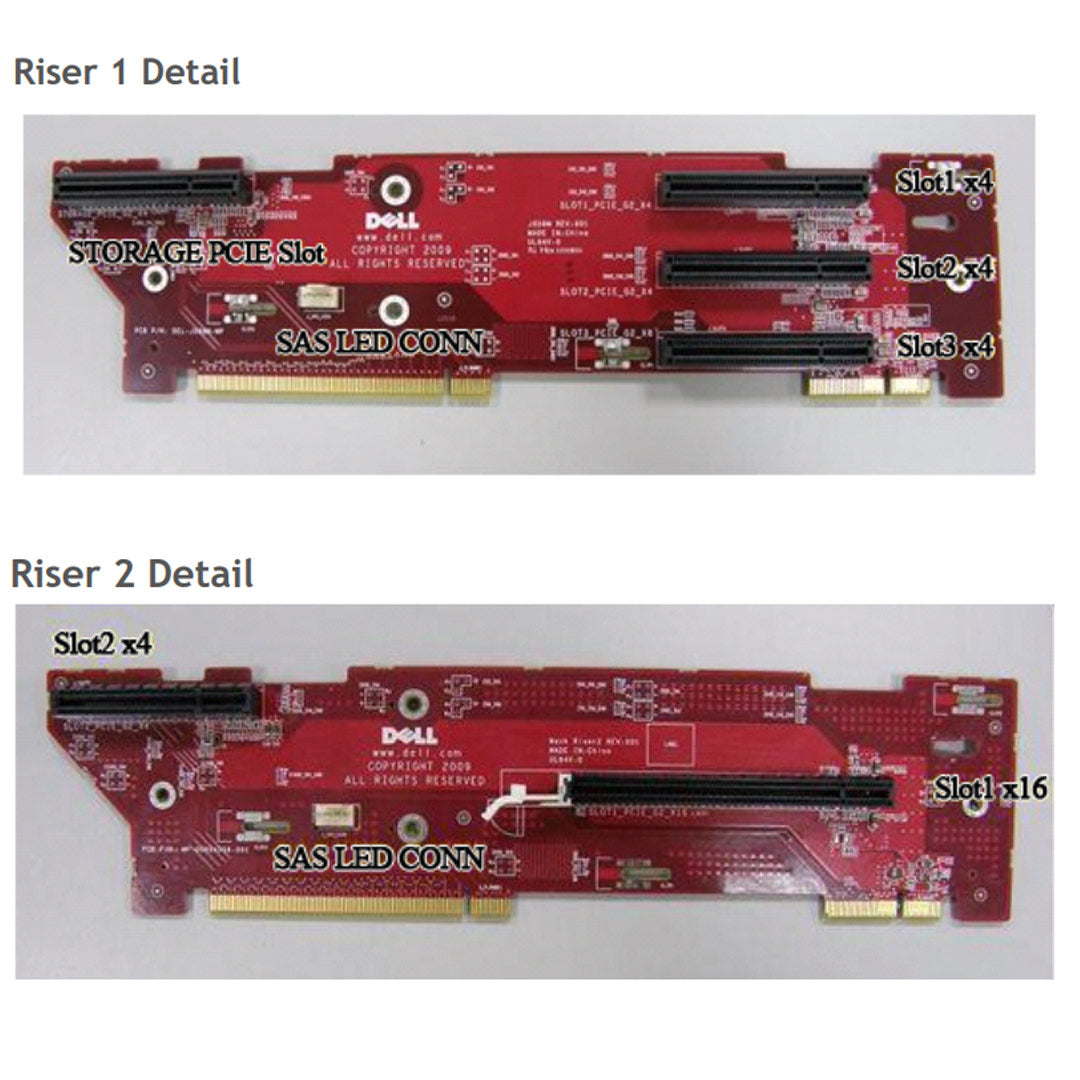

I/O Slots	3 PCIe G2 slots + 1 storage slot: One x8 slot Two x4 slots One storage x4 slot
RAID Controller	Internal: SAS 6/iR PERC 6/i PERC S100 (software based), Available on 4 HDD only PERC S300 (software based), Available on 4 and 8 HDD only PERC H200 (6GB/s) PERC H700 (6Gb/s) with 512MB battery-backed cache; 512MB, 1GB Non-Volatile battery-backed cache	External: PERC H800 (6Gb/s) with 512MB of battery-backed cache; 512MB, 1GB Non-Volatile battery-backed cache PERC 6/E with 256MB or 512MB of battery-backed cache SAS 5/E HBA LSI2032 PCIe SCSI HBA External HBAs (non-RAID): 6Gbps SAS HBA SAS 5/E HBA LSI2032 PCIe SCSI HBA
Drive Bays	Up to four cabled 3.5” SAS or SATA drives in 4 hard drive chassis Up to eight hot-swap 2.5”/3.5” SAS, SATA or SSD drives in 8 hard drive chassis Up to 12 hot-swap 2.5”/3.5” SAS, SATA or SSD drives in 12 hard drive chassis with 2 additional 2.5” internal cabled hard drives
Maximum Internal Storage	12TB–37.8TB (depending on chassis)
Hard Drives	Hot-plug hard drive options: 2.5” SAS SSD, SATA SSD, SAS (10K) 3.5” SAS (15K, 10K), nearline SAS (7.2K), SATA (7.2K)	Cabled hard drive options: 2.5” SATA SSD, SAS (10K), nearline SAS (7.2K) 3.5” SAS (15K, 10K), nearline SAS (7.2K), SATA (7.2K)
Communications	Intel 10G Base-T Single Port NIC Broadcom® BMC5710 10 Base-T Copper Single Port NIC Intel PRO/1000 PT Single Port Adapter, Gigabit Ethernet NIC, PCIe x1 Intel Gigabit ET Dual Port Adapter, Gigabit Ethernet NIC, PCIe x4 Intel Ethernet X520 DA2 Dual-Port 10 Gigabit Server Adapter Intel Gigabit ET Quad Port Adapter, Gigabit Ethernet NIC, PCIe x4 Emulex® CNA iSCSI HBA stand up adapter OCE10102-IX-D Emulex CNA iSCSI HBA stand up adapter OCE10102-FX-D	Broadcom NetXtreme® 5709 Dual Port Gigabit Ethernet NIC, Copper, TOE/iSCSI PCIe x4 Broadcom NetXtreme II 57711 Dual-Port SFP+/Direct Attach 10Gb Ethernet PCI-Express Network Interface Card with TOE and iSCSI Offload Broadcom NetXtreme 5709 Dual Port Gigabit Ethernet NIC, Copper, w/TOE PCIe x4 Brocade® CNA Dual-port adapter Brocade FC4 and 8 GB HBAs Brocade CNA BR1020

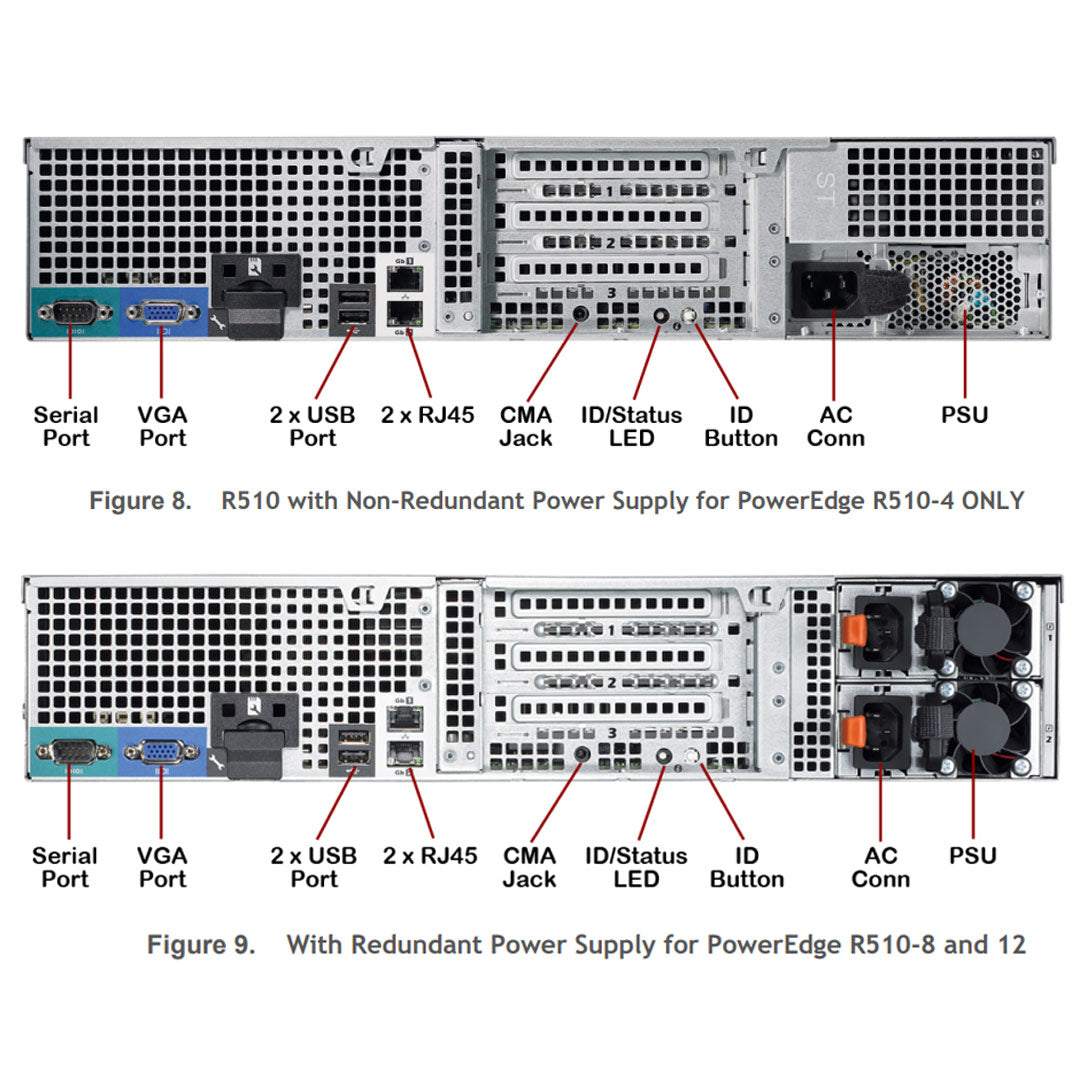

Power Supply	4 hard drive configuration: • Non-redundant 480W power supply 8 hard drive configuration: • One non-redundant 750W hot-plug power supply • One non-redundant 1100W hot-plug power supply • Two redundant 750 hot-plug power supplies • Two redundant 1100W hot-plug power supplies	12 hard drive configuration: • One non-redundant 750W hot-plug power supply • Two redundant 750 hot-plug power supplies Uninteruptible power supplies: • 1000W-5600W • 2700W-5600W High Efficiency Online • Extended Battery Module (EBM) • Network Management Card
Availability	Hot-plug hard drives, hot-plug redundant power, ECC memory, Quad-Pack LED lights, LCD display screen, and redundant cooling (availability of some features dependent on chassis selected)
Video	Matrox® G200eW with 8MB memory
Remote Management	iDRAC6 optional
Systems Management	Dell™ OpenManage™ BMC, IPMI 2.0 compliant Unified Server Configurator Lifecycle Controller enabled though optional: iDRAC6 Express, iDRAC6 Enterprise and vFlash media
Rack Support	ReadyRails™ sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks); ReadyRails static rails for 2-post and 4-post racks
Operating Systems	Microsoft Windows Server 2012 Microsoft Windows® Small Business Server 2011 Microsoft Windows Server® 2008 SP2, x86/x64 (x64 includes Hyper-V®) Microsoft Windows Server 2008 R2 SP1, x64 (includes Hyper-V v2) Windows HPC Server 2008 R2 Novell® SUSE® Linux® Enterprise Server Red Hat® Enterprise Linux®	Virtualization Options: VMware® vSphere™ ESXi™ and ESXi For more information on the specific versions and additions, visit Dell.com/OSsupport.
Featured Database Application	Microsoft SQL Server® solutions (see Dell.com/SQL)
