Specs
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Comes with:
- Processors - 1 x Intel® Xeon® E-2314 (4-Core, 2.8 GHz, 65W)
- Memory - 16 GB UDIMM DDR4 3200 MT/s (1x 16 GB)
- Network Controller - Embedded 1Gb 2-Port Ethernet Adapter
- Storage Controller - Embedded Intel VROC SATA software RAID
Notes:
− 4 SATA ports support drive bays, 2 SATA ports support optional HPE Universal SATA AIC HHHL M.2 SSD Kit (878783-B21), and additional 1 SATA via onboard M.2 slot.
− NHP models do not support internal Smart Array controllers.
- Hard Drive - 1TB SATA 6G Midline 7.2K LFF RW HDD
- Internal Storage - 4 LFF HDD Bays (Non Hot Plug) 1 M.2 PCIe 3.0 x2/SATA slot
- Optical Drive Bay - Optional Slimline ODD Bay Kit (P06309-B21) consumes 1 media bay
- Optical Drive - None included
- PCIe Slots - 1 PCIe 4.0 slots, 3 PCIe 3.0 slots
- Power Supply - 1 350W ATX Power Supply
- Fans - 1 non-hot plug non-redundant system fan
- Management - HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download),
HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView Advanced (require licenses) - Security - Embedded TPM
- Energy Start - N/A
- Form Factor - Tower (4U)
Looking to Customize?
Not seeing the exact specs you need?
Start your build today with Express Computer Systems!
Start Customizing Today!
Spec Sheet 4
| Technical specifications | HPE ProLiant ML30 Plus Gen10 server |
|---|---|
| Processor family | Intel® Xeon® E-2300 Processor |
| Processor core available | 4 to 8 core |
| Processor cache | Up to 16 MB Intel® Smart Cache, depending on processor |
| Processor speed | 3.7 GHz, maximum depending on processor |
| Expansion slots | 4, for detailed descriptions reference the QuickSpecs |
| Maximum memory | 128 GB with 32 GB DDR4 |
| Memory slots | 4 DIMM slots, maximum |
| Memory type | HPE DDR4 Standard Memory |
| Memory protection features | Unbufferred ECC |
| Network controller | HPE embedded 1Gb 2-port BCM5720 Network Adapter and optional HPE network controllers |
| Storage controller | Intel® VROC SATA (formerly known as Intel® RSTe) |
| Product Dimensions (imperial) | 14.5 x 6.89 x 18.7 in |
| Weight | 22.1 lb minimum 38.7 lb maximum |
| Infrastructure management | Included - HPE iLO Standard with intelligent provisioning (embedded), HPE Systems Insight Manager (requires download), HPE OneView Standard (requires download) Optional - HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, HPE OneView Advanced (requires download) |

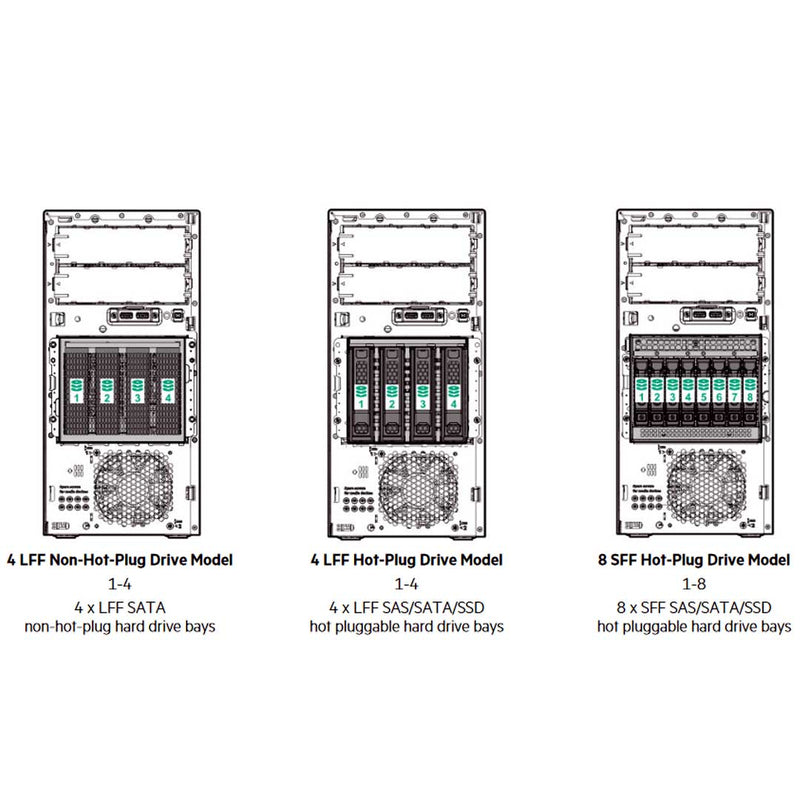

| Drive supported | 4 NHP LFF SATA HDD 4 LFF SAS/SATA HDD/SSD or 8 SFF SAS/SATA HDD/SSD, with 1 M.2 NVMe SSD, depending on model |
