Specs
Quick Specs
Tower server | 5U (Rack conversion kit)
Processor | Max: 14 Cores2x Intel E5-2600 v3 or v4 Processors
Memory | Max: N/A12 DDR4 RDIMM 2400Mhz
Storage | Max: N/A8x 3.5" Hot-Swap SAS/SATA (HDD/SSD)
Boot OptionsIDSDM
Internal USB
H730, PERC H730P and PERC H830
Support for a maximum of 1 internal controller and 1 external controller
2 x 1GbE LOM
Remote Management:iDRAC8 with Lifecycle Controller
PCIe Slots:6 full height slots: 4 x PCIe 3.0, 2 x PCIe 2.0
GPU:1x DW or 2x SW GPU
Ideal for:
- Virtualization

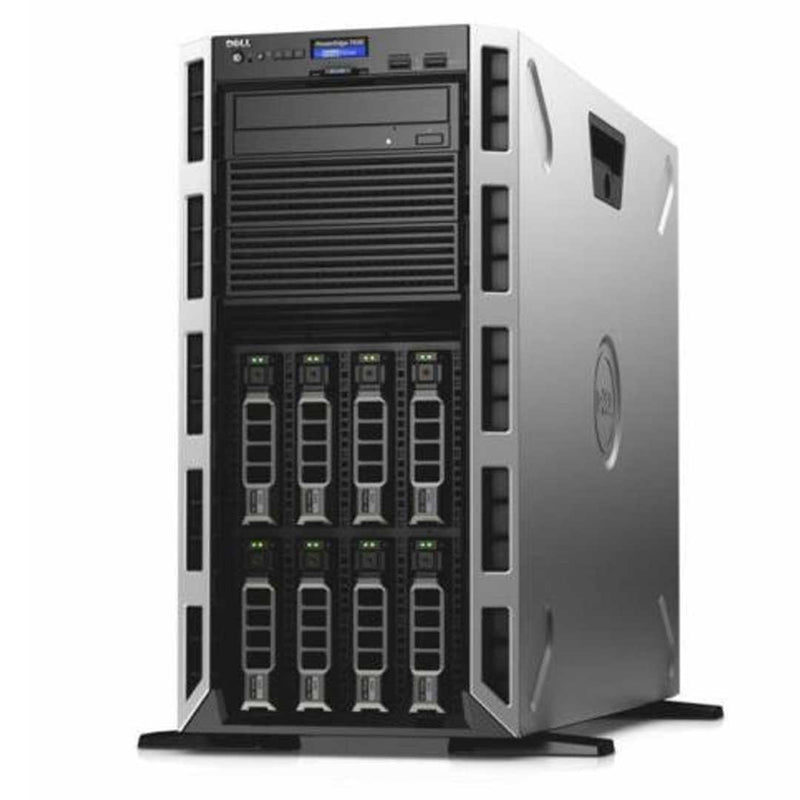

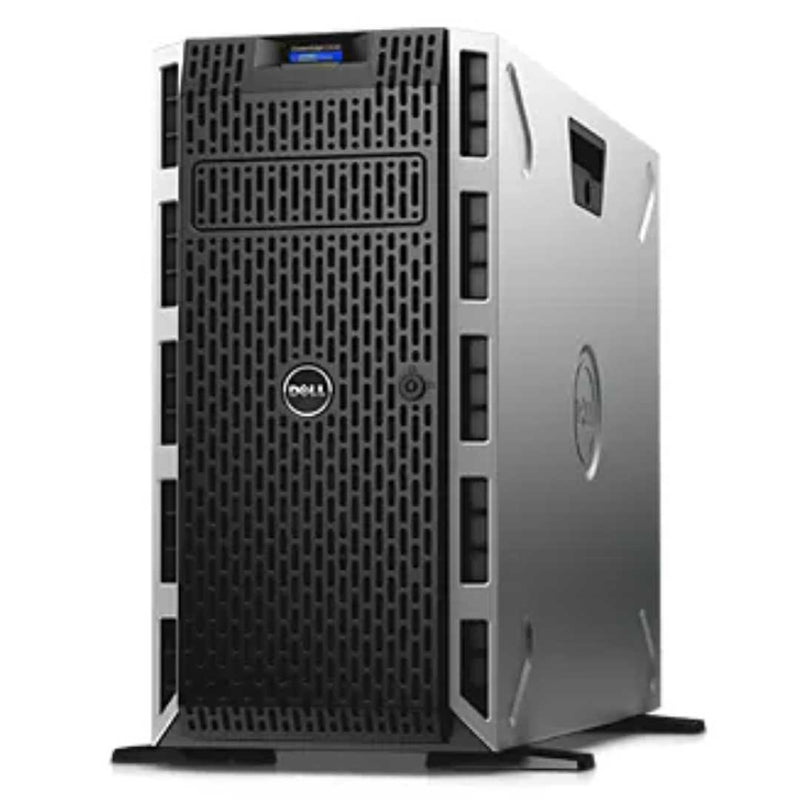

The powerful and reliable PowerEdge T430 two-socket tower server delivers performance, expandability and quiet operation to office environments.
The PowerEdge T430 is an excellent fit for a wide range of office workloads, including workgroup collaboration and productivity applications, mail and messaging, file and print serving, and web serving. The T430 is an ideal choice for small office and remote office/branch office (ROBO) sites in need of single-server performance and capacity.
- Short 22" depth and quiet office acoustics
- Intel Xeon processor E5-2600 v4 product family
- 12 x DIMMs DDR4 memory
- 6 full height slots: 4 x PCIe 3.0, 2 x PCIe 2.0 slots
Drive Configurations:
- 4 3.5" Cabled none hot plug HDD
- 8 3.5" Hot Plug SAS/SATA HDD SSD
- 16 2.5" Hot Plug SAS/SATA SSD
Deliver peak performance
Accelerate performance across a wide range of workloads with the latest Intel Xeon processor E5-2600 v4 product family. Drive fast response times and expand memory capacity over time with 12 DIMM slots and DDR4 memory. Boost I/O performance with 6 x PCIe 3.0 slots delivering 2x data throughput compared to PCIe 2.0.
Discover greater versatility
Install performance where it’s needed with a rackable tower form factor, short 22-inch depth and quiet office acoustics. Grow data storage over time with a choice of internal hard drive form factors and capacities, guarded by RAID options for data protection and optimized performance. Adapt flexibly to changing workload conditions with an expandable virtualization-ready platform.
Deliver peak performance
Accelerate your applications with the latest Intel Xeon processor E5-2600 v4 product family and boost memory and I/O performance with:
- DDR4 memory that provides as much as 15 percent greater memory bandwidth than previous-generation DDR3 RAM
- 12 DIMM slots that enable you to expand memory capacity as needed
- Six PCIe Gen3 slots that deliver twice the data throughput compared to PCIe Gen2
Maximize operational efficiency
Save time and reduce potential for error with simplified, intuitive systems management, and help reduce costs with energy-efficient features.
- Simplify administration by automating deployment, management and updates with the integrated Dell Remote Access Controller 8 (iDRAC8) with Lifecycle Controller.
- Control server availability more effectively by monitoring and managing the health and availability of PowerEdge servers anytime, anywhere through OpenManage Mobile and a handheld device.
- Harness your budget with energy-efficient processors, memory and power supplies. Fresh Air 2.0 configurations allow you to operate at extended temperatures without chilled air.
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
| Features | Technical specification | |
|---|---|---|
| Form factor | Tower (5U rackable) | |
| Dimensions | Tower
| Rack
|
| Processor | Intel® Xeon® processor E5-2600 v4 product family
| |
| Memory | 12 DIMM slots: 4GB/8GB/16GB/32GB DDR4 up to 2400MT/s | |
| I/O slots | Support for up to 6 full height slots: 4 x PCIe 3.0, 2 x PCIe 2.0 | |
| RAID controllers | Support for a maximum of 1 internal controller and 1 external controller PERC H730, PERC H730P and PERC H830 | |
| Network controller | 2 x 1GbE LOMs | |
| Hard drives | SAS, SATA, nearline SAS, SSD | |
| Communications | Broadcom® 5720 | |
| Power | 495W, 750W, 1100W PSU; 450W cabled non-redundant PSU | |
| Availability | Hot-plug drives bays; high-efficiency, hot-plug, redundant power supply units; fan redundancy; extended thermal support; Dell fault- resilient memory; Internal dual SD modules | |
| Slots | 1x8 PCIe 3.0 (x16 connector) 1x4 PCIe 3.0 (x8 connector) | 1x4 PCIe 3.0 (x8 connector) 1x1 PCIe 3.0 (x1 connector) |
| Availability | 2 x 1GbE LOMs | |
| Systems Management | Systems management: IPMI 2.0 compliant; Dell OpenManage Essentials; Dell OpenManage Mobile; Dell OpenManage Power Center Remote management: iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade), 8GB vFlash media (upgrade), 16GB vFlash media (upgrade) | Dell OpenManage connections:
|
| Rack support | All configurations support rackable, except the 3.5" x 4 cabled chassis configuration | |
| Optional supported hypervisors | Citrix® XenServer® VMware vSphere® ESXi™ Red Hat® Enterprise Virtualization | |
| Operating systems | Microsoft® Windows Server® 2008 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 Novell® SUSE® Linux Enterprise Server Red Hat Enterprise Linux | |
