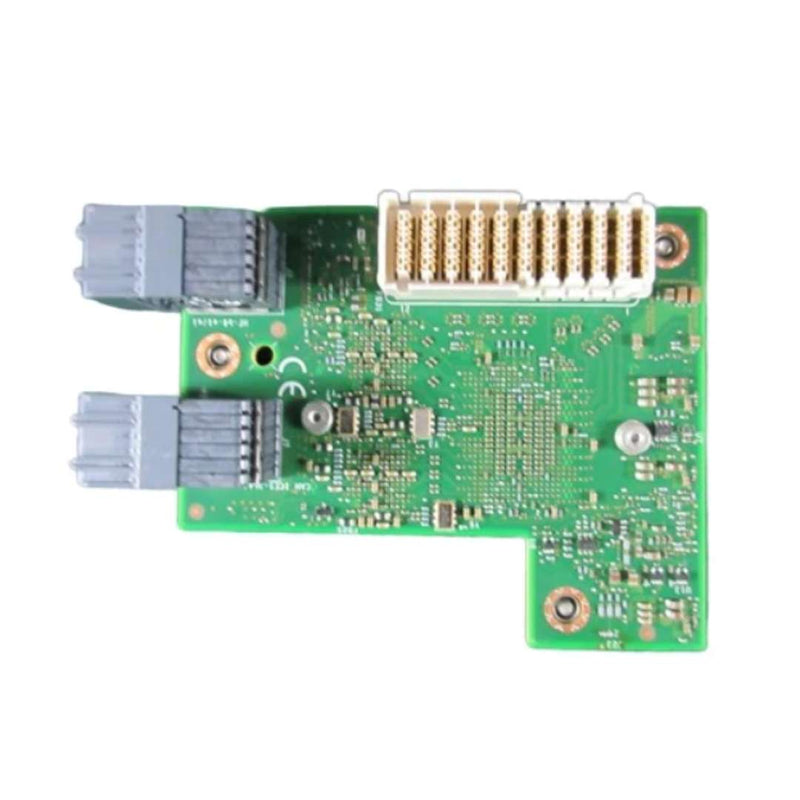

Adapter Specs
- Port Type: Dual Port
- Data Transfer Speed: 25Gbps
- Protocol: Ethernet
- Provides X8 PCI-e Interface
- Features A Compact Space-Saving Design
- Ideal For High-Performance Network Applications
The Gigabit Ethernet PCI-express® Network Interface Card From Dell™ Is Ideal For Connecting Your Server To Your Network. The Gigabit Dual Port Server Adapter Proven To Be Reliable And Standards-Based Solutions. This Product Has Been Tested And Validated On Dell Systems. It Is Supported By Dell Technical Support When Used With A Dell System.
Additional Info
| Manufacturer | Dell |
|---|---|
| Device Type | Network Adapter |
| Form Factor | Plug-In Card - Mezzanine |
| Interface (Bus) Type | Pci Express 3.0 X8 |
| Pci Specification Revision | PCI-e 3.0 |
| Ports | 25 Gigabit SFP28 X 2 |
| Dimensions (Wxdxh) | 16.7 Cm X 6.9 Cm |
| Data Link Protocol | 10 Gige, 25 Gigabit Lan |
| Network / Transport Protocol | Tcp/Ip, Udp/Ip |
| Compliant Standards | Ieee 802.1Q, Ieee 802.3Ad (Lacp), Ieee 802.1Qbb, Ieee 802.1Qaz, Ieee 1588-2008, Ieee 802.3By, Ieee 802.3-2015, Ieee 1588-2002 |
| System Requirements | Linux, Microsoft Windows |
| Device Type | X8 PCI-e |
| Connectivity Technology | Wired |
| Data Transfer Rate | 25 Gbps |
| Interfaces | 2 X 25Gb Ethernet - SFP28 |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 10 - 80% (Non-Condensing) |
Compatible With:
- Dell Mx740c
- Dell Mx750c
- Dell Mx840c
