Specs
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Switch Specs:
- 8 RJ-45 autosensing 10/100/1000 class 4 PoE ports
- 2 SFP 1000 Mbps ports (min=0 \ max=2 SFP Transceivers)
- 1U - Height
- 10(w) x 6.28(d) x 1.73(h) in (25.4 x 15.95 x 4.39 cm)
- Weight 7.21 lb (1.16 kg)
- Power consumption: 150.2 W maximum, 11.7 W idle

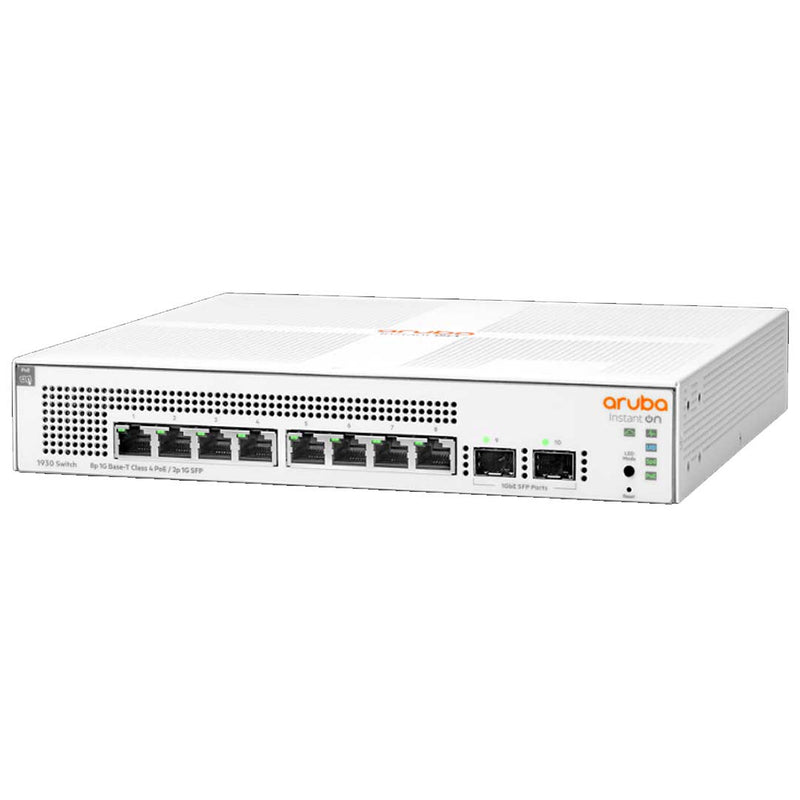

Aruba Instant On 1930 8G Class4 PoE 2SFP 124W Switch:
- C15 PDU Jumper Cord (NA/MX/TW/JP) | JL681A#B2B
Aruba Instant On 1930 8G Class4 PoE 2SFP 124W Switch:
- C15 PDU Jumper Cord (ROW) | JL681A#B2C
Aruba Instant On 1930 8G Class4 PoE 2SFP 124W Switch:
- No Localized Power Cord Selected | JL681A#AC3
-
Processor and Memory:
- ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB
Key features:
- Smart-managed layer 2+ Ethernet switch series ready to deploy in 8-, 24-and 48-port for non-PoE and Class 4 PoE models
- PoE to power APs and IoT devices like IP phones, surveillance cameras and door locks
- Two (2) dedicated 1G SFP fiber ports on 8-port models, and four (4) dedicated 1G/10G SFP+ fiber ports on 24-/48-port models to eliminate traffic bottlenecks across your network
- Security controls let you define access in each area of your network, keeping your business data safe
- Convenient mobile app and web- based GUI for set up, management and troubleshooting.
- Note 1: Localization (Wall Power Cord) required on orders without B2B or B2C (PDU Power Cord).
-
Note 2: The following Transceivers install into this switch:
- Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver R9D16A
- Aruba Instant On 1G SFP RJ45 T 100m Cat5e Transceiver R9D17A
- Aruba 1G SFP LC LX 10km SMF Transceiver J4859D
The Aruba Instant On 1930 switches features advanced, smart-managed, fixed- configuration Gigabit switches designed for small businesses that are easy-to-deploy and affordable. They’re made to handle today’s bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to enhance performance.
Using either the Instant On mobile app or the cloud-based web portal, you can quickly set up, monitor and manage the 1930 switch series from anywhere at any time. What’s more, up to 30 W PoE power delivery is available out-of-the-box for your class 4 PoE devices, like access points, surveillance cameras and VoIP phones, all easily managed from the same platform.
- IEEE 802.3x Flow Control: Provides a flow-throttling mechanism propagated through the network to prevent packet loss at a congested node.
- Spanning Tree Protocol (STP): Supports standard IEEE 802.1D STP, IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) for faster convergence, and IEEE 802.1s Multiple Spanning Tree Protocol (MSTP on local web).
-
Loop Protection: If the switch detects a loop, it disables the source port from forwarding data packets originating from the switch to avoid broadcast
storms. - BPDU Filtering: Drops BPDU packets when STP is enabled globally but disabled on a specific port.
- Jumbo Frame Support: Supports up to 9216 bytes frame size to improve the performance of large data transfers.
- IGMP Snooping v1/v2: Improves network performance through multicast filtering, instead of flooding traffic on all ports.
- Link Aggregation: Groups together multiple ports up to a maximum of eight (8) ports per trunk automatically using Link Aggregation Control Protocol (LACP), or manually, to form a high-bandwidth connection to the network backbone that helps prevent traffic bottlenecks. The 8-port models support 4 trunks, 24-port models support 8 trunks, and 48-port models support 16 trunks.
- LLDP/LLDP-MED (Media Endpoint Discovery): Defines a standard extension of LLDP that stores values for parameters such as QoS and VLAN for automatic configuration of network devices such as IP phones.
- Address Resolution Protocol (ARP): The ARP table displays all of the IP addresses that have been resolved to MAC addresses, either dynamically or through static entry configuration.
- Read the manual below for all the Specs and Features.
- HPE 1930
