This item is included in the following kit.
Quick Specs
- Type: Cable
- Port: 2x4 internal Mini-SAS
- Cache: 2GB FBWC
- Protocol: SAS 12Gbps
- RAID: 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM (Advanced Data Mirroring)
- PCI-e: 3.0x8
Part Number:
- 836269-001

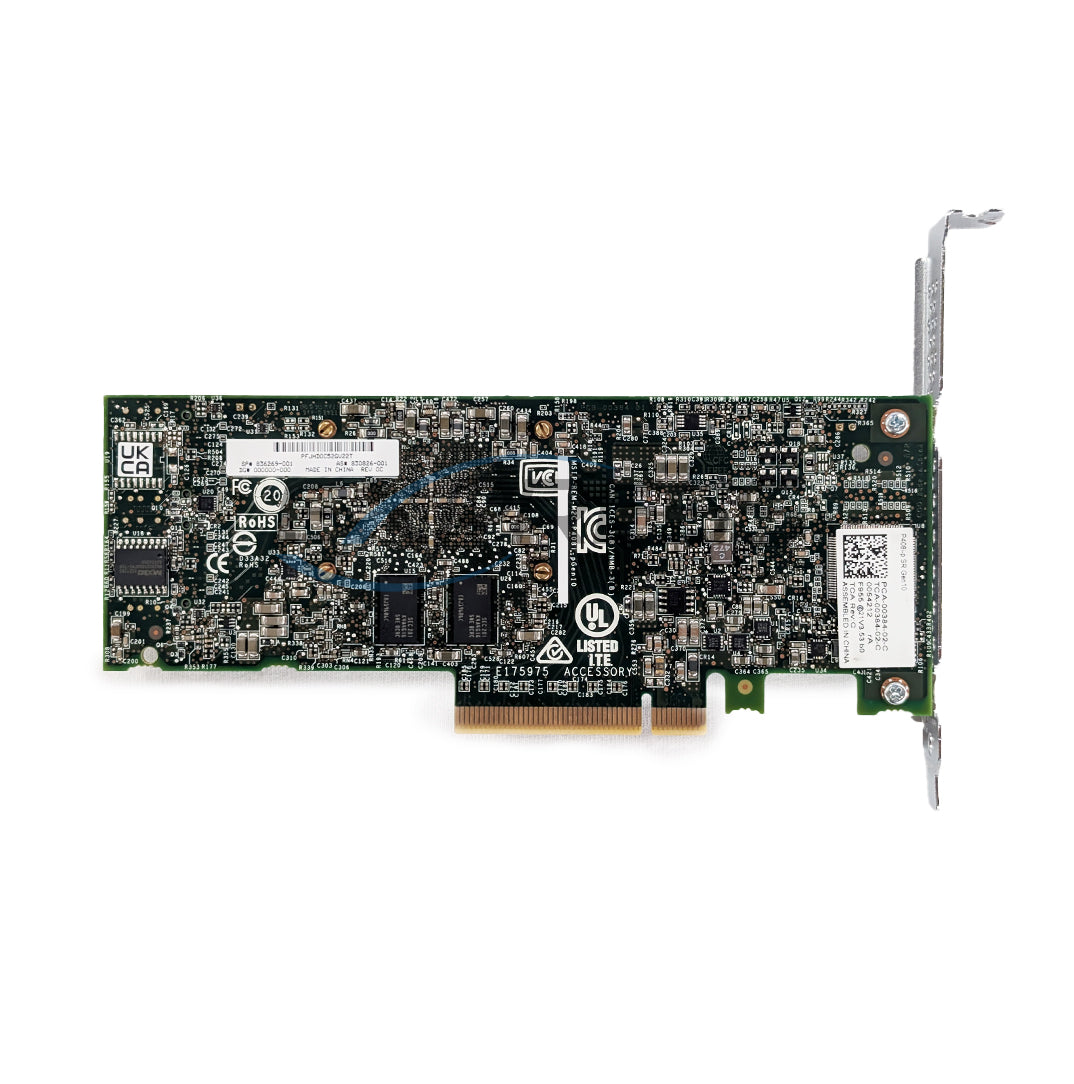

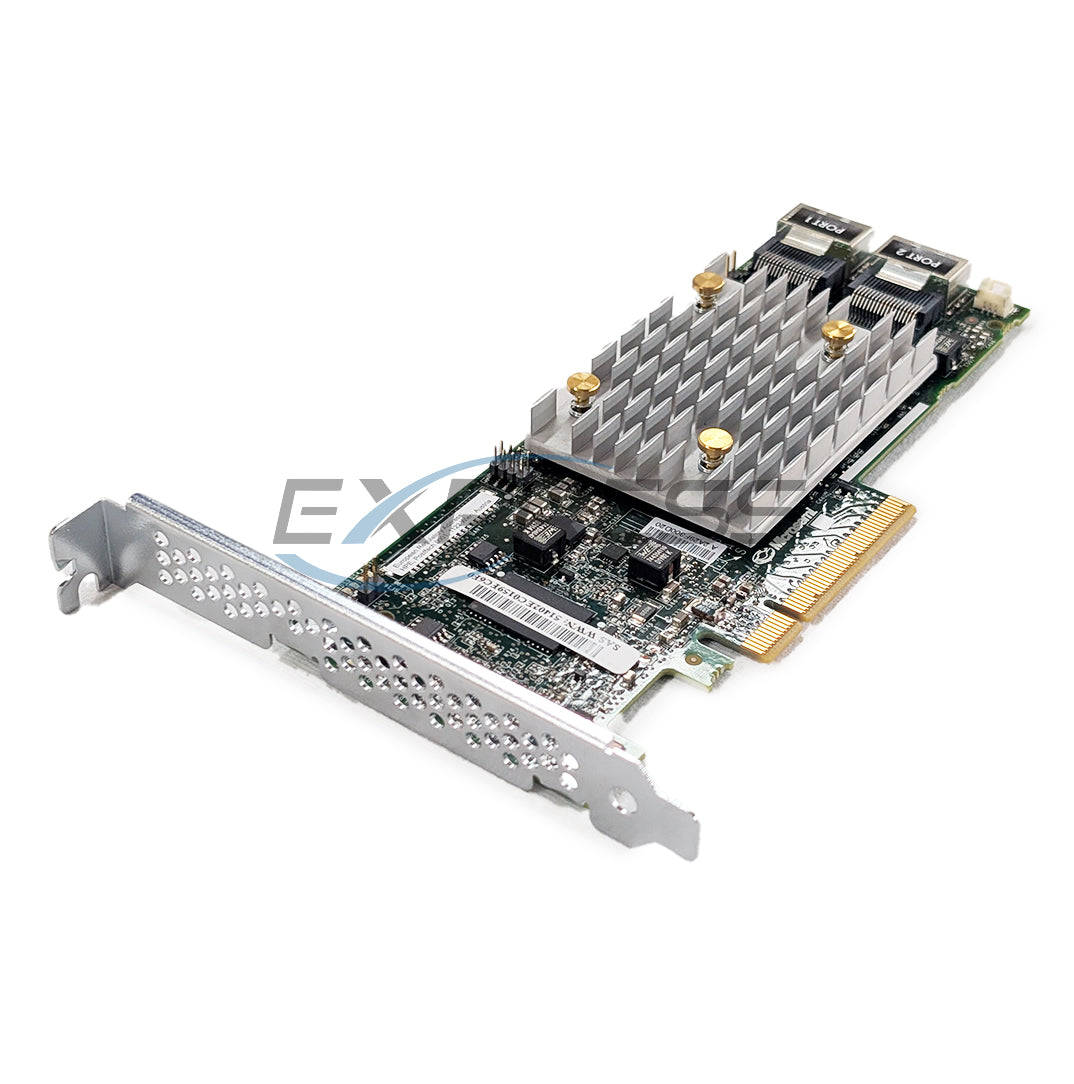

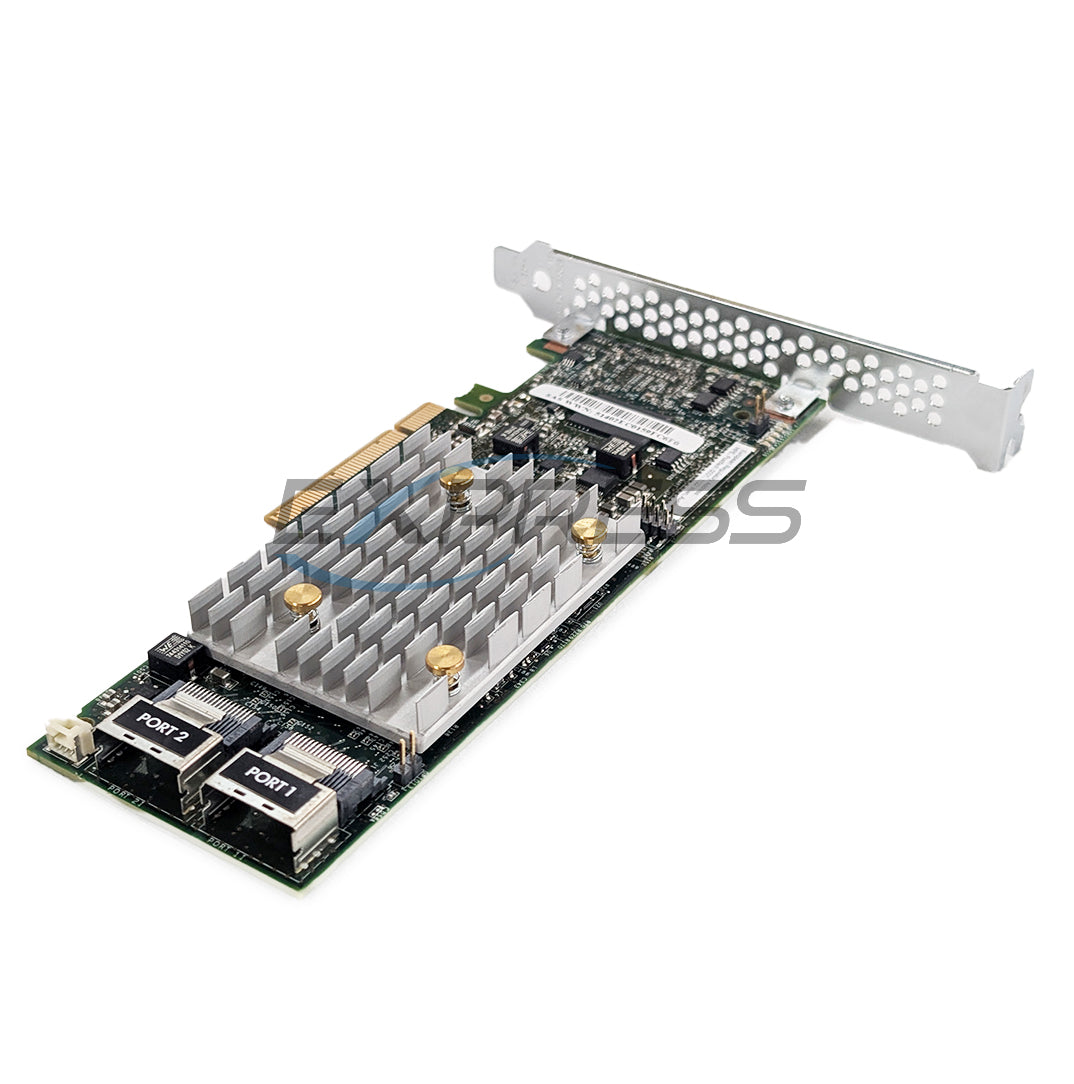

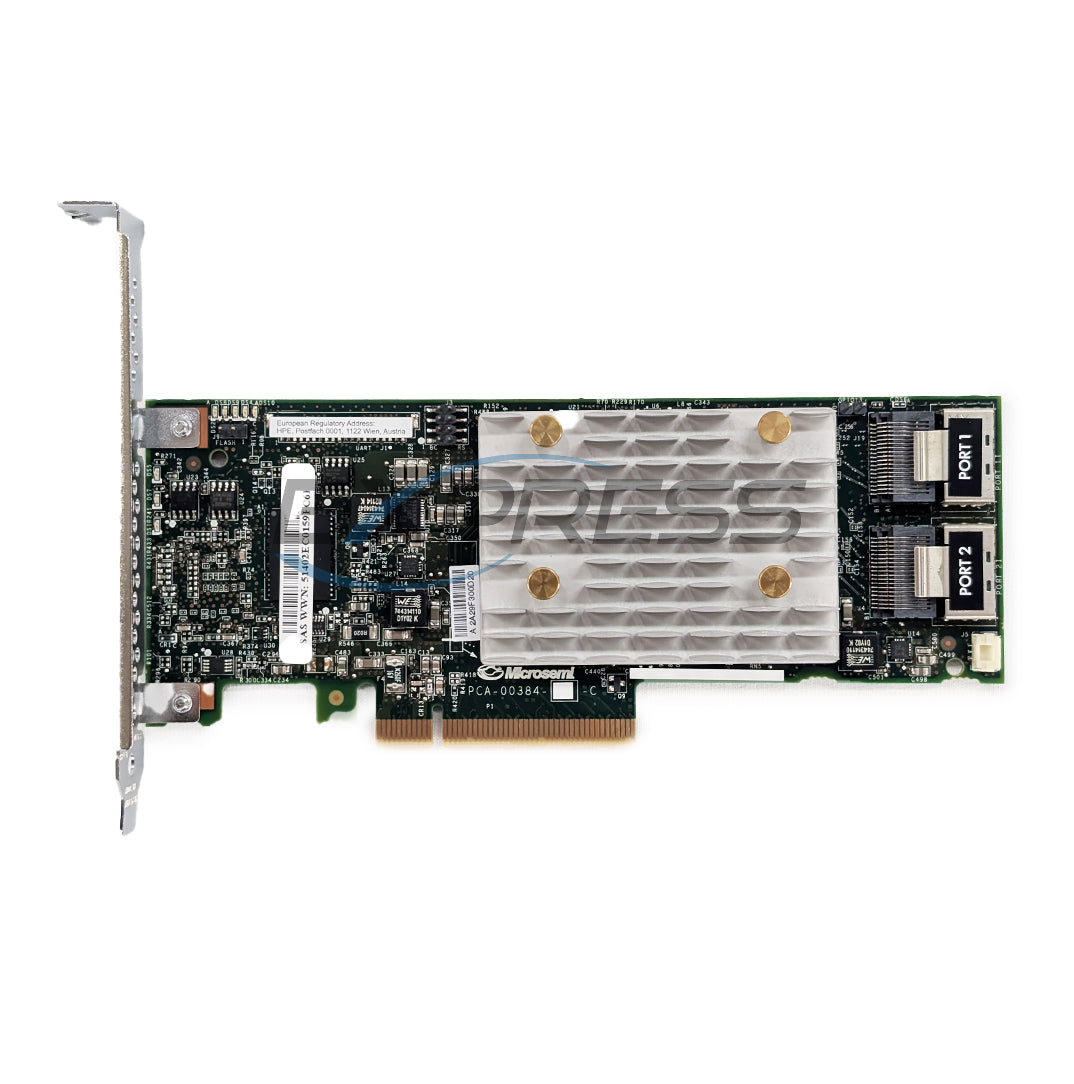

Smart Array P408i-p SR modular controller - 12 Gb/s SAS, 6 Gb/s SATA and PCIe 3.0x8, 8-SAS 2x4 internal Mini-SAS lanes, 2GB flash-backed write cache, RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM (Advanced Data Mirroring)
878646-001 - 28 AWG, 3-pin, Peripheral Component Interconnect (PCI) to Controller, LG power cable
878645-001 - 28 AWG, 3-pin, Peripheral Component Interconnect (PCI) to Controller, standard power cable
DL365 Gen10 Plus Notes:
If this controller is selected along with any other x16 PCIe Card, then the HPE DL360 Gen10+ SFF Internal Cable Kit (P26449-B21) is required.
Compatible With:
- HPE Apollo 2000
- HPE Apollo 4200
- HPE Apollo 6500
- HPE DL160
- HPE DL180
- HPE DL360
- HPE DL380
- HPE DL385
- HPE DL560
- HPE DL580
- HPE ML110
- HPE ML30
- HPE ML350
- HPE Proliant DL380
