Dell PowerVault MD3620i (24x2.5") Chassis

SKU: DPV-MD3620i-Chassis

Dell PowerVault MD3620i (24x2.5") 10Gbase-T iSCSI Chassis

Name: Dell PowerVault MD3620i (24x2.5") 10Gbase-T iSCSI Chassis
Brand: Dell
SKU: DPV-MD3620i-Chassis
Availability: InStock

Dell

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor:

2U rack server

Storage | Max: 96

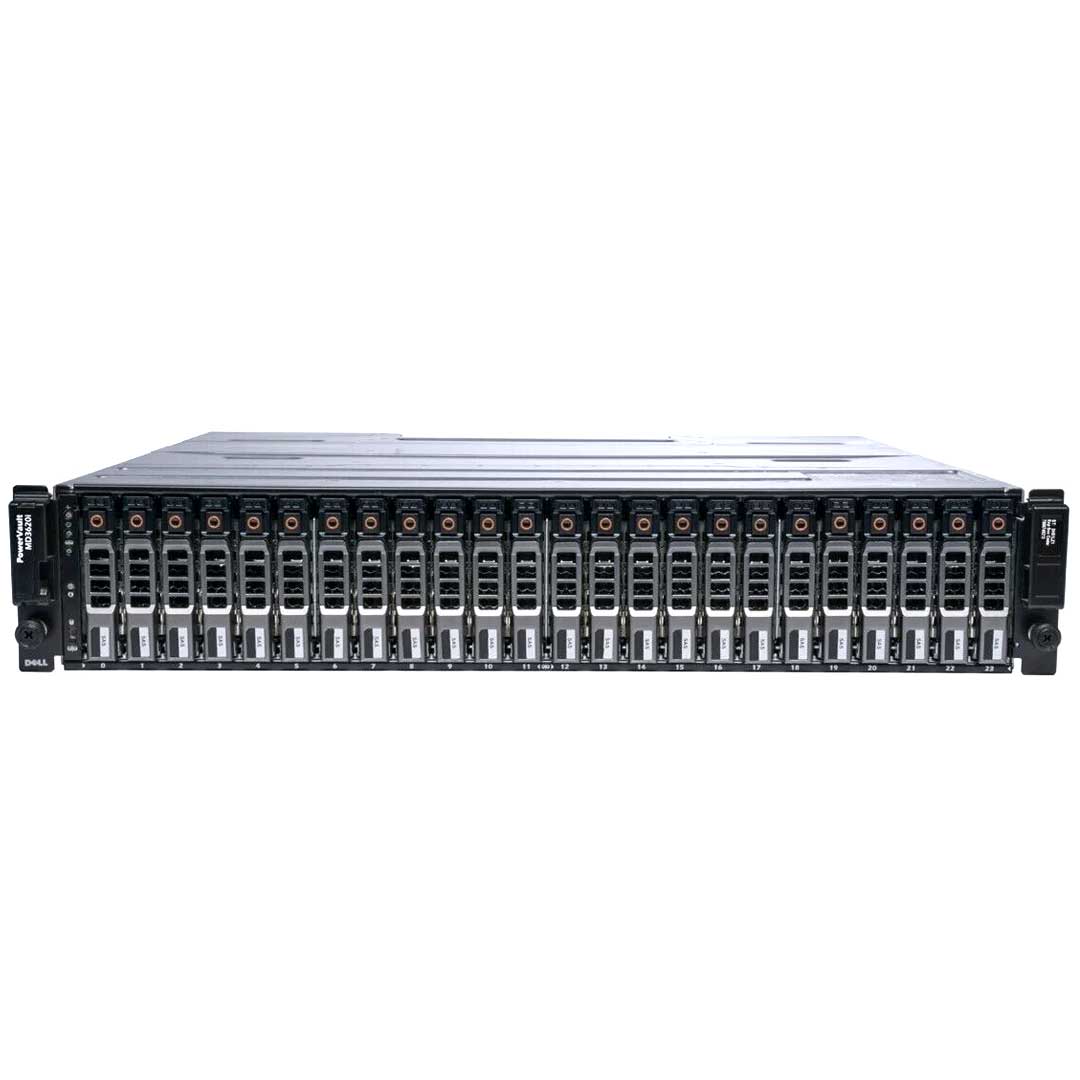

24 SFF SAS, NL-SAS, SED (HDD/SSD)

Mix and match drives:

Supported

Controllers:

Supports up to 2

Cache Per Controller:

2GB or 4GB

Ports Per Controller:

Two RJ-45 10Gbase-T iSCSI Host Connectivity
One 6Gb SAS Expansion Connectivity (8088 mini connector)
One RJ-45 1Gb Ethernet Remote Management
One PS/2 Service Management

Host Connectivity:

Single Controller Models:

Supports up to 2 servers directly connected or up to 64 servers when configured with an Ethernet switch

Dual Controller Models:

Supports up to 4 servers directly connected or up to 64 servers when configured with Ethernet switches

Expansion Storage:

96 total drives using MD1200 and/or MD1220 expansion enclosures

Other Storage Arrays in the MD Series (JBOD)

MD3200 Series

Data Speeds

1Gb iSCSI

6Gb SAS

Server Options

MD3060e

MD3200 12 Bay SAS

MD3200i 12 Drive iSCSI

MD3220 24 Drives SAS

MD3220i 24 Drives iSCSI

MD3400 Series

Speeds

12Gb SAS

10GBase-T iSCSI

16Gb FC

Server Options

MD3400 12 Drives

MD3420 24 Drives

MD3460 60 Drives

MD3600 Series

Speeds

10GBase-T iSCSI

8Gb FC

Server Options

MD3600i 12 Drives iSCSI

MD3600f 12 Drives Fibre

MD3620i 24 Drives iSCSI

MD3620f 24 Drives Fibre

MD3660i 60 Drives iSCSI

MD3660f 60 Drives Fibre

MD3800 Series

Speeds

10GBase-T iSCSI + 12Gb SAS

16 FC + 12Gb SAS

Server Options

MD3800i 12 Drives iSCSI

MD3800f 12 Drives Fibre

MD3820i 24 Drives iSCSI

MD3820f 24 Drives Fibre

MD3860i 60 Drives iSCSI

MD3860f 60 Drives Fibre

The Dell EMC PowerVault MD3600i Series storage array is a high-availability storage solution designed to provide redundant access to data storage. It can support both single and dual RAID controller configurations and offers 10G/1000 BaseT connectivity to the host server. The array can support up to 24 2.5" HDD/SSD drives and up to 2 servers directly connected per controller, with a maximum of 96 drives when combined with expansion enclosures.

The Dell EMC PowerVault MD3600i and 3620i Series storage array provides 10/1000 GBaseT connectivity to the host server. It enables access to 4 physical hosts.

Keeping pace with the latest technology

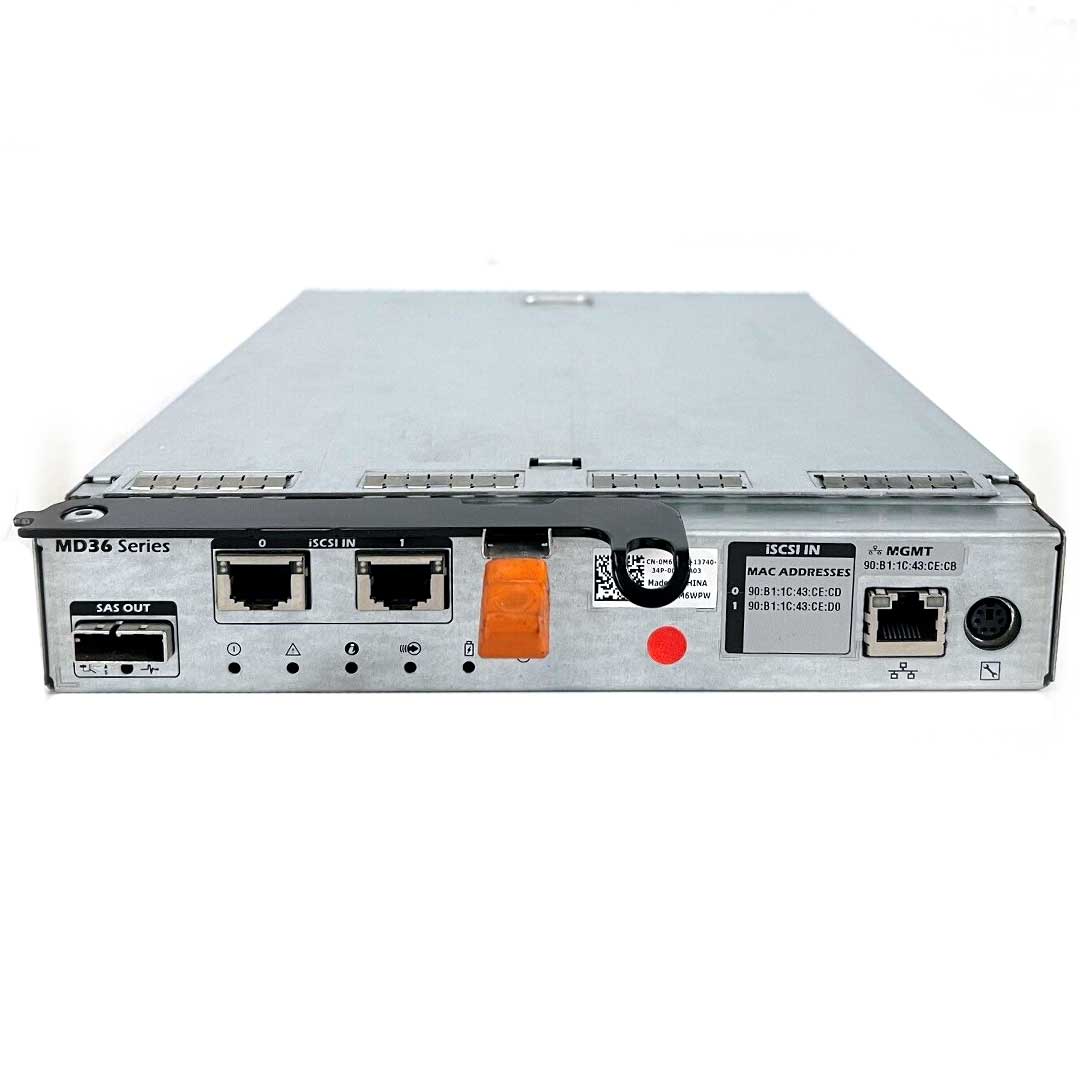

The RAID controller modules provide high-performance, advanced virtual disk configuration, and fault-tolerant disk subsystem management. Each RAID controller module contains 2GB or 4GB of mirrored cache for high availability and a battery-powered cache offload mechanism.

Versatile options your way

The MD3600i iSCSI array series offers two 10Gb Ethernet iSCSI SAN solutions that are ideal for entry-level storage consolidation in virtualized environments that require high availability and high performance. The array series supports a range of drive types, enclosures, and RAID levels all within a single array.

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Spec Sheet 4

Feature	Dell™ PowerVault™ MD3600i Series
Hard Disk Drives	MD3600i – Up to twelve (12) 3.5 inch SAS, Near-line SAS and SSD drives MD3620i – Up to twenty-four (24) 2.5 inch SAS, Near-line SAS and SSD drives
3.5” Drive Performance and Capacities	15,000 RPM SAS drives available in 300 GB, 450 GB and 600 GB 7,200 RPM Near-line SAS drives available in 500 GB, 1TB and 2TB
2.5” Drive Performance and Capacities	15,000 RPM SAS drives available in 73 GB and 146 GB 10,000 RPM SAS drives available in 146 GB and 300 GB 7,200 RPM Near-line SAS drives available in 500 GB Solid State Drive (SSD) available in 149 GB (available in 3.5” HDD carriers)
Expansion Capabilities	Expand up to 96 total drives using MD1200 and/or MD1220 expansion enclosures
Host Connectivity
Single Controller Models	Supports up to 2 servers directly connected or up to 64 servers when configured with an Ethernet switch
Dual Controller Models	Supports up to 4 servers directly connected or up to 64 servers when configured with Ethernet switches
Storage Controllers and RAID Levels
Storage Controllers	Each controller contains 2GB or 4GB of battery-backed cache Dual controllers operate in an active-active environment mirroring each other’s cache Cache protection is provided via flash memory for permanent data protection
RAID Levels	Support for RAID levers 0, 1, 10, 5, 6 Up to 96 physical disks per group in RAID 0, 1, 10 Up to 30 physical disks per group in RAID 5, 6 Up to 256 virtual disks
Array Management and Optional Premium Features
Array Management	2 nd generation Modular Disk Storage Manager, Java based user interface Multi-path software provides failover management of redundant data paths between the server and storage array
Optional Premium Features	Snapshots: Up to 8 snapshots per virtual disk and 128 per system Snapshots Plus Virtual Disk Copy: Up to 8 simultaneous virtual disk copies High Performance Tier firmware upgrade increases array IO performance

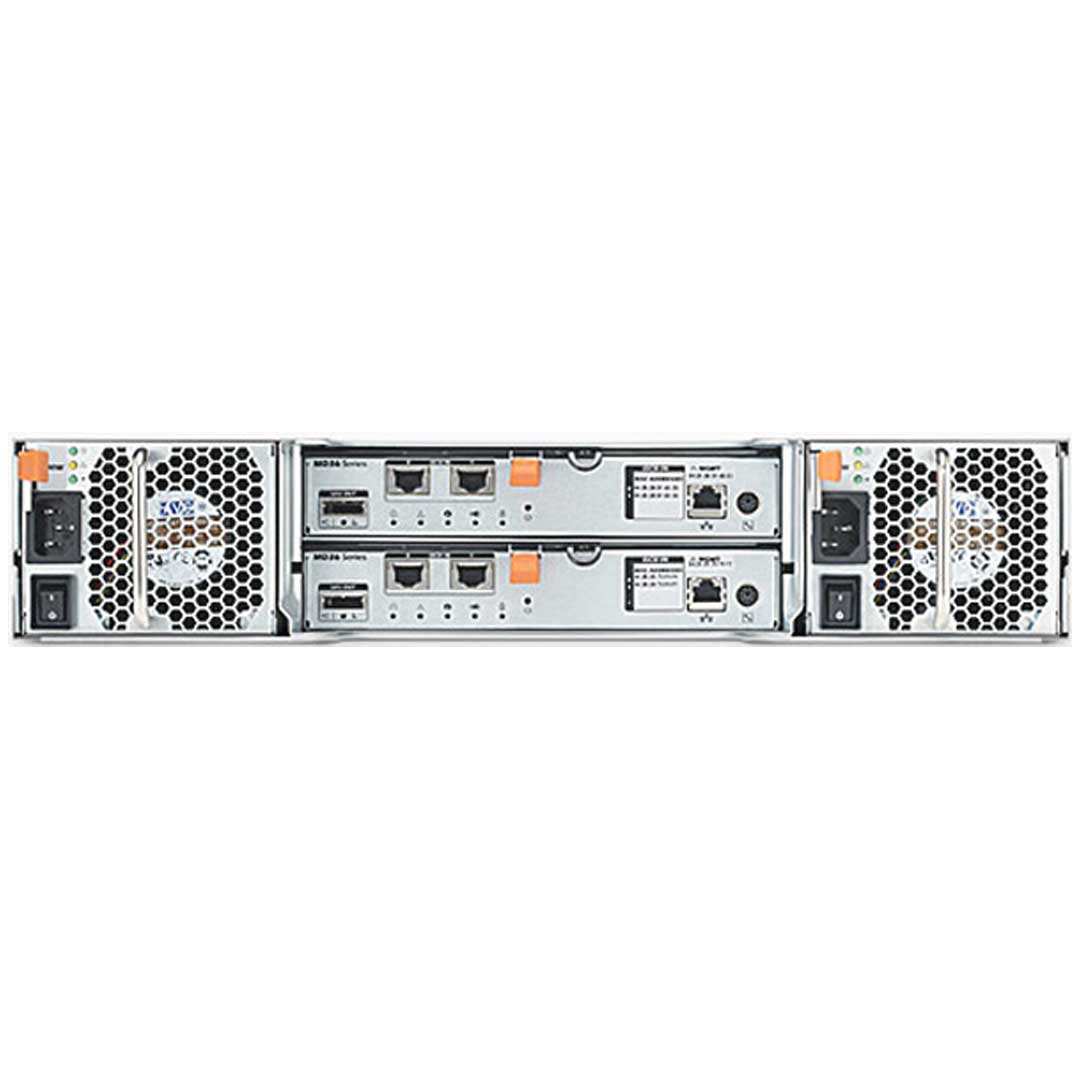

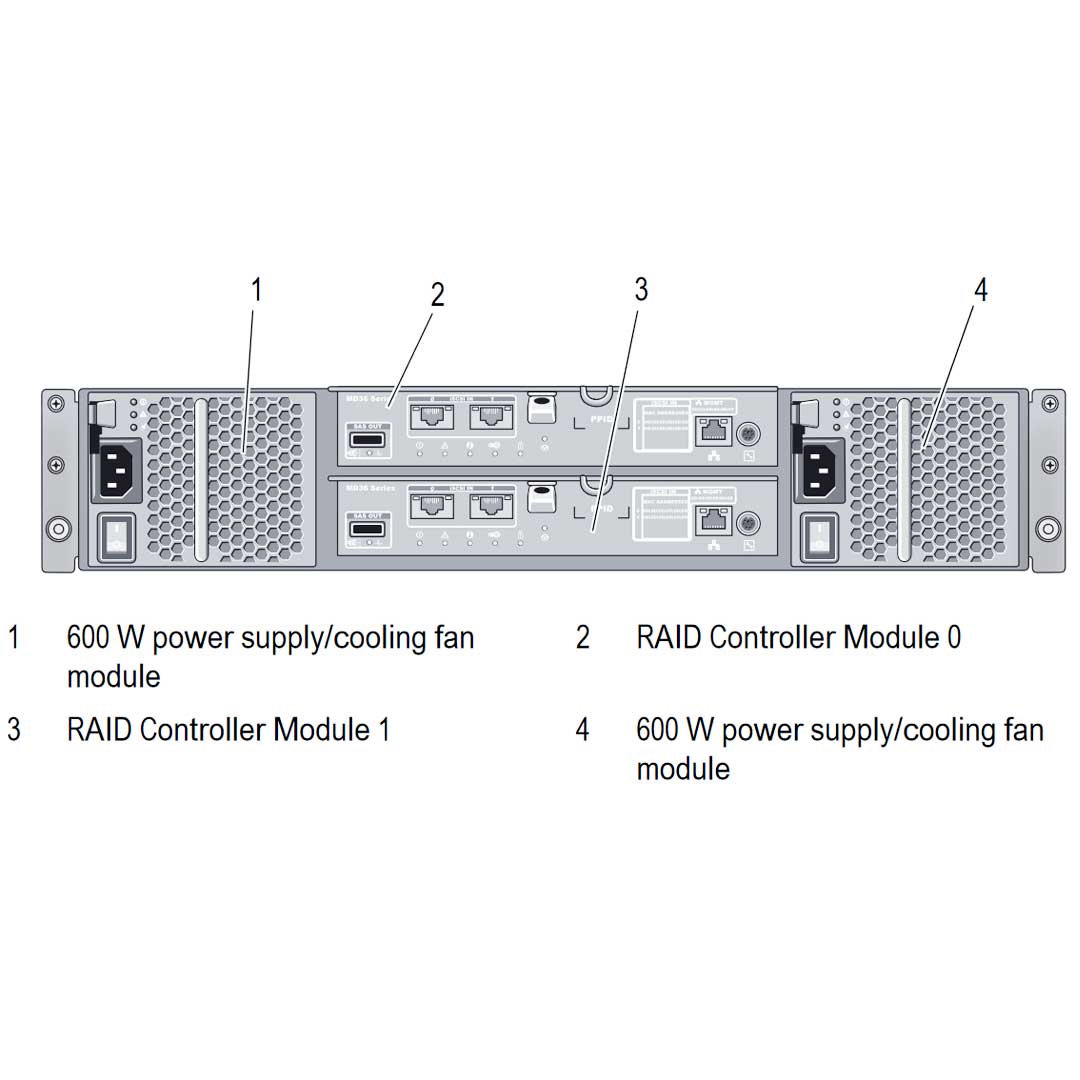

Back-Panel Connectors (per controller)
Host Connectivity	Two RJ-45 10Gb Ethernet
Expansion Connectivity	One x4 6Gb SAS (8088 mini connector)
Remote Management	One RJ-45 1Gb Ethernet
Service Management	One PS/2 Serial
LED Indicators
Front Panel	1 two-color LED indicator for system status, 1 single-color LED indicator for power, 1 LED unused in this system
Hard Drive Carrier	1 single-color activity LED, 1 two-color LED status indicator per drive
Storage Controller	1 one-color LED power indicator, 1 one-color LED controller fault indicator, 1 one-color LED controller identifier, 1 one-color LED cache activity indicator, 1 one-color LED battery fault indicator
Power Supply/Cooling Fan Module	3 one-color LED status for AC status, DC status and power supply cooling fan fault
Power Supplies (per supply)
Wattage	600 W peak output
Maximum Heat Dissipation	150 W
Input Voltage Range	90 to 264 VAC
Frequency Range	47 to 63 Hz
Maximum Input Current at Rated Power	55 A for 10ms or less, 25 A for 10-150ms
Available Hard Drive Power (per slot)
Supported Continuous Consumption	3.5” drive: 25 Watts; 2.5” drive: 12 Watts
Physical
Height x Width x Depth	MD3600i: 8.68cm (3.42”) x 44.63cm (17.57”) x 56.1cm (22.09”) MD3620i: 8.68cm (3.42”) x 44.63cm (17.57”) x 50.8 (20”)
Weight	MD3600i: 29.3kg (64.59 lbs.) (maximum configuration) MD3620i: 24.2kg (53.35 lbs.) (maximum configuration)
Environmental
Temperature	Operating: 10° to 35°C (50° to 95°F) with a maximum temperature gradation of 10°C per hour
Relative Humidity	Operating: 20% to 80% (non-condensing) with a maximum humidity gradation of 10% per hour
Altitude	Operating: -16 to 3048 m (-50 to 10,000 ft) Note: For altitudes above 2950 feet, the maximum operating temperature is de-rated 1°F/550 ft.
