Home / PCIe 4.0 / Dell PowerEdge R6515 Rack Server Chassis (10x2.5")
SKU: DPE-R6515-10x2.5-Chassis

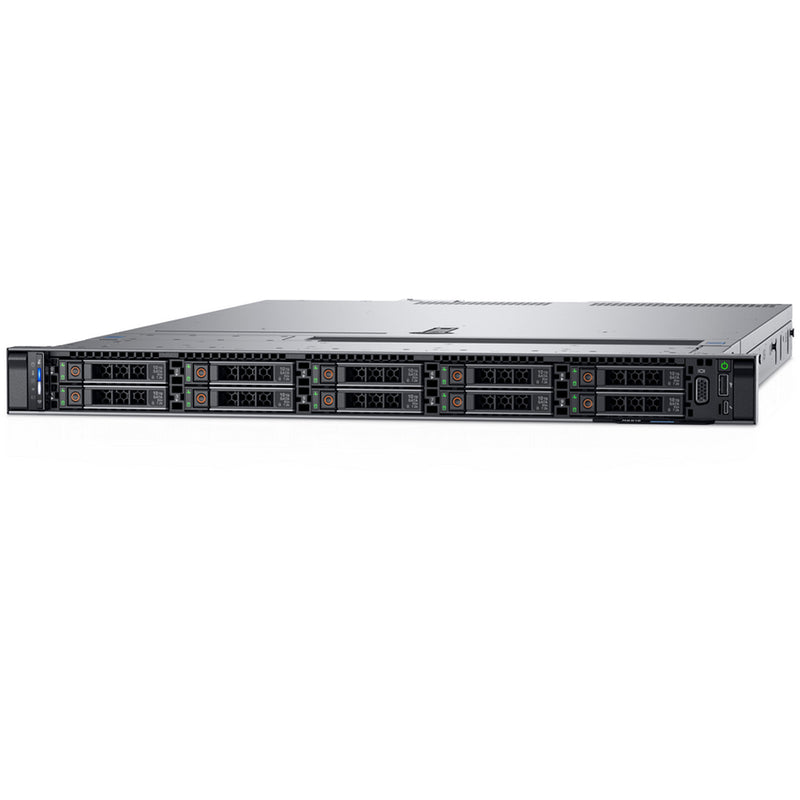

Dell PowerEdge R6515 Rack Server Chassis (10x2.5")

Dell CTO

| Chassis
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

CTO Item

This part is strictly for configuring Dell servers. If you have landed on this page and you're looking for a specific part number. Please send us a "Request a Quote" with the part number you need.

Base Standard Capabilities

FeatureTechnical Specification
ProcessorOne 2nd or 3rd Generation AMD EPYCTM Processor with up to 64 cores
Memory
  • DDR4: Up to 16 x DDR4 RDIMM (1TB), LRDIMM (2TB), bandwidth up to 3200 MT/S
Storage controllers
  • HW RAID: PERC 9/10 - HBA330, H330, H730P, H740P, H840, 12G SAS HBA
  • Chipset SATA/SW RAID: S150
  • Internal: Optional 2 x M.2 (BOSS)
Drive baysFront bays:
  • Up to 4x 3.5” Hot Plug SAS/SATA HDD
  • Up to 8x 2.5” Hot plug SAS/SATA
  • Up to 10x 2.5” Hot Plug SAS/SATA/NVMe
Power supplies
  • 550W Platinum
Fans
  • Standard/High Performance FANs
  • N+1 Fan redundancy.
DimensionsHeight: 42.8 mm (1.7”)
Width: 434.0mm (17.09”)
Depth: 657.25mm (25.88”)
Weight: 16.75 kg (36.93 lb)
Form Factor1U rack server
Embedded mgmt
  • iDRAC9
  • iDRAC RESTful API with Redfish
  • iDRAC Direct
  • Quick Sync 2 BLE/wireless module
BezelOptional LCD bezel or security bezel
OpenManage™ SoftwareConsoles
  • OpenManage Enterprise
  • OpenManage Enterprise Power Manage
  • OpenManage SupportAssist plugin
  • OpenManage Update Manager plugin
Mobility
  • OpenManage Mobile
Tools
  • Dell EMC RACADM CLI
  • Dell EMC Repository Manager
  • Dell EMC System Update
  • Dell EMC Server Update Utility
  • Dell EMC Update Catalogs
  • iDRAC Service Module
  • IPMI Tool
  • OpenManage Server Administrator
  • OpenManage Storage Services
Integrations & ConnectionsOpenManage Integrations
  • BMC Truesight
  • Microsoft System Center
  • Red Hat Ansible Modules
  • VMware® vCenter™
OpenManage Connections
  • IBM Tivoli Netcool/OMNIbus
  • IBM Tivoli Network Manager IP Edition
  • Micro Focus Operations Manager
  • Nagios Core
  • Nagios XI
Security
  • Cryptographically signed firmware
  • Secure Boot
  • Secure Erase
  • Silicon Root of Trust
  • System Lockdown
  • TPM 1.2/2.0, TCM 2.0 optional
Embedded NIC
Networking Options (NDC)2 x 1GbE
2 x 10GbE BT
2 x 10GbE SFP+
2 x 25GbE SFP28
GPU OptionsUp 2 Single-Wide GPU
PortsFront Ports:
  • 1 x Dedicated iDRAC direct micro-USB
  • 1 x USB 2.0
  • 1 x Video
Rear Ports
  • 2 x 1GbE
  • 1 x Dedicated iDRAC network port
  • 1 x Serial
  • 2 x USB 3.0
  • 1 x Video
Internal1 x USB 3.0
PCIeUp to 2:
1 x Gen3 slot (1 x16)
1 x Gen4 slot (1 x16)
Operating System and Hypervisors
  • Canonical Ubuntu Server LTS
  • Citrix Hypervisor
  • Microsoft Windows Server with Hyper-V
  • SUSE Linux Enterprise Server
  • Red Hat Enterprise Linux
  • VMware ESXi

Spec Sheet 4

Feature PowerEdge R6515 PowerEdge R6415
Processor AMD EPYC Generation 2 and Generation 3 AMD Naples SP3
Memory 16x DDR4 RDIMM, LRDIMM, 3DS 16x DDR4 RDIMM, LRDIMM
Storage Drives 3.5-inch and 2.5-inch:
● 12 G SAS
● 6 G SATA HDD/SSD		 3.5-inch and 2.5-inch:
● 12 G SAS
● 6 G SATA HDD/SSD
Storage Controllers ● Mini PERC: HBA330, H330, H730P, H740P, H840, HBA355e
● SW RAID: S150		 ● Mini PERC: HBA330, H330, H730P, H740P, H840
● SW RAID: S140
PCIe SSD Up to 10x PCIe SSD (Gen3) Up to 10x PCIe SSD (Gen3)
PCIe Slots Up to 2:
● 1 x Gen3 slot (x16)
● 1 x Gen4 slot (x16)–Slot3		 Up to 2
● 2 x Gen3 slot (x16)
OCP 2.0 OCP Type 1: (Connector A) OCP Type 1: (Connector A)
USB Ports ● Front: 1 x USB 2.0 port, 1 x iDRAC USB(Micro USB) port
● Rear: 2 x USB 3.1_Gen1 port
● Internal: 1 x USB 3.0 port		 ● Front: 1 x USB 2.0 port, 1 x iDRAC USB(Micro USB) port
● Rear: 2 x USB 3.1_Gen1 port
● Internal: 1 x USB 3.0 port
Rack Height 1U 1U
Power Supplies ● 550 W AC Platinum
● 700 W 100-240 Vac Platinum		 ● 450 W AC Gold (cabled)
● 550 W AC Platinum
System Management ● Lifecycle Controller 3.x
● OpenManage
● Quick Sync2.0
● OpenManage Enterprise Power Manager
● Digital License Key
● iDRAC Direct (dedicated micro-USB port)
● Easy Restore 		● Lifecycle Controller 3.x
● OpenManage
● Quick Sync2.0
● OMPC3
● Digital License Key
● iDRAC Direct (dedicated micro-USB port)
● Easy Restore
● vFlash
Availability ● Hot-plug drives
● Hot-plug redundant power supplies
● BOSS
● IDSDM		 ● Hot-plug drives
● Hot-plug redundant power supplies
● BOSS
● IDSDM
