HPE ProLiant ML30 (G10) Performance Model Server E-2224 3.4GHz 4 Core 1P 16GB-U S100i 8SFF 1x500W RPS | P16930-S01

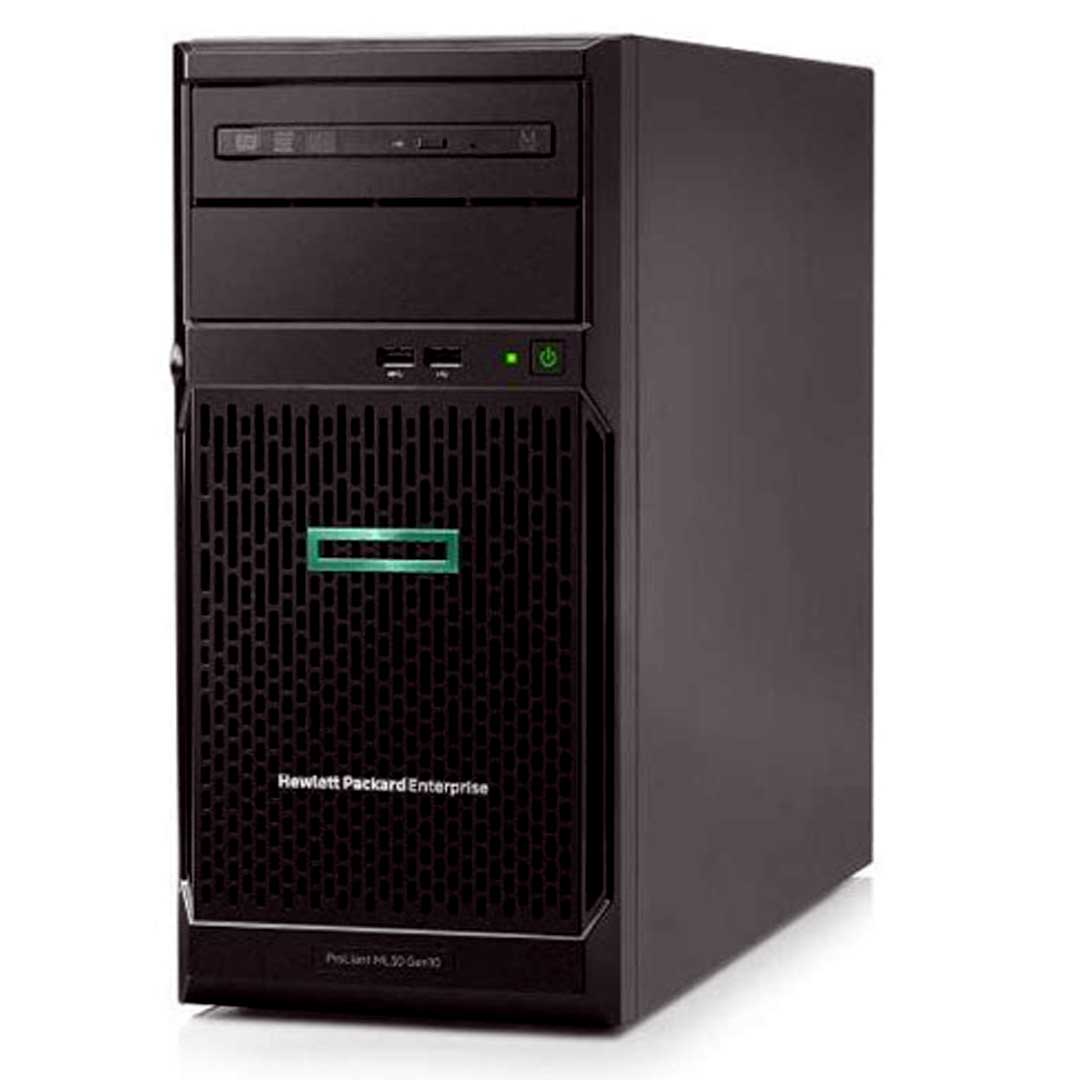

Refurbished HPE ProLiant ML30 Gen10 CTO Tower Server

SKU: P16930-S01

HPE ProLiant ML30 (G10) Performance Model Server E-2224 3.4GHz 4 Core 1P 16GB-U S100i 8SFF 1x500W RPS | P16930-S01

Name: HPE ProLiant ML30 (G10) Performance Model Server E-2224 3.4GHz 4 Core 1P 16GB-U S100i 8SFF 1x500W RPS | P16930-S01
Brand: HPE
SKU: P16930-S01
Availability: InStock

HPE

| Server

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Comes with:

Processors - 1 x Intel® Xeon® E-2224 (4-Core, 3.4 GHz, 71W)
Memory - 16 GB UDIMM DDR4 2666 MT/s (1x 16 GB)
Network Controller - Embedded 1Gb 2-Port 361i Ethernet Adapter
Storage Controller - Embedded S100i SW RAID with 4 SATA ports
Notes: Field upgradeable to SAS/8 ports by selecting HPE Smart Array controller.
Hard Drive - None ship standard

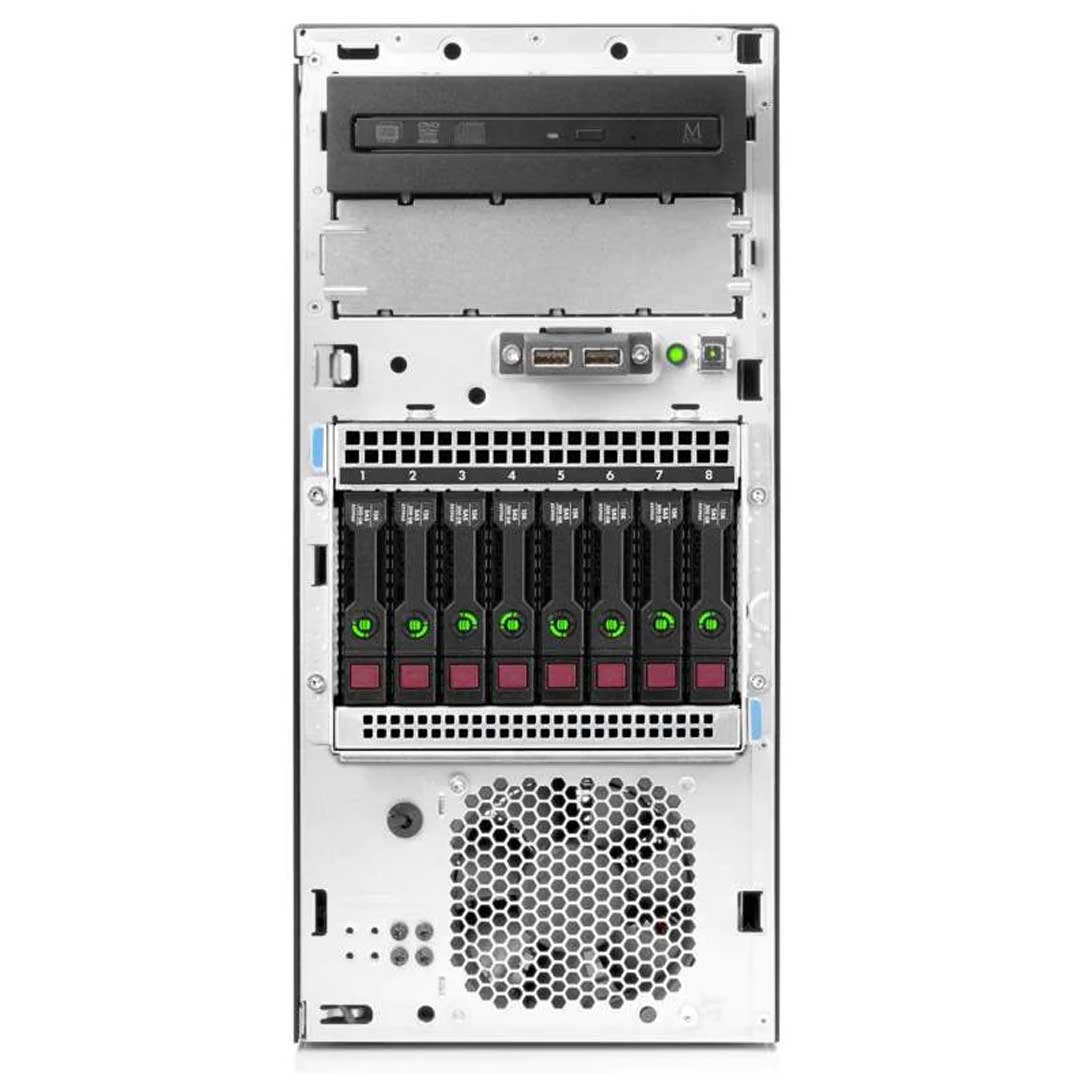

Internal Storage - 8 SFF HDD Bays (Hot Plug) 1x M.2 PCIe 3.0 x2 slot
Optical Drive Bay - Optional Slimline ODD Bay Kit (P06309-B21) for SATA DVD-ROM/DVD-RW optical drive up to 1, Media drive bay for internal RDX or tape/LTO devices up to 1
Optical Drive - None ship as standard
PCIe Slots - 4 PCIe 3.0 slots
Power Supply - (1) 500W HPE Flex Slot Power Supply
Notes: Add a second 500W Flex Slot Power Supply to get 1+1 power redundancy feature.
Fans - 1 non-hot plug, non-redundant system fan
Management - HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download),
HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView Advanced (require licenses)
Energy Start - N/A
Form Factor - Tower (4U)

Looking to Customize?

Not seeing the exact specs you need?
Start your build today with Express Computer Systems!

Start Customizing Today!

Base Standard Capabilities

Product features

Feature

Description

Processor ¹

Intel Xeon E Processor is designed to deliver the best combination of performance, built-in capabilities, and cost-effectiveness. This product also supports Intel Pentium and Intel Core i3 processors.

Intel Xeon E-2200 Series / 9th Gen Core i3 and Pentium G
Xeon E-2276G	CPU Frequency	Cores	L3 Cache	Power	DDR4	SGX
Xeon E-2276G	3.8 GHz	6	12MB	80 W	2666 MT/s	Yes
Xeon E-2274G	4.0 GHz	4	8MB	83 W	2666 MT/s	Yes
Xeon E-2244G	3.8 GHz	4	8MB	71 W	2666 MT/s	No
Xeon E-2236	3.4 GHz	6	12MB	80 W	2666 MT/s	No
Xeon E-2234	3.6 GHz	4	8MB	71 W	2666 MT/s	No
Xeon E-2226G	3.4 GHz	6	12MB	80 W	2666 MT/s	No
Xeon E-2224	3.4 GHz	4	8MB	71 W	2666 MT/s	No
Core i3-9100	3.6 GHz	4	6MB	65 W	2400 MT/s	No
Pentium G5420	3.8 GHz	2	4MB	54 W	2400 MT/s	No

Intel Xeon E-2100 Series / 8th Gen Core i3 and Pentium G
Xeon E-2276G	CPU Frequency	Cores	L3 Cache	Power	DDR4	SGX
Xeon E-2176G	3.7 GHz	6	12MB	80 W	2666 MT/s	Yes
Xeon E-2174G	3.8 GHz	4	8MB	71 W	2666 MT/s	Yes
Xeon E-2144G	3.6 GHz	4	8MB	71 W	2666 MT/s	No
Xeon E-2136	3.3 GHz	6	12MB	80 W	2666 MT/s	No
Xeon E-2134	3.5 GHz	4	8MB	71 W	2666 MT/s	No
Xeon E-2126G	3.3 GHz	6	12MB	80 W	2666 MT/s	No
Xeon E-2124	3.3 GHz	4	8MB	71 W	2666 MT/s	No
Core i3-8300	3.7 GHz	4	8MB	62 W	2400 MT/s	No
Pentium G5400	3.7 GHz	2	4MB	58 W	2400 MT/s	No

Platform information

Form factor
4U Tower

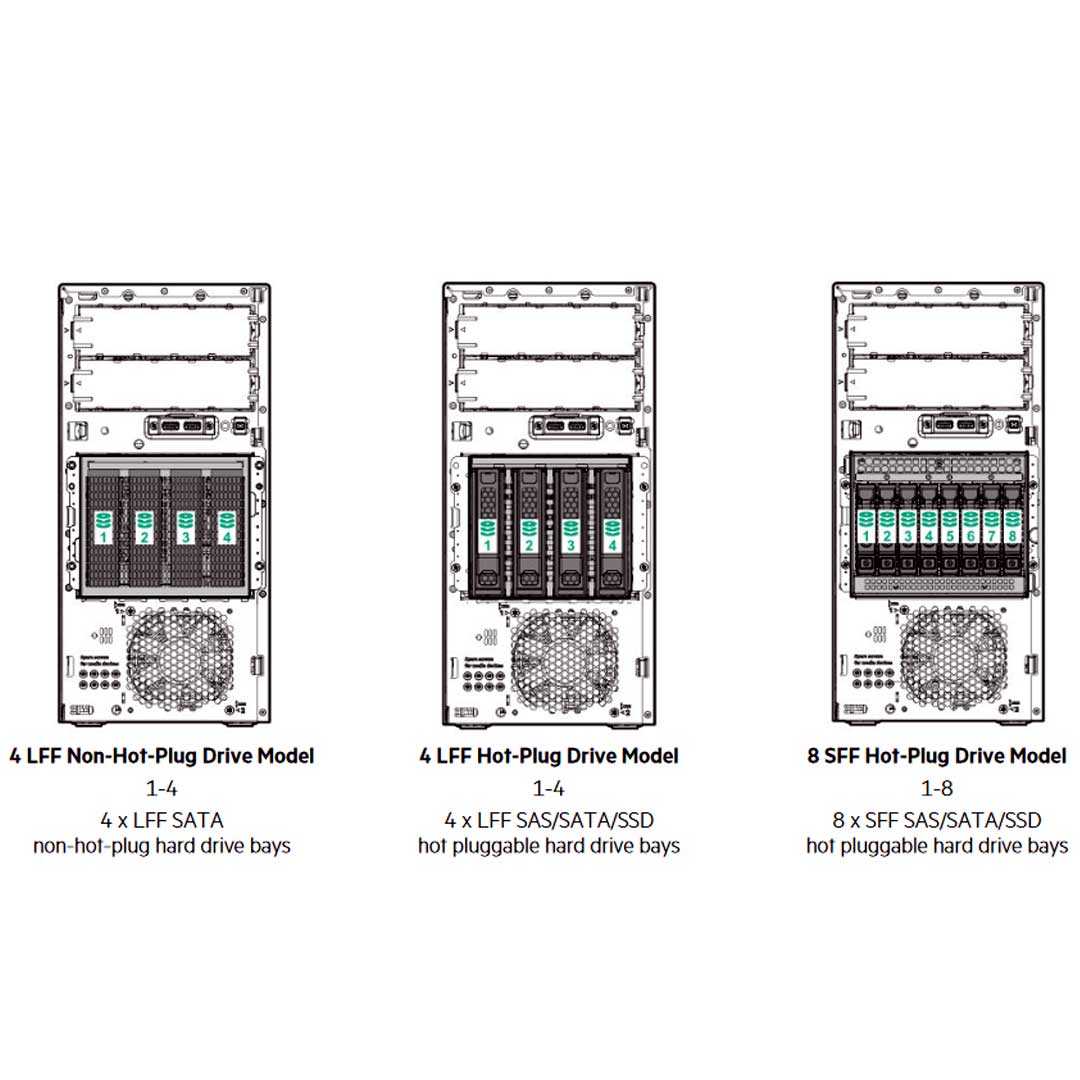

Chassis types

8 SFF chassis and 2 half-height (5.25 in) media drive bays with optional 1 slim-line DVD bay kit option.
4 LFF chassis and 2 half-height (5.25 in) media drive bays with optional 1 slim-line DVD bay kit option.
4 LFF NHP chassis and 2 half-height (5.25 in) media drive bays with optional 1 slim-line DVD bay kit option or up to 2 LFF NHP HDD cage kits.

System fans

1 Default system fan module (92 x 32 mm).
1 Default PCI fan module (92 x 32 mm) depending on models.

Chipset ²

Intel C246 chipset

On system management chipset ³

HPE iLO 5 ASIC

Memory ⁴

Type	HPE DDR4 Standard Memory, Unbuffered Dual In-Line Memory Module (UDIMM)
Dual In-Line Memory Module (DIMM) slots available	4	4 DIMMs (2 Channels/ 2 DIMMs per channel)
Maximum Capacity (UDIMM)	64GB	(4 x 16GB UDIMM - 2666 MT/s)

Memory protection

ECC

Network controller

Embedded HPE Ethernet 1Gb 2-port 361i network Adapter or
Embedded HPE Ethernet 1Gb 2-port 332i network Adapter

Expansion slots ⁵

Expansion Slots #	Technology	Bus Width	Connector Width	Form Factor	Notes
1	PCIe 3.0	x16	x16	Full height, full length	Processor
2	PCIe 3.0	X4	X8	Full height, half length	PCH
3	PCIe 3.0	X4	x16	Full height, full length	PCH
4	PCIe 3.0	X4	X8	Full height, half length	PCH

Storage controller ⁶

Essential RAID controller

Performance RAID controller
HPE Smart Array E208e-p SR Gen10 controller

Performance RAID controller

HPE Smart Array P408i-p SR Gen10 controller
HPE Smart Array P408e-p SR Gen10 controller

Internal storage devices

Optical drives

None ship standard
Optional: SATA 9.5 mm DVD-RW/DVD-ROM optical drive

Hard drives

None ship standard

None ship standard ⁷

Capacity

Configuration

Hot-Plug Large Form Factor (LFF) SAS

48TB

4 x 12TB

Hot-Plug LFF SATA

48TB

4 x 12TB

Hot-Plug Small Form Factor (SFF) SAS

19.2TB

8 x 2.4TB

Hot-Plug SFF SATA

16TB

8 x 2TB

Non Hot-Plug LFF SATA

24TB

4 x 4TB + 2 x 4TB (With additional optional LFF drive enablement kits)

Hot-Plug LFF SATA Solid State Drive (SSD)

7.68TB

4 x 1.92TB

Hot-Plug SFF SAS SSD

3.2TB

8 x 400GB

Hot-Plug SFF SATA SSD

61.44TB

8 x 7.68TB

M.2 Non-Volatile Memory express (NVMe) SSD

480GB

1 x 480GB

Maximum internal storage

Internal Storage	Capacity	Configuration
Hot Plug LFF SAS	56TB	4 x 14TB
Hot Plug LFF SATA	56TB	4 x 14TB
Hot Plug SFF SAS	19.2TB	8 x 2.4TB
Hot Plug SFF SATA	16TB	8 x 2TB
Non Hot Plug LFF SATA	24TB	4 x 4TB + 2 x 4TB (With additional optional LFF drive enablement kits)
Hot Plug LFF SATA SSD	7.68TB	4 x 1.92TB
Hot Plug SFF SAS SSD	3.2TB	8 x 400GB
Hot Plug SFF SATA SSD	61.44TB	8 x 7.68TB
M.2 NVMe SSD	480GB	1 x 480GB

Power supply ⁸

HPE 350 W E-star 1.0 power supply FIO kit
HPE 500 W Flex slot Platinum hot plug low halogen redundant power supply

Interfaces

VGA port 1

Standard (Rear)

Serial port 1

Optional (Rear)

Network port (RJ-45)

2 x 1Gb ports as standard (Rear, 1 shared for HPE iLO)

Dedicated iLO management port (RJ-45)

1 optional (Rear)

USB 3.0 port

6 (1 Front, 4 rear, 1 internal)

USB 2.0 port

1 (1 Front)

Graphics

Integrated video standard

Video modes up to 1920 x 1200 @60 Hz (32 bpp)
16MB video memory

HPE iLO 5 On system management memory

32MB flash
4Gb Dual Data Rate (DDR 3) with ECC protection

Upgradeability

One of the following depending on model

Up to 4 DIMM slots available for higher memory capacity
Up to 4LFF (+2LFF optional) non hot-plug, 4LFF hot-plug, or 8SFF hot-plug drive bays
HPE Smart Array or Smart HBA controller
Redundant power supply
Dedicated iLO management port
M.2 NVMe SSDs for boot

HPE Server Unified Extensible Firmware Interface (UEFI)/legacy ROM ⁹

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

Secure boot and secure start enable for enhanced security
Operating System (OS) specific functionality
Support for > 2.2TB (Using GUID partition table (GPT)) boot drives
USB 3.0 stack
Embedded UEFI shell
Mass configuration deployment tool using iLO RESTful API that is Redfish API conformant
Preboot Execution Environment (PXE) boot support for IPv6 networks
Workload profiles for simple performance optimization

UEFI boot mode only:

Trusted Platform Module (TPM) 2.0 support
iSCSI software initiator support
HTTP/HTTPs boot support as a PXE alternative
Boot support for option cards that only support a UEFI option ROM

Security ¹⁰

UEFI secure boot and secure start support
Immutable silicon root of trust
FIPS 140-2 validation
Common criteria certification
Configurable for PCI DSS compliance
Ability to rollback firmware
Secure erase of NAND/user data
TPM 1.2 option
TPM 2.0 option
Front bezel Key-Lock feature, standard
Padlock slot, standard
Kensington lock slot, standard
Intel SGX

Server management

iLO advanced
HPE iLO advanced premium security edition
One Config Simple (SCE)

Industry standard compliance

ACPI 6.1 compliant
PCIe 3.0 compliant
PXE support
WOL support
Microsoft logo certifications
VGA port
USB 3.0 compliant
USB 2.0 compliant
SMBIOS 3.1
UEFI 2.6
ASHRAE A3/A4¹¹
UEFI¹²

NOTE:

Check the below link for more information on Intel Xeon processors:
Check the below link for more information on Intel Xeon chipsets:
Check the below link to QuickSpecs for more information on HPE iLO:
Click here to access the QuickSpecs page for HPE iLO .
The maximum memory speed depends on processor model
Bus width indicates the number of physical electrical lanes running to the connector
Performance RAID controllers require the HPE Smart Storage Battery (P01366-B21) which is sold separately
M.2 SSD is applicable to all models
Available in 94% efficiency
- The UEFI system utilities function is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS
  Click here to access the page on Unified Extensible Firmware Interface (UEFI) .
- For UEFI boot mode, boot environment and OS image installations should be configured properly to support UEFI
- Legacy FIO setting (758959-B22) can be selected to configure the system in legacy mode in the factory for your HPE ProLiant Gen10 Server
Intel SGX is supported in selective processors
Check the below link for additional technical thermal details regarding ambient temperatures, humidity and features:
Click here to access the Hewlett Packard Enterprise Information Library .
UEFI is the default for the ML30 Gen10. Legacy mode can be selected in the field or as a CTO option (758959-B22)

top

Specs 1

Software overview

Feature	Description
Software RAID ¹	HPE Smart Array Gen10 Software RAID
OS and virtualization software support for ProLiant Servers	Microsoft Windows Server 2016 and 2019² Red Hat Enterprise Linux (RHEL) 7.5 and 8.0² SUSE Linux Enterprise Server (SLES) 12 SP3 and 15³ VMware ESXi 6.5 U2 and 6.7⁴
NOTE: HPE Smart Array S100i SR Gen10 SW RAID will operate in UEFI mode only. For legacy support an additional controller will be needed, and for Configure-To-Order (CTO) orders please also select the legacy mode settings part, 758959-B22. For CTO orders, HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled. For enabling please select HPE FIO Enable Smart Array SW RAID (784308-B21). For Build to Order (BTO) orders, HPE Smart Array S100i SR Gen10 SW RAID is on by default. The S100i supports 4 SATA ports for drive cage and additional 2 SATA ports for drives from media drive bays. The S100i only supports Windows. For Linux users, HPE offers a solution that uses In-Distro Open-Source software to create a Two-Disk RAID 1 boot volume. VMware supported only with Intel Xeon E processors, not supported with Intel core or pentium processors. ClearOS allows user to build a fully functional server that is just right for user at no upfront cost. CentOS not directly supported/community supported (Based on RHEL so RHEL testing and enablement applicable to CentOS) CentOS 7.5.

top

Physical specifications

Specification	Description
Dimensions (H x W x D)	36.83 x 17.50 x 47.50 cm (14.50 x 6.89 x 18.70 in)
Weight (Approximate)	Minimum: 4 NHP LFF chassis with 1x LFF HDD, 1x processor including heatsink, 1xDIMM, 1x ATX power supply, cables for the above: 10.1 kg (22.1 lb) Maximum: Fully loaded - 4 Hot-plug LFF chassis with 4x LFF HDDs, 1x DVD-RW, 1xtape drive, 1x processor including heatsink, 4x DIMMs, 2x power supplies,cables for the above: 17.6 kg (38.7 lb)

top

Electrical specifications

Specification	Description
Input requirements (Per power supply)	Rated line voltage 100 to 120 V ac 200 to 240 V ac
BTU rating	For 350 W power supply: 1452 BTU/hr (At 100 V ac), 1544 BTU/hr (At 200 V ac) For 500 W power supply: 1902 BTU/hr (At 100 V ac), 1840 BTU/hr (At 200 V ac), 1832 BTU/hr (At 240 V ac)
Power supply output (Per power supply)	Rated Steady-State power For 350 W power supply: 350 W (At 100 to 230 V ac) For 500 W power supply: 500 W (At 100 V ac), 500 W (At 240 V ac) Maximum peak power For 350 W power supply: 350 W (At 100 to 230 V ac) For 500 W power supply: 500 W (At 100 to 127 V ac), 500 W (At 200 to 240 V ac)

top

Environmental specifications

Specification	Description
Standard operating temperature	10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 304.8 m (1.8°F per every 1000 ft) above sea level to a maximum of 3048 m (10,000 ft), no direct sustained sunlight Maximum rate of change is 10°C/hr (18°F/hr) The upper limit may be limited by the type and number of options installed System performance may be reduced if operating with a fan fault or above 30°C (86°F)
Extended ambient operating temperature	For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35°to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft) For approved hardware configurations, the supported system inlet range is extended to be: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft) The approved hardware configurations for this system are listed at the below link: Click here to access the Hewlett Packard Enterprise Information Library for hardware configuration . System performance may be reduced if operating in the extended ambient operating range or with a fan fault
Non-Operating temperature	-30° to 60°C (-22° to 140°F) Maximum rate of change is 20°C/hr (36°F/hr)
Relative Humidity (Rh) (Non-Condensing)	Operating: 8% to 90% - Rh, 28°C maximum wet bulb temperature, Non-Condensing Non-Operating: 5% to 95% Rh, 38.7°C (101.7°F) maximum wet bulb temperature, Non-Condensing
Altitude (Operating)	3048 m (10,000 ft) This value may be limited by the type and number of options installed Maximum allowable altitude change rate is 457 m/min (1500 ft/min)
Altitude (Non-Operating)	9144 m (30,000 ft) Maximum allowable altitude change rate is 457 m/min (1500 ft/min)
Acoustic noise¹	Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109) The listed sound levels apply to standard shipping configurations Additional options may result in increased sound levels HPE representative provide information from the HPE EMESC website for further technical details regarding the configurations listed below
	Idle
	LWAd	4.3 Bels (Entry) 3.6 Bels (Performance)
	LpAm	28 dBA (Entry) 23 dBA (Performance)
	Operating
	LWAd	4.3 Bels (Entry) 3.8 Bels (Performance)
	LpAm	28 dBA (Entry) 23 dBA (Performance)
NOTE: Acoustics levels presented here are generated by the test configuration only. Acoustics levels will vary depending on system configuration. Values are subject to change without notification and are for reference only. Product conformance to cited product specifications is based on sample (Type) testing,evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements. The Listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels.

top

Safety certifications

Specifications	Description
Emissions Classification (EMC)	To view the regulatory information for users product, view the Safety and Compliance Information for Server, Storage, Power, Networking, and Rack Products, available at the Hewlett Packard Enterprise Support Center: Click here to view the Enterprise Safety and Compliance for more information .

top

Spec Sheet 4

Technical specifications	HPE ProLiant ML30 Gen10 server
Processor family	Intel® Xeon® E-2100/2200 series, Intel® Core™ 8th/9th Gen i3 Processor, Intel® Pentium® Processor
Processor core available	2 to 6 core, depending on processor
Processor cache	4 to 12 MB L3, depending on processor
Processor speed	4.0 GHz, maximum depending on processor
Expansion slots	4, for detailed descriptions reference the QuickSpecs
Maximum memory	64 GB with 16 GB DDR4
Memory slots	4
Memory type	HPE DDR4 Standard Memory
Memory protection features	Unbufferred ECC
Network controller	HPE 1 Gb 332i Ethernet adapter 2-ports per controller or HPE 1 Gb 361i Ethernet adapter 2-ports per controller, depending on model
Storage controller	1 HPE Smart Array S100i
Product Dimensions (imperial)	14.5 x 6.89 x 18.7 in
Weight	22.1 lb minimum 38.7 lb maximum
Infrastructure management	Included - HPE iLO Standard with intelligent provisioning (embedded), HPE Systems Insight Manager (requires download), HPE OneView Standard (requires download) Optional - HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, HPE OneView Advanced (requires download)
Drive supported	4 NHP LFF SATA HDD with optional 2 LFF SATA HDD or 4 LFF SAS/SATA HDD/SSD or 8 SFF SAS/SATA HDD/SSD, with 1 M.2 NVMe SSD, depending on model
