Specs
Quick Specs
Form Factor: 1U rack server
Processor: 1 x Intel Xeon | Max: 8 Cores
Memory: 6 DDR4 RDIMM 2933Mhz with RAS | Max: 192GB
Storage: 4 LFF SAS/SATA (HDD/SSD) | Max: 12TB
Rear Storage: None
PCIe Slots: 2 | Gen: 3.0 & 2.0
GPU: None
RAID Controllers: PERC S110 (SW RAID)
Remote Management: iDRAC7

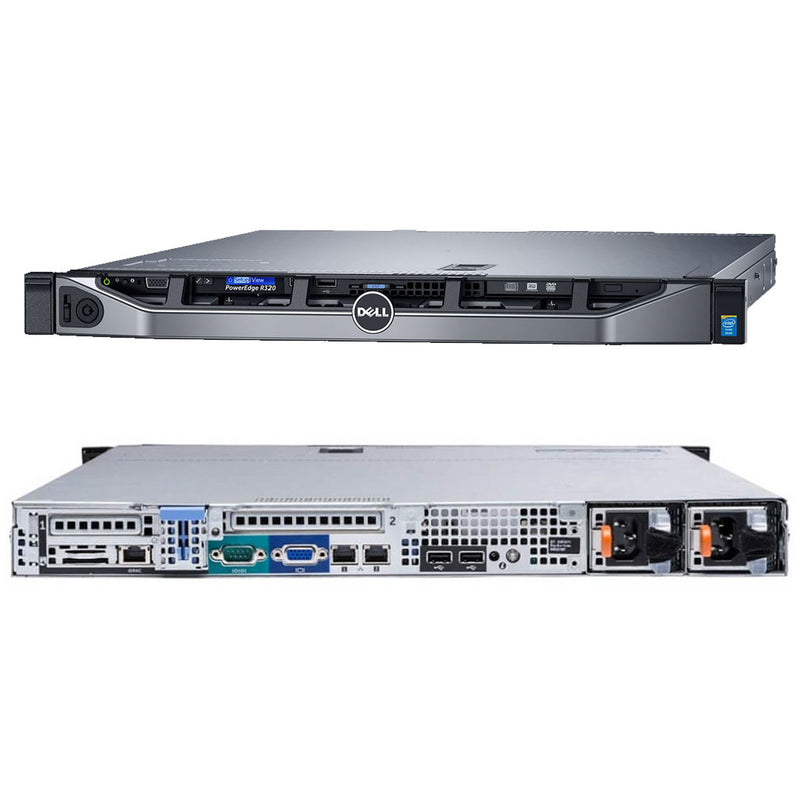

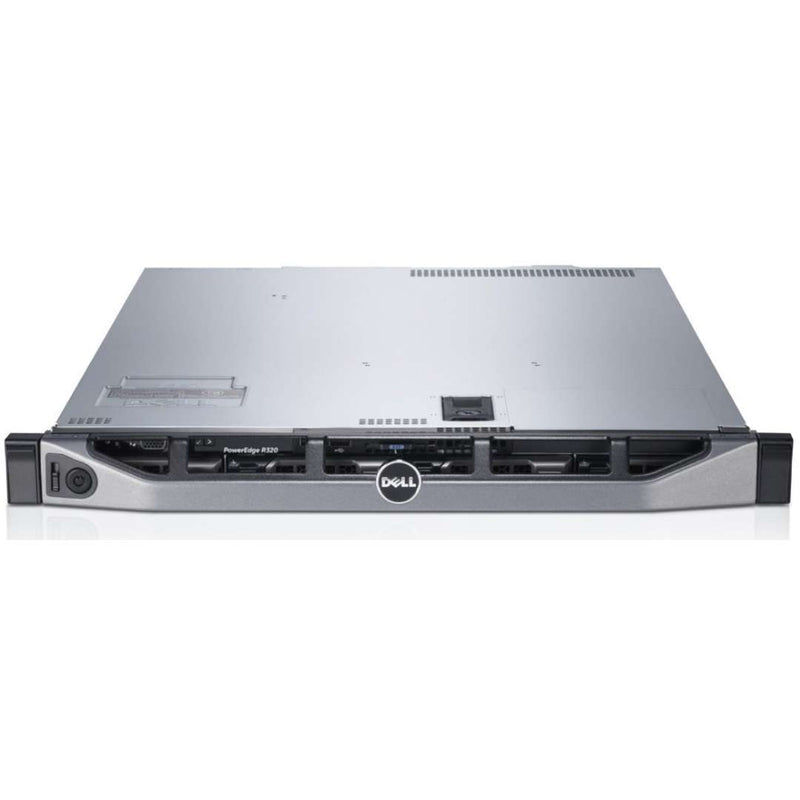

An enterprise-class, 1-socket server, the Intel-powered Dell PowerEdge R320 has the right computing power, scalability and value in a dense chassis.
The Dell PowerEdge R320 is an enterprise-class, 1-socket, 1U rack-mount server designed to deliver the right combination of performance, redundancy and value in a dense chassis. This rack server caters to the growing need for virtualization by offering scalable processor performance, a large memory footprint and the capacity for up to eight hard drives. The performance per cost, along with configuration flexibility, storage connectivity and straightforward systems management make the R320 highly appealing to hosting providers. Consistent worldwide support makes the R320 highly appealing to multinational businesses and organizations.
Enterprise features, scalable expandability and value in a dense chassis

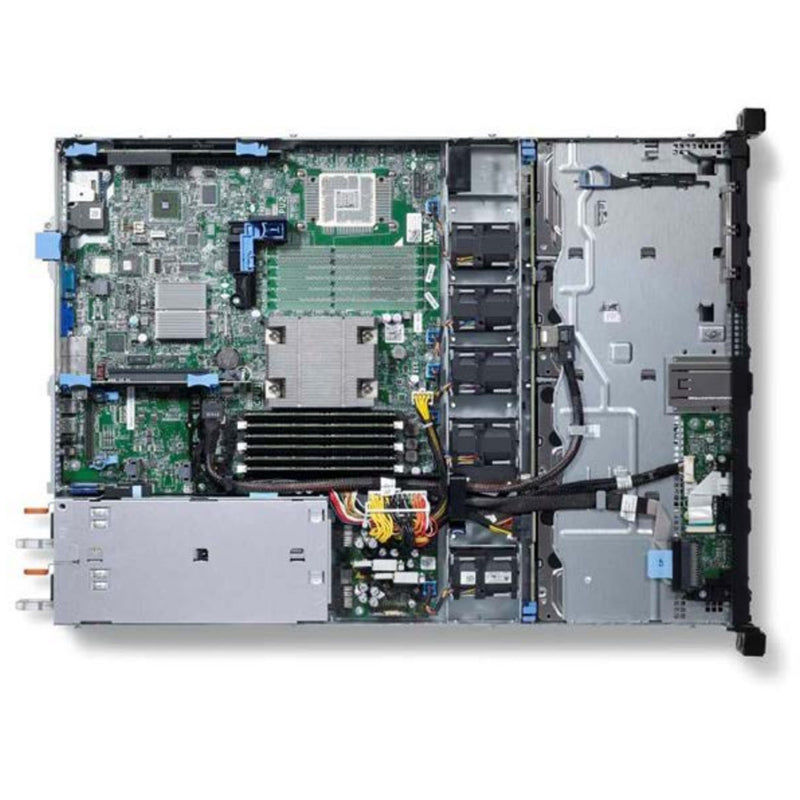

The R320 features the scalable performance of the Intel Xeon E5-2400 processors with essential Intel memory RAS features. This server complements its processors with six DIMMs and two PCI Express (PCIe) slots, providing a substantial memory footprint and wide I/O bandwidth to support both memory-sensitive applications and databases. These combined technology features enable the R320 to support consolidated and virtualized environments.
To protect your virtualized workloads, the R320 offers dual SD cards making your hypervisors redundant and failsafe. Other reliability and availability features include up to four 3.5-inch or eight 2.5-inch hot-plug hard drives, both hardware and software RAID options and redundant, hot-plug power supplies.
The R320 is an excellent fit for web, file and print serving as well as smaller scale hosting and e-commerce, retail server, workgroup server and smaller scale virtualization in space-constrained, small-medium business locations and departmental and remote sites of large businesses and public organizations.
Experience high-level productivity with the option-packed PowerEdge R320 —powered by the latest Intel Xeon processor E5-2400 and E5-2400 v2 product families and paired with six dual in-line memory modules (DIMMs) and extensive reliability, availability and serviceability (RAS) features, the R320 is ideal for keeping core business applications up and running.
Configure your storage options to suit your needs. The PowerEdge R320 enables you to tailor your system with up to eight internal drives — 100 percent more hard drives than the previous Dell generation — two PCIe expansion slots and either hardware or software RAID options for data protection.
As a 1-socket rack server, the R320 has very aggressive advanced network options, carrying multiple third-party brands and adapter types with 10GbE NIC, 10GbE FCoE and Fiber Channel 8Gb HBA.
Deliver the right combination of performance, availability and power efficiency in a dense, 1-socket, 1U chassis with the next-generation PowerEdge R320.
Help improve the performance of your business applications and virtualized environments using the scalable I/O (input/output) bandwidth of the PowerEdge R320 with its PCI Express (PCIe) 3.0-enabled expansion slots.
Looking to Customize?
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
| Features | Technical specification | |
|---|---|---|
| Form factor | 1U rack | |
| Processors | Intel Xeon processor E5-2400 product family Intel Xeon processor E5-1410 Intel Pentium processor 1400 product family | |
| Processor sockets | 1 | |
| Internal interconnect | Intel DMI 2.0 | |
| Cache | 2.5MB per core; core options: 2, 4, 6, 8 | |
| Chipset | Intel C600 series | |
| Memory | Up to 192GB (6 DIMM slots): 2GB/4GB/8GB/16GB/32GB DDR3 up to 1600MT/s | |
| I/O slots | 2 PCIe slots: One x8 PCIe slot with x4 bandwidth, 2.0, half-length, half-height One x16 PCIe slot with x16 bandwidth, 3.0, half-length, full-height | |
| RAID controller | Internal controllers: PERC S110 (SW RAID) PERC H310 PERC H710 | External HBAs (RAID): PERC H810 External HBAs (non-RAID): 6Gbps SAS HBA |
| Drive bays | Up to eight 2.5 hot-plug SAS, SATA or SSD or four 3.5 SAS, SATA | |
| Maximum internal storage | Up to 16TB | |
| Hard drives | Hot-plug hard drive options: 2.5 SATA, nearline SAS, SAS (15K, 10K), SAS SSD, SATA SSD 3.5 SATA, nearline SAS, SAS (15K) Cabled hard drive options: 3.5 SATA, nearline SAS, SAS (15K) Self-encrypting drives available | |
| Embedded NIC | Broadcom 5720 Dual Port 1Gb LOM | |
| I/O adapter options | 1Gb Ethernet: Broadcom 5720 Dual Port 1Gb NIC Broadcom 5720 Quad Port 1Gb NIC Intel I350 Dual Port 1Gb stand-up adapter Intel I350 Quad Port 1Gb stand-up adapter 10Gb Converged Ethernet: Brocade BR1020 Dual Port 10Gb CNA QLogic QLE8262 Dual Port 10Gb DA/SFP+ Broadcom 57810S Dual Port 10Gb Base-T CNA Broadcom 57810S Dual Port 10Gb DA/SFP+ CNA | 10Gb Ethernet: Intel X520 Dual Port 10Gb DA/SFP+ server adapter Intel X540 Dual Port 10Gb Base-T adapter FC8/FC4 HBA: QLogic QLE2460 4Gb Single Port FC HBA QLogic QLE2462 4Gb Dual Port FC HBA QLogic QLE2560 8Gb Single Port FC HBA QLogic QLE2562 8Gb Dual Port FC HBA Emulex LPe-12000-E 8Gb Single Port FC HBA Emulex LPe-12002-E 8Gb Dual Port FC HBA Brocade 815 8Gb Single Port FC HBA Brocade 825 8Gb Dual Port FC HBA |
| Power | Platinum efficiency, hot-plug, redundant 350W and 550W power supplies; Bronze efficiency, cabled 350W power supply Auto-ranging power supplies | |
| Availability | High-efficiency, hot-plug, redundant power supplies; hot-plug hard drives; TPM; dual internal SD support; fan fault tolerance; optional bezel; information tag; ECC memory, interactive LCD screen; ENERGY STAR compliant | |
| Remote management | Basic management (default), iDRAC7 with Lifecycle Controller, iDRAC7 Express (upgrade option), iDRAC7 Enterprise (upgrade option), 8GB or 16GB vFlash media (upgrade options) | |
| Systems management | IPMI 2.0 compliant Dell OpenManage Essentials and Dell Management Console Dell OpenManage Power Center Dell OpenManage Connections: OpenManage Integration Suite for Microsoft System Center Dell plug-in for VMware vCenter HP Operations Manager, IBM Tivoli Netcool , and CA Network and Systems Management | |
| Rack support | ReadyRailsTM II sliding rails for toolless mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm ReadyRails static rails for toolless mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded and 2-post (Telco) racks | |
| Operating systems | Microsoft Windows Server 2012 Microsoft Windows Server 2012 Essentials Microsoft Windows Server 2008 R2 SP1, x64 (includes Hyper-V v2) Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux | Virtualizations options: Citrix XenServer VMware vSphere ESX and ESXi Red Hat Enterprise Virtualization For more information on the specific versions and additions, visit Dell.com/OSsupport. |
Spec Sheet 4
| Feature | PowerEdge R310 | PowerEdge R320 |
|---|---|---|
| Chassis | 1U rack | 1U rack |
| Processors | IntelXeonprocessors 3400 series IntelCore™ i3 processor 500 series IntelPentium® G6950 IntelCeleron® G1101 | Intel Xeon processor E5-2400 product family Intel Xeon processor E5- 1410 Intel Pentium processor 1400 product family |
| Internal interconnect | Intel DMI | Intel DMI 2.0 |
| Memory | 4 x 1333 DDR3 UDIMM or 6 x 1333 DDR3 RDIMM Up to 32GB | 6 x DDR3 RDIMM and UDIMM Up to 192GB |
| Hard drive bays (hot-plug) | Up to 4 x 3.5” cabled or hot-plug | Up to 4 x 3.5” cabled or hot-plug Up to 8 x 2.5” hot-plug |
| RAID controller | PERC 6/i, SAS6/iR, PERC6/E, S100, S300, H200, H700, H800 | PERC S110, H310, H710, H810 |
| PCI slots | 2 PCIe 2.0 slots | 1 PCIe 3.0 slot and 1 PCIe 2.0 slot |
| Embedded NICs | Broadcom® Dual Port 1GbE LOM | Broadcom Dual Port 1GbE LOM |
| Power supplies | Non-redundant 350W Redundant 400W | Non-redundant 350W Redundant 350W Redundant 550W |
| Dell OpenManage Systems Management | Dell OpenManage Dell Management Console (DMC) Lifecycle Controller 1.x iDRAC6 (Express or Enterprise) with Lifecycle Controller | OpenManage Essentials Dell Management Console IT Assistant OMSA Agent OpenManage Power Center (requires iDRAC7 Enterprise with Lifecycle Controller) OpenManage Integrations and Connections Basic management (standard option) |
| Power efficiency | Silver | Platinum |
| Availability | Hot-plug drives Hot-plug redundant power supply units | Hot-plug drives Hot-plug redundant power supply units Memory sparing and memory mirroring Internal dual SD module |
