Specs
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Quick Specs
What's New for the 1U DL60 Gen9
- (2) Intel Xeon E5-2600v4
- (8) 2400MT/s DDR4
- Max Memory 256GB
- (3) PCIe Gen3.0 slots
- Supports up to (4 LFF) Drives
- M.2 enabled
- HPE Dynamic Smart Array B140i (RAID 0, 1, 1+0 & 5)
- Optional FlexibleLOM slot on riser
- HPE iLO 4
Ideal for:
- Cloud Servers
- Corporate IT
- Database
The HPE ProLiant DL60 Gen9 Server is a compact 1U server designed to meet the needs of cost-conscious service providers and SMBs. It delivers optimal performance and density for file and print, messaging, collaboration, and cloud environments. Key features include up to four LFF HPE SmartDrives, dual Intel Xeon E5-2600 v3/v4 processors, and eight DDR4 SmartMemory DIMM slots.
Additionally, the DL60 Gen9 prioritizes energy efficiency with 92% 80 PLUS Gold-certified redundant power supplies and support for HPE Extended Ambient Operating Support (ASHRAE A3). Flexible networking options, including an embedded 2 x 1GbE Ethernet adapter and up to three PCIe slots, ensure future-proofing. The server's simple design and HPE infrastructure management tools further enhance efficiency and reduce management overhead.
CTO Configuration Support
Need help with the configuration? Contact us today!

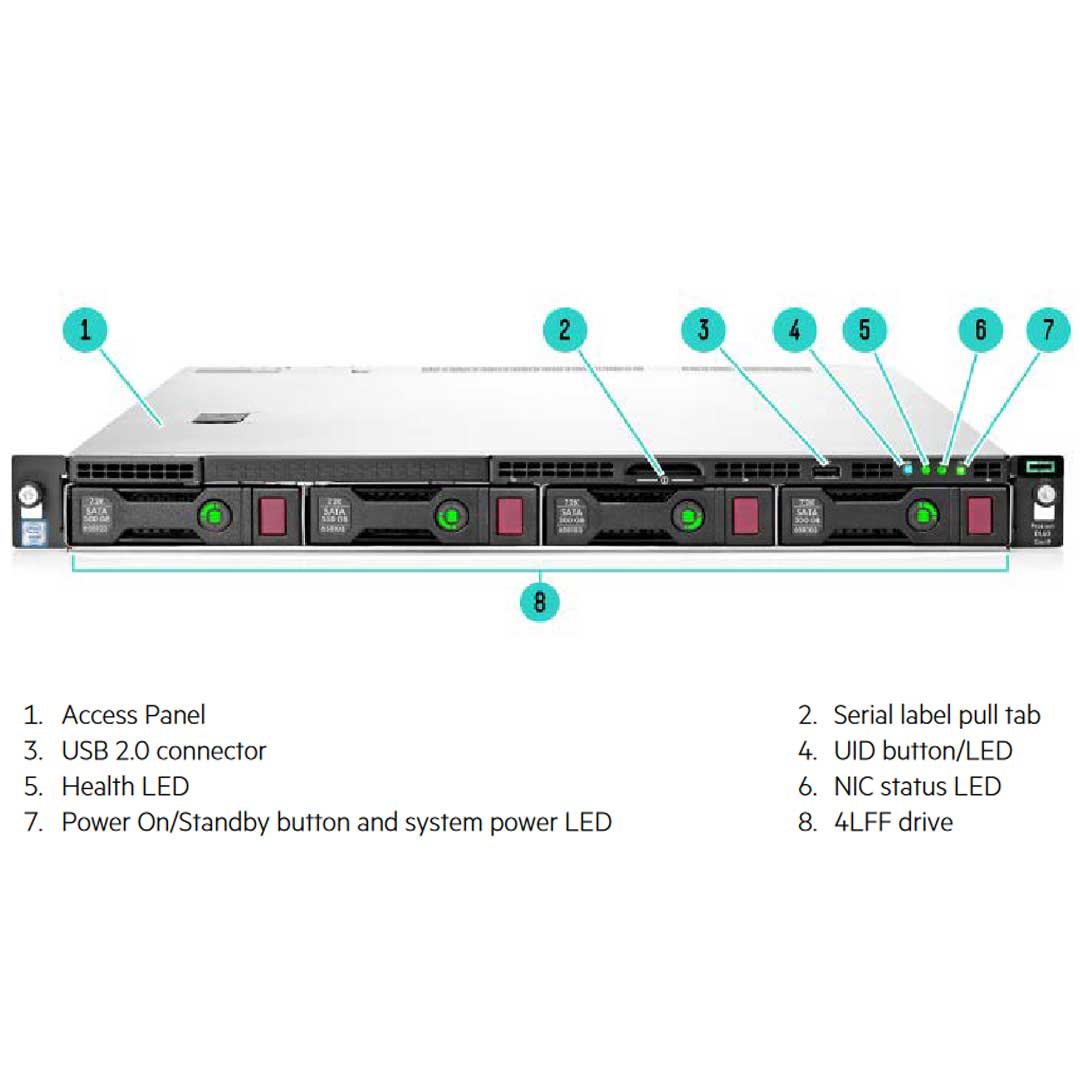

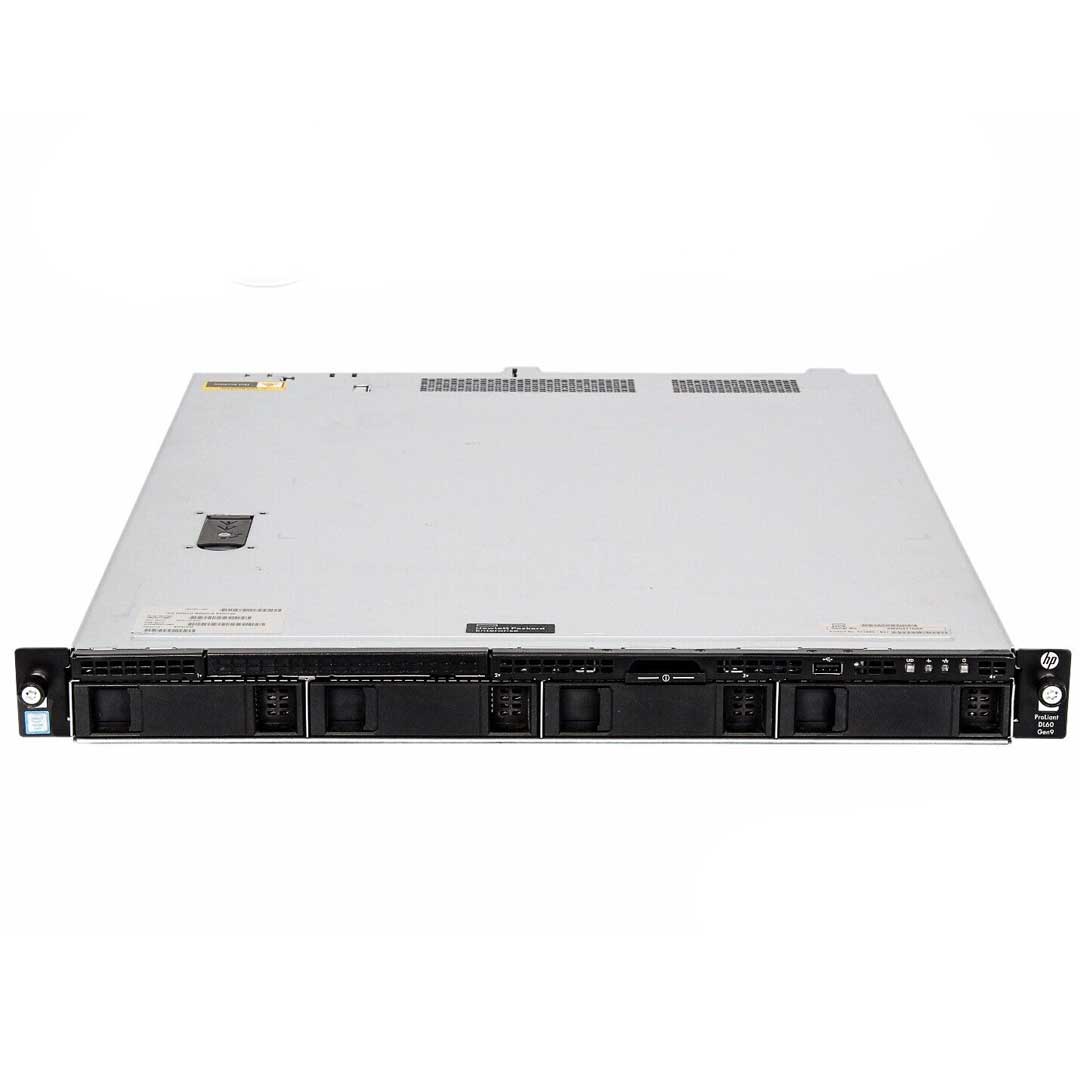

HPE DL60 Chassis Options | (4) Drives
| [Chassis] | HP ProLiant DL60 Gen9 | |
|---|---|---|
| Non-hot Plug 4LFF Configure-to-order Server | 4LFF Configure-to-order Server | |
| SKU Number | 777404-B21 | 777403-B21 |
| Processor | 2 (optional) x HPE Smart Socket Guide | |
| DIMM Slots | 8 DIMM slots for RDIMM, LRDIMM DDR4 Memory | |
| Storage Controller | HPE Dynamic Smart Array B140i | |
| PCIe | 3 PCIe 3.0 slots | |
| Drive Cage | 4LFF Non Hot Plug | 4LFF Hot Plug |
| Network Controller | HPE Embedded Dual Port 361i Adapter Network Interface | |
| Fans | 3 hot swap fans, non-redundant | |
| Management | iLO Management (standard), Intelligent Provisioning (standard) | |
| USB | 1 front, 1 internal, 2 rear | |
| Ears | HPE Thumbscrew Ears | |

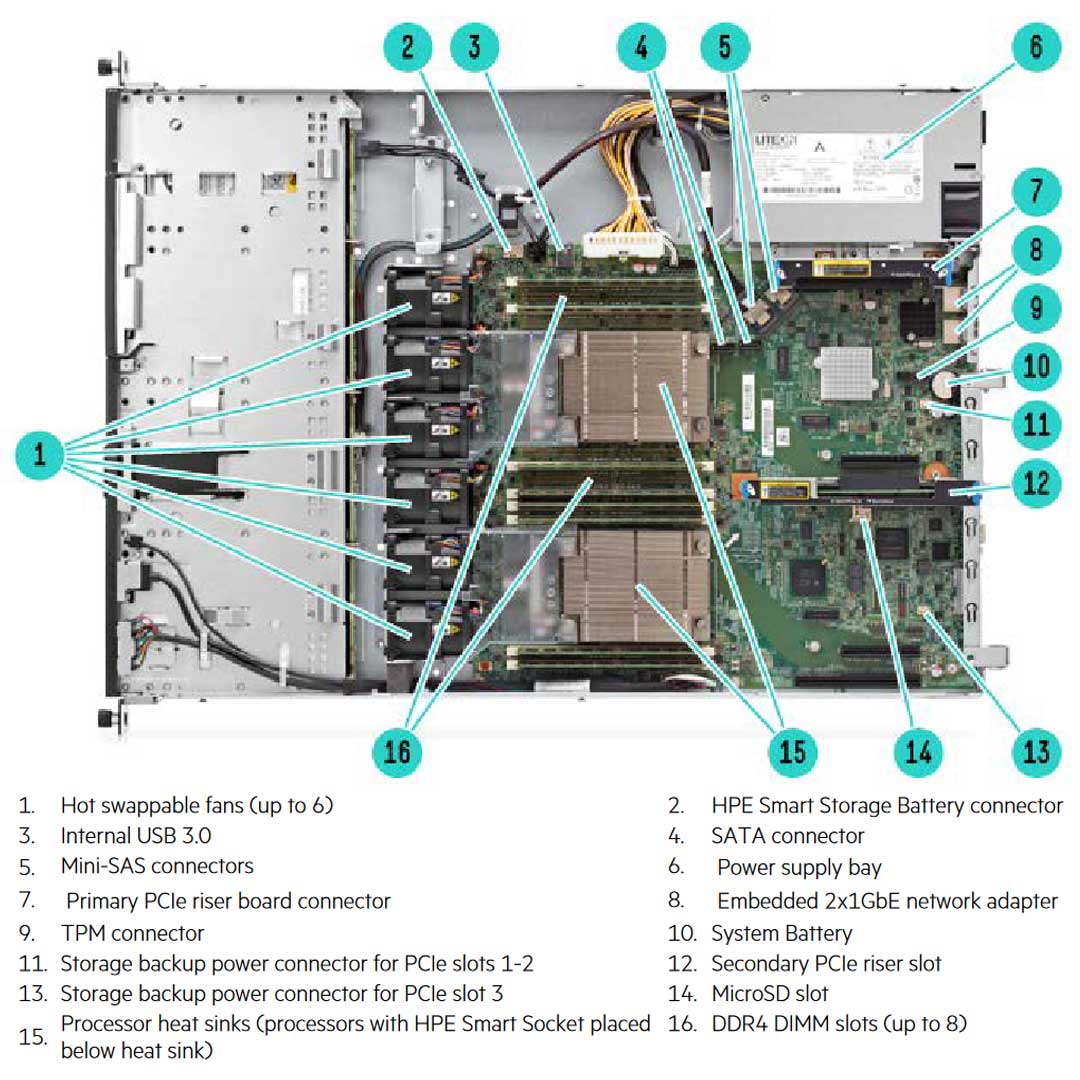

The HPE ProLiant DL60 Gen9 is a compact 1U server supporting single or dual Intel Xeon E5-2600v3/v4 processors. The system board (847393-001) does not allow mixing processor generations. Note that cooling requirements differ between single and dual-processor configurations. Single-processor systems use 3 non-redundant or 5 redundant fans, while dual-processor systems require 4 non-redundant or 6 redundant fans. To enable redundant fans on a dual-processor system, the Redundant Fan Option Kit (765513-B21) is necessary.
To Hot-Swap or not!
Now that you got the single and dual socket configurations worked out. It’s time to check what kind of chassis we need. You can have either the Hot-Swap LFF or the Non-Hot-Swap LFF. A total of 4 SAS/SATA Drives can be installed. The Maximum Internal Storage for this server is as follows:
- Hot Plug LFF SAS 4 x 8TB = 32.0TB
- Hot Plug LFF SATA 4 x 8TB = 32.0TB
- Non-Hot-Plug LFF SATA 4 x 4TB = 16TB
- Hot Plug LFF SATA SSD 4 x 3.84TB = 15.36TB
