Specs
Quick Specs
Form Factor:
Tower server | 5U (Rack conversion kit)
Processor | Max: 10 Cores2x Intel E5-2400 and E5-2400 v2 Processors
Memory | Max: 384GB12 DDR3 UDIMM 1600Mhz
Storage | Max: 32TB8x 3.5" SAS/SATA (HDD/SSD)
Boot OptionsBoot Optimized Server Storage (BOSS)
IDSDM
Internal USB
S110 (SW RAID)
PERC H310, H710, H710P, H810, HBA330, 6Gbps SAS HBA (non-RAID)
2 x 1GbE LOM
Remote Management:iDRAC7 with Lifecycle Controller
PCIe Slots: 62 x16 with x16 bandwidth, 3.0, full-length, full-height
1 x8 with x4 bandwidth, 3.0, half-length, full-height
1 x8 with x4 bandwidth, 2.0, half-length, full-height
1 x8 with x4 bandwidth, 3.0, full-length, full-height
1 x8 with x1 bandwidth, 2.0, full-length, full-height
1x DW or 2x SW GPU
Other Versions

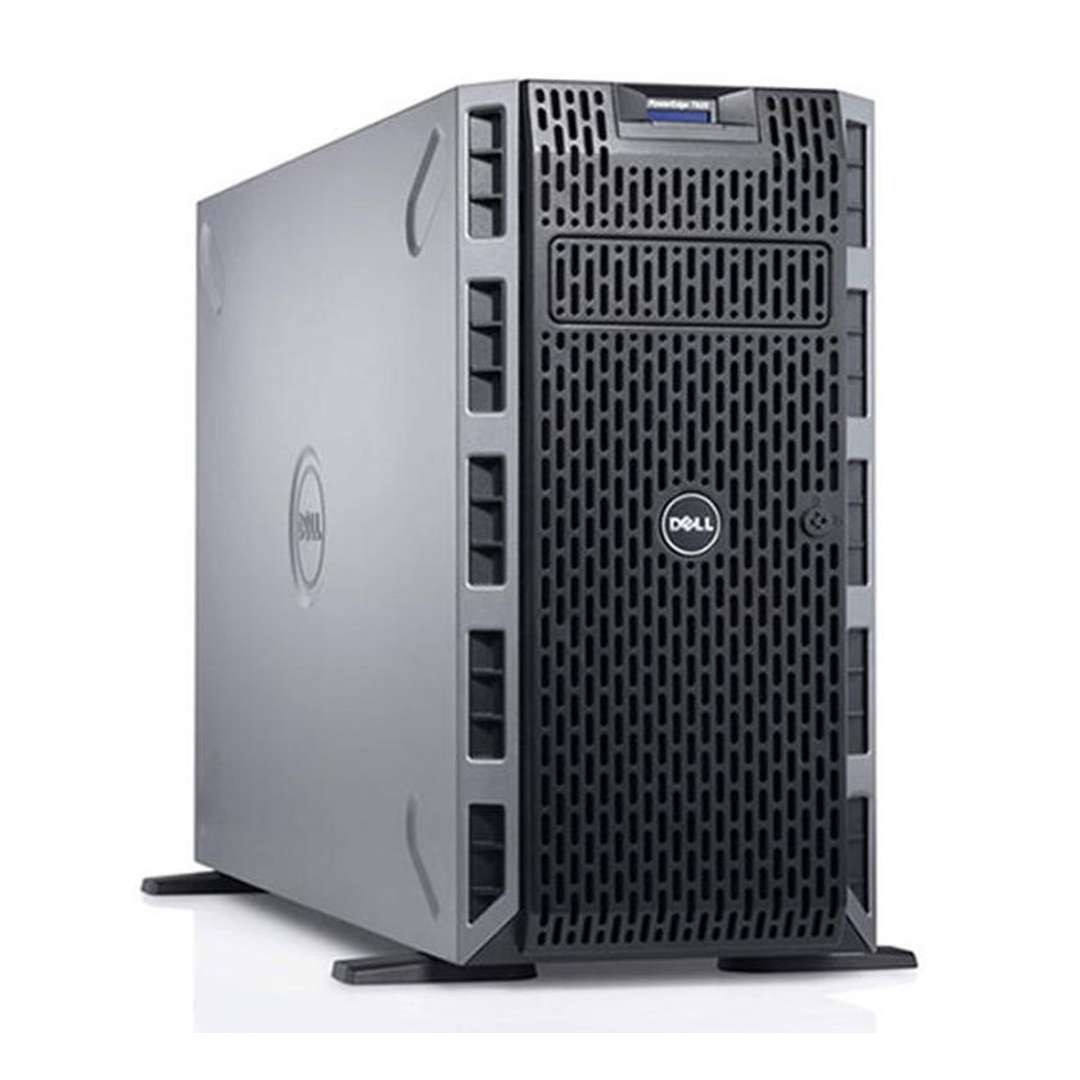

The Dell PowerEdge T420, a 2-socket tower server, delivers performance, expandability and reliability in a quiet office setting.
PowerEdge T420- Powered by Intel Xeon processors E5-2400
- Up to sixteen 2.5-inch or eight 3.5-inch drive capacity
- Up to twelve DIMMs with RAS
- PCIe 3.0-enabled expansion slots
- Optional internal GPU accelerators
The Dell PowerEdge T420 is a powerful and reliable 2-socket tower server that delivers performance and built-in capacity for non-disruptive growth. The T420’s acoustical profile allows it to fit unobtrusively into quiet office environments and data centers alike. This tower server is an excellent fit for general-purpose small and medium business workloads such as database, file and print sharing, retail and email. The T420 also fulfills platform needs in small offices with the growing trend of virtual desktop infrastructure (VDI). Hot pluggability of key components, combined with leading manageability, make it an excellent server for branch offices and other remote sites where IT skills might not be present. Consistent worldwide support makes it highly appealing to multinational businesses and organizations with remote offices.
A versatile workhorse
Featuring the extensive performance of two Intel Xeon E5-2400 processors, and complemented by substantial memory capacity and broad I/O bandwidth, the T420 provides high, balanced performance and built-in room for growth. Its twelve DIMM slots and six PCIe slots provide memory density and wide I/O bandwidth to support both memory-intensive and data-intensive applications and databases. Built-in capacity for up to eight 3.5-inch or sixteen 2.5-inch hard drives accommodate data storage as your business or organization grows. These combined technology features are necessary to support consolidated and virtualized environments, a role in which the T420 also shines.
To protect your virtualized workloads, the PowerEdge T420 offers dual SD media making your hypervisors redundant and failsafe. Other reliability and availability features include hot-plug hard drives, both hardware and software RAID options, redundant fans and hot-plug power supplies.
Start building your future with PowerEdge T420, a workhorse tower server engineered to deliver performance, expandability and reliability in a quiet office setting.
Advanced I/O
Improve your I/O capabilities for data intensive tasks through PCIe expansion slots and optional internal GPU acceleration.
Versatile storage
Tailor your storage capacity to fit your needs. The PowerEdge T420 features up to 16 hot-swap drive bays to help maximize data management efficiency.
Designed to grow with you

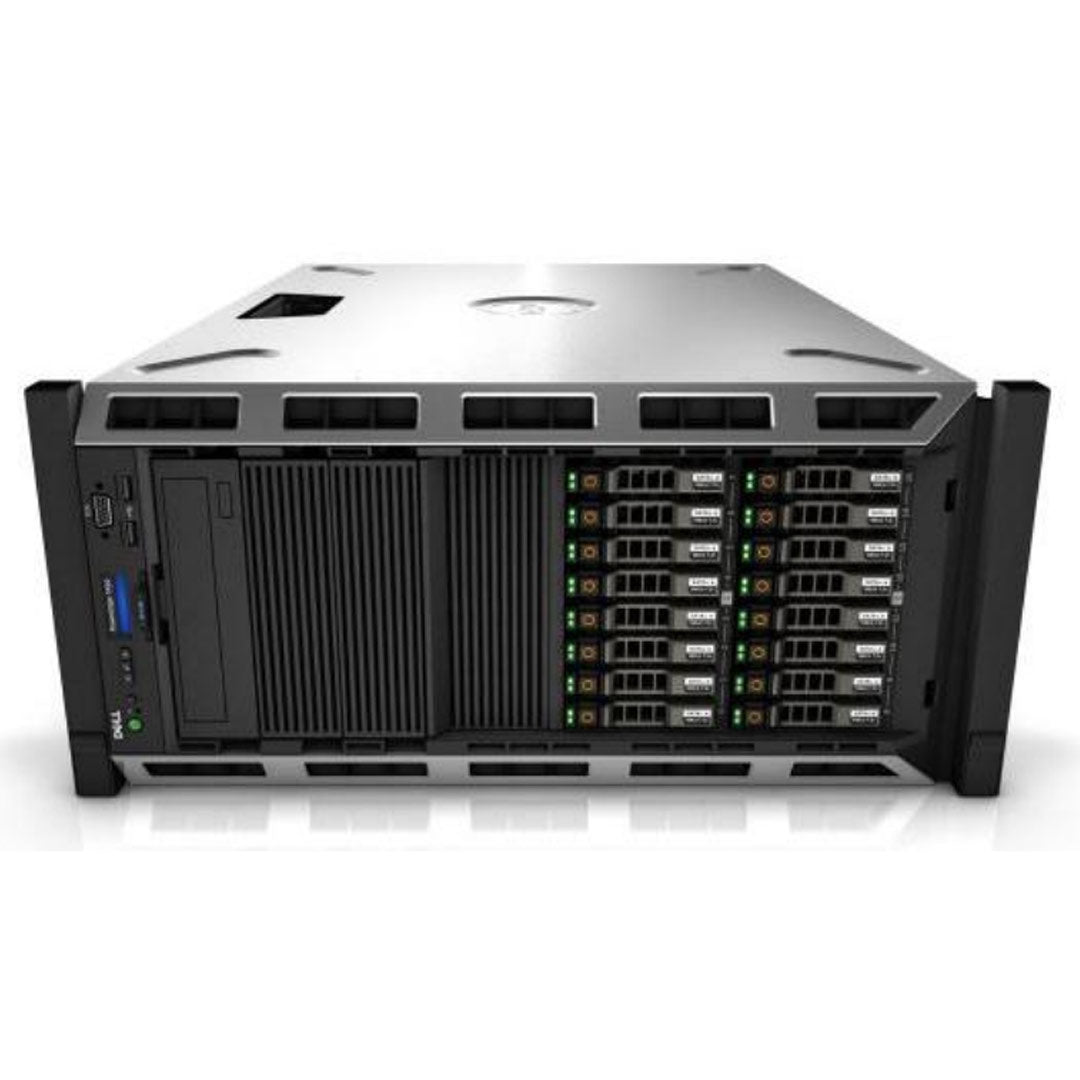

Implement the T420’s versatile performance and efficient management as an office tower server or mount as a rack server as you grow into larger data centers.
Intelligent systems management
Simplify deploying,updating,monitoring and maintaining your PowerEdge servers with the Dell OpenManage portfolio.
Outstanding efficiency and availability
Help keep your workplace efficient, your operating expenses in check and your workflow secure with the T420’s designed-in reliability, availability and serviceability features.
Flexible deployment
Easily deploy the T420 as an office-environment tower or take advantage of its rack-mount capability to move it into the data center as your business grows.
Productive performance
Help enhance office productivity with the two-socket PowerEdge T420, powered by the Intel Xeon processor E5-2400 and E5-2400 v2 product families. Matching the fast and efficient processing with a dense memory footprint enables small and midsize business offices to crunch through critical business applications quickly and efficiently.
Looking to Customize?
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
| Feature | PowerEdge T420 technical specification | |
|---|---|---|
| Form factor | Tower (5U rackable) | |
| Processors | Intel® Xeon® processor E5-2400 product family | |
| Processor sockets | 2 | |
| Internal interconnect | Intel QuickPath Interconnect (QPI) link: 6.4GT/s, 7.2GT/s, 8.0 GT/s | |
| Cache | 2.5MB per core; core options: 4, 6, 8 | |
| Chipset | Intel C600 series | |
| Memory | Up to 384GB (12 DIMM slots): 2GB/4GB/8GB/16GB/32GB DDR3 up to 1600MT/s | |
| I/O slots | 6 PCIe slots: • Two x16 slots with x16 bandwidth, 3.0, full-length, full-height • One x8 slot with x4 bandwidth, 3.0, half-length, full-height • One x8 slot with x4 bandwidth, 2.0, half-length, full-height • One x8 slot with x4 bandwidth, 3.0, full-length, full-height • One x8 slot with x1 bandwidth, 2.0, full-length, full-height | |
| GPU options | One NVIDIA Quadro 6000 graphics card or up to two NVIDIA Quadro 4000 graphics cards | |
| RAID controller | Internal controllers: PERC S110 (SW RAID) PERC H310 PERC H710 PERC H710P | Internal HBAs (non-RAID): Internal tape adapter External HBAs (RAID): PERC H810 External HBAs (non-RAID): 6Gbps SAS HBA |
| Drive bays | Choose from four 3.5” cabled, eight 3.5” hot-plug, or sixteen 2.5” hot-plug drive bays | |
| Maximum internal storage | Up to 32TB | |
| Hard drives | Hot-plug hard drive options: 2.5” SATA, nearline SAS, SAS (15K, 10K), SAS SSD, SATA SSD 3.5” SATA, nearline SAS, SAS (15K) Self-encrypting drives available | Cabled hard drive options: 3.5” SATA, nearline SAS, SAS (15K) |
| Embedded NIC | Broadcom® 5720 GbE Dual Port 1Gb LOM | |
| I/O adapter options | 1Gb Ethernet: Broadcom 5720 Dual Port 1Gb NIC Broadcom 5719 Quad Port 1Gb NIC Intel I350 Dual Port 1Gb stand-up adapter Intel I350 Quad Port 1Gb stand-up adapter 10Gb Converged Ethernet: Brocade® BR1020 Dual Port 10Gb CNA QLogic® QLE8262 Dual Port 10Gb DA/SFP+ Broadcom 57810S Dual Port 10Gb Base-T CNA Broadcom 57810S Dual Port 10Gb DA/SFP+ CNA | 10Gb Ethernet: Intel X520 Dual Port 10Gb DA/SFP+ server adapter Intel X540 Dual Port 10Gb Base-T adapter FC8/FC4 HBA: QLogic QLE2460 4Gb Single Port FC HBA QLogic QLE2462 4Gb Dual Port FC HBA QLogic QLE2560 8Gb Single Port FC HBA QLogic QLE2562 8Gb Dual Port FC HBA Emulex® LPe-12000-E 8Gb Single Port FC HBA Emulex LPe-12002-E 8Gb Dual Port FC HBA Brocade 815 8Gb Single Port FC HBA Brocade 825 8Gb Dual Port FC HBA |
| Power supply | Platinum efficiency, hot-plug, redundant 495W, 750W, 1100W power supplies Silver efficiency, cabled 550W power supply Auto-ranging power supplies | |
| Availability | Optional high-efficiency, hot-plug, redundant power supplies; hot-plug drive bays; TPM; dual internal SD support; redundant fans; optional bezel; information tag; ECC memory; optional interactive LCD screen; extended thermal support; ENERGY STAR® compliant; switch independent partitioning | |
| Remote management | Basic management (default), iDRAC7 with Lifecycle Controller, iDRAC7 Express (upgrade option) or iDRAC7 Enterprise (upgrade option), 8GB or 16GB vFlash media (upgrade options) | |
| Systems management | IPMI 2.0 compliant OpenManage™ Essentials and Dell Management Console OpenManage Power Center Dell OpenManage Connections: • OpenManage Integration Suite for Microsoft® System Center • Dell plug-in for VMware® vCenter® • HP Operations Manager, IBM Tivoli® Netcool®, and CA Network and Systems Management (NSM) | |
| Rack support | ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm | |
| Operating systems | Microsoft Windows Server 2012 Microsoft Windows Server 2008 R2 SP1, x64 (includes Hyper-V® v2) Novell® SUSE® Linux Enterprise Server Red Hat® Enterprise Linux® Optional embedded hypervisors: Citrix® XenServer® VMware® vSphere® ESX™ and ESXi™ Red Hat Enterprise Virtualization® For more information on the specific versions and additions, visit Dell.com/OSsupport. | |
Spec Sheet 4
| Feature | PowerEdge T410 | PowerEdge T420 |
|---|---|---|
| Chassis | 5U tower | 5U rackable tower |
| Processors | IntelXeonprocessors 5500 and 5600 series | Intel Xeon processor E5-2400 and E5-2400 v2 product families |
| Internal interconnect | Intel QuickPath Interconnect | Intel QuickPath Interconnect |
| Memory | Up to 8 x DDR3 RDIMM and UDIMM | Up to 12 x DDR3 RDIMM and UDIMM |
| Hard drive bays | Up to 6 x 3.5”or 2.5” hot-plug or cabled | 16 x 2.5“ hot-plug or 8 x 3.5“/2.5” hot-plug or 4 x 3.5” cabled |
| RAID controller | PERC 6/i, SAS 6/iR, PERC 6/E, H200, H700, H800, S100, S300 | PERC H310, H710, H710P, H810, S110 |
| PCI slots | Up to 4 PCIe 2.0 and 1 PCIe 1.0 | Up to 4 PCIe 3.0 and 2 PCIe 2.0 |
| Embedded NIC | Dual Broadcom® 1GbE LOM | Dual Broadcom 1GbE LOM |
| Power supplies | Non-redundant 525W Redundant 580W | Non-redundant 550W or hot-plug redundant 495W, 750W, or 1100W |
| Dell OpenManage Systems Management | Dell OpenManage Lifecycle Controller 1.x iDRAC6 (Express or Enterprise) with Lifecycle Controller |
OpenManage Essentials OMSA Agent OpenManage Power Center (requires iDRAC7 Enterprise with Lifecycle Controller) OpenManage Integrations and Connections Basic management (standard option) |
| Internal GPU | Not supported | Up to 2 single-width or 1 double-width |
| Power efficiency | Gold | Platinum |
| Availability | Hot-plug drives Hot-plug redundant power supply units |
Hot-plug drives Hot-plug redundant power supply units Fan fault tolerance Fault-resilient memory Internal dual SD modules |
