Adapter Specs
- Type: Shared External PCIe RAID Controller
- Interface: PCIe 2.0 x8
- Drive Type Support: 6 Gb/s SAS
- SAS Connectors: 2x external mini-SAS (SFF-8088), up to 2 JBOD enclosures
- Cache: 1GB NV Flash-Backed Write Cache
- RAID Levels: 0, 1, 5, 6, 10, 50, 60
- Server Support: Up to 2 Servers
- RAID Support: Hardware RAID
- Ideal: Shared Clustered Environments
Part Number:
- 0HX53

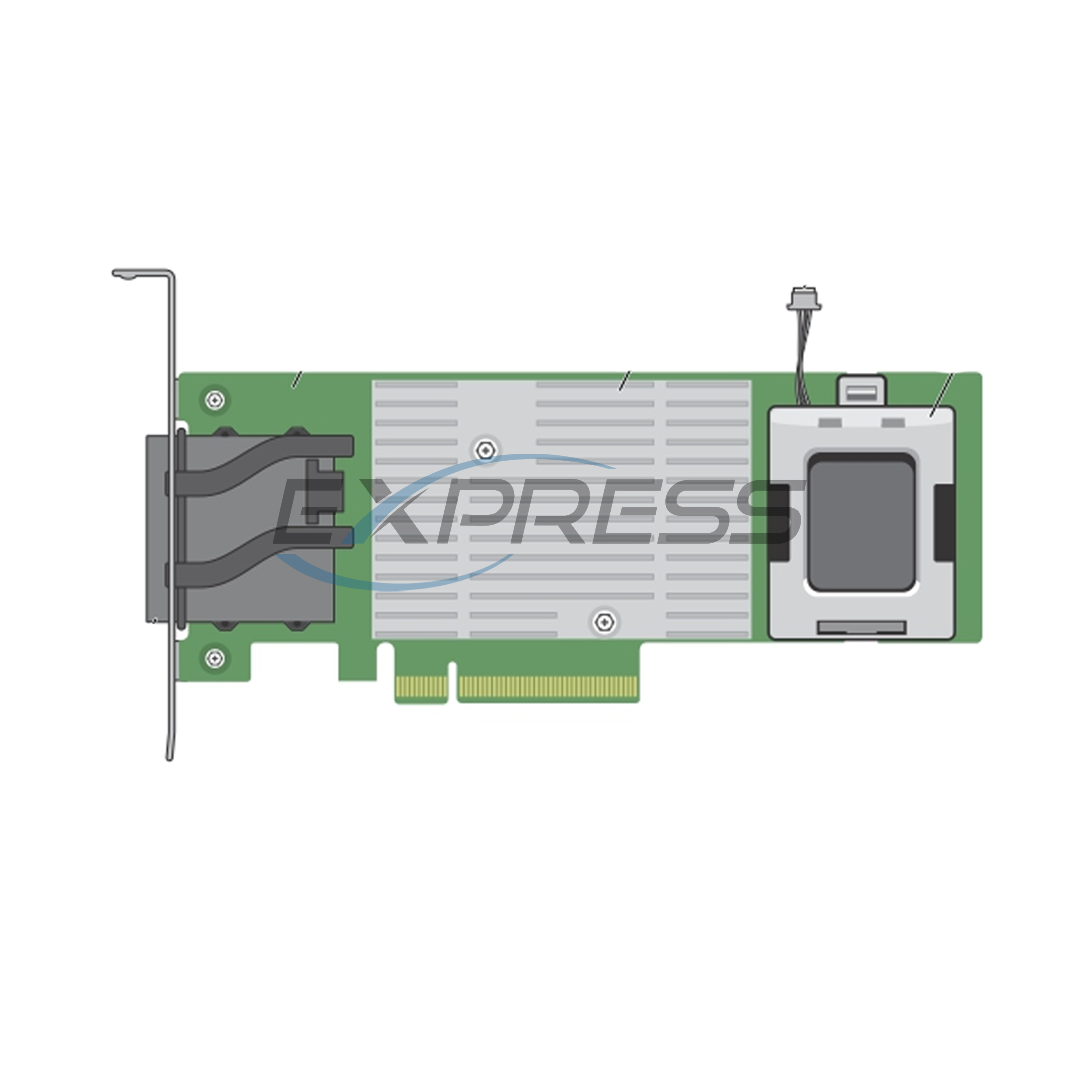

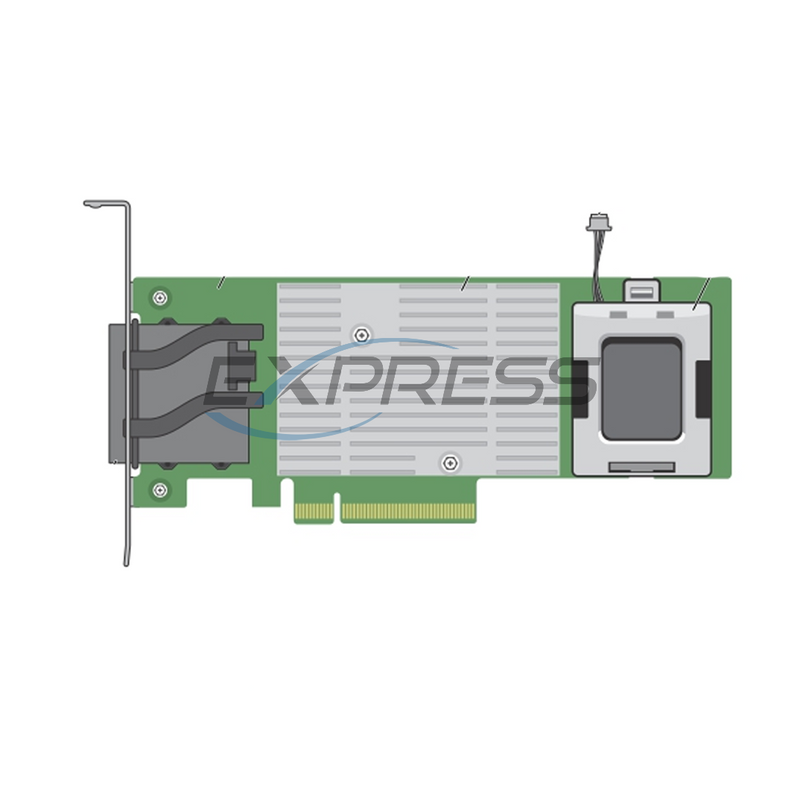

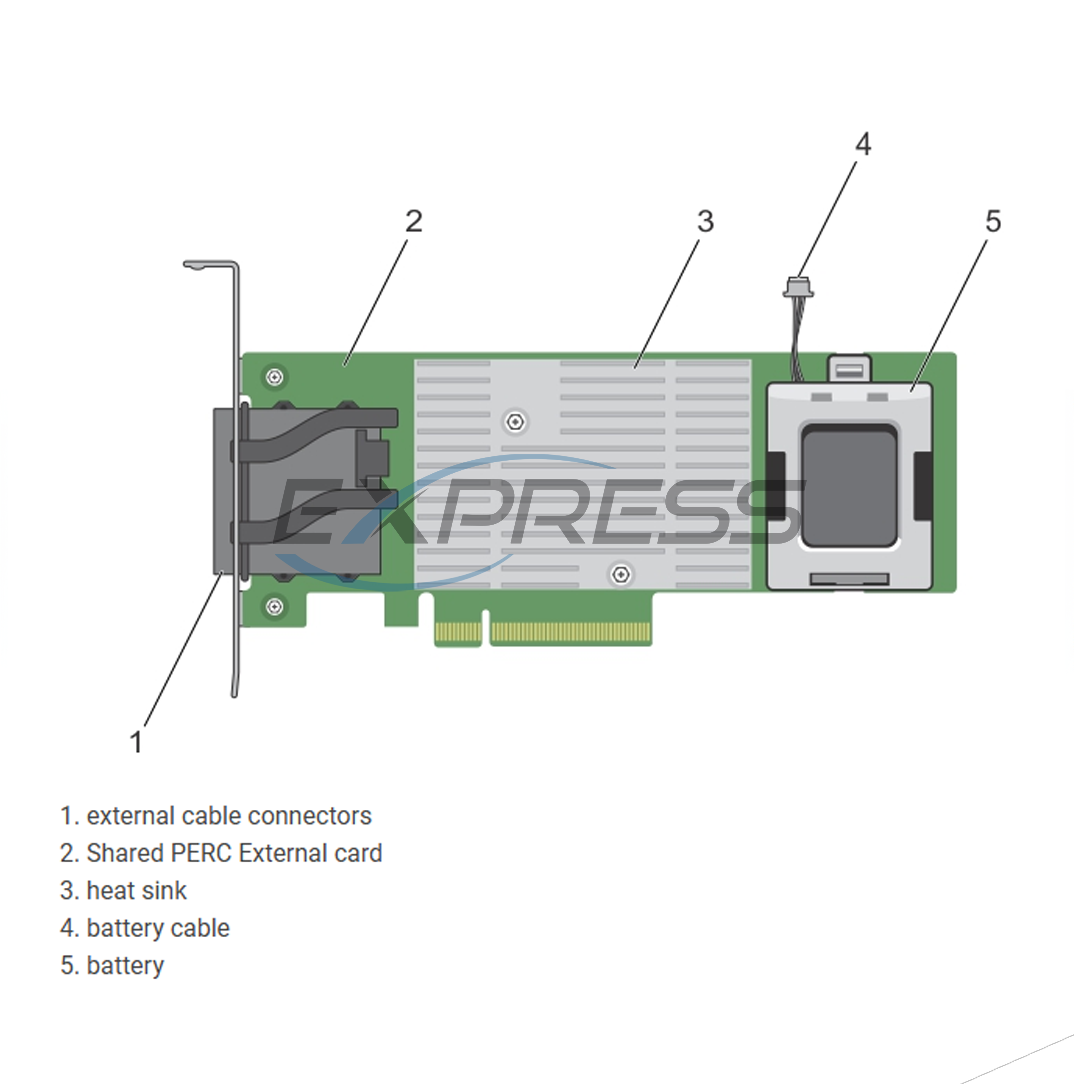

(Shared PERC 8 External) The shared PERC 8 External card extends storage capacity by allowing server modules to access up to two external JBODs. The Shared PERC 8 External cards are connected through PCIe slots 5 and 6 on the VRTX system. Shared PERC 8 External card will support MD1200 or MD1220 JBOD.
H810 (PERC H810) is a more general-purpose external RAID card for standalone PowerEdge servers. It's not designed for sharing across multiple nodes; it's for one server handling its own big storage needs.
Shared PERC 8
- Primary Use Shared storage in VRTX chassis (multi-server access)
- Ports/Connectivity 2x external mini-SAS (SFF-8088), up to 2 JBOD enclosures
- Cache 1GB DDR3 NV RAM with BBU
- RAID Levels 0, 1, 5, 6, 10, 50, 60
- Interface PCIe 2.0 x8, 6Gb/s SAS
- Unique Features SR-IOV for 4 virtual functions; controller failover in dual setup; managed via Chassis Management Controller (CMC) only—no BIOS boot from shared storage
- Management CMC web/CLI; no OpenManage or BIOS utility
- Firmware/Drivers Same drivers as H810, but VRTX-specific firmware
H810
- Primary Use Dedicated external RAID for single PowerEdge server
- Ports/Connectivity 2x external mini-SAS (SFF-8088), up to 32 SAS/SATA drives
- Cache 1GB DDR3 with BBU
- RAID Levels 0, 1, 5, 6, 10, 50, 60
- Interface PCIe 2.0 x8, 6Gb/s SAS
- Unique Features Standard BIOS/UEFI config; virtual disk migration between H810s; supports booting from RAID
- Management Full Dell OpenManage, BIOS config utility
- Firmware/Drivers Standard PERC firmware
Compatible With:
- Dell vrtx
(Click to View)
Spec Sheet 4
| Models | Drive Types | PCI Support | SAS Connectors | Cache Memory | Write Back Cache | RAID Levels | Max Drive Support | RAID Support |
|---|---|---|---|---|---|---|---|---|
| H810 Adapter | 6 Gb/s SAS | PCI-e 2.0 | 2x4 External | 1 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 192 | Hardware |
| H710P Adapter | 6 Gb/s SAS | PCI-e 2.0 | 2x4 Internal | 1 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 32 | Hardware |
| H710P Mini Mono | 6 Gb/s SAS | PCI-e 2.0 | 2x4 Internal | 1 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 32 | Hardware |
| H710P Mini Blade | 6 Gb/s SAS | PCI-e 2.0 | 2x4 Internal | 1 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 4 | Hardware |
| H710 Adapter | 6 Gb/s SAS | PCI-e 2.0 | 2x4 Internal | 512 MB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 32 | Hardware |
| H710 Mini Mono | 6 Gb/s SAS | PCI-e 2.0 | 2x4 Internal | 512 MB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 32 | Hardware |
| H710 Mini Blade | 6 Gb/s SAS | PCI-e 2.0 | 1x4 Internal | 512 MB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 4 | Hardware |
| H310 Adapter | 6 Gb/s SAS | PCI-e 2.0 | 2x4 Internal | - | - | 0,1,5,10,50 | 16, Non-RAID 32 | Hardware |
| H310 Mini Mono | 6 Gb/s SAS | PCI-e 2.0 | 2x4 Internal | - | - | 0,1,5,10,50 | 16, Non-RAID 32 | Hardware |
| H310 Mini Blade | 6 Gb/s SAS | PCI-e 2.0 | 1x4 Internal | - | - | 0,1,5,10,50 | 4 | Hardware |
| S110 | 3 Gb/s SATA | PCI-e 2.0 | - | - | - | 0,1,5,10 | 4 | Software - Windows Only |
