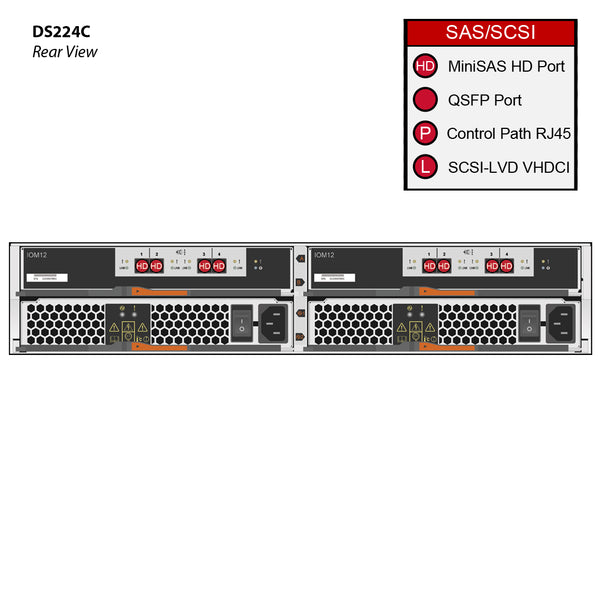

NetApp DS224C (DS224C-AF-.96-24S-1P-SK) 24x 960GB SSD X371A 12G

NetApp DS224C Expansion Shelf (DS224C-AF-.96-24S-1P-SK) 24x 960GB SSD X371A 12 G

Stock: 50
Price: $12,950.00

Brand:

NetApp

MPN:

DS224C-AF-.96-24S-1P-SK

Type:

Disk Shelves

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

Total:- $12,950.00

Add to Cart

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

NetApp DS224C Expansion Shelf (DS224C-AF-.96-24S-1P-SK) 24x 960GB SSD X371A 12 G

NetApp DS224C - DS224C-AF-.96-24S-1P-SK, has 24 drive bays with 24 X371A (960GB SSD) Disk Shelf achieves both storage and performance in a 2U (Rack Unit) 2.5" form factor, at speeds of 12 Gbps. This DS224C comes with all necessary parts and cables. Also comes with a 1-Year Parts Replacement Warranty as standard.

Parts Included:

1X DS224C NetApp Disk Shelf
24x 960GB SSD 2.5" (X371A) 12 G
2x IOM12 Controller Module (X5720A)
2x Power Supply Unit (X5726A)
2x Data Cables (X66030A) MiniSAS HD / MiniSAS HD (longer cables available please ask for custom order)
1x Rail Kit (X-02654-00)
2x Power Cables (X800E-R6)

Technical Specifications	Physical Characteristics
Rack Unit(s): 2 Port(s): N/A Drive Count: 24 Drive Speed(s): 12 Gbps Drive(s): 24 X371A (960GB SSD) Supported Controller(s): AFF A800, AFF A700, AFF A700s, AFF A400, AFF A300, AFF A220, AFF A250, AFF A200, AFF 8000 series, FAS9500, FAS9000, FAS8700, FAS8300, FAS8200, FAS8000 series, FAS2700, FAS2600	Weight: 35.27 lb (16 kg) Height: 3.35'' (8.5 cm) Width: 17.6'' (44.7 cm) Depth: 19.06'' (48.4 cm) Width w/ Mounting Flanges: 18.9'' (48 cm) Depth w/ Cable Management: 20.2'' (51.3 cm)
Environmental Requirements	Clearance Dimensions
Operating Temperature Range: 50 to 104 deg F / 10 to 40 deg C Storage Temperature Range: -40 to 158 deg F / -40 to 70 deg C Transit Temperature Range: -40 to 158 deg F / -40 to 70 deg C Operating Relative Humidity: 20 to 80 % Storage Relative Humidity: 10 to 95 % Transit Relative Humidity: 10 to 95 % Operating Altitude Range: 0 to 9987.6 ft / 0 to 3045 m Storage Altitude Range: -1000.4 to 39989.76 ft / -305 to 12192 m Transit Altitude Range: -1000.4 to 39989.76 ft / -305 to 12192 m Acoustic Noise - Sound Power: - Acoustic Noise - Sound Pressure: - Input Power Voltage: 100 to 120, 200 to 240	Front Clearance (Cooling / Maintenance): 6.02'' (15.3 cm) / 6.02'' (15.3 cm) Rear Clearance (Cooling / Maintenance): 12.01'' (30.5 cm) / 12.01'' (30.5 cm)

Supported Drives

Part Number	Encryption	Capacity	RPM	Checksum
Drive Type: SAS
X341A-R6	No	900GB	10k	BCS
X342A-R6	No	1.2TB	10k	BCS
X343A-R6	No	1.8TB	10k	BCS
X416A-R5[1]	Yes	600GB	10k	BCS
X417A-R6[1]	Yes	900GB	10k	BCS
X421A-R5	No	450GB	10k	BCS
X422A-R5	No	600GB	10k	BCS
X423A-R5	No	900GB	10k	BCS
X425A-R6	No	1.2TB	10k	BCS
X426A-R6	No	1.8TB	10k	BCS
X427A[1]	Yes	1.8TB	10k	BCS
X427B-R6[1]	Yes	1.8TB	10k	BCS
Drive Type: SSD
X319A	No	7.6TB	N/A	BCS
X356A-R6	No	3.84TB	N/A	BCS
X357A	No	3.84TB	N/A	BCS
X358A[1]	Yes	3.84TB	N/A	BCS
X359A	No	30.6TB	N/A	BCS
X365A-R6[1]	Yes	1.6TB	N/A	BCS
X371A	No	960GB	N/A	BCS
X382A	No	960GB	N/A	BCS
X386A[1]	Yes	960GB	N/A	BCS
X438A-R6	No	400GB	N/A	BCS
X439A-R6	No	1.6TB	N/A	BCS
X440A-R6[1]	Yes	800GB	N/A	BCS
X440B-R6[1]	Yes	800GB	N/A	BCS
X446A-R6	No	200GB	N/A	BCS
X446B-R6	No	200GB	N/A	BCS
X447A-R6	No	800GB	N/A	BCS
X670A	No	15.3TB	N/A	BCS
Footnotes
[1] Mixing NSE drives or shelves with any other type of encrypting or non-encrypting drives or shelves across a stand-alone platform or high-availability (HA) pair is not supported.

Supported Shelf Modules for NetApp DS224C

Module	Part Number	Interface	Max Data Rate	Min ONTAP
IOM12	X5720A	IN: miniSAS HD, OUT: miniSAS HD	12 Gbps	9.11.1RC1, 9.10.1RC1, 9.9.1RC1, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1

Cables Compatibility for Module IOM12

Mktg Part No	Mfg Part No	Length	End 1 / End 2	Description	Supported Speed(s)	Min OS
SAS 6/12 Gbps (Copper Cables)
NetApp Cable X66030A	112-00435	0.5m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,0.5m	6/12 Gbps	-
NetApp Cable X66020A-R6	112-00429	1m	MiniSAS HD / QSFP	Cable,Storage,MiniSAS HD/QSFP,12Gb,1m	6/12 Gbps	-
NetApp Cable X66031A	112-00436	1m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,1m	6/12 Gbps	-
NetApp Cable X66021A-R6	112-00430	2m	MiniSAS HD / QSFP	Cable,Storage,MiniSAS HD/QSFP,12Gb,2m	6/12 Gbps	-
NetApp Cable X66032A	112-00437	2m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,2m	6/12 Gbps	-
NetApp Cable X66033A	112-00438	3m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,3m	6/12 Gbps	-
NetApp Cable X66022A-R6	112-00431	5m	MiniSAS HD / QSFP	Cable,Storage,MiniSAS HD/QSFP,12Gb,5m	6/12 Gbps	-
NetApp Cable X66034A	112-00439	5m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,5m	6/12 Gbps	-
SAS 6/12 Gbps (Optical Cables)
NetApp Cable X66040A	112-00449	1m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,AOC,1m	12 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66041A	112-00450	2m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,AOC,2m	12 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66042A	112-00451	3m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,AOC,3m	12 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66043A	112-00452	5m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,AOC,5m	12 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66047A	112-00456	5m	MiniSAS HD / 4xLC	Cable,Opt,miniSAS HD/LC,OM4,5m	12 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66044A	112-00453	15m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,AOC,15m	12 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66045A	112-00454	30m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,AOC,30m	12 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66048A	112-00457	30m	MiniSAS HD / 4xLC	Cable,Opt,miniSAS HD/LC,OM4,30m	12 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66046A	112-00455	50m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,AOC,50m	12 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1

Supported Power Cords for NetApp DS224C

Marketing Part No.	End 1 / End 2	Length	Description
Non-Cabinet Power Cords
X-50617-00	IEC60320-C20 / IEC60320-C13	2.00 m	Power Cords,In-Cabinet,2m,C20-C13,E-Series
X800B-R6	CEE 7/7 (Schuko) / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Cont Europe/Korea,10A/250V
X800C-R6	BS1363 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,UK/Ireland,10A/250V
X800D-R6	JIS-C-8303 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Japan,15A/125V
X800E-R6	NEMA 5-15P / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,North America,15A/125V
X800F-R6	AS/NZS 3112 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Aus/NZ,10A/250V
X800G-R6	SEV 1011 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Switzerland,10A/250V
X800H-R6	IRAM 2073 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Argentina,10A/250V
X800I-R6	GB2099 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,China,10A/250V
X800J-R6	DHCR107-2-D1 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Demark,10A/250V
X800K-R6	SANS 164-1 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,India/S.Africa,10A/250V
X800L-R6	SI32 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Israel,10A/250V
X800M-R6	CEI 23-16 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Italy,10A/250V
X800N	EL208 / IEC60320-C13	2.50 m	Pwr Cord,10A,250V,2.5m,India
X800P-R6	NEMA 6-15P / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,North America,15A/250V
X800T-R6	CNS 10917-3 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Taiwan,BSMI,15A/125V
X800VB-R6	NBR14136 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Brazil,10A/250V
X800W-R6	CNS10917/CNS690 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Taiwan,10A/250V
X800Y-R6	JIS-C-830 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Japan,15A/250V
In-Cabinet Power Cords
X-50617-00-0E-C	IEC60320-C13 / IEC60320-C20	1.83 m	Power Cord,In-Cabinet,2m,C20-C13,E-Series,0E,-C
X1558A-R6	IEC60320-C14 / IEC60320-C13	1.20 m	Pwr Cord,In-Cabinet,48-In,C13-C14,10A/250V
X800-42U-35	IEC60320-C14 / IEC60320-C13	0.89 m	Pwr Cord,In-Cabinet,C13-C14,35-inch
X800-42U-43	IEC60320-C14 / IEC60320-C13	1.09 m	Pwr Cord,In-Cabinet,C13-C14,43-inch
X800-42U-64	IEC60320-C14 / IEC60320-C13	1.63 m	Pwr Cord,In-Cabinet,C13-C14,64-inch
X800-42U-R6	IEC60320-C14 / IEC60320-C13	0.68 m	Pwr Cord,In-Cabinet,27-In,C13-C14,10A/250V

Supported Rail Kits for NetApp DS224C

Footnote: Supported in 2-post front-mount configuration only

Marketing Part No.	Manufacturing Part No.	Description
NetApp System Cabinet Rail Kits
X877B-R6	111-00596	Rail Kit II, NetApp Cabinet, R6
X8783A-R6	111-01110	Rail Kit III, NetApp Cabinet, R6
X87880A	111-03887	Rail Kit 4,Cabinet
Third-Party Cabinet Rail Kits
X-02659-00	113-00232	Kit,4-Post,Square or Round-Hole, 24"-32" Rail
X5515A-R6	111-00232	Kit,2-Post (Round) or 4-Post (Square), 24"-32" Rail
X5526A-R6	111-00593	Kit,4-Post.Square-Hole, 24"-32" Rail
X5527A-R6	111-00864	Kit,2-Post,Round-Hole
X5529A-R6	111-00310	Kit,4-Post,Swift,Square-Hole, 24"-32" Rail

Marketing Part No.	Manufacturing Part No.	Description

Field Replacement Unit Parts for NetApp DS224C

Marketing Part No.	Manufacturing Part No.	Description
Cabinets
X870F-C	-	Cabinet,1280mm,Empty,No PDU,No Rails,-C
X870F-N-C	-	Cab,1280mm,Empty,No PDU,No Rails,-C
X870F-QS-C	-	Cabinet,1280mm,Empty,No PDU,No Rails,QS,-C
Chassis
X5723A	111-03068	SHELF,EMPTY,2 PSU,913W,MIDPLANE II,DS212C
Conversion Kit
X898A	TBD	DS212C, Kit,FAS2620 Conversion
Data Cable
X66020A-R6	112-00429	Cable,Storage,MiniSAS HD,QSFP,12G,1m
X66020A-R6-C	112-00429	Cable,Storage,MiniSAS HD,QSFP,12G,1m,-C
X66021A-R6	112-00430	Cable,Storage,MiniSAS HD,QSFP,12G,2m
X66021A-R6-C	112-00430	Cable,Storage,MiniSAS HD,QSFP,12G,2m,-C
X66022A-R6	112-00431	Cable,Storage,MiniSAS HD,QSFP,12G,5m
X66022A-R6-C	112-00431	Cable,Storage,MiniSAS HD,QSFP,12G,5m,-C
X66030A	112-00435	Cable,12Gb,Mini SAS HD,0.5m
X66030A-C	112-00435	Cable,12Gb,Mini SAS HD,0.5m,-C
X66030A-K-N	112-00435	Cable,12Gb,Mini SAS HD,0.5m
X66030A-N	112-00435	Cable,12Gb,Mini SAS HD,0.5m
X66030A-N-C	112-00435	Cable,12Gb,Mini SAS HD,0.5m,-C
X66031A	112-00436	Cable,12Gb,Mini SAS HD,1m
X66031A-C	112-00436	Cable,12Gb,Mini SAS HD,1m,-C
X66031A-K-N	112-00436	Cable,12Gb,Mini SAS HD,1m
X66031A-N	112-00436	Cable,12Gb,Mini SAS HD,1m
X66031A-N-C	112-00436	Cable,12Gb,Mini SAS HD,1m,-C
X66032A	112-00437	Cable,12Gb,Mini SAS HD,2m
X66032A-C	112-00437	Cable,12Gb,Mini SAS HD,2m,-C
X66032A-K-N	112-00437	Cable,12Gb,Mini SAS HD,2m
X66032A-N	112-00437	Cable,12Gb,Mini SAS HD,2m
X66032A-N-C	112-00437	Cable,12Gb,Mini SAS HD,2m,-C
X66033A	112-00438	Cable,12Gb,Mini SAS HD,3m
X66033A-C	112-00438	Cable,12Gb,Mini SAS HD,3m,-C
X66033A-K-N	112-00438	Cable,12Gb,Mini SAS HD,3m
X66033A-N	112-00438	Cable,12Gb,Mini SAS HD,3m
X66033A-N-C	112-00438	Cable,12Gb,Mini SAS HD,3m,-C
X66034A	112-00439	Cable,12Gb,Mini SAS HD,5m
X66034A-C	112-00439	Cable,12Gb,Mini SAS HD,5m,-C
X66034A-K-N	112-00439	Cable,12Gb,Mini SAS HD,5m
X66034A-N	112-00439	Cable,12Gb,Mini SAS HD,5m
X66034A-N-C	112-00439	Cable,12Gb,Mini SAS HD,5m,-C
X66040A	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-C	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C
X66040A-K-N	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-N	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-N-C	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C
X66041A	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-C	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C
X66041A-K-N	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-N	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-N-C	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C
X66042A	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-C	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C
X66042A-K-N	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-N	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-N-C	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C
X66043A	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-C	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C
X66043A-K-N	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-N	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-N-C	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C
X66044A	112-00453	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,15m
X66045A	112-00454	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,30m
X66046A	112-00455	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,50m
X66047A	112-00456	Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m
X66047A-C	112-00456	Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C
X66047A-N-C	112-00456	Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C
X66048A	112-00457	Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m
X66048A-C	112-00457	Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C
X66048A-N-C	112-00457	Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C
Drive
X302A-R5	108-00268	Disk Drive,1.0TB 7.2k,DS424x,FAS2240-4
X306A-R5	108-00270	Disk Drive,2.0TB 7.2k,DS424x,2554/2240-4
X308A-R5	108-00277	Disk Drive,3.0TB 7.2K,DS424x,2554/2240-4
X315A-R6	108-00368	DSK DRV,4TB 7.2k,NSE,DS424x,2554/2220/2240-4
X317A	108-00399	DSK DRV,6TB,7.2K,12G,NSE,DS212C
X318A-R6	108-00455	DSK DRV,8TB,7.2K,12G,DS212C
X322A	108-00551	DSK DRV,10TB,7.2K,12G,NSE,DS212C
X336A-R6	108-00427	DSK DRV,4TB,7.2K,12G,DS212C
X339A	108-00426	DSK DRV,2TB,7.2K,12Gb,DS212C,FAS2620
X363A-R6	108-00467	SSD,3.8TB,FAS2520/2554
X364A	108-00650	SSD,3.8TB,DS212C,FAS2620,w/MSW
X366A-R6	108-00470	SSD,1.6TB,NSE,DS4246,FAS2554
X374A	108-00573	SSD,960GB,12G,DS212C,W/MSW
X380A	108-00549	DSK DRV,10TB,7.2K,12G,DS212C
X388A	108-00885	DSK DRV,16TB,7.2K,12G,DS212C
X448A-R6	108-00253	SSD,200GB,DS4246,FAS2554/2240-4/2220
X449A-R6	108-00319	SSD,800GB,DS4246,FAS2554/2240-4/2220
X477A-R6	108-00315	DSK DRV,4TB 7.2k,DS4246,2554/2220/2240-4
X488A-R5	108-00298	Disk Drive,900GB 10K,2520/2220
X489A-R6	108-00322	Disk Drive,1.2TB 10K,2520/2220
X490A-R6	108-00425	Disk Drive,1.8TB 10K,FAS2520
X575A-R6	108-00370	SSD,400GB,DS424x,FAS2554/2240-4/2220
X576A-R6	108-00373	SSD,1.6TB,DS424x,FAS2554/2240-4/2220
X577A-R6	108-00375	SSD,800GB,NSE,DS4246,FAS2554
Power Cord
X-50617-00	-	Jumper Crd,In-Cab,2m,C20-C13,E-Series
X-50617-00-0E-C	-	Jumper Crd,In-Cab,2m,C20-C13,E-Series,0E,-C
X1558A-R6	-	Jumper Crd,In-Cab,48-IN,C13-C14
X1558A-R6-C	-	Jumper Crd,In-Cab,48-IN,C13-C14-C
X800-42U-35	-	Jumper Crd,In-Cab,C13-C14,35-inch
X800-42U-35-C	-	Jumper Crd,In-Cab,C13-C14,35-inch,-C
X800-42U-35-K-N	-	Jumper Crd,In-Cab,C13-C14,35-inch
X800-42U-35-N	-	Power Cable,In-Cabinet,C13-C14,35-inch
X800-42U-43	-	Jumper Crd,In-Cab,C13-C14,43-inch
X800-42U-43-C	-	Jumper Crd,In-Cab,C13-C14,43-inch,-C
X800-42U-43-K-N	-	Jumper Crd,In-Cab,C13-C14,43-inch
X800-42U-43-N	-	Power Cable,In-Cabinet,C13-C14,43-inch
X800-42U-64	-	Jumper Crd,In-Cab,C13-C14,64-inch
X800-42U-64-C	-	Jumper Crd,In-Cab,C13-C14,64-inch,-C
X800-42U-64-K-N	-	Jumper Crd,In-Cab,C13-C14,64-inch
X800-42U-64-N	-	Power Cable,In-Cabinet,C13-C14,64-inch
X800-42U-R6	-	Jumper Crd,In-Cab,C13-C14
X800-42U-R6-C	-	Jumper Crd,In-Cab,C13-C14,-C
X800B-R6	-	Power Cable,Continental Europe,R6
X800B-R6-C	-	Power Cable,Continental Europe,-C,R6
X800C-R6	-	Power Cable,UK and Ireland,R6
X800C-R6-C	-	Power Cable,UK and Ireland,-C,R6
X800D-R6	-	Power Cable,Japan,R6
X800D-R6-C	-	Power Cable,Japan,-C,R6
X800E-R6	-	Power Cable,North America,R6
X800E-R6-C	-	Power Cable,North America,-C,R6
X800F-R6	-	Power Cable,Australia/New Zealand,R6
X800F-R6-C	-	Power Cable,Australia/New Zealand,-C,R6
X800G-R6	-	Power Cable,Switzerland,R6
X800G-R6-C	-	Power Cable,Switzerland,-C,R6
X800H-R6	-	Power Cable,Argentina,R6
X800H-R6-C	-	Power Cable,Argentina,-C,R6
X800I-R6	-	Power Cable,China,R6
X800I-R6-C	-	Power Cable,China,-C,R6
X800J-R6	-	Power Cable,Denmark,R6
X800J-R6-C	-	Power Cable,Denmark,-C,R6
X800K-R6	-	Power Cable,India,South Africa,R6
X800K-R6-C	-	Power Cable,India,South Africa,-C,R6
X800L-R6	-	Power Cable,Israel,R6
X800L-R6-C	-	Power Cable,Israel,-C,R6
X800M-R6	-	Power Cable,Italy,R6
X800M-R6-C	-	Power Cable,Italy,-C,R6
X800N	-	POWER CABLE,INDIA BIS
X800N-C	-	Power Cable,India BIS,-C
X800P-R6	-	Power Cable,North America,250V,R6
X800P-R6-C	-	Power Cable,North America,250V,-C,R6
X800T-R6	-	Power Cable,Taiwan,BSMI,R6
X800T-R6-C	-	Power Cable,Taiwan,BSMI,-C,R6
X800VB-R6	-	Power Cable,Brazil,IEC-60906-1-Plug
X800W-R6	-	Power Cable,Taiwan,250V,BSMI,R6
X800W-R6-C	-	Power Cable,Taiwan,250V,BSMI,-C
X800Y-R6	-	Power Cable,Japan,250V/15A
X800Y-R6-C	-	Power Cable,Japan,250V/15A,-C
Power Supply Unit
X5726A	114-00148	PSU,913W
RailKit
X-02654-00	111-02852	Rail Kit,Thin,Rnd/Sq-Hole,2-Post
X-02654-00-C	111-02852	Rail Kit,Thin,Rnd/Sq-Hole,2-Post,-C
X-02654-00-K-N	111-02852	Rail Kit,Thin,Rnd/Sq-Hole,2-Post
X-02654-00-N	111-02852	Rail Kit,Thin,Rnd/Sq-Hole,2-Post
X-02654-00-N-C	111-02852	Rail Kit,Thin,Rnd/Sq-Hole,2-Post
X-02657-00	111-02657	Rackmount Kit,212C,4-post,Adj
X-02657-00-C	111-02657	Rail Kit,Thin,Rnd/Sq-Hole,4-Post,Adj,24-32,-C
X-02657-00-K-N	111-02657	Rackmount Kit,212C,4-post,Adj
X-02657-00-N	111-02657	Rackmount Kit,212C,4-post,Adj
X-02657-00-N-C	111-02657	Rail Kit,Thin,Rnd/Sq-Hole,4-Post,Adj,24-32,-C
Shelf Module
X5720A	-	IOM12,SAS,12G

Size, Weight, Acoustic, Power for NetApp DS224C

Associated Part No.	Configuration	Rack Units	Weight	Sound Power	Sound Pressure	Line Voltage Actual (Min to Max)	Amps Typical	Amps Worst	Watts Typical	Watts Worst	BTU / Hr Typical	BTU / Hr Worst
Empty Shelf (with AC PSU)
DS224C-0-24-C	Disk Shelf,2U24,12G,Empty,-	-	-	-	-	-	-	-	-	-	-	-
X5721A	SHELF,EMPTY,2 PSU,633W,DS224	-	-	-	-	-	-	-	-	-	-	-
Empty Shelf (without PSU)
X5722A	SHELF,EMPTY,W/O PSU,DS224	-	-	-	-	-	-	-	-	-	-	-
Quickship Half Populated
DS224C-10-0.9-12S-QS	12x900GB,SAS,10K	2	43.4 lb (19.7 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.55	3.16	151	309	516	1055
DS224C-10-0.9-12S-QS	12x900GB,SAS,10K	2	43.4 lb (19.7 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.76	1.55	148	303	506	1035
DS224C-10-1.2-12S-QS	12x1.2TB,10K	2	43.4 lb (19.7 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.4	3	137	294	468	1004
DS224C-10-1.2-12S-QS	12x1.2TB,10K	2	43.4 lb (19.7 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.69	1.48	135	289	461	987
DS224C-10-1.8-12S-QS	12x1.8TB,10K	2	44.8 lb (20.3 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.36	2.96	133	290	454	990
DS224C-10-1.8-12S-QS	12x1.8TB,10K	2	44.8 lb (20.3 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.67	1.46	131	285	448	973
DS224C-AF-.96-12S-0P-C	12x960GB,SSD	2	41.7 lb (18.9 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.05	2.66	102	260	349	888
DS224C-AF-.96-12S-0P-C	12x960GB,SSD	2	41.7 lb (18.9 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.52	1.31	100	255	342	871
DS224C-AF-0.8-12N-0P-C	12x800GB,NSE,SSD	2	44.8 lb (20.3 kg)	6.9 Bels	51 dBA	100 (100 to 120)	0.89	2.49	87	244	297	833
DS224C-AF-0.8-12N-0P-C	12x800GB,NSE,SSD	2	44.8 lb (20.3 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.44	1.23	86	240	294	820
DS224C-AF-15.3-12S-0P-C/DS224C-SL-15.3-12S-QS	12x15.3TB SSD	2	41.7 lb (18.9 kg)	6.9 Bels	51 dBA	100 (100 to 120)	0.95	2.57	93	251	318	857
DS224C-AF-15.3-12S-0P-C/DS224C-SL-15.3-12S-QS	12x15.3TB SSD	2	41.7 lb (18.9 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.47	1.26	92	246	314	840
DS224C-AF-3.8-12N-0P-C	12x3.8TB,NSE,SSD	2	44.8 lb (20.3 kg)	6.9 Bels	51 dBA	100 (100 to 120)	0.82	2.43	80	238	274	813
DS224C-AF-3.8-12N-0P-C	12x3.8TB,NSE,SSD	2	44.8 lb (20.3 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.41	1.2	79	234	270	799
DS224C-AF-3.8-12S-0P-C	12x3.8TB,SSD	2	44.8 lb (20.3 kg)	6.9 Bels	51 dBA	100 (100 to 120)	0.82	2.43	80	238	274	813
DS224C-AF-3.8-12S-0P-C	12x3.8TB,SSD	2	44.8 lb (20.3 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.41	1.2	79	234	270	799
DS224C-AF-7.6-12S-0P-C/DS224C-S-7.6-12S-QS	12x7.6TB, SSD	2	41.7 lb (18.9 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.19	2.8	116	274	396	936
DS224C-AF-7.6-12S-0P-C/DS224C-S-7.6-12S-QS	12x7.6TB, SSD	2	41.7 lb (18.9 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.59	1.38	114	269	390	919
DS224C-S-.96-12N-QS	SSD Shelf,12G,12x960GB,NSE,-Q	2	41.7 lb (18.9 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.05	2.66	102	260	349	888
DS224C-S-.96-12N-QS	SSD Shelf,12G,12x960GB,NSE,-Q	2	41.7 lb (18.9 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.52	1.31	100	255	342	871
DS224C-S-.96-12S-QS	12x960GB	2	41.7 lb (18.9 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.05	2.66	102	260	349	888
DS224C-S-.96-12S-QS	12x960GB	2	41.7 lb (18.9 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.52	1.31	100	255	342	871
DS224C-SL-3.8-12N-QS	SSD SHLF,12G,12x3.8TB,NSE,-S	2	44.8 lb (20.3 kg)	6.9 Bels	51 dBA	100 (100 to 120)	0.82	2.43	80	238	274	813
DS224C-SL-3.8-12N-QS	SSD SHLF,12G,12x3.8TB,NSE,-S	2	44.8 lb (20.3 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.41	1.2	79	234	270	799
DS224C-SL-3.8-12S-QS	12x3.8TB	2	44.8 lb (20.3 kg)	6.9 Bels	51 dBA	100 (100 to 120)	0.82	2.43	80	238	274	813
DS224C-SL-3.8-12S-QS	12x3.8TB	2	44.8 lb (20.3 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.41	1.2	79	234	270	799
DS224C-SL-30.6-12S-QS	12 x 30.6TB SSD	2	41.7 lb (18.9 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.15	2.76	112	270	383	922
DS224C-SL-30.6-12S-QS	12 x 30.6TB SSD	2	41.7 lb (18.9 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.57	1.36	110	265	376	905
Quickship Fully Populated
DS224C-10-0.9-24S-QS	24x900GB,SAS,10K	2	51.1 lb (23.2 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.74	4.35	268	426	915	1454
DS224C-10-0.9-24S-QS	24x900GB,SAS,10K	2	51.1 lb (23.2 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.35	2.14	262	418	898	1427
DS224C-10-1.2-24S-QS	24x1.2TB,SAS,10K	2	51.1 lb (23.2 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.44	4.05	239	396	816	1352
DS224C-10-1.2-24S-QS	24x1.2TB,SAS,10K	2	51.1 lb (23.2 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.2	1.99	235	389	803	1328
DS224C-10-1.8-24N-QS	24x1.8TB,SAS,10K,NSE	2	53.8 lb (24.4 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.36	3.97	231	389	789	1328
DS224C-10-1.8-24N-QS	24x1.8TB,SAS,10K,NSE	2	53.8 lb (24.4 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.16	1.95	227	382	775	1304
DS224C-10-1.8-24S-QS	24x1.8TB,SAS,10K	2	53.8 lb (24.4 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.36	3.97	231	389	789	1328
DS224C-10-1.8-24S-QS	24x1.8TB,SAS,10K	2	53.8 lb (24.4 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.16	1.95	227	382	775	1304
DS224C-AF-.96-24S-0P-C	24x960GB,SSD	2	47.5 lb (21.5 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.48	3.09	145	302	495	1031
DS224C-AF-.96-24S-0P-C	24x960GB,SSD	2	47.5 lb (21.5 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.73	1.52	143	296	489	1011
DS224C-AF-.96-7.6-24M-C/DS224C-S-.96-7.6-24M-0P-C	6x960GB,SSD,18x7.6TB,SSD,Mixed	2	47.4 lb (21.5 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.98	3.6	194	352	663	1202
DS224C-AF-.96-7.6-24M-C/DS224C-S-.96-7.6-24M-0P-C	6x960GB,SSD,18x7.6TB,SSD,Mixed	2	47.4 lb (21.5 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.98	1.77	191	345	652	1178
DS224C-AF-0.8-24N-0P-C	24x800GB,NSE,SSD	2	53.8 lb (24.4 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.42	3.03	139	296	475	1011
DS224C-AF-0.8-24N-0P-C	24x800GB,NSE,SSD	2	53.8 lb (24.4 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.7	1.49	137	291	468	994
DS224C-AF-15.3-24S-0P-C/DS224C-SL-15.3-24S-QS	24x15.3TB SSD	2	47.4 lb (21.5 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.56	3.16	152	309	519	1055
DS224C-AF-15.3-24S-0P-C/DS224C-SL-15.3-24S-QS	24x15.3TB SSD	2	47.4 lb (21.5 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.77	1.55	149	303	509	1035
DS224C-AF-3.8-24N-0P-C	24x3.8TB,NSE,SSD	2	53.8 lb (24.4 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.29	2.89	126	283	431	966
DS224C-AF-3.8-24N-0P-C	24x3.8TB,NSE,SSD	2	53.8 lb (24.4 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.64	1.42	124	278	424	949
DS224C-AF-3.8-24S-0P-C	24x3.8TB,SSD	2	53.8 lb (24.4 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.29	2.89	126	283	431	966
DS224C-AF-3.8-24S-0P-C	24x3.8TB,SSD	2	53.8 lb (24.4 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.64	1.42	124	278	424	949
DS224C-AF-7.6-24S-0P-C/DS224C-S-7.6-24S-QS	24x7.6TB, SSD	2	47.4 lb (21.5 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.77	3.37	173	330	591	1127
DS224C-AF-7.6-24S-0P-C/DS224C-S-7.6-24S-QS	24x7.6TB, SSD	2	47.4 lb (21.5 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.87	1.66	170	324	581	1106
DS224C-AF6X183-24M-0P-C/DS224C-SL6X183-24M-QS	6x960GB,SSD,18x3.8TB,SSD,Mixed	2	47.4 lb (21.5 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.18	3.79	213	371	727	1267
DS224C-AF6X183-24M-0P-C/DS224C-SL6X183-24M-QS	6x960GB,SSD,18x3.8TB,SSD,Mixed	2	47.4 lb (21.5 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.07	1.86	209	364	714	1243
DS224C-AF6X18F-24M-0P-C/DS224C-SL6X18F-24M-QS	6x960GB,SSD,18x15.3TB,SSD,Mixed	2	47.4 lb (21.5 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.38	3.98	233	390	796	1332
DS224C-AF6X18F-24M-0P-C/DS224C-SL6X18F-24M-QS	6x960GB,SSD,18x15.3TB,SSD,Mixed	2	47.4 lb (21.5 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.17	1.96	229	383	782	1308
DS224C-S-.96-24N-QS	SSD Shelf,12G,24x960GB,NSE,-Q	2	47.5 lb (21.5 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.48	3.09	145	302	495	1031
DS224C-S-.96-24N-QS	SSD Shelf,12G,24x960GB,NSE,-Q	2	47.5 lb (21.5 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.73	1.52	143	296	489	1011
DS224C-S-.96-24S-QS	24x960GB	2	47.5 lb (21.5 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.48	3.09	145	302	495	1031
DS224C-S-.96-24S-QS	24x960GB	2	47.5 lb (21.5 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.73	1.52	143	296	489	1011
DS224C-SL-0.8-12N-QS	12x800GB,SSD,NSE	2	44.8 lb (20.3 kg)	6.9 Bels	51 dBA	100 (100 to 120)	0.89	2.49	87	244	297	833
DS224C-SL-0.8-12N-QS	12x800GB,SSD,NSE	2	44.8 lb (20.3 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.44	1.23	86	240	294	820
DS224C-SL-0.8-24N-QS	24x800GB,SSD,NSE	2	53.8 lb (24.4 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.42	3.03	139	296	475	1011
DS224C-SL-0.8-24N-QS	24x800GB,SSD,NSE	2	53.8 lb (24.4 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.7	1.49	137	291	468	994
DS224C-SL-3.8-24N-QS/DS224C-SL-3.8-24S-QS	24x3.8TB	2	53.8 lb (24.4 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.29	2.89	126	283	431	966
DS224C-SL-3.8-24N-QS/DS224C-SL-3.8-24S-QS	24x3.8TB	2	53.8 lb (24.4 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.64	1.42	124	278	424	949
DS224C-SL-30.6-24S-QS	24 x 30.6TB SSD	2	41.7 lb (18.9 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.15	2.76	112	270	383	922
DS224C-SL-30.6-24S-QS	24 x 30.6TB SSD	2	41.7 lb (18.9 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.57	1.36	110	265	376	905
DS224C-SL-30.6-24S-QS	24 x 30.6TB SSD	2	47.4 lb (21.5 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.68	3.29	164	322	560	1099
DS224C-SL-30.6-24S-QS	24 x 30.6TB SSD	2	47.4 lb (21.5 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.83	1.62	161	316	550	1079

Category: 2u, drive-capacity-960gb, drive-count-24, ds224c, netapp, over-10000, sff

Shipping Information

Express Computer Systems can ship to virtually any address in the world and provides you with the best shipping rates possible. Cost of shipping varies depending on what service you require, your destination and size of the shipment. Shipping costs will be calculated separately from your order and billed to you post purchase. In the notes section of your order please provide us with your preferred shipping method and we will get back to you.

Custom configured orders ship within 2 business days after all required products are in stock.

Please allow 3 business days for products that are not in stock to arrive to our facility in Irvine, California.

Domestic Shipments

Standard Ground
- Shipping time: 2-7 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-10 business days
- Excludes weekends, holidays or weather delays.
3 Business Days
- Shipping time: 3 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 3-6 business days
- Excludes weekends, holidays or weather delays.
2 Business Days
- Shipping time: 2 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-5 business days
- Excludes weekends, holidays or weather delays.
Overnight / Next Business Day
- Shipping time: 1 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 1-4 business days
- Excludes weekends, holidays or weather delays.

International Shipments

International Economy
- Shipping time: 4-6 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 5-9 business days
- Excludes weekends, holidays or weather delays.
International Priority
- Shipping time: 1-3 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-6 business days
- Excludes weekends, holidays or weather delays.

For more information on shipping view our Shipping Information page or send us a message

ECS Warranty Information

Express Computer Systems (ECS) provides a 1 year parts warranty against defects in material or workmanship that will affect the products functionality. All refurbished items are tested prior to shipping to guarantee up-time upon arrival. If you are having issues with an item we provided please Contact Us and we will do our best to assist you.

What does our ECS warranty cover?
We offer 1 year warranty as standard and additional years can be added to fit your needs. Please reach out to a sales associate via the Contact Us page or live chat for more information on extended coverage options. During the coverage period if your product fails we will offer a Next Business Day replacement. If we are unable to replace the product we will refund its original selling price. Shipping costs and tax are not refundable. Express Computer Systems retains the right to decide whether the goods will be replaced or refunded.

What is not covered by our warranty?
Our warranty does not cover any problem caused by the following conditions:

accidents; misuse; carelessness; electrostatic discharge; shock; temperature or humidity beyond the specifications of the product; improper installation; operation; modification;
any improper use that contravenes the instructions in the user manual;
problems caused by other equipment. Our warranty is void if the product is returned with damaged, removed, counterfeit labels, or any modifications (including any component or external cover removal). Our warranties do not cover data loss or damages to any other equipment. In addition, our warranties do not cover incidental damages, consequential damages, or costs related to data recovery, removal, and installation.

Important notes:

Please ask for additional warranty/coverage that you may require in addition to the standard 1 ECS warranty prior to final purchase. Requesting additional warranty after your purchase can be denied.
FREE technical support is provided on purchased items via phone, email, or live chat.

About Express Computer Systems

Express Computer Systems is committed to transforming our customers’ IT infrastructure with high quality products at affordable costs. Our sales reps and customer support engineers understand our customers rely heavily on advanced technology to run their business but need to do so without breaking the bank.

We specialize in building custom server configurations, custom storage solutions, networking solutions, and components from top manufacturers including HPE, Dell, Cisco, NetApp, Dell EMC, HPE Nimble and many others.

Same-Day Shipping

At Express Computer Systems, we know hardware emergencies can happen at anytime. We also understand that you want to receive the best hardware as quickly as possible. At Express Computer Systems we'll ship the majority of our orders out the same day payment is made. Curious if the item you need will make it out on time? Feel free to contact us directly via the Contact Us link at the bottom, Live Chat feature or (800) 327-0730.

Buy, Sell, Rent, Lease, Trade-In

At Express Computer Systems we not only will sell you equipment at a great value, but we'll also purchase your used Dell, Cisco, NetApp or other networking equipment. Feel free to contact us with the model of the items you're looking to sell and we'll get you a quote ASAP. We also have flexible financing options for your purchasing needs.

In-House Configuration and Testing Lab

Every item we sell is tested on-site in our state-of-the-art hardware engineering lab. We use certified technicians to test every piece of equipment as well as updating all necessary firmware. The highest quality of testing and certification is guaranteed. We warranty all of our items we sell. Ask us today about warranty for a specific item.

Leave a Message

NetApp DS224C Expansion Shelf (DS224C-AF-.96-24S-1P-SK) 24x 960GB SSD X371A 12 G

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
