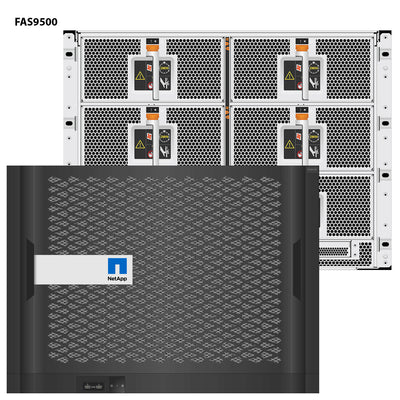

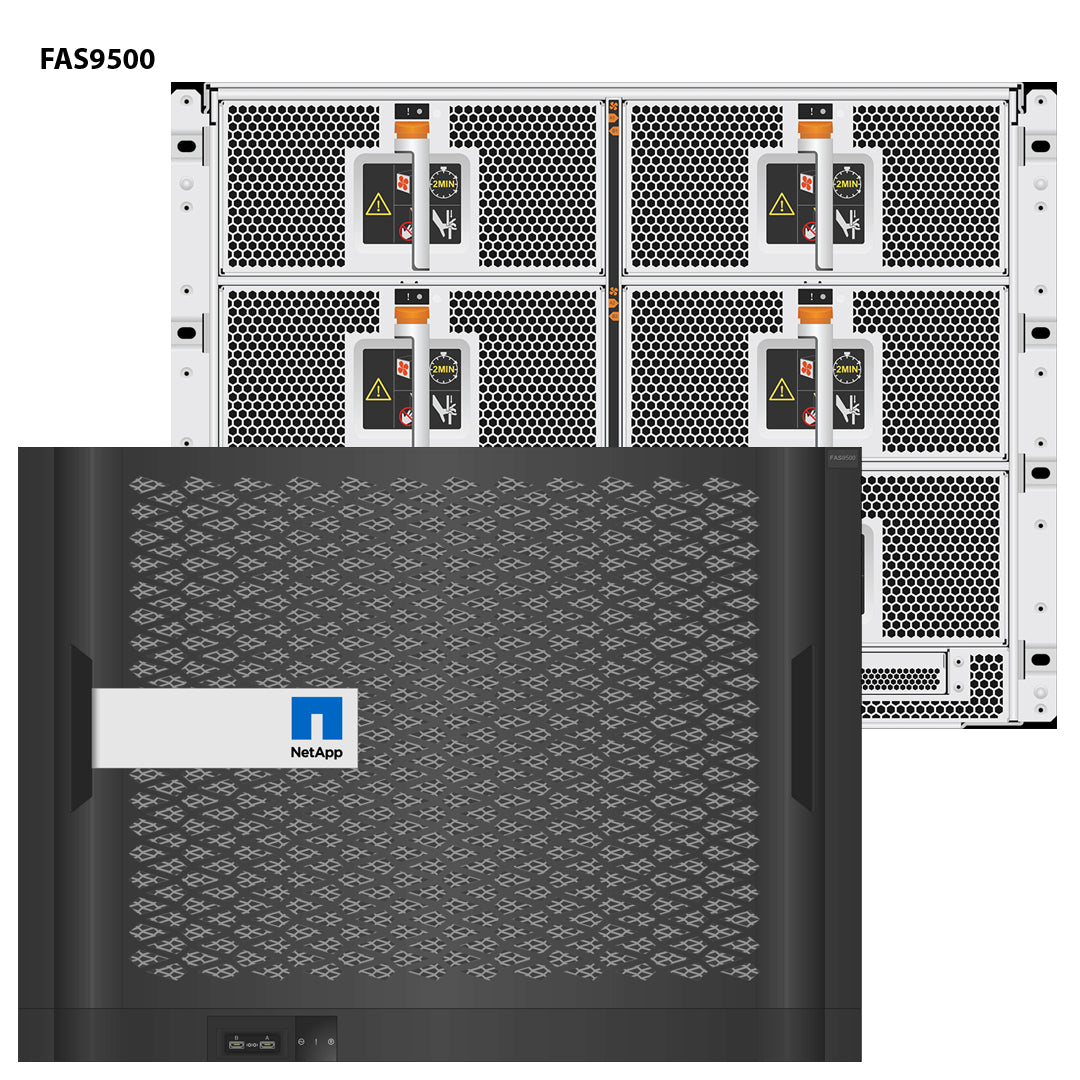

-*Image may differ from actaul product

NetApp FAS9500 Single Chassis HA Pair Filer Head (FAS9500A)

NetApp FAS9500 Dual Controller Filer Head (HA)

Price: Request a Quote

Brand:

NetApp

MPN:

FAS9500A

Type:

Filer Head

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

NetApp FAS9500 Dual Controller Filer Head (HA)

The NetApp FAS9500 is a high-performance enterprise storage system designed for scalability, reliability, and large-scale data management. With an 8U chassis and dual controllers in an HA configuration, it features 2048GB of memory and four 64-bit, 32-core processors running at 2.20 GHz. Supporting up to 1440 drives and a maximum capacity of 15PB, it is built for high-demand workloads such as cloud storage, virtualization, and AI-driven applications.

The system includes 24 IO module expansion slots, providing flexibility for integrating additional storage or network connectivity. It supports DS212C, DS224C, and DS460C disk shelves for seamless capacity expansion. With no built-in Ethernet, Fibre Channel, or UTA2 ports, connectivity options depend on the installed expansion modules, allowing organizations to customize their setup based on infrastructure requirements.

Measuring 14.02 inches in height, 17.72 inches in width, and 36.81 inches in depth with cable management, the FAS9500 weighs up to 220.5 lbs. It supports RAID 4, RAID 6 (RAID-DP), and RAID-TEC for advanced data protection. With remote management capabilities, extensive expansion support, and high-memory architecture, it is ideal for enterprises that require a scalable, resilient storage platform.

System Config

Model: NetApp FAS9500
Chassis: Single Chassis
Total Rack Height: 8U
Controllers: Dual Controller (HA)
Memory: 2048GB
Processor Model: 4x 64-bit 32-core 2.20 Ghz
Module Expansion Slots: 24 x IO Module Adapters
Max Drives (total): 1440
Max Capacity: 15,000TB (15PB)
Disk Shelves: DS212C, DS224C, DS460C
Filer Heads: N/A

Dimensions & Weight

Chassis Rack Height: 8U
Chassis Heights: 14.02" (35.6 cm)
Chassis Width w/o Mounting Flanges: 17.72" (45 cm)
Chassis Depth w/ Cable Mgmt: 36.81" (93.5 cm)
Chassis Weight: up to 220.5 lb (100.0 kg)

Controller Specs

Max Controllers: 2 (Per Chassis)
Expansion Module Slot (per): 12 x IO Modules
Ethernet Ports (per): N/A
Fibre Channel Ports (per): N/A
UTA2 Ports (per): N/A
SAS Ports (per): N/A
Remote Management: Yes
Processor Model (per): 2x 64-bit 32-core 2.20 Ghz
Memory (Single/HA): 1024GB/2048GB
NVRAM (Single/HA): 64GB/128GB

Storage

Max Number of Internal Drives: 0
Max Number Drives (total): 1440
Max Capacity: 15,000TB (15PB)
Max # of MSATA Drives: 1440
Max # of SATA Drives: 1440
Max # of NL-SAS Drives: 1440
Max # of SAS Drives: 1440
Max # of SSD Drives: 480
Drive Interface: MSATA, SATA, NL-SAS, SAS, SSD
RAID: RAID 4, RAID 6 (RAID-DP), RAID-TEC
Max # of DS212C Shelves: 80 external
Max # of DS224C Shelves: 60 external
Max # of DS460C Shelves: 24 external

FAS9500 Parts Lists

View Module Adapters

View Data Cables

View Power Cables

View Rail Kits

Ask about our NetApp Disk Shelves!
We can create custom Turn-Key configurations based on your needs!
Click here to view NetApp Disk Shelves

This Product Is Compatible With The Following Systems:

NetApp FAS9500

Storage Limits

Max # of Drives (Total)	Max # of Internal Drives	Max # of MSATA Drives	Max # of NL-SAS Drives	Max # of SAS Drives	Max # of SATA Drives	Max # of SSD Drives	Max # of DS212C Shelves	Max # of DS2246 Shelves	Max # of DS224C Shelves	Max # of DS4243 Shelves	Max # of DS4246 Shelves	Max # of DS4486 Shelves	Max # of DS460C Shelves
Supported Shelves/Drives	1440	N/A	1440	1440	1440	1440	480	80 external	60 external	60 external	60 external	60 external	30 external

Capacity Limits

Marketing Max Raw Capacity - Node	HA Pair	Cluster	Effective Capacity - Node	HA Pair	Cluster
15000000	15000000	N/A	66577500	66577500	N/A

Core Cluster Limits

Max SVM's - NAS	Max LIF's - NAS	Max Connections - NAS	Max Flexible Volumes - NAS	Max Flexible Volumes with DPO - NAS	Max Lock Manager Locked Objects	Max Intercluster LIFs - Node	Min Root Aggregate (MiB) - Node	Min Root Volume (GiB) - Node	Max IPsec Policies	Max Auditing-Enabled SVMs - Cluster
Node:N/A HA Pair:N/A Cluster:1024	Node:512 HA Pair:512 Cluster:3072	Node:100000 HA Pair(Non-Scalable):100000	Aggregate (Single data Agg. per Node):N/A Aggregate (Multiple data Agg. per Node):N/A Node:1000 HA Pair:2000 Cluster:15000	Node:2500 HA Pair:5000 Cluster:12000	Node:3000000 HA Pair:3000000 Cluster:12288000	8	1222656	962	SVM:256 Cluster:1500	50

System Maximums and Limits

Max Nodes per Cluster (NAS / SAN)	Max FabricPool Size	Max Infinite Volume Data Constituent Size	Max FlexGroup Data Constituent Size	Min Root Volume Size	NetApp Volume Encryption
24 / 12	8400 TiB	Not Supported	100 TiB	962 GiB	Supported

Processor

Processor Model	Processor Architecture	Processor Speed	Processor Count (Per Node)	Processor Count (Per Config)	Processor Cores (Per CPU)	Processor Cores (Per Node)	Processor Cores (Per Config)
64-bit 18-core 2.30 Ghz	64 bit	2.30 Ghz	2	4	18	36	72

Memory

NVRAM (Per Node)	NVRAM (Per Config)	NVME (Per Node)	NVME (Per Config)	NVMEM (Per Node)	NVMEM (Per Config)	RAM (Per Node)	RAM (Per Config)
32 GB	64 GB	N/A	N/A	N/A	N/A	512 GB	1024 GB

Onboard Ports

Ethernet Ports	Fibre Channel	Ports UTA2 Ports	Expansion Slots	SAS Ports
-	-	- [1]	20 x IO Module	-

Physical Characteristics

Rack Units	Chassis Height	Chassis Width with Mounting Flanges	Chassis Width without Mounting Flanges	Chassis Depth with Cable Mgmt	Chassis Depth without Cable Mgmt	Chassis Weight
8	N/A	19.02" (48.3 cm)	17.72" (45 cm)	36.81" (93.5 cm)	30.79" (78.2 cm)	See Weights by configuration

System Clearance Dimensions

Front Clearance (Cooling)	Front Clearance (Maintenance)	Rear Clearance (Cooling)	Rear Clearance (Maintenance)
6.03" (15.3 cm)	31.01" (78.7 cm)	6.03" (15.3 cm)	22.02" (55.9 cm)

Environmental Requirements

Operating	Storage	Transit	Acoustic Noise	Input Power Voltage
Tempature: 41 to 113 deg F - 5 to 45 deg C Humidity: 8 to 90 % Altitude: Up to 10000.0 ft - Up to 3048.0 m	Tempature: -40 to 158 deg F - -40 to 70 deg C Humidity: 10 to 95 % Altitude: Up to 40000.0 ft - Up to 12192.0 m	Tempature: -40 to 158 deg F - -40 to 70 deg C Humidity: 10 to 95 % Altitude: Up to 39989.8 ft - Up to 12192 m	Sound Power: 7.4 bels Sound Pressure: 65 dBA	100 to 120 200 to 240

Storage OS Requirements

Full OS Matrix	Recommended Version	Minimum OS	Maximum OS
View Full OS Report Below	9.11.1	9.11.1RC1	9.11.1

Storage and Firmware

Full Firmware Matrix	BIOS	BMC
Full Firmware Report Below	N/A	N/A

Product Standards Compliance

Full Compliance and Certificates Report	Cert. EMC/EMI	Cert. Safety	Cert. Safety/EMC/EMI	Cert. Safety/EMC/EMI/RoHS	Standard Safety/EMC/EMI	Standard Safety
Compliance and Certificates Report Below	AMCA, FCC, ICES, KC, Morocco, VCCI	BIS, CB, CSA, G_K_U-SoR, IRAM, NOM, NRCS, SONCAP, TBS	EAC, UKRSEPRO	BSMI, CE DoC, UKCA DoC	BS-EN-55024, BS-EN55035, CISPR 32, EN55022, EN55024, EN55032, EN55035, EN61000-3-2, EN61000-3-3, FCC Part 15 Class A, IC more...	ANSI/UL60950-1, ANSI/UL62368-1, BS-EN62368-1, CAN/CSA C22.2 No. 60950-1, CAN/CSA C22.2 No. 62368-1, CNS 14336, EN60825-1 more...

NFS Cluster Limits

Max Export Policies - Cluster	Max Export Rules - Cluster	Max NFSv4 Access Control Entries	Max Client Objects	Max pNFS objects
24000	200000	1024	Node:100000 HA Pair:100000	Node:1024000 HA Pair:1024000 Cluster:12288000

WAFL Cluster Limits - All Maximums

Size 64-bit Aggregate (TiB)	Size 64-bit Volume (TiB)	File size 64-bit Volume (TiB)	Volume Snapshot Copies	Character length for Snapshot copy names	Hard links - File	inodes/files - Volume	Number of qtrees	Concurrent DataMotion for Volumes ops
800	100	16	Volume:1023 Node:1023000 HA Pair:2046000	255	100000	2000000000	Volume:4995 Node:100000 HA Pair:200000 Cluster:2400000	Node:16 HA Pair:16

Quality of Service Cluster Limits

Max Policy Groups - Cluster	Max QoS User Workloads - Cluster
12000	40000

SAN Cluster Limits - All Maximums

# of storage virtual machines (SVMs) - SAN	# of flexible volumes - SAN	# of Flexible Vol with DPO -	# of LUNs	LUN mappings	LUN size (TiB) - LUN	FC queue depth available	# of SAN Hosts (ITNs)	# of LIFS - iSCSI	# of LIFS - FCP	# of igroups	# of Initiators	# of Portsets	# of iSCSI sessions
Node:125 HA Pair:250 Cluster:1000	Single data Aggregate:N/A Multiple data Aggregates:N/A Node:1000 HA Pair:2000 Cluster:12000	Node:2500 HA Pair:5000 Cluster:12000	Valume:1024 Node:12288 HA Pair:24576 Cluster:98304	Node:12288 HA Pair:24576 Cluster:98304	16	2048	Port:512 Node:8192 HA Pair:16384 Cluster:65536	Port:32 Portset:32 Node:512 HA Pair:1024 Cluster:4096	Port:32 Portset:32 Node:512 HA Pair:1024 Cluster:4096	Node:4096 HA Pair:8192 Cluster:32768	igroup:256 Node:4096 HA Pair:8192 Cluster:32768	Node:4096 HA Pair:8192 Cluster:32768	Node:8192 HA Pair:16384 Cluster:65536

CIFS Cluster Limits - All Maximums

# of Connected Shares	# of Regular Shares	# of Open files	# of Local users - Cluster	# of Local groups - Cluster	# of Local group members - Cluster
Node:1000000 HA Pair:1000000	Node:N/A HA Pair:N/A Cluster:300000	Connection:65536 Node:1500000 HA Pair:1500000	35000	320000	640000

Data Protection Cluster Limits - All Maximums

NDMP Sessions	Data Protection Mirrors	Load Sharing Mirrors - NAS SVM	Concurrent Snap Mirror / SnapVault transfers - Node	DP Mirror fan-out - Volume	LS Mirror fan-out - NAS SVM	# of Clusters that can be peered - Cluster	Volumes, SnapMirror relationship	SnapMirror Synchronous relationships	Flexible Volumes in SVM DR	SVM Disaster recovery - Cluster
Node:36 HA Pair (Non-Scalable):36	Volume:1 Node:1000 HA Pair:2000 Cluster:15000	2	250	8	2	255	FlexGroup:200 FlexGroup-Node:50 HA Pair:1000 Cluster:6000	Volume:1 Node:40 HA Pair (Non-Scalable):40	SVM:300 HA Pair:1000	128

NVMe/oF Cluster Limits - All Maximums

# of Storage virtual machines (SVMs), NVMe/oF - Cluster	# of Flexible volumes, NVMe/oF	# of Flexible volumes with DPO, NVMe/oF	# of Namespaces	# of Subsystems	# of Namespace Mappings	Namespace Size	I/O queue depth available - NVMe/FC - Queue	I/O queue count available - NVMe/FC - Controller	Hosts - Subsystem	LIFS, NVMe/oF	# of Controllers - NVMe/FC - Port	I/O Queue Count, NVMe/TCP - Controller	I/O Queue Depth - NVMe/TCP	Controllers, NVMe/TCP - Node
32	Node:1000 HA Pair:2000 Cluster:12000	Node:2500 HA Pair:5000 Cluster:12000	Volume:1024 Node:12288 HA Pair:24576 Cluster:98304	Node:512 Node:512	Subsystem:1024 Node:12288 HA Pair:24576 Cluster:98304	16	N/A	N/A	64	Port:16 SVM:8 Node:32 HA Pair:32 Cluster:32	N/A	2	128	1024

FlexCache Cluster Limits - All Maximums Cache

Degree of fan-out - Origin	Origin Volumes	Constituent Volumes	Volumes	Origin ConstituentVolumes
100	Node:100 HA Pair:200	Node:800 HA Pair:1600	Node:100 HA Pair:200	Node:800 HA Pair:1600

S3 Cluster Limits -

Max # of Buckets	Max # of Objects - Bucket	Max # of Users	Max Size of the Bucket (PB) - Vserver
Vserver:12000 Cluster:12000	400000000000	Vserver:4000 Cluster:96000	20

Consistency Groups - All Maximums

Number of Consistency Groups - Cluster	Consistency Groups and Parents Consistency Groups - Cluster	Number of Parent Consistency Groups - Cluster	Child Consistency Groups in a Parent Consistency Groups - Parent Group	Flexible Volumes in a Consistency Group	Flexible Volumes for Child Consistency Groups under a Parent Group	Flexible Volumes in a Child Consistency Group
15000	15000	15000	5	80	80	80

Flex Array Specifications

Third Party Array Compatibility	Array LUN Absolute Min Raw Capacity	Array LUN Block Size	Default Array LUN RAID Group Size	Array LUN Max RAID Groups Per Aggregate	Max Array LUN Size	Max Array LUN Raid Group Size	Min Array LUN Size	Min Array LUN Root Vol Size	Min Array LUN RAID Group Size	Min Array LUN Aggregate Size	Array LUN neighborhood Visible Assigned Devices	Array LUN Recommended Min RAW Capacity	Spare Core Array LUN Min Size
-	73,440 GiB	512 bytes	8	150	15,675 GiB	26	1.05 GiB	1,744 GiB	1	1,280 GiB	0	122,400 GiB	1,384 GiB

Footnotes -

Notes ID	Notes Description
[1]	The onboard UTA2 ports can be configured as FC Target/Initiator or CNA (FCoE target/Ethernet). The UTA2 ports are based on a dual port ASIC and both ports on each ASIC must be set to the same mode (enforced by Data ONTAP). Install X6599A-R6 10GbE SFP+ modules or approved copper twinax cables when using in CNA (FCoE target/Ethernet) mode. Install X6596-R6 16Gb FC SFP+ module when using in FC Target/Initiator mode.

Notes ID

Notes Description

[1]

The onboard UTA2 ports can be configured as FC Target/Initiator or CNA (FCoE target/Ethernet). The UTA2 ports are based on a dual port ASIC and both ports on each ASIC must be set to the same mode (enforced by Data ONTAP). Install X6599A-R6 10GbE SFP+ modules or approved copper twinax cables when using in CNA (FCoE target/Ethernet) mode. Install X6596-R6 16Gb FC SFP+ module when using in FC Target/Initiator mode.

Platform LED for FAS9500 Single Chassis HA Pair

LED Label	LED Name	Type	Status Indicator	Description
3	Chassis Power Config	-	On Green	At least one of the two PSUs is delivering power to the system.
-	-	-	Off	Neither PSU is delivering power to the system.
4	Chassis Attention LED, front	-	On Amber	The system halted or a fault occurred in the chassis.
-	-	-	Off	The system is operating normally.
5	Location LED on chassis front	-	On or flashing blue	The LED has been manually activated to aid in physically locating equipment
-	-	-	Off	The LED has not been manually activated to aid in physically locating equipment

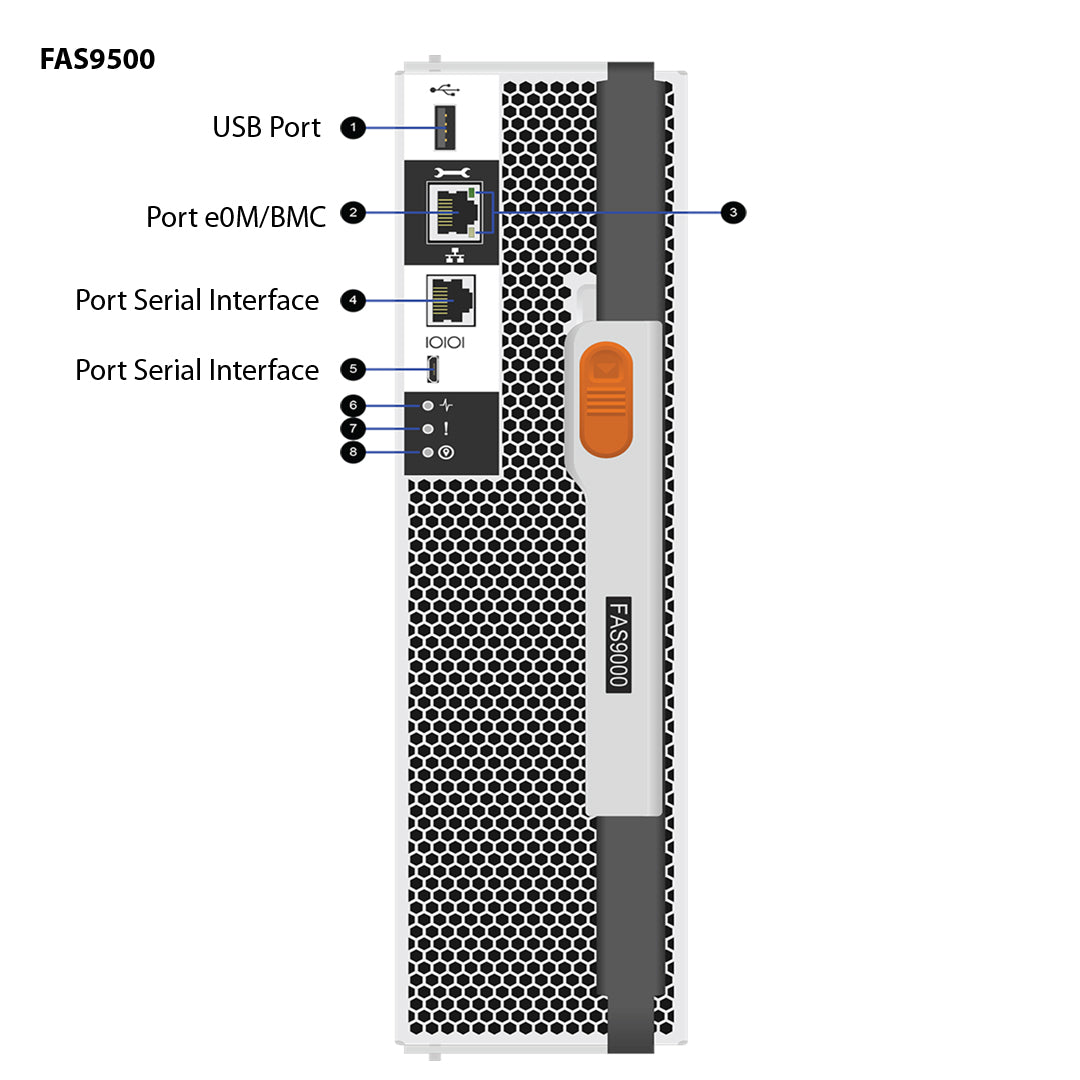

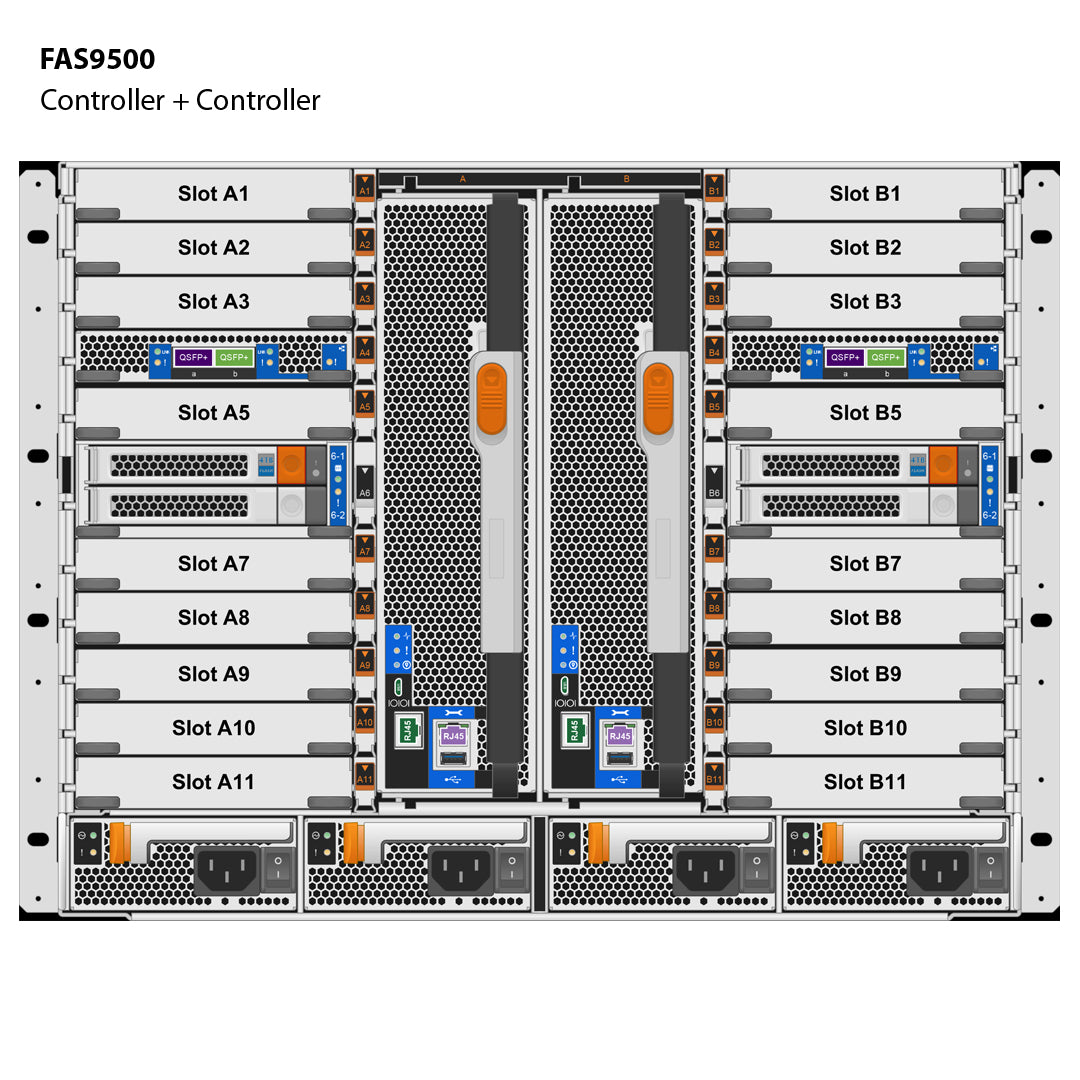

Back View
LED Label	LED Name	Type	Status Indicator	Description
e0m/BMC	Port Ethernet Config	Port Activity	Blinking amber	Traffic is flowing over the connection
-	-	-	Off	No traffic is flowing over the connection.
-	-	Port Link	Green	A connection is established on the port
-	-	-	Off	No connection is established on the port.

Supported Shelves Drives for FAS9500 Single Chassis HA Pair

Part No.	Capacity	RPM	Drive Type	Encryption	Root-Data Partitioning	Root-Data-Data Partitioning	Storage Pool Partitioning	Max Drive Count	FlexArray
DS212C with IOM12 / IOM12B / IOM12 / IOM12B shelf modules
X302A-R5	1TB	7.2K	SATA	No	Yes	No	Yes	960	No
X306A-R5	2TB	7.2K	SATA	No	Yes	No	Yes	960	No
X308A-R5	3TB	7.2K	SATA	No	Yes	No	Yes	960	No
X315A-R6 [1]	4TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	Yes	No	Yes	960	No
X317A [1]	6TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	Yes	No	Yes	960	No
X318A-R6	8TB	7.2K	NL-SAS	No	Yes	No	Yes	960	No
X322A [1]	10TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	Yes	No	Yes	960	No
X336A-R6	4TB	7.2K	NL-SAS	No	Yes	No	Yes	960	No
X339A	2TB	7.2K	NL-SAS	No	Yes	No	Yes	960	No
X380A	10TB	7.2K	NL-SAS	No	Yes	No	Yes	960	No
X388A	16TB	7.2K	NL-SAS	No	Yes	No	Yes	937	No
X477A-R6	4TB	7.2K	NL-SAS	No	Yes	No	Yes	960	No
X488A-R5	900GB	10K	SAS	No	Yes	No	Yes	960	No
X489A-R6	1.2TB	10K	SAS	No	Yes	No	Yes	960	No
X490A-R6	1.8TB	10K	SAS	No	Yes	No	Yes	960	No
X363A-R6	3.84TB	N/A	SSD	No	Yes	No	Yes	480	No
X364A	3.84TB	N/A	SSD	No	Yes	No	Yes	480	No
X366A-R6 [1]	1.6TB	N/A	SSD	FIPS 140-2 Level 2, NSE	Yes	No	Yes	480	No
X374A	960GB	N/A	SSD	No	Yes	No	Yes	480	No
X448A-R6	200GB	N/A	SSD	No	Yes	No	Yes	480	No
X449A-R6	800GB	N/A	SSD	No	Yes	No	Yes	480	No
X575A-R6	400GB	N/A	SSD	No	Yes	No	Yes	480	No
X576A-R6	1.6TB	N/A	SSD	No	Yes	No	Yes	480	No
DS224C with IOM12 / IOM12B / IOM12 / IOM12B shelf modules
X341A-R6	900GB	10K	SAS	No	Yes	No	Yes	1440	No
X342A-R6	1.2TB	10K	SAS	No	Yes	No	Yes	1440	No
X343A-R6	1.8TB	10K	SAS	No	Yes	No	Yes	1440	No
X416A-R5 [1]	600GB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	Yes	1440	No
X417A-R6 [1]	900GB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	Yes	1440	No
X421A-R5	450GB	10K	SAS	No	Yes	No	Yes	1440	No
X422A-R5	600GB	10K	SAS	No	Yes	No	Yes	1440	No
X423A-R5	900GB	10K	SAS	No	Yes	No	Yes	1440	No
X425A-R6	1.2TB	10K	SAS	No	Yes	No	Yes	1440	No
X426A-R6	1.8TB	10K	SAS	No	Yes	No	Yes	1440	No
X427A [1]	1.8TB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	Yes	1440	No
X427B-R6 [1]	1.8TB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	Yes	1440	No
X319A	7.6TB	N/A	SSD	No	Yes	Yes	Yes	480	No
X356A-R6	3.84TB	N/A	SSD	No	Yes	Yes	Yes	480	No
X357A	3.84TB	N/A	SSD	No	Yes	Yes	Yes	480	No
X358A [1]	3.84TB	N/A	SSD	FIPS 140-2 Level 2, NSE	Yes	Yes	Yes	480	No
X359A	30.6TB	N/A	SSD	No	Yes	Yes	Yes	480	No
X365A-R6 [1]	1.6TB	N/A	SSD	FIPS 140-2 Level 2, NSE	Yes	Yes	Yes	480	No
X371A	960GB	N/A	SSD	No	Yes	Yes	Yes	480	No
X386A [1]	960GB	N/A	SSD	FIPS 140-2 Level 2, NSE	Yes	Yes	Yes	480	No
X438A-R6	400GB	N/A	SSD	No	Yes	Yes	Yes	480	No
X439A-R6	1.6TB	N/A	SSD	No	Yes	Yes	Yes	480	No
X440A-R6 [1]	800GB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	No	480	No
X440B-R6 [1]	800GB	N/A	SSD	FIPS 140-2 Level 2, NSE	Yes	Yes	Yes	480	No
X446A-R6	200GB	N/A	SSD	No	Yes	No	Yes	480	No
X446B-R6	200GB	N/A	SSD	No	Yes	No	Yes	480	No
X447A-R6	800GB	N/A	SSD	No	Yes	Yes	Yes	480	No
X670A	15.3TB	N/A	SSD	No	Yes	Yes	Yes	480	No
DS460C with IOM12 / IOM12 / IOM12B / IOM12B shelf modules
X375A	4TB	7.2K	NL-SAS	No	Yes	No	Yes	1440	No
X376A	8TB	7.2K	NL-SAS	No	Yes	No	Yes	1440	No
X377A	10TB	7.2K	NL-SAS	No	Yes	No	Yes	1440	No
X378A [1]	10TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	Yes	No	Yes	1440	No
X379A	960GB	N/A	SSD	No	Yes	No	Yes	240	No
X387A	16TB	7.2K	NL-SAS	No	Yes	No	Yes	937	No
DS2246 with IOM12 / IOM12 / IOM12B / IOM6 / IOM6 / IOM12B shelf modules
X341A-R6	900GB	10K	SAS	No	Yes	No	Yes	1440	No
X342A-R6	1.2TB	10K	SAS	No	Yes	No	Yes	1440	No
X343A-R6	1.8TB	10K	SAS	No	Yes	No	Yes	1440	No
X416A-R5 [1]	600GB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	Yes	1440	No
X417A-R6 [1]	900GB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	Yes	1440	No
X421A-R5	450GB	10K	SAS	No	Yes	No	Yes	1440	No
X422A-R5	600GB	10K	SAS	No	Yes	No	Yes	1440	No
X423A-R5	900GB	10K	SAS	No	Yes	No	Yes	1440	No
X425A-R6	1.2TB	10K	SAS	No	Yes	No	Yes	1440	No
X426A-R6	1.8TB	10K	SAS	No	Yes	No	Yes	1440	No
X427A [1]	1.8TB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	Yes	1440	No
X427B-R6 [1]	1.8TB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	Yes	1440	No
X356A-R6	3.84TB	N/A	SSD	No	Yes	Yes	Yes	480	No
X357A	3.84TB	N/A	SSD	No	Yes	Yes	Yes	480	No
X358A [1]	3.84TB	N/A	SSD	FIPS 140-2 Level 2, NSE	Yes	Yes	Yes	480	No
X365A-R6 [1]	1.6TB	N/A	SSD	FIPS 140-2 Level 2, NSE	Yes	Yes	Yes	480	No
X371A	960GB	N/A	SSD	No	Yes	Yes	Yes	480	No
X438A-R6	400GB	N/A	SSD	No	Yes	Yes	Yes	480	No
X439A-R6	1.6TB	N/A	SSD	No	Yes	Yes	Yes	480	No
X440A-R6 [1]	800GB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	No	480	No
X440B-R6 [1]	800GB	N/A	SSD	FIPS 140-2 Level 2, NSE	Yes	Yes	Yes	480	No
X446A-R6	200GB	N/A	SSD	No	Yes	No	Yes	480	No
X446B-R6	200GB	N/A	SSD	No	Yes	No	Yes	480	No
X447A-R6	800GB	N/A	SSD	No	Yes	Yes	Yes	480	No
DS4246 with IOM6 / IOM12 / IOM12 / IOM12B / IOM12B / IOM6 shelf modules
X302A-R5	1TB	7.2K	SATA	No	Yes	No	Yes	1440	No
X306A-R5	2TB	7.2K	SATA	No	Yes	No	Yes	1440	No
X308A-R5	3TB	7.2K	SATA	No	Yes	No	Yes	1440	No
X309A-R6 [1]	3TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	Yes	No	Yes	1440	No
X315A-R6 [1]	4TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	Yes	No	Yes	1440	No
X316A-R6	6TB	7.2K	NL-SAS	No	Yes	No	Yes	1440	No
X317A [1]	6TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	Yes	No	Yes	1440	No
X318A-R6	8TB	7.2K	NL-SAS	No	Yes	No	Yes	1440	No
X322A [1]	10TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	Yes	No	Yes	1440	No
X336A-R6	4TB	7.2K	NL-SAS	No	Yes	No	Yes	1440	No
X380A	10TB	7.2K	NL-SAS	No	Yes	No	Yes	1440	No
X477A-R6	4TB	7.2K	NL-SAS	No	Yes	No	Yes	1440	No
X488A-R5	900GB	10K	SAS	No	Yes	No	Yes	1440	No
X489A-R6	1.2TB	10K	SAS	No	Yes	No	Yes	1440	No
X490A-R6	1.8TB	10K	SAS	No	Yes	No	Yes	1440	No
X363A-R6	3.84TB	N/A	SSD	No	Yes	No	Yes	480	No
X366A-R6 [1]	1.6TB	N/A	SSD	FIPS 140-2 Level 2, NSE	Yes	No	Yes	480	No
X374A	960GB	N/A	SSD	No	Yes	No	Yes	480	No
X441A-R5	100GB	N/A	SSD	No	Yes	No	Yes	480	No
X442A-R5 [2]	100GB	N/A	SSD	No	Yes	No	Yes	480	No
X448A-R6	200GB	N/A	SSD	No	Yes	No	Yes	480	No
X449A-R6	800GB	N/A	SSD	No	Yes	No	Yes	480	No
X575A-R6	400GB	N/A	SSD	No	Yes	No	Yes	480	No
X576A-R6	1.6TB	N/A	SSD	No	Yes	No	Yes	480	No
X577A-R6 [1]	800GB	N/A	SSD	FIPS 140-2 Level 2, NSE	Yes	No	Yes	480	No
DS4486 with IOM6 shelf modules
X381A	10TB	7.2K	MSATA	No	Yes	No	Yes	1440	No
X478A-R5	3TB	7.2K	MSATA	No	Yes	No	Yes	1440	No
X480A-R6	4TB	7.2K	MSATA	No	Yes	No	Yes	1440	No
X481A-R6	6TB	7.2K	MSATA	No	Yes	No	Yes	1440	No
X483A-R6	8TB	7.2K	MSATA	No	Yes	No	Yes	1440	No
DS4243 with IOM6 / IOM12 shelf modules
X302A-R5	1TB	7.2K	SATA	No	Yes	No	Yes	1440	No
X306A-R5	2TB	7.2K	SATA	No	Yes	No	Yes	1440	No
X308A-R5	3TB	7.2K	SATA	No	Yes	No	Yes	1440	No
Footnote:
[1] Mixing NSE drives or shelves with any other type of encrypting or non-encrypting drives or shelves across a stand-alone platform or high-availability (HA) pair is not supported.
[2] This drive does not support the sanitization feature.

Supported RAID Configurations - FAS9500 Single Chassis HA Pair

Drive Type	Drive Capacity Min	Drive Capacity Max	Minimum	Default	Maximum
Data Aggregate
RAID4
NL-SAS	0 TB	8 TB	3	7	7
SAS	0 TB	5.999 TB	3	8	14
SATA	0 TB	5.999 TB	3	7	7
SSD	0 TB	30.6 TB	3	8	14
RAID-DP
MSATA	0 TB	5.999 TB	5	14	20
MSATA	6 TB	8 TB	5	14	14
NL-SAS	0 TB	5.999 TB	5	14	20
NL-SAS	6 TB	10 TB	5	14	14
SAS	0 TB	5.999 TB	5	16	28
SATA	0 TB	5.999 TB	5	14	20
SSD	0 TB	30.6 TB	5	24	28
RAID-TEC
MSATA	0 TB	10 TB	7	21	29
NL-SAS	0 TB	16 TB	7	21	29
SAS	0 TB	8 TB	7	24	29
SATA	0 TB	8 TB	7	21	29
SSD	0 TB	30.6 TB	7	25	29
Root Aggregate
RAID4
NL-SAS	0 TB	8 TB	2	-	7
SAS	0 TB	5.999 TB	2	-	14
SATA	0 TB	5.999 TB	2	-	7
SSD	0 TB	30.6 TB	2	-	14
RAID-DP
MSATA	0 TB	5.999 TB	3	-	20
MSATA	6 TB	8 TB	3	-	14
NL-SAS	0 TB	5.999 TB	3	-	20
NL-SAS	6 TB	16 TB	3	-	14
SAS	0 TB	5.999 TB	3	-	28
SATA	0 TB	5.999 TB	3	-	20
SSD	0 TB	30.6 TB	3[1]	-	28
RAID-TEC
MSATA	0 TB	10 TB	7	-	29
NL-SAS	0 TB	16 TB	7	-	29
SAS	0 TB	8 TB	7	-	29
SATA	0 TB	8 TB	7	-	29
SSD	0 TB	30.6 TB	7	-	29
Footnote:
[1] The minimum number of disks in a RAID-DP group is three: at least one data disk, one regular parity disk, and one double-parity (dParity) disk. However, for non-root aggregates with only one RAID group, you must have at least 5 disks (three data disks and two parity disks).

Supported Adapter Cards - FAS9500 Single Chassis HA Pair

Priority	Category	Bus Type	Mktg Part No.	Mfg Part No	Description	Plug Type	Optical Module Included?	Cables	Supported Protocol(s)	Min ONTAP	Max Qty [1]	Priority Slot Assignment
1	NVRAM	IO Module	X93146A	111-04738	NV Base Module,64GB	111-04738	NV Base Module,64GB		None	View	None	9.10.1P3, 9.11.1RC1
2	Networking (high performance)	IO Module	X91153A	111-04739	2p 100GbE RoCE QSFP28	111-04739	2p 100GbE RoCE QSFP28	QSFP28	Ethernet 40/100 Gb	View	Ethernet 40/100 Gb	9.10.1P3, 9.11.1RC1
3	Networking (high performance)	IO Module	X91152A	111-04740	4p 25GbE RoCE SFP28	111-04740	4p 25GbE RoCE SFP28	SFP28	Ethernet 10/25Gb	View	Ethernet 10/25Gb	9.10.1P3, 9.11.1RC1
4	Networking	IO Module	X91148A	111-04761	2p 100GbE, QSFP28, gen3x16, RoCE	111-04761	2p 100GbE, QSFP28, gen3x16, RoCE	QSFP28	Ethernet 40/100 Gb	View	Ethernet 40/100 Gb	9.10.1P3, 9.11.1RC1
5	Networking	IO Module	X91440A [2]	111-02590	2p 40GbE NIC Cu\|Op	111-02590	2p 40GbE NIC Cu\|Op	QSFP	Ethernet 40Gb, Ethernet 40Gb w/4x10Gb breakout	View	Ethernet 40Gb,	9.10.1P3, 9.11.1RC1
6	Networking	IO Module	X91122A	111-04764	2p 25GbE, SFP28, gen3x8, RoCE	111-04764	2p 25GbE, SFP28, gen3x8, RoCE	SFP28	Ethernet 10/25Gb, Ethernet 25Gb	View	Ethernet 10/25Gb,	9.10.1P3, 9.11.1RC1
7	Performance Acceleration	IO Module	X9170A	108-00421	NVMe SSD Module (1 TB)	108-00421	NVMe SSD Module (1 TB)			N/A		9.10.1P3, 9.11.1RC1
8	Performance Acceleration	IO Module	X9172A	108-00423	NVMe SSD Module (4 TB)	108-00423	NVMe SSD Module (4 TB)			N/A		9.10.1P3, 9.11.1RC1
9	Block Access (Target)	IO Module	X91135A	111-03789	4p 32Gb FC SFP+ Op	111-03789	4p 32Gb FC SFP+ Op	SFP+	Fibre Channel 8/16/32 Gb, NVMe/FC 16/32 Gb	View	Fibre Channel 8/16/32 Gb,	9.10.1P3, 9.11.1RC1
10	Block Access (Target)	IO Module	X91134A	111-03431	2p 32Gb FC Op	111-03431	2p 32Gb FC Op	SFP+	Fibre Channel 8/16/32 Gb, NVMe/FC 16/32 Gb	View	Fibre Channel 8/16/32 Gb,	9.10.1P3, 9.11.1RC1
11	Block Access	IO Module	X91143A	111-02397	4p 16Gb\|10Gb UTA2 Cu\|Op	111-02397	4p 16Gb\|10Gb UTA2 Cu\|Op	SFP+	Ethernet 1/10 Gb, Fibre Channel 4/8/16 Gb	View	Ethernet 1/10 Gb,	9.10.1P3, 9.11.1RC1
12	Networking	IO Module	X91143A	111-02397	4p 16Gb\|10Gb UTA2 Cu\|Op	111-02397	4p 16Gb\|10Gb UTA2 Cu\|Op	SFP+	Ethernet 1/10 Gb, Fibre Channel 4/8/16 Gb	View	Ethernet 1/10 Gb,	9.10.1P3, 9.11.1RC1
13	Networking	IO Module	X91120A	111-02399	4p 10GBASE-T NIC	111-02399	4p 10GBASE-T NIC	RJ45	Ethernet 1/10 Gb	View	Ethernet 1/10 Gb	9.10.1P3, 9.11.1RC1
14	Storage (Initiator)	IO Module	X91135A	111-03789	4p 32Gb FC SFP+ Op	111-03789	4p 32Gb FC SFP+ Op	SFP+	Fibre Channel 8/16/32 Gb, NVMe/FC 16/32 Gb	View	Fibre Channel 8/16/32 Gb,	9.10.1P3, 9.11.1RC1
15	Storage	IO Module	X91143A	111-02397	4p 16Gb\|10Gb UTA2 Cu\|Op	111-02397	4p 16Gb\|10Gb UTA2 Cu\|Op	SFP+	Ethernet 1/10 Gb, Fibre Channel 4/8/16 Gb	View	Ethernet 1/10 Gb,	9.10.1P3, 9.11.1RC1
16	Storage	IO Module	X92071A	111-02396	4p 12Gb SAS Cu	111-02396	4p 12Gb SAS Cu	MiniSAS HD	SAS 6/12 Gb	View	SAS 6/12 Gb	9.10.1P3, 9.11.1RC1
17	Tape (Initiator)	IO Module	X91135A [3]	111-03789	4p 32Gb FC SFP+ Op	111-03789	4p 32Gb FC SFP+ Op	SFP+	Fibre Channel 8/16/32 Gb, NVMe/FC 16/32 Gb	View	Fibre Channel 8/16/32 Gb,	9.10.1P3, 9.11.1RC1
18	Tape	IO Module	X91143A [3]	111-02397	4p 16Gb\|10Gb UTA2 Cu\|Op	111-02397	4p 16Gb\|10Gb UTA2 Cu\|Op	SFP+	Ethernet 1/10 Gb, Fibre Channel 4/8/16 Gb	View	Ethernet 1/10 Gb,	9.10.1P3, 9.11.1RC1
Footnote:
[1] Values shown for max quantity are per controller. HA configurations will support 2x the values shown.
[2] Optical breakout cable 4x10GbE configuration supported on both ports.
[3] Connecting tape drives or tape libraries to FC or UTA2 ports requires the use of an FC switch.

Supported Connections for FAS9500 Single Chassis HA Pair

Configuration Type	Port Configuration	Image	Cluster Ports per Node	Switch Ports per Node
Cluster Interconnect

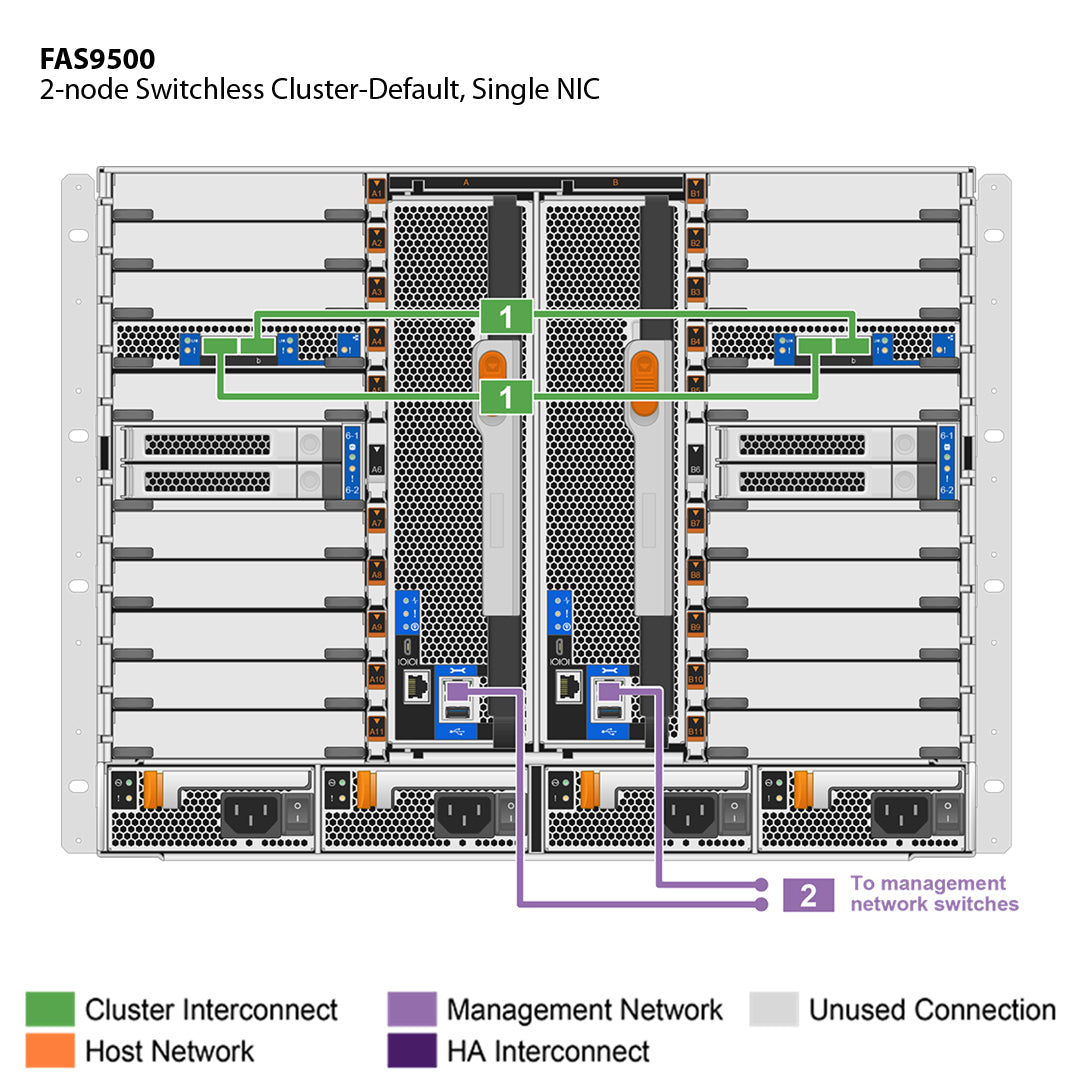

2-node Switchless Cluster	Default, Single NIC	View Image	2	None
2-node Switchless Cluster (option 1)	Dual NIC, Recommended	View Image	2	None
2-node Switchless Cluster (option 2)	Default, Single NIC	View Image	2	None
2-node Switchless Cluster (option 3)	Dual NIC, Recommended	View Image	2	None
2-node Switchless Cluster (option 4)	Dual NIC, Recommended	N/A	8	None
Switched 100GbE or 40GbE	Default, Single NIC	N/A	2	2
Switched 100GbE or 40GbE	Dual NIC, Recommended	N/A	2	2

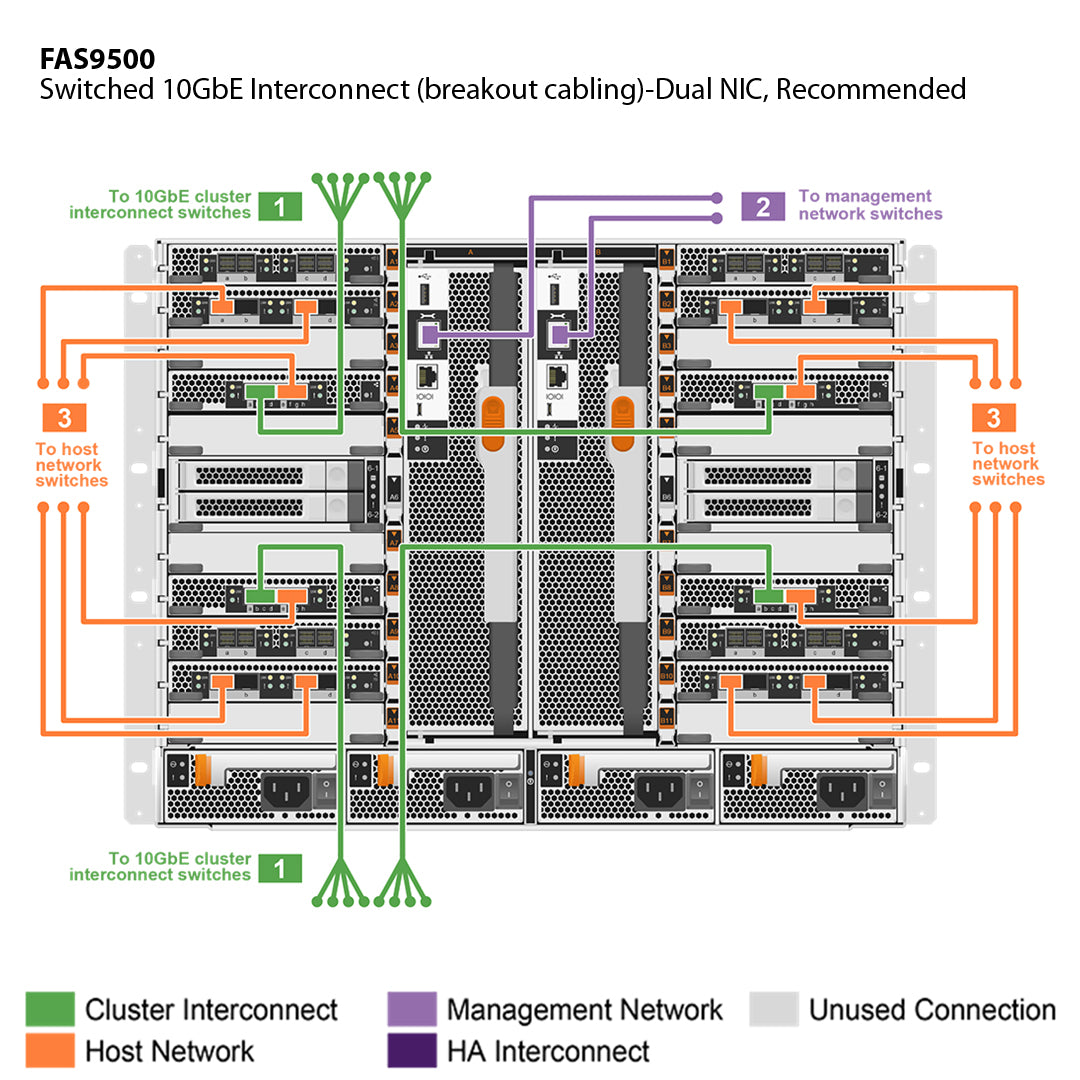

Switched 10GbE Interconnect (breakout cabling)	Dual NIC, Recommended	View Image	8	8

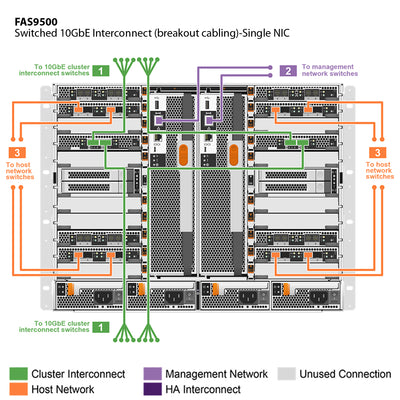

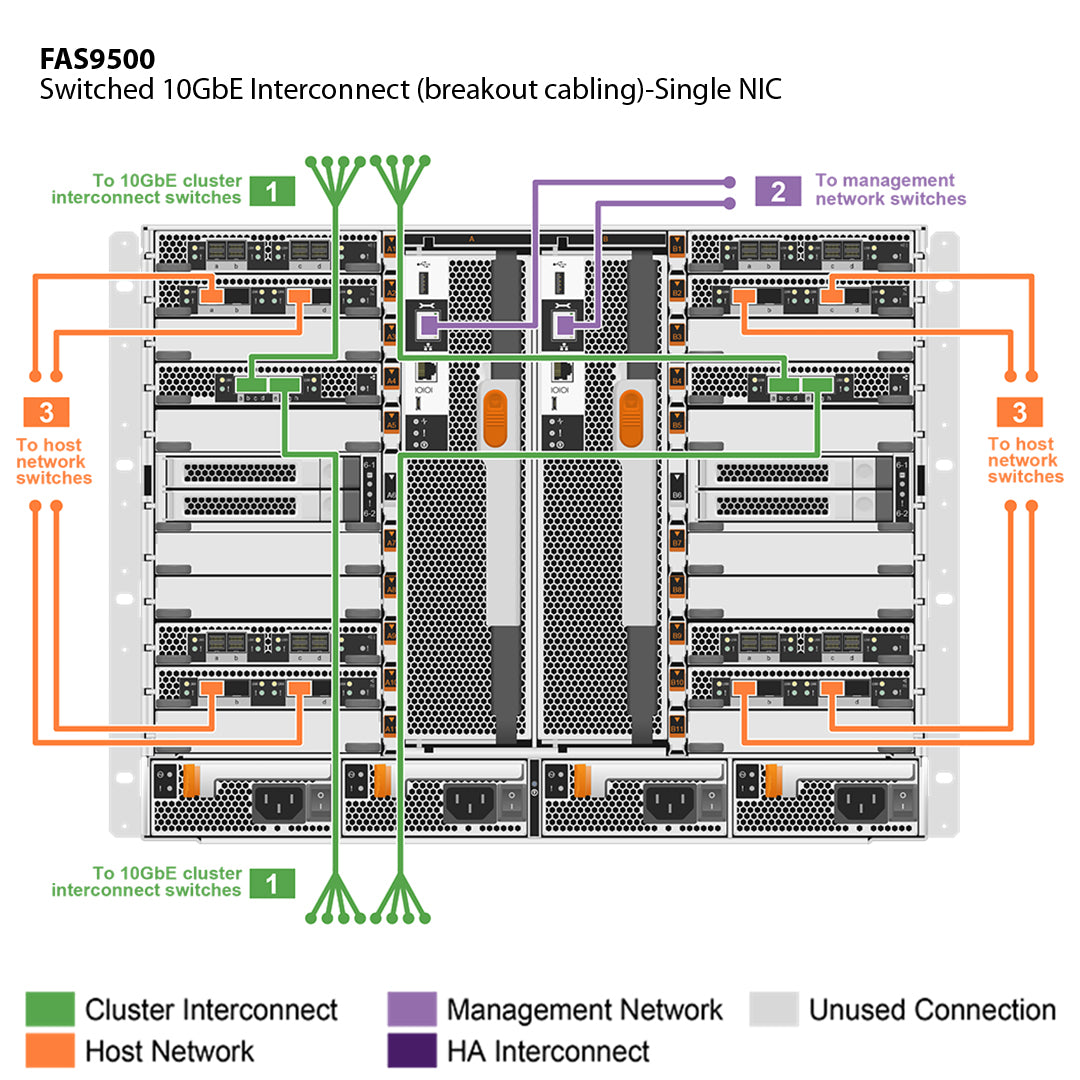

Switched 10GbE Interconnect (breakout cabling)	Single NIC	View Image	8	8
Switched 10/25GbE	Dual NIC, Recommended	N/A	8	8

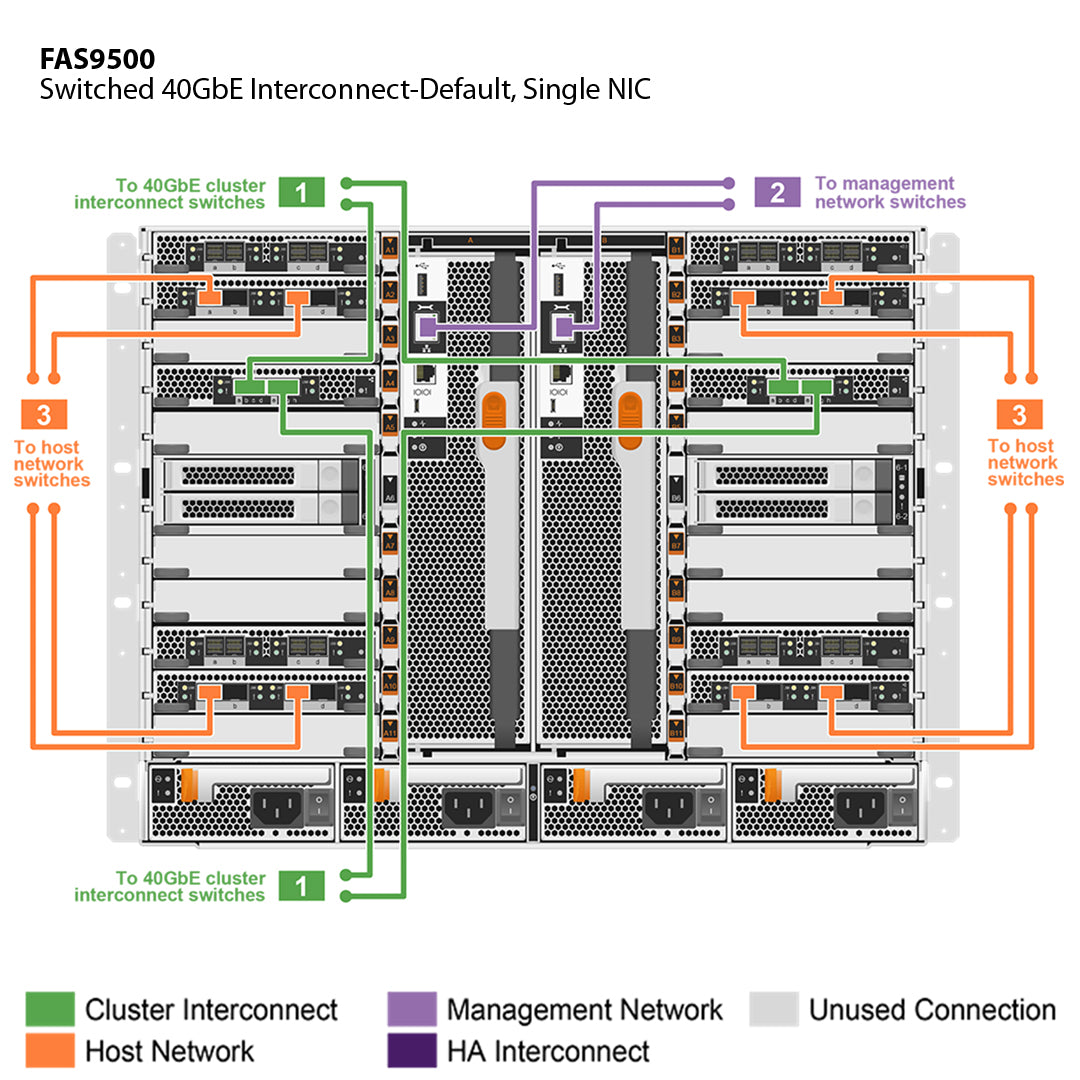

Switched 40GbE Interconnect	Default, Single NIC	View Image	2	2

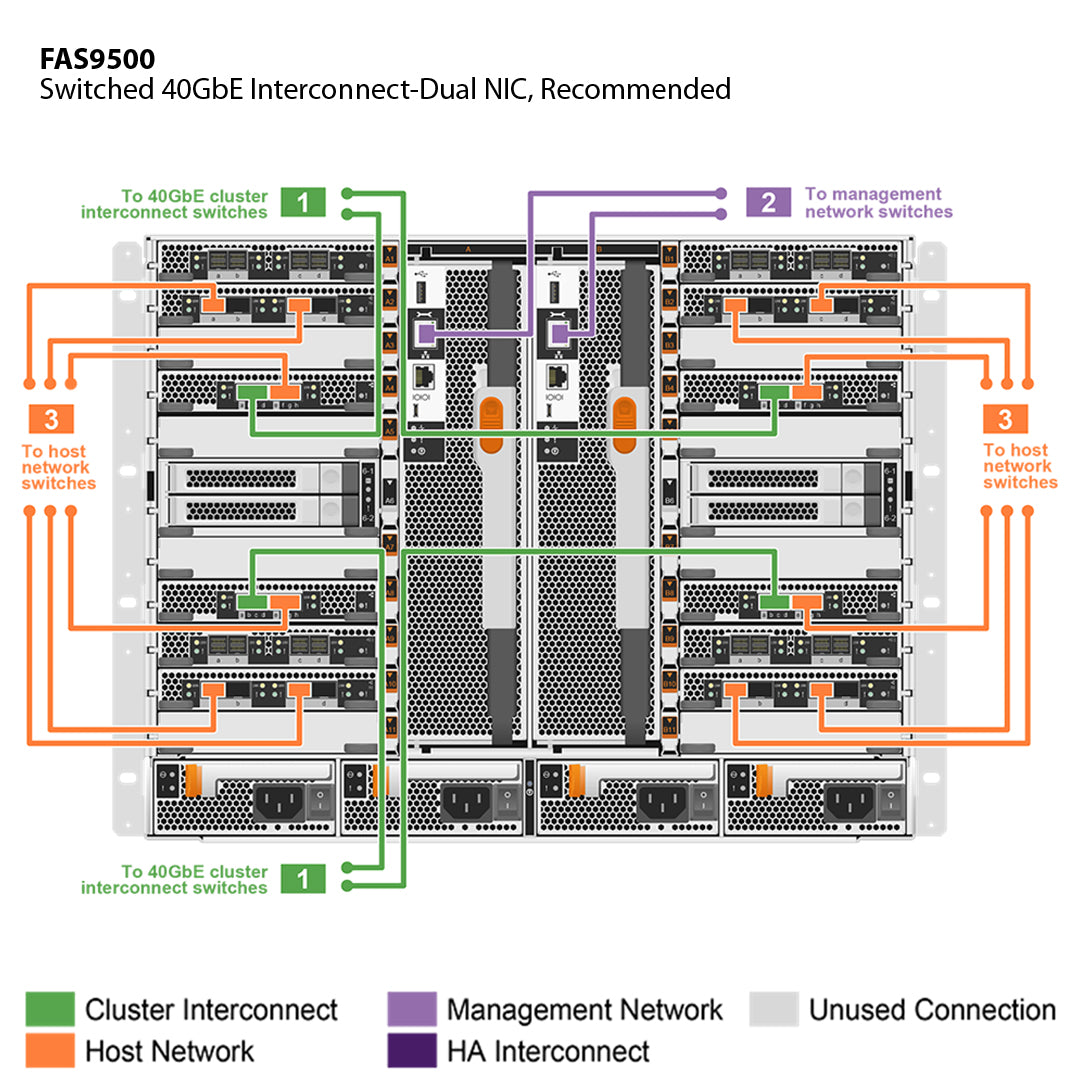

Switched 40GbE Interconnect	Dual NIC, Recommended	View Image	2	2

Platform Mixing Rules - FAS9500 Single Chassis HA Pair

Platform Configuration Type	Maximum Nodes (NAS) [1]	Maximum Nodes (SAN) [1]	Min ONTAP Version for Platform Mixing
FAS - Current Configuration(s)
FAS2720A 10GBASE-T	24 Nodes	12 Nodes	9.10.1P3
FAS2720A UTA2	24 Nodes	12 Nodes	9.10.1P3
FAS2750A 10GBASE-T	24 Nodes	12 Nodes	9.10.1P3
FAS2750A UTA2	24 Nodes	12 Nodes	9.10.1P3
FAS500fA	24 Nodes	12 Nodes	9.10.1P3
FAS8300A Ethernet Bundle	24 Nodes	12 Nodes	9.10.1P3
FAS8300A FC Bundle	24 Nodes	12 Nodes	9.10.1P3
FAS8700A Ethernet Bundle	24 Nodes	12 Nodes	9.10.1P3
FAS8700A FC Bundle	24 Nodes	12 Nodes	9.10.1P3
FAS9000A	24 Nodes	12 Nodes	9.10.1P3
FAS9500A	24 Nodes	12 Nodes	9.10.1P3
AllFlashFAS - Current Configuration(s)
AFF A250A	24 Nodes	12 Nodes	9.10.1P3
AFF A400A Ethernet Bundle	24 Nodes	12 Nodes	9.10.1P3
AFF A400A FC Bundle	24 Nodes	12 Nodes	9.10.1P3
AFF A700A	24 Nodes	12 Nodes	9.10.1P3
AFF A800A	24 Nodes	12 Nodes	9.10.1P3
AFF A900A	24 Nodes	12 Nodes	9.10.1P3
AFF C190A 10GBASE-T	24 Nodes	12 Nodes	9.10.1P3
AFF C190A UTA2	24 Nodes	12 Nodes	9.10.1P3
FAS - Legacy EOA Configuration(s)
FAS8200A	24 Nodes	12 Nodes	9.10.1P3
AllFlashFAS - Legacy EOA Configuration(s)
AFF A220A 10GBASE-T	24 Nodes	12 Nodes	9.10.1P3
AFF A220A UTA2	24 Nodes	12 Nodes	9.10.1P3
AFF A300A	24 Nodes	12 Nodes	9.10.1P3
AFF A320A	24 Nodes	12 Nodes	9.10.1P3
AFF A700s	24 Nodes	12 Nodes	9.10.1P3
Footnote:
[1] Maximum number of nodes within a cluster is determined by platform which supports the fewest number of nodes

Product Standard Compliance - FAS9500 Single Chassis HA Pair

Standard	Description
Certifications EMC/EMI
AMCA	Australia and New Zealand (EMC covered by ACMA DoC)
FCC	Federal Communications Commission (EMI Declaration of Conformity covering United States and Canada)
ICES	ICES
KC	Korea Communications Commission (EMC certificate for South Korea)
Morocco	Morocco Declaration of Conformity
VCCI	EMI Certificate for Japan
Certifications safety
BIS	Bureau of Indian Standard (Safety cert for India)
CB	Certificate Body issued safety certificate covering International
CSA	Canadian Standards Association issued Safety certificate covering North America
G_K_U-SoR	Safety certificate for Gabon, Kenya and Uganda
IRAM	Instituto Argentino de Normalización y Certificación (safety certificate for Argentina)
NOM	Norma Oficial Mexicana (Safety cert for Mexico)
NRCS	National Regulator for Compulsory Specifications (Safety cert for South Africa)
SONCAP	Standards Organisation of Nigeria Conformity Assessment Programme (Safety cert for Nigeria)
TBS	Tanzanian Bureau of Standards (Safety certificate for Tanzania)
Certifications Safety/EMC/EMI
EAC	Euro Asia Conformity (EMC and Safety Cert) covering (Russia, Kazakhstan, Belarus, Armenia, Kyrgyzstan Countries)
UKRSEPRO	EMC/Safety certificate for Ukraine
Certifications Safety/EMC/EMI/RoHS
BSMI	Certificate for Taiwan
CE DoC	European Union Declaration of Conformity
UKCA DoC	UK Declaration of Conformity
Standards EMC/EMI
BS-EN-55024	EMC standard for Great Britain
BS-EN55035	EMC standard for Great Britain
CISPR 32	EMI
EN55022	EMC Standard fo European Union
EN55024	EMC Standard fo European Union
EN55032	EMI Standard fo European Union
EN55035	EMC Standard for European Union
EN61000-3-2	EMC Standard for European Union
EN61000-3-3	EMC Standard for European Union
FCC Part 15 Class A	EMI standard for United States
ICES-003	EMI Standard for Canada
KS C 9832	EMI Standard for South Korea
KS C 9835	EMC Standard for South Korea
Standards Safety
ANSI/UL60950-1	Safety standard for United States
ANSI/UL62368-1	Safety standard for United States
BS-EN62368-1	Safety standard for Great Britain
CAN/CSA C22.2 No. 60950-1	Safety Standard for Canada
CAN/CSA C22.2 No. 62368-1	Safety Standard for Canada
CNS 14336	Safety Standard for Taiwan
EN60825-1	Laser Safety standard for European Union
EN62368-1	Safety standard for European Union
IEC 62368-1	Safety Standard for International
IEC60950-1	Safety standard for International
IS 13252(part 1)	Safety Standard for India

Supported OS Version - FAS9500 Single Chassis HA Pair

OS Major Version	Supported OS Version	Supported Milestones	Recommend Version
Currently Supported OS
ONTAP 9.11.1	9.11.1, 9.11.1RC1	End of Full Support: 31-Jul-2025 End of Limited Support: 31-Jul-2027 End of Self-Service Support: 31-Jul-2030	9.11.1
Definitions:
[1]End of Full Support: The date marking the end of Full Support for a particular feature version of a NetApp system software and the beginning of Limited Support. Abbreviated as EOES.
[2]End of Limited Support: The date marking the end of Limited Support for a particular feature version of a product and transition to Self-Service Support. Abbreviated as EOVS.
[3]End of Self-Service Support: NetApp does not provide support for a version of a software product, but related documentation is still available on the NetApp Support Site. NetApp customers are expected to utilize documentation to resolve issues.

Supported Power Cords for FAS9500 Single Chassis HA Pair

Marketing Part No.	End 1 / End 2	Length	Description
Non-Cabinet Power Cords
X-50617-00	IEC60320-C20 / IEC60320-C13	2.00 m	Power Cords,In-Cabinet,2m,C20-C13,E-Series
X800B-R6	CEE 7/7 (Schuko) / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Cont Europe/Korea,10A/250V
X800C-R6	BS1363 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,UK/Ireland,10A/250V
X800F-R6	AS/NZS 3112 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Aus/NZ,10A/250V
X800G-R6	SEV 1011 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Switzerland,10A/250V
X800H-R6	IRAM 2073 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Argentina,10A/250V
X800I-R6	GB2099 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,China,10A/250V
X800J-R6	DHCR107-2-D1 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Demark,10A/250V
X800K-R6	SANS 164-1 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,India/S.Africa,10A/250V
X800L-R6	SI32 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Israel,10A/250V
X800M-R6	CEI 23-16 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Italy,10A/250V
X800P-R6	NEMA 6-15P / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,North America,15A/250V
X800W-R6	CNS10917/CNS690 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Taiwan,10A/250V
X800Y-R6	JIS-C-830 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Japan,15A/250V
In-Cabinet Power Cords
X1558A-R6	IEC60320-C14 / IEC60320-C13	1.20 m	Pwr Cord,In-Cabinet,48-In,C13-C14,10A/250V
X800-42U-35	IEC60320-C14 / IEC60320-C13	0.89 m	Pwr Cord,In-Cabinet,C13-C14,35-inch
X800-42U-43	IEC60320-C14 / IEC60320-C13	1.09 m	Pwr Cord,In-Cabinet,C13-C14,43-inch
X800-42U-64	IEC60320-C14 / IEC60320-C13	1.63 m	Pwr Cord,In-Cabinet,C13-C14,64-inch
X800-42U-R6	IEC60320-C14 / IEC60320-C13	0.68 m	Pwr Cord,In-Cabinet,27-In,C13-C14,10A/250V

Onboard Ports Configuration: FAS9500 Single Chassis HA Pair

Port Address	Description	Supported Protocols	Port Icon	Port Type
e0m/BMC	Management	Ethernet 10/100/1000 Mb	Wrench	RJ45
Serial Interface	Serial Console	RS-232 115200bps	Serial Interface	RJ45
Serial Interface	USB Serial Console	RS-232 115200bps	Serial Interface	USB 2.0 Micro-B
Serial Interface	USB Serial Console (front chassis)	RS-232 115200bps	Serial Interface	USB 2.0 Micro-B
USB	Storage Host Port	USB 2.0	USB 2.0	USB Type A

Supported Platform Configurations - FAS9500 Single Chassis HA Pair

Platform Configuration	Description	Chassis Configuration	Chassis Count	Controller Count (per chassis)	IOXM Count (per chassis)	Rack Units (Per System)	Weight (Per Chassis)	Min ONTAP
HA Pair
FAS9500A	FAS9500 Single Chassis HA Pair	CC	1	2	0	8	220.46 lb (100 kg)	9.10.1P3, 9.11.1RC1
MetroCluster
FAS9500-4NFMC	FAS9500 4-Node Fabric MetroCluster	CC-CC	2	2	0	16	220.46 lb (100 kg)	9.10.1P3, 9.11.1RC1
FAS9500-4NMCIP	FAS9500 4-Node MetroCluster IP	CC-CC	2	2	0	16	220.46 lb (100 kg)	9.10.1P3, 9.11.1RC1
FAS9500-8NFMC	FAS9500 8-Node Fabric MetroCluster	2x(CC-CC)	4	2	0	32	220.46 lb (100 kg)	9.10.1P3, 9.11.1RC1
FAS9500-8NMCIP	FAS9500 8-Node MetroCluster IP	2x(CC-CC)	4	2	0	32	220.46 lb (100 kg)	9.10.1P3, 9.11.1RC1

Platform Memory Specifications - FAS9500 Single Chassis HA Pair

Part Number	Description	Mfg Part Number	Non-Volatile	Qty	Capacity (GB)	NVRAM/NVMEM Used Capacity (GB)	RAM Used Capacity (GB)
X93226A	DIMM,64GB	107-00236	no	32	64	-	2048
X93225A	DIMM,32GB (NVS)	107-00244	yes	4	32	128	-

Supported Rail Kit for FAS9500 Single Chassis HA Pair

Marketing Part No.	Manufacturing Part No.	Description
NetApp System Cabinet Rail Kits
X8783A-R6	111-01110	Rail Kit III, NetApp Cabinet, R6
X87880A	111-03887	Rail Kit 4,Cabinet
Third-Party Cabinet Rail Kits
X-02659-00	113-00232	Kit,4-Post,Square or Round-Hole, 24"-32" Rail
X90100A	111-02860	Kit,2-Post, Front-Mount
X90101A	111-02861	Kit,2-Post, Mid-Mount

Field Replacement Unit Parts - FAS9500 Single Chassis HA Pair

Marketing Part No.	Manufacturing Part No.	Description
Adapter Card
X91120A	111-02399	IO Module,4-PT 10GBASE-T
X91120A-C	111-02399	IO Module,4-PT 10GBASE-T,-C
X91120A-N-C	111-02399	IO Module,4-PT 10GBASE-T,-C
X91122A	111-04764	IO Module,2-Pt Bare Cage 25GbE RoCE SFP28
X91122A-C	111-04764	IO Module,2-Pt Bare Cage 25GbE RoCE SFP28,-C
X91134A	111-03431	IO Module,2-Port FCP Target 32Gb PCIe w/SFP+
X91134A-C	111-03431	IO Module,2-Port FCP Trgt 32Gb PCIe w/SFP+,-C
X91134A-N-C	111-03431	IO Module,2-Port FCP Trgt 32Gb PCIe w/SFP+,-C
X91135A [1]	111-03789	IO Module,4-pt 32Gb FC Trgt-Init, with SR SFP
X91135A-C [1]	111-03789	IO Module,4-pt 32Gb FC Trgt-Init, with SR SFP
X91135A-N-C [1]	111-03789	IO Module,4-pt 32Gb FC Trgt-Init, with SR SFP
X91143A [1]	111-02397	IO Module,4-PT CNA,10GbE,16GB FC
X91143A-C [1]	111-02397	IO Module,4-PT CNA,10GbE,16GB FC,-C
X91143A-N-C [1]	111-02397	IO Module,4-PT CNA,10GbE,16GB FC,-C
X91148A	111-04761	IO Module,2-Pt BareCage 100GbE RoCE QSFP28
X91148A-C	111-04761	IO Module,2-Pt BareCage 100GbE RoCE QSFP28,-C
X91152A	111-04740	IO Module,4-Pt Bare Cage 25GbE RoCE SFP28
X91152A-C	111-04740	IO Module,4-Pt BareCage 25GbE RoCE SFP28,-C
X91153A	111-04739	IO Module,2-Pt Bare Cage 200GbE RoCE QSFP28
X91153A-C	111-04739	IO Module,2-Pt BareCage 200GbE RoCE QSFP28,-C
X91153A-I-C	111-04739	IO Module,2-Pt BCG 200GbE RoCE QSFP28,INC,-C
X91440A [2] [3]	111-02590	IO Module,2-PT 40GbE
X91440A-C [2] [3]	111-02590	IO Module,2-PT 40GbE,-C
X91440A-N-C [2] [3]	111-02590	IO Module,2-PT 40GbE,-C
X9170A	108-00421	NVMe SSD Module,1.0TB
X9170A-C	108-00421	NVMe SSD Module,1.0TB,-C
X9170A-N-C	108-00421	NVMe SSD Module,1.0TB,-C
X9172A	108-00423	Flash Cache,4.0TB,NVMe SSD Module
X9172A-C	108-00423	Flash Cache,4.0TB NVMe SSD Module,-C
X9172A-I-C	108-00423	Flash Cache,4.0TB Included,NVMe SSD Module,-C
X9172A-N-C	108-00423	Flash Cache,4.0TB NVMe SSD Module,-C
X92071A	111-02396	IO Module,4-PT SAS,12Gb
X92071A-C	111-02396	IO Module,4-PT SAS,12Gb,-C
X92071A-N-C	111-02396	IO Module,4-PT SAS,12Gb,-C
X93146A	111-04738	NV Base Module,64GB, A900
Battery
X1847	271-01847	Lithium System Battery CR2032
X1847-R6	271-01847	Lithium System Battery CR2032,R6
Blank
X93101A	111-02416	Blanking Panel,IO Module,A700,90XX
X93103A	111-02418	Blanking Panel,NVMe,A700,90XX
Cable Management Guide
X98600A	111-02878	Cable Management Bracket,FAS90XX
Chassis
X9000XA	111-02392	Chassis,no PSU, no PCM, no Fan, with MP
Data Cable
X-QSFP-4SFP10G-CU3M	112-00602	Cable,Cisco,QSFP/4xSFP10G,CU Passive,3m
X-QSFP-4SFP10G-CU3M-C	112-00602	Cable,Cisco,QSFP/4xSFP10G,CU Passive,3m,-C
X-QSFP-4SFP10G-CU3M-N-C	112-00602	Cable,Cisco,QSFP/4xSFP10G,CU Passive,3m,-C
X-QSFP-4SFP10G-CU5M	112-00603	Cable,Cisco,QSFP/4xSFP10G,CU Passive,5m
X-QSFP-4SFP10G-CU5M-C	112-00603	Cable,Cisco,QSFP/4xSFP10G,CU Passive,5m,-C
X-QSFP-4SFP10G-CU5M-N-C	112-00603	Cable,Cisco,QSFP/4xSFP10G,CU Passive,5m,-C
X-QSFP-H40G-CU1M-R6	112-00307	Cable,Cisco 40GB Twinax Copper QSFP+ 1M
X-QSFP-H40G-CU1M-R6-C	112-00307	Cable,Cisco 40GB Twinax Copper QSFP+ 1M,-C
X-QSFP-H40G-CU1M-R6-N-C	112-00307	Cable,Cisco 40GB Twinax Copper QSFP+ 1M,-C
X-QSFP-H40G-CU3M-R6	112-00604	Cable,Cisco 40GB Twinax Copper QSFP+ 3M
X-QSFP-H40G-CU3M-R6-C	112-00604	Cable,Cisco 40GB Twinax Copper QSFP+ 3M,-C
X-QSFP-H40G-CU3M-R6-N-C	112-00604	Cable,Cisco 40GB Twinax Copper QSFP+ 3M,-C
X-QSFP-H40G-CU5M-R6	112-00604, 112-00605	Cable,Cisco 40GB Twinax Copper QSFP+ 5M
X-QSFP-H40G-CU5M-R6-C	112-00605	Cable,Cisco 40GB Twinax Copper QSFP+ 5M,-C
X-QSFP-H40G-CU5M-R6-N-C	112-00605	Cable,Cisco 40GB Twinax Copper QSFP+ 5M,-C
X-SFP-H10GB-CU1M-R6	112-00210	Cable,10GBase Copper SFP+ 1m
X-SFP-H10GB-CU1M-R6-C	112-00210	Cable,10GBase Copper SFP+ 1m,-C
X-SFP-H10GB-CU1M-R6-N-C	112-00210	Cable,10GBase Copper SFP+ 1m,-C
X-SFP-H10GB-CU3M-R6	112-00211	Cable,10GBase Copper SFP+ 3m
X-SFP-H10GB-CU3M-R6-C	112-00211	Cable,10GBase Copper SFP+ 3m,-C
X-SFP-H10GB-CU3M-R6-N-C	112-00211	Cable,10GBase Copper SFP+ 3m,-C
X-SFP-H10GB-CU5M-R6	112-00212	Cable,10GBase Copper SFP+ 5m
X-SFP-H10GB-CU5M-R6-C	112-00212	Cable,10GBase Copper SFP+ 5m,-C
X-SFP-H10GB-CU5M-R6-N-C	112-00212	Cable,10GBase Copper SFP+ 5m,-C
X6536-R6	112-00090	Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op
X6536-R6-C	112-00090	Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op,-C
X6536-R6-N-C	112-00090	Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op,-C
X6537-R6	112-00091	Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op
X6537-R6-C	112-00091	Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op,-C
X6537-R6-N-C	112-00091	Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op,-C
X65420	112-00508	Cable,ASSY,USB 2.0 MICRO-B,USB-A,2M
X6546-R6	112-00074	Cable,Cntlr-Shelf/Switch,30m,LC/SC,Op
X6547-R6	112-00073	Cable,Cntlr-Shelf/Switch,5m,LC/SC,Op
X6553-R6	112-00188	Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op
X6553-R6-C	112-00188	Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op,-C
X6553-R6-N-C	112-00188	Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op,-C
X6554-R6	112-00189	Cable,Cntlr-Shelf/Switch,15m,LC/LC,Op
X6554-R6-C	112-00189	Cable,OPT,50u,2GHz/KM,MM,LC/LC,15M,-C,R6
X6554-R6-N-C	112-00189	Cable,OPT,50u,2GHz/KM,MM,LC/LC,15M,-C,R6,-C
X6560-R6	112-00194	Cable,Ethernet,0.5m RJ45 CAT6
X6560-R6-C	112-00194	Cable,Ethernet,0.5m RJ45 CAT6,-C
X6560-R6-N-C	112-00194	Cable,Ethernet,0.5m RJ45 CAT6
X6561-R6	112-00195	Cable,Ethernet,2m RJ45 CAT6
X6561-R6-C	112-00195	Cable,Ethernet,2m RJ45 CAT6,-C
X6561-R6-N-C	112-00195	Cable,Ethernet,2m RJ45 CAT6,-C
X6562-R6	112-00196	Cable,Ethernet,5m RJ45 CAT6
X6562-R6-C	112-00196	Cable,Ethernet,5m RJ45 CAT6,-C
X6562-R6-N-C	112-00196	Cable,Ethernet,5m RJ45 CAT6,-C
X6566B-05-N-C	112-00297	Cable,Direct Attach CU SFP+ 10G,0.5M,-C
X6566B-05-R6	112-00297	Cable,Direct Attach CU SFP+ 10G,0.5M
X6566B-05-R6-C	112-00297	Cable,Direct Attach CU SFP+ 10G,0.5M,-C
X6566B-2-N-C	112-00299	Cable,Direct Attach CU SFP+ 10G,2M,-C
X6566B-2-R6	112-00299	Cable,Direct Attach CU SFP+ 10G,2M
X6566B-2-R6-C	112-00299	Cable,Direct Attach CU SFP+ 10G,2M,-C
X6566B-3-N-C	112-00300	Cable,Direct Attach CU SFP+ 10G,3M,-C
X6566B-3-R6	112-00300	Cable,Direct Attach CU SFP+ 10G,3M
X6566B-3-R6-C	112-00300	Cable,Direct Attach CU SFP+ 10G,3M,-C
X6566B-5-N-C	112-00301	Cable,Direct Attach CU SFP+ 10G,5M,-C
X6566B-5-R6	112-00301	Cable,Direct Attach CU SFP+ 10G,5M
X6566B-5-R6-C	112-00301	Cable,Direct Attach CU SFP+ 10G,5M,-C
X6577-R6	112-00238	Cable,Ethernet,30m RJ45 CAT6
X6577-R6-C	112-00238	Cable,Ethernet,30m RJ45 CAT6,-C
X6577-R6-N-C	112-00238	Cable,Ethernet,30m RJ45 CAT6,-C
X6585-R6	112-00291	Cable,Ethernet,3m RJ45 CAT6
X6585-R6-C	112-00291	Cable,Ethernet,3m RJ45 CAT6,-C
X6585-R6-N-C	112-00291	Cable,Ethernet,3m RJ45 CAT6,-C
X6592-R6	112-00246	Cable,Ethernet,10m RJ45 CAT6
X6592-R6-N-C	112-00246	Cable,Ethernet,10m RJ45 CAT6,-C
X6593-R6	112-00247	Cable,Ethernet,20m RJ45 CAT6
X6593-R6-C	112-00247	Cable,Ethernet,20m RJ45 CAT6,-C
X6593-R6-N-C	112-00247	Cable,Ethernet,20m RJ45 CAT6,-C
X66020A-R6	112-00429	Cable,Storage,MiniSAS HD,QSFP,12G,1m
X66020A-R6-C	112-00429	Cable,Storage,MiniSAS HD,QSFP,12G,1m,-C
X66021A-R6	112-00430	Cable,Storage,MiniSAS HD,QSFP,12G,2m
X66021A-R6-C	112-00430	Cable,Storage,MiniSAS HD,QSFP,12G,2m,-C
X66022A-R6	112-00431	Cable,Storage,MiniSAS HD,QSFP,12G,5m
X66022A-R6-C	112-00431	Cable,Storage,MiniSAS HD,QSFP,12G,5m,-C
X66030A	112-00435	Cable,12Gb,Mini SAS HD,0.5m
X66030A-C	112-00435	Cable,12Gb,Mini SAS HD,0.5m,-C
X66030A-K-N	112-00435	Cable,12Gb,Mini SAS HD,0.5m
X66030A-N	112-00435	Cable,12Gb,Mini SAS HD,0.5m
X66030A-N-C	112-00435	Cable,12Gb,Mini SAS HD,0.5m,-C
X66031A	112-00436	Cable,12Gb,Mini SAS HD,1m
X66031A-C	112-00436	Cable,12Gb,Mini SAS HD,1m,-C
X66031A-K-N	112-00436	Cable,12Gb,Mini SAS HD,1m
X66031A-N	112-00436	Cable,12Gb,Mini SAS HD,1m
X66031A-N-C	112-00436	Cable,12Gb,Mini SAS HD,1m,-C
X66032A	112-00437	Cable,12Gb,Mini SAS HD,2m
X66032A-C	112-00437	Cable,12Gb,Mini SAS HD,2m,-C
X66032A-K-N	112-00437	Cable,12Gb,Mini SAS HD,2m
X66032A-N	112-00437	Cable,12Gb,Mini SAS HD,2m
X66032A-N-C	112-00437	Cable,12Gb,Mini SAS HD,2m,-C
X66033A	112-00438	Cable,12Gb,Mini SAS HD,3m
X66033A-C	112-00438	Cable,12Gb,Mini SAS HD,3m,-C
X66033A-K-N	112-00438	Cable,12Gb,Mini SAS HD,3m
X66033A-N	112-00438	Cable,12Gb,Mini SAS HD,3m
X66033A-N-C	112-00438	Cable,12Gb,Mini SAS HD,3m,-C
X66034A	112-00439	Cable,12Gb,Mini SAS HD,5m
X66034A-C	112-00439	Cable,12Gb,Mini SAS HD,5m,-C
X66034A-K-N	112-00439	Cable,12Gb,Mini SAS HD,5m
X66034A-N	112-00439	Cable,12Gb,Mini SAS HD,5m
X66034A-N-C	112-00439	Cable,12Gb,Mini SAS HD,5m,-C
X66040A	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-C	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C
X66040A-K-N	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-N	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-N-C	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C
X66041A	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-C	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C
X66041A-K-N	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-N	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-N-C	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C
X66042A	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-C	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C
X66042A-K-N	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-N	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-N-C	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C
X66043A	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-C	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C
X66043A-K-N	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-N	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-N-C	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C
X66044A	112-00453	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,15m
X66045A	112-00454	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,30m
X66046A	112-00455	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,50m
X66047A	112-00456	Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m
X66047A-C	112-00456	Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C
X66047A-N-C	112-00456	Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C
X66048A	112-00457	Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m
X66048A-C	112-00457	Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C
X66048A-N-C	112-00457	Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C
X66100-1	112-00542	Cable,Direct Attach CU QSFP,40Gb,1m
X66100-1-C	112-00542	Cable,Direct Attach CU QSFP,40Gb,1m,-C
X66100-1-K-N	112-00542	Cable,Direct Attach CU QSFP,40Gb,1m
X66100-1-N	112-00542	Cable,Direct Attach CU QSFP,40Gb,1m
X66100-1-N-C	112-00542	Cable,Direct Attach CU QSFP,40Gb,1m,-C
X66100-3	112-00543	Cable,Direct Attach CU QSFP,40Gb,3m
X66100-3-C	112-00543	Cable,Direct Attach CU QSFP,40Gb,3m,-C
X66100-3-K-N	112-00543	Cable,Direct Attach CU QSFP,40Gb,3m
X66100-3-N	112-00543	Cable,Direct Attach CU QSFP,40Gb,3m
X66100-3-N-C	112-00543	Cable,Direct Attach CU QSFP,40Gb,3m,-C
X66100-5	112-00544	Cable,Direct Attach CU QSFP,40Gb,5m
X66100-5-C	112-00544	Cable,Direct Attach CU QSFP,40Gb,5m,-C
X66100-5-K-N	112-00544	Cable,Direct Attach CU QSFP,40Gb,5m
X66100-5-N	112-00544	Cable,Direct Attach CU QSFP,40Gb,5m
X66100-5-N-C	112-00544	Cable,Direct Attach CU QSFP,40Gb,5m,-C
X66120-3	112-00545	Cable,Direct Attach CU 40G QSFP/4x10G SFP,3m
X66120-3-C	112-00545	Cable,Dir. Attach CU 40G QSFP/4x10G SFP,3m,-C
X66120-3-N-C	112-00545	Cable,Dir Attach CU 40G QSFP/4x10G SFP,3m,-C
X66120-5	112-00546	Cable,Direct Attach CU 40G QSFP/4x10G SFP,5m
X66120-5-C	112-00546	Cable,Dir. Attach CU 40G QSFP/4x10G SFP,5m,-C
X66120-5-N-C	112-00546	Cable,Dir Attach CU 40G QSFP/4x10G SFP,5m,-C
X66200-15	112-00330	Cable,Cntlr-Switch OM4,MPO/MPO,15m
X66200-15-C	112-00330	Cable,Cntlr-Switch OM4,MPO/MPO,15m,-C
X66200-15-N-C	112-00330	Cable,Cntlr-Switch OM4,MPO/MPO,15m,-C
X66200-2	112-00326	Cable,Cntlr-Switch OM4,MPO/MPO,2m
X66200-2-C	112-00326	Cable,Cntlr-Switch OM4,MPO/MPO,2m,-C
X66200-2-N-C	112-00326	Cable,Cntlr-Switch OM4,MPO/MPO,2m,-C
X66200-30	112-00331	Cable,Cntlr-Switch OM4,MPO/MPO,30m
X66200-30-C	112-00331	Cable,Cntlr-Switch OM4,MPO/MPO,30m,-C
X66200-30-N-C	112-00331	Cable,Cntlr-Switch OM4,MPO/MPO,30m,-C
X66200-5	112-00328	Cable,Cntlr-Switch OM4,MPO/MPO,5m
X66200-5-C	112-00328	Cable,Cntlr-Switch OM4,MPO/MPO,5m,-C
X66200-5-N-C	112-00328	Cable,Cntlr-Switch OM4,MPO/MPO,5m,-C
X66205-30	112-00261	Cable,Cntlr-Switch OM4,MPO/4x10G LC,30m
X66205-30-C	112-00261	Cable,Cntlr-Switch OM4,MPO/4x10G LC,30m,-C
X66205-30-N-C	112-00261	Cable,Cntlr-Switch OM4,MPO/4x10G LC,30m,-C
X66205-5	112-00260	Cable,Cntlr-Switch OM4,MPO/4x10G LC,5m
X66205-5-C	112-00260	Cable,Cntlr-Switch OM4,MPO/4x10G LC,5m,-C
X66205-5-N-C	112-00260	Cable,Cntlr-Switch OM4,MPO/4x10G LC,5m,-C
X66211A-05	112-00595	Cable,100GbE,QSFP28-QSFP28,Cu,0.5m
X66211A-05-C	112-00595	Cable,100GbE,QSFP28-QSFP28,Cu,0.5m,-C
X66211A-05-K-N	112-00595	Cable,100GbE,QSFP28-QSFP28,Cu,0.5m
X66211A-05-N	112-00595	Cable,100GbE,QSFP28-QSFP28,Cu,0.5m
X66211A-05-N-C	112-00595	Cable,100GbE,QSFP28-QSFP28,Cu,0.5m,-C
X66211A-1	112-00573	Cable,100GbE,QSFP28-QSFP28,Cu,1m
X66211A-1-K-N	112-00573	Cable,100GbE,QSFP28-QSFP28,Cu,1m
X66211A-1-N	112-00573	Cable,100GbE,QSFP28-QSFP28,Cu,1m
X66211A-2	112-00574	Cable,100GbE,QSFP28-QSFP28,Cu,2m
X66211A-2-K-N	112-00574	Cable,100GbE,QSFP28-QSFP28,Cu,2m
X66211A-2-N	112-00574	Cable,100GbE,QSFP28-QSFP28,Cu,2m
X66211A-5	112-00576	Cable,100GbE,QSFP28-QSFP28,Cu,5m
X66211A-5-K-N	112-00576	Cable,100GbE,QSFP28-QSFP28,Cu,5m
X66211A-5-N	112-00576	Cable,100GbE,QSFP28-QSFP28,Cu,5m
X66211B-1-C	112-00573	Cable,100GbE,QSFP28-QSFP28,Cu,1m,-C
X66211B-1-N-C	112-00573	Cable,100GbE,QSFP28-QSFP28,Cu,1m,-C
X66211B-2-C	112-00574	Cable,100GbE,QSFP28-QSFP28,Cu,2m,-C
X66211B-2-N-C	112-00574	Cable,100GbE,QSFP28-QSFP28,Cu,2m,-C
X66211B-5-C	112-00576	Cable,100GbE,QSFP28-QSFP28,Cu,5m,-C
X66211B-5-N-C	112-00576	Cable,100GbE,QSFP28-QSFP28,Cu,5m,-C
X66220A-15	112-00586	Cable,100GbE,QSFP28-QSFP28,AOC,15m
X66220A-15-N-C	112-00586	Cable,100GbE,QSFP28-QSFP28,AOC,15m,-C
X66220A-30	112-00589	Cable,100GbE,QSFP28-QSFP28,AOC,30m
X66220A-30-N-C	112-00589	Cable,100GbE,QSFP28-QSFP28,AOC,30m,-C
X66240A-05	1111455002, 112-00639, NDCCGF-0006	Cable,25GbE,SFP28-SFP28,Cu,0.5m
X66240A-05-N-C	1111455002, 112-00639, NDCCGF-0006	Cable,25GbE,SFP28-SFP28,Cu,0.5m,-C
X66240A-2	1111455000, 112-00598, NDCCGF-C102, NDCCGF-N102	Cable,25GbE,SFP28-SFP28,Cu,2m
X66240A-2-N-C	1111455000, 112-00598, NDCCGF-C102, NDCCGF-N102	Cable,25GbE,SFP28-SFP28,Cu,2m,-C
X66240A-5	1111455001, 112-00600, NDCCGJ-C102, NDCCGJ-N105	Cable,25GbE,SFP28-SFP28,Cu,5m
X66240A-5-N-C	1111455001, 112-00600, NDCCGJ-C102, NDCCGJ-N105	Cable,25GbE,SFP28-SFP28,Cu,5m,-C
X66250-15	112-00346	Cable,LC-LC,OM4,15m
X66250-15-C	112-00346	Cable,LC-LC,OM4,15m,-C

Supported Firmware Matrix - FAS9500 Single Chassis HA Pair

Major OS Version	OS Version	Firmeware
BIOS
ONTAP 9.11.1	9.11.1, 9.11.1RC1	18.5*
ONTAP 9.10.1	9.10.1P7, 9.10.1P5-P6, 9.10.1P3-P4	18.5*
BMC
ONTAP 9.11.1	9.11.1, 9.11.1RC1	16.2*
ONTAP 9.10.1	9.10.1P7, 9.10.1P5-P6, 9.10.1P3-P4	16.2*
Footnote:
[1]* Indicates that firmware is bundled with Storage OS Version

Product Certificates - FAS9500 Single Chassis HA Pair

Certificate Name	Geo / Region / Country	Associated Products
EMI and Safety certificates
Declaraion of Similarity NAF-1602	Global	Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500
NAF-1602 G-K-U-SoR	Gabon,Kenya,SaudiArabia,Uganda	Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500
NAF-1602 60950-CB	CB - International	Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500
NAF-1602 62368-CB	CB - International	Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500
NAF-1602 ACMA	ACMA - Australia, New Zealand	Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500
NAF-1602 (Jabil Mexico) BIS	BIS - India	Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500
NAF-1602 (Jabil Singapore) BIS	BIS - India	Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500
NAF-1602 BSMI	BSMI - Taiwan	Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500
NAF-1602 CE DoC	CE - European Union DoC	Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500
NAF-1602 CSA	CSA - United States, Canada	Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500
NAF-1602 EAC	EAC - Armenia, Belarus, Kazakhstan, Kyrgyzstan, Russia	Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500
NAF-1602 IRAM	IRAM - Argentina	Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500
NAF-1602 KC	KC - South Korea	Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500
NAF-1602 Morocco	Morocco	Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500
NAF-1602 NOM	NOM - Mexico	Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500
NAF-1602 NRCS	NRCS - South Africa (Safety)	Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500
NAF-1602 SONCAP	SONCAP - Nigeria	Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500
NAF-1602 TBS	TBS - Tanzania	Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500
NAF-1602 UKRSep	UKRSepro - Ukraine	Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500
NAF-1602 VCCI	VCCI - Japan	Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500

Size, Weight, Acoustic, Power FAS9500 Single Chassis HA Pair

Associated Part No.	Configuration	Rack Units	Weight	Sound Power	Sound Pressure	Line Voltage Actual (Min to Max)	Amps Typical	Amps Worst	Watts Typical	Watts Worst	BTU / Hr Typical	BTU / Hr Worst
FAS9500
FAS9500A	FAS9500 2 PCM 8x200G, 4x25G, 2x10G Base-T	8	220.5 lb (100.0 kg)	7.4 Bels	65 dBA	200 (200 to 240)	11.73	14.56	2345	2911	8004	9937

Category: 24-pcie-slots, 8u, bus-pci-mod, controller_amount_dual, drive-capacity-15pb, drive-count-1440, dual, fas9500, memory-2048gb, netapp,

Shipping Information

Express Computer Systems can ship to virtually any address in the world and provides you with the best shipping rates possible. Cost of shipping varies depending on what service you require, your destination and size of the shipment. Shipping costs will be calculated separately from your order and billed to you post purchase. In the notes section of your order please provide us with your preferred shipping method and we will get back to you.

Custom configured orders ship within 2 business days after all required products are in stock.

Please allow 3 business days for products that are not in stock to arrive to our facility in Irvine, California.

Domestic Shipments

Standard Ground
- Shipping time: 2-7 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-10 business days
- Excludes weekends, holidays or weather delays.
3 Business Days
- Shipping time: 3 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 3-6 business days
- Excludes weekends, holidays or weather delays.
2 Business Days
- Shipping time: 2 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-5 business days
- Excludes weekends, holidays or weather delays.
Overnight / Next Business Day
- Shipping time: 1 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 1-4 business days
- Excludes weekends, holidays or weather delays.

International Shipments

International Economy
- Shipping time: 4-6 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 5-9 business days
- Excludes weekends, holidays or weather delays.
International Priority
- Shipping time: 1-3 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-6 business days
- Excludes weekends, holidays or weather delays.

For more information on shipping view our Shipping Information page or send us a message

ECS Warranty Information

Express Computer Systems (ECS) provides a 1 year parts warranty against defects in material or workmanship that will affect the products functionality. All refurbished items are tested prior to shipping to guarantee up-time upon arrival. If you are having issues with an item we provided please Contact Us and we will do our best to assist you.

What does our ECS warranty cover?
We offer 1 year warranty as standard and additional years can be added to fit your needs. Please reach out to a sales associate via the Contact Us page or live chat for more information on extended coverage options. During the coverage period if your product fails we will offer a Next Business Day replacement. If we are unable to replace the product we will refund its original selling price. Shipping costs and tax are not refundable. Express Computer Systems retains the right to decide whether the goods will be replaced or refunded.

What is not covered by our warranty?
Our warranty does not cover any problem caused by the following conditions:

accidents; misuse; carelessness; electrostatic discharge; shock; temperature or humidity beyond the specifications of the product; improper installation; operation; modification;
any improper use that contravenes the instructions in the user manual;
problems caused by other equipment. Our warranty is void if the product is returned with damaged, removed, counterfeit labels, or any modifications (including any component or external cover removal). Our warranties do not cover data loss or damages to any other equipment. In addition, our warranties do not cover incidental damages, consequential damages, or costs related to data recovery, removal, and installation.

Important notes:

Please ask for additional warranty/coverage that you may require in addition to the standard 1 ECS warranty prior to final purchase. Requesting additional warranty after your purchase can be denied.
FREE technical support is provided on purchased items via phone, email, or live chat.

About Express Computer Systems

Express Computer Systems is committed to transforming our customers’ IT infrastructure with high quality products at affordable costs. Our sales reps and customer support engineers understand our customers rely heavily on advanced technology to run their business but need to do so without breaking the bank.

We specialize in building custom server configurations, custom storage solutions, networking solutions, and components from top manufacturers including HPE, Dell, Cisco, NetApp, Dell EMC, HPE Nimble and many others.

Same-Day Shipping

At Express Computer Systems, we know hardware emergencies can happen at anytime. We also understand that you want to receive the best hardware as quickly as possible. At Express Computer Systems we'll ship the majority of our orders out the same day payment is made. Curious if the item you need will make it out on time? Feel free to contact us directly via the Contact Us link at the bottom, Live Chat feature or (800) 327-0730.

Buy, Sell, Rent, Lease, Trade-In

At Express Computer Systems we not only will sell you equipment at a great value, but we'll also purchase your used Dell, Cisco, NetApp or other networking equipment. Feel free to contact us with the model of the items you're looking to sell and we'll get you a quote ASAP. We also have flexible financing options for your purchasing needs.

In-House Configuration and Testing Lab

Every item we sell is tested on-site in our state-of-the-art hardware engineering lab. We use certified technicians to test every piece of equipment as well as updating all necessary firmware. The highest quality of testing and certification is guaranteed. We warranty all of our items we sell. Ask us today about warranty for a specific item.

NetApp FAS9500 Dual Controller Filer Head (HA)

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

NetApp FAS9500 Dual Controller Filer Head (HA)

Product Specs

Storage Limits

Capacity Limits

Core Cluster Limits

System Maximums and Limits

Processor

Memory

Onboard Ports

Physical Characteristics

System Clearance Dimensions

Environmental Requirements

Storage OS Requirements

Storage and Firmware

Product Standards Compliance

NFS Cluster Limits

WAFL Cluster Limits - All Maximums

Quality of Service Cluster Limits

SAN Cluster Limits - All Maximums

CIFS Cluster Limits - All Maximums

Data Protection Cluster Limits - All Maximums

NVMe/oF Cluster Limits - All Maximums

FlexCache Cluster Limits - All Maximums Cache

S3 Cluster Limits -

Consistency Groups - All Maximums

Flex Array Specifications

Footnotes -

Platform LED for FAS9500 Single Chassis HA Pair

Supported Shelves Drives for FAS9500 Single Chassis HA Pair

Supported RAID Configurations - FAS9500 Single Chassis HA Pair

Supported Adapter Cards - FAS9500 Single Chassis HA Pair

Supported Connections for FAS9500 Single Chassis HA Pair

Platform Mixing Rules - FAS9500 Single Chassis HA Pair

Product Standard Compliance - FAS9500 Single Chassis HA Pair

Supported OS Version - FAS9500 Single Chassis HA Pair

Supported Power Cords for FAS9500 Single Chassis HA Pair

Onboard Ports Configuration: FAS9500 Single Chassis HA Pair

Supported Platform Configurations - FAS9500 Single Chassis HA Pair

Platform Memory Specifications - FAS9500 Single Chassis HA Pair

Supported Rail Kit for FAS9500 Single Chassis HA Pair

Field Replacement Unit Parts - FAS9500 Single Chassis HA Pair

Supported Firmware Matrix - FAS9500 Single Chassis HA Pair

Product Certificates - FAS9500 Single Chassis HA Pair

Size, Weight, Acoustic, Power FAS9500 Single Chassis HA Pair

Shipping Information

ECS Warranty Information

About Express Computer Systems

Related Items

Your Recently Viewed Items

Subscribe

Shop with Confidence
