Maximum Raw Capacity (HA): 5760TB
Maximum Disk Drives: 1440
Controller Form Factor): 6U
Memory (HA): 144GB
Maximum Flash Cache: 8TB
Maximum Flash Pool: 18TB
Disk Type: Fibre Channel, SSD/Flash, NL-SAS, SATA, SAS
Disk Form Factor: 2.5" & 3.5"
Host Connectivity: 1Gb Fibre Channel, 2Gb Fibre Channel, 4Gb Fibre Channel, 8Gb Fibre Channel, 16Gb Fibre Channel, 10Gb Fibre Channel over Ethernet (FCoE), 1GbE, 10GbE
Storage Protocols Supported: CIFS (NAS), Fibre Channel, Fibre Channel over Ethernet (FCoE), iSCSI (IP SAN), NFS (NAS), SMB, FTP, HTTP
Supported RAID: RAID 4, RAID 6 (RAID-DP)
*Available in Single or Dual Controller ('C' Cluster / 'A' Active-Active / 'HA' High-Availability). Call for Details and Pricing
The FAS6250 is designed to deliver availability, performance, scalability, and value so that storage becomes a strategic resource for operating your business more effectively and generating revenue more quickly. The FAS6200 series offers proven SAN performance, superior flash integration, and leading scale-out capabilities to meet a broad range of performance needs while seamlessly scaling to over 69PB.
The FAS6200 series includes High-Availability (HA) capabilities as well as advanced risk identification and service analytics that accelerate fault isolation and resolution, minimizing potential down-time, and accelerating return to service. Each model in the FAS6200 series is designed to offer enterprise performance that can scale to deliver many gigabytes per second and hundreds of thousands of IOPS to satisfy the most demanding workload challenges. All models offer extensive high-bandwidth connectivity options for 10GbE, 8Gb FC and 6Gb SAS and support a range of disk shelves and media that let you optimize for capacity, density or performance.
The FAS6250 can utilize up to 1440 drives and supports up to 5760TB of raw capacity. The FAS6250 has a maximum Flash Cache of 8TB with a maximum Flash Pool of 18TB. The FAS6250 provides 144GB of memory as well as 24 PCIe Expansion Slots in a 12U form factor. FAS6250 utilizes DATA ONTAP 8.1.2 GA and Data ONTAP 8.0.5 and also provides networking support for FC (Fibre Channel), FCoE (Fibre Channel over Ethernet), iSCSI, NFS, CIFS/SMB, HTTP and FTP.
| ACTIVE-ACTIVE DUAL CONTROLLER SPECIFICATIONS | |
|---|---|
| Maximum Drives | 1440 |
| Maximum Raw Capacity | 5760TB |
| Controller Form Factor | Dual enclosure HA; 2 controllers in two 6U chassis, total of 12U |
| Memory | 144GB |
| Flash for Virtual Storage Tier | |
Maximum Flash Cache |
8TB |
Maximum Flash Pool |
18TB |
Combined Total |
18TB |
| PCIe Expansion Slots | 24 |
| Onboard I/O: 10GbE | 8 |
| Onboard I/O: 8Gb FC | 8-32 |
| Onboard I/O: 6Gb SAS | 0-24 |
| Storage Networking Supported | FC, FCoE, iSCSI, NFS, CIFS/SMB, HTTP, FTP |
| OS Version | Data ONTAP 8.1.2 GA and Data ONTAP 8.0.5 |
| Supported Configurations | Highly available controller configurations - Active-Active controller with controller failover and multipath HA storage - Active-Active controller with stretch (nonswitch) and fabric-attached MetroCluster V-Series Clusters of HA pairs |
| Disk Shelves Supported | DS2246 (2U; 24 drives, 2.5" SFF) DS4246 (4U; 24 drives, 3.5" LFF) DS4486 (4U; 48 drives, 3.5" LFF) DS4243 (4U; 24 drives, 3.5" LFF) DS14 Shelves (MK2, MK2-AT, MK4) are supported for upgrades |
| Operating Systems Supported | Windows 2000, Windows Server 2003, Windows Server 2008, Windows XP, Linux, Sun Solaris, AIX, HP-UX, Mac OS, Vmware, ESX |
| ADDITIONAL TECHNICAL SPECIFICATIONS FOR SINGLE AND HA CONFIGURATIONS | |
|---|---|
| Maximum Raw Capacity (HA) | 5760TB |
| Recommended Min Raw Capacity Array LUNs (GB) | N/A |
| Absolute Min Raw Capacity Array LUNs (GB) | N/A |
| Maximum Storage Devices (HA) | 1440 Disks |
| Max DS2246 Shelves (HA) | 60 |
| Max DS4243 Shelves (HA) | 60 |
| Max DS4246 Shelves (HA) | 60 |
| Max DS4486 Shelves (HA) | 30 |
| Max DS14-Class Shelves (HA) | 84 (with IOXM) |
| Max Nodes per Cluster (NAS) | Not Supported |
| Max Nodes per Cluster (SAN) | Not Supported |
| Aggregate Size 32 bit (TiB) | 16 |
| Aggregate Size 64 bit (TiB) | 400 |
| Min Size for an Array LUN Aggregate (GB) | N/A |
| Flex Volume Size 32 bit (TiB) | 16 |
| Flex Volume Size 64 bit (TiB) | 100 |
| Max Infinite Volume Data Constituent Size (TiB) | Not Supported |
| Max Volume Count (Single) | 500 |
| Max Array LUN Size (GB) | N/A |
| Min Array LUN Size (GB) | N/A |
| Min Array LUN Size - Root Volume (GB) | N/A |
| Min Root Volume Size (Single/HA) | 250GB / 250GB |
| Spare Core Array LUN Min Size (GB) | N/A |
| Max RAID Groups in an Aggregate | N/A |
| Block Size (Bytes) | N/A |
| Chassis Height | 10.18" |
| Chassis Width | 17.59" |
| Chassis Depth | 29.00" |
| Rack Units (Single/HA) | 6U/12U (with IOXM) |
| Operating Temperature Range | 50°F to 104°F |
| Storage Temperature Range | -40° to 158°F |
| Input Power Voltage | 100v to 120v, 200v to 240v |
| Processor (Single) | 2x 64-bit 4-Core 2.56Ghz |
| Memory (Single/HA) | 72GB/144GB |
| NVRAM (Single) | 4GB Adapter Card |
| Ethernet Ports (Single) | 2x RJ45 (1Gbps) & 4x SFP+ (10Gbps) |
| Fibre Channel Ports (Single) | 4x SFP+ (8Gbps) |
| UTA2 Ports (Single) | N/A |

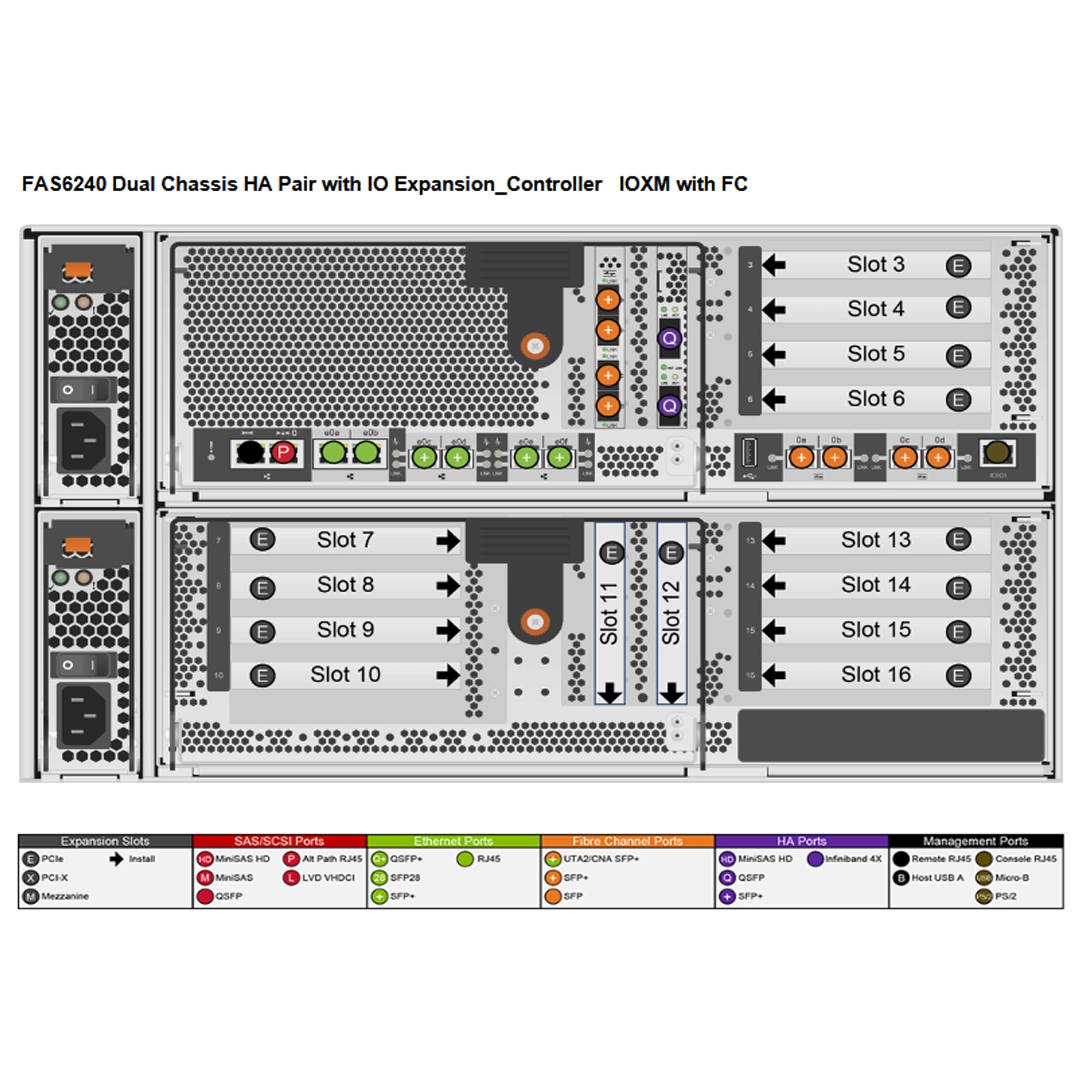

| Expansion Slots (Single) | 16x PCIe3 (with IOXM) |
| SAS Ports (Single) | N/A |
| Max Back-End FC Loops (HA) | 26 (with IOXM) |
| Min Version of Data ONTAP 8 (both modes) | 8.0.5, 8.1.2, 8.2RC1, 8.3RC1 |
| Max Version of Data ONTAP 8 (both modes) | 8.0.5, 8.1.4, 8.2.4, 8.3.2RC1 |
Ask about our NetApp Disk Shelves! We can create custom Turn-Key configurations based on your needs!
