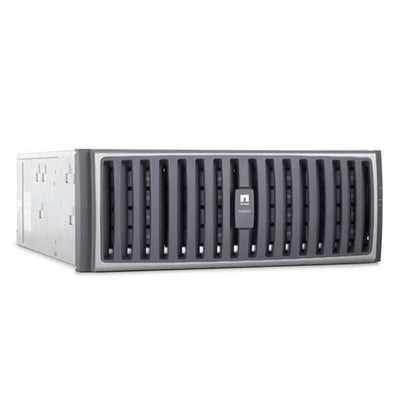

    NetApp FAS2050 Dual Controller Filer Head (HA)


    Price: Request a Quote

    Brand:
    MPN:
    FAS2050HA
    Type:
    Filer Head
    Condition:
    ECS Refurbished & Tested

    Request Quote

    Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.


    -PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
    -SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

    NetApp FAS2050 Dual Controller Filer Head (HA)

    The NetApp FAS2000 series provides a powerful range of technologies to help increase the efficiency of your storage administrators. FAS2000 series rapidly deploys within minutes and also helps to cut storage costs by up to 50% with features such as deduplication and thin provisioning.

    The FAS2050 offers some of the highest internal drive count and advanced I/O connectivity (10GbE, FCoE, additional FC/CbE ports). Easily scalable and able to handle multiple workloads and Windows applications. Offered in easy-to-order, preconfigured systems that include high-capacity drives.

    The FAS2050 utilizes up to 104 drives and can support up to 104TB of max storage in a 4U/20 drive configuration.


    Model & Form Factor
    • Model: NetApp FAS2050
    • Form Factor: 4U
    • PCIe Expansion Slots: 1 Slot (Per Node)
    • Disk Shelves: DS14-Mk2-AT, DS14-Mk2-FC, DS14-Mk4-FC, DS20-ESAS, DS2246, DS4243, DS4246
    • Filer Heads: N/A
    Dimensions & Weight
    • Chassis Heights: 6.89" (17.5 cm)
    • Chassis Width w/o Mounting Flanges: 17.6" (44.7 cm)
    • Chassis Depth w/ Cable Mgmt: 22.52" (57.2 cm)
    • Chassis Weight: 110.0 lb (49.9 kg)

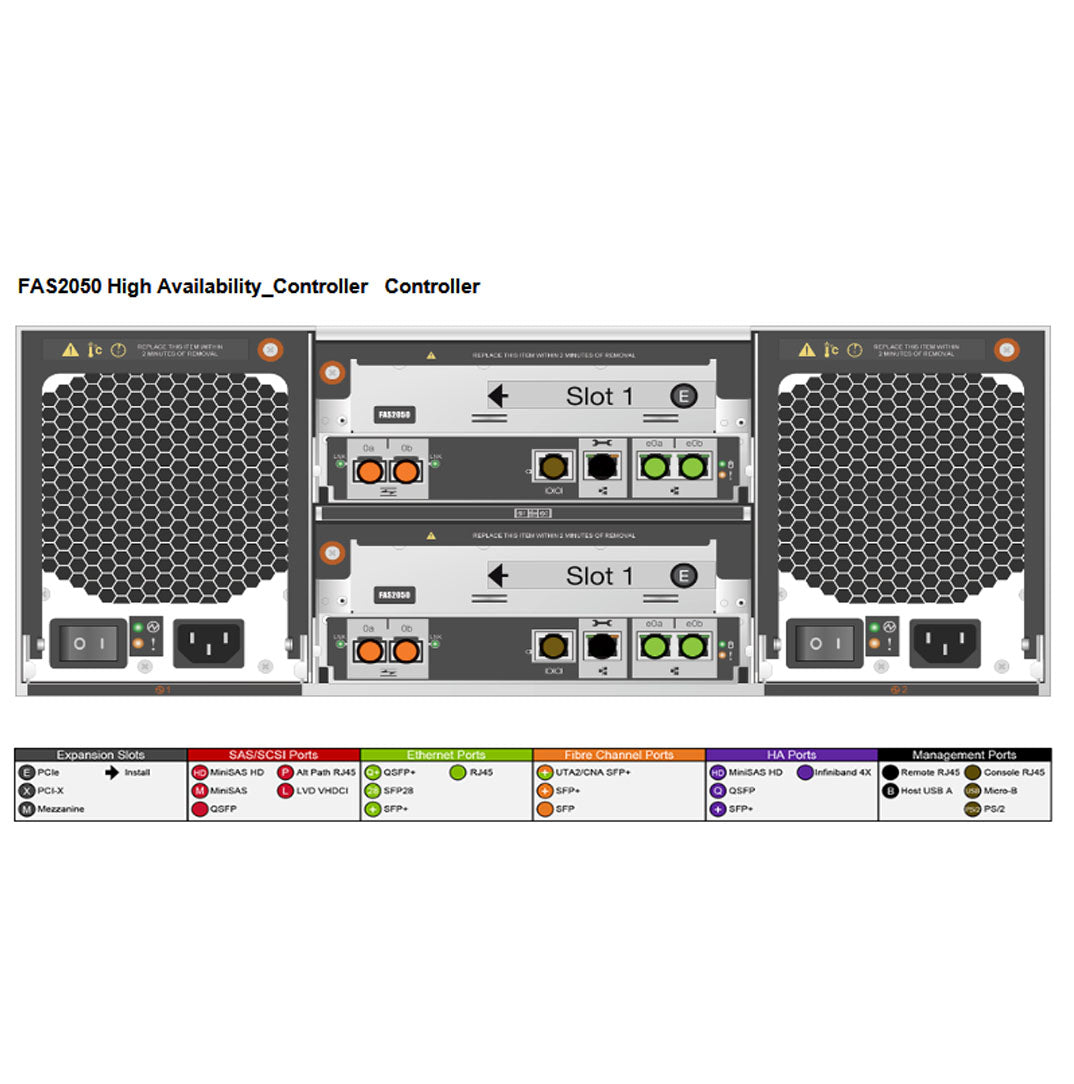

    Controller Specs
    • Controllers: Single Controller (Stand Alone)
    • Max Controllers: 2 (Built-in)
    • PCI Slot (per): 1 Slot
    • Ethernet Ports (per): 2x RJ45 (1Gbps)
    • Fibre Channel Ports (per): 2x SFP (4Gbps)
    • SAS Ports (per): N/A
    • Remote Management: Yes
    • Processor Model (per):1x 32-bit 1 core 2.20 Ghz
    • Memory (Single/HA): 2GB/4GB
    • NVRAM (Single): 0GB
    Storage
    • Max Number of Internal Drives: 20
    • Max Number Drives (total): 104
    • Max Capacity: 104TB
    • Max Number of FC Drives: HA Pair: 84
    • Max Number of SAS Drives: HA Pair: 104
    • Max Number of SATA Drives: HA Pair: 84
    • Drive Interface: FC, SAS, SATA
    • RAID: RAID 4, RAID 6 (RAID-DP)
    • Max Number of DS14-Mk2-AT Shelves: 6 external
    • Max Number of DS14-Mk2-FC Shelves: 6 external
    • Max Number of DS14-Mk4-FC Shelves: 6 external
    • Max Number of DS2246 Shelves: 4 external
    • Max Number of DS4243 Shelves: 4 externa
    • Max Number of DS4246 Shelves: 4 externa

    FAS2050 Parts Lists
    NetApp FAS2050 Drives View Drives
    NetApp FAS2050 Adapters/Modules View Adapters
    NetApp Fas2020 Data Cables View Data Cables
    NetApp FAS2050 Power Cables View Power Cables
    NetApp FAS2050 Rail Kits View Rail Kits
