SKU: FAS2040A

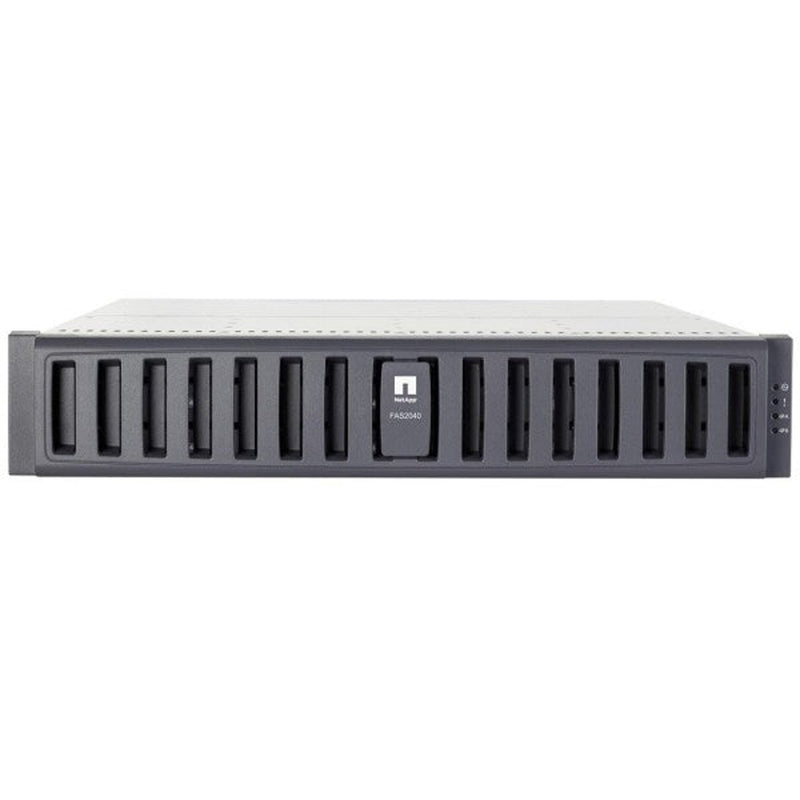

NetApp FAS2040 Single Controller Filer Head (Stand Alone)
Contact For Pricing
Thanks for the request. We'll get back to you with in 24 hours.
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Quick Specs
System Config
- Model: NetApp Fas2040
- Chassis: Single Chassis
- Total Rack Height: 2U
- Controllers: Single Controller (Stand Alone)
- Memory: 1GB
- Processor Model: 1x 32-bit 1 core 2.20 Ghz
- Ethernet Ports (per): 1 x RJ45 (1Gb)
- Fibre Channel Ports (per): 2 x SFP (4Gb)
- Internal Drives (total): 12 x 3.5"
- Max Drives (total): 68
- Max Capacity: 68TB
- Disk Shelves: DS12-ESAS, DS14-Mk2-AT, DS14-Mk2-FC, DS14-Mk4-FC
- Filer Heads: N/A
- Chassis Rack Height: 2U
- Chassis Heights: 3.5" (8.9 cm)
- Chassis Width w/ Mounting Flanges: -
- Chassis Width w/o Mounting Flanges: 17.6" (44.7 cm)
- Chassis Depth w/ Cable Mgmt: 22.52" (57.2 cm)
- Chassis Depth w/o Cable Mgmt: -
- Chassis Weight: up to 66.0 lb (29.9 kg)
Controller Specs
- Max Controllers: 2 (Per Chassis)
- Expansion Module Slot (per): 0
- Ethernet Ports (per): 1 x RJ45 (1Gb)
- Fibre Channel Ports (per): 2 x SFP (4Gb)
- UTA2 Ports (per): N/A
- SAS Ports (per): N/A
- Remote Management: Yes
- Processor Model (per): 1x 32-bit 1 core 2.20 Ghz
- Memory (Single/HA): 1GB/2GB
- NVMEM (Single/HA): 0GB/0GB
- Max Number of Internal Drives: 12 x 3.5"
- Max Number Drives (total): 68
- Max Capacity: 68TB
- Max # of FC Drives: 56
- Max # of SAS Drives: 12
- Max # of SATA Drives: 56
- Drive Interface: FC, SAS, SATA
- RAID: RAID 4, RAID 6 (RAID-DP)
- Max # of DS12-ESAS Shelves: 1 internal
- Max # of DS14-Mk2-AT Shelves: 4 external
- Max # of DS14-Mk2-FC Shelves: 4 external
- Max # of DS14-Mk4-FC Shelves: 4 external
