SKU: DS4243-12X-450GB-15K

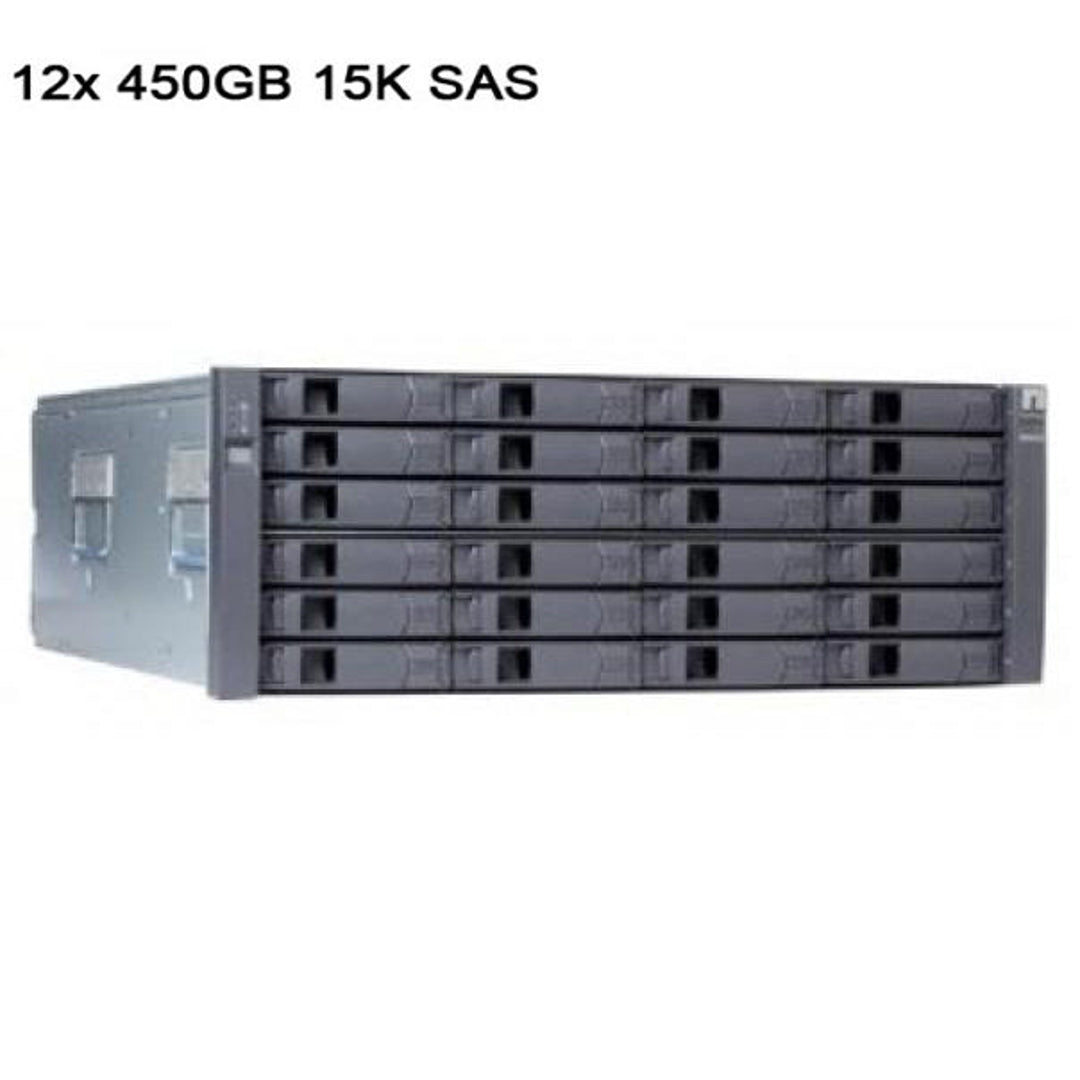

Netapp Ds4243 Expansion Shelf With 12X 450Gb 15K Sas 3Gbps Hdds (X411A-R5) | DS4243-12X-450GB-15K

Name: Netapp Ds4243 Expansion Shelf With 12X 450Gb 15K Sas 3Gbps Hdds (X411A-R5) | DS4243-12X-450GB-15K
Brand: NetApp
SKU: DS4243-12X-450GB-15K
Price: 495.0 USD
Availability: InStock

NetApp

| Disk Shelves

.price-ui--loading { display: block !important; opacity: 1 !important; }

$495.00

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

Refurbished NetApp DS4243 with 12x 450GB SAS 15K HDDs (X411A-R5) Disk Shelf achieves both storage and performance in a 4U form factor. The DS4243 has the ability to use performance SAS drives, SSD's or high-capacity SATA disk drives allowing you to expand your NetApp FAS storage with additional disk capacity for your array. This DS4243 is populated with twelve 450GB SAS 15K Drives (X411A-R5) and comes with a 1-Year Parts Replacement Warranty and all necessary parts.

Parts Included:

1x DS4243 Disk Shelf
12x 450GB 15K SAS 3Gbps Disk Drives (X411A-R5)
2x IOM3 Controllers (X5712A-R5)
4x Power Supplies with Fans - 580W, AC (X518A-R6)
2x .5 QSFP to QSFP SAS Cables (X6557A-R6)
1x Rail Kit II, Cab, R6 (X877B-R6)
4x Power Cable (NA), -C, R6 (X800E-R6-C)

NetApp DS4243 Disk Shelf with 12x 450GB SAS 15K HDDs X411A-R5

NETAPP DS4243 DISK SHELF WITH 12X 450GB SAS 15K HDDS
Form Factor	4U
Drives per Enclosure	24
Supported Drive Types	3.5" 15K SAS 300GB, 450GB, 600GB 3.5" SSD 100GB SSD 3.5" 7.2K SATA 1TB, 2TB, 3TB
Supported Controllers	With Disk Drives: FAS200, FAS/V3070, FAS/3100, FAS/V3200, FAS/V6000. FAS/V6200 series With SSD's: FAS/V3160, FAS/V3170, FAS/V3240, FAS/V3270, FAS/V6040, FAS/V6080, FAS/V6200 series
Data ONTAP Version Required	7.3.3P2 or later 8.0P1 or later SSDs require 8.0.1 or later 3TB SATA requires DATA ONTAP 8.0.2 or later
Shelf architecture and I/O Bandwidth	SAS Operating at 6Gbps Connections require PCIe SAS HBA card or available embedded SAS port
Shelf I/O modules	Dual IOM3 modules
Power Supplies and Cooling	Redundant, Hot-pluggable integrated Power Supply and Fan Assemblies Dual supplies required for high-capacity disk drives and SSD's and Quadruple supplies required for performance disk drives
AC Input Power Voltage	50 - 60 Hz
Weight	110 lbs
Dimensions	Height: 7.00" Width: 19.00" Depth: 24.00"
Temperature	Operating Temp: 50ºF to 104ºF Non-Operating Temp: -40ºF to 158ºF
AC Input Power Voltage (Autoranging, VRMS)	100-120V or 200-240V
Compatible SAS Cables	X6557-R6 - SAS Cable .5M (QSFP-QSFP) (112-00176) X6558-R6 - SAS Cable 2M (QSFP-QSFP) (112-00177) X6559-R6 - SAS Cable 5M (QSFP-QSFP) (112-00178)
Compatible Ethernet Cables	X6560-R6 - RJ45 to RJ45 .5M CAT6 (112-00194) X6561-R6 - RJ45 to RJ45 2M CAT6 (112-00195) X6562-R6 - RJ45 to RJ45 5M CAT6 (112-00196)
Compatible Filers	FAS6280, FAS6280A, FAS6240, FAS6240A, FAS6210, FAS6210A, FAS3270A, FAS3270, FAS3240A, FAS3240, FAS3210A, FAS3210, FAS6080A, FAS6080, FAS6070A, FAS6070, FAS6040A, FAS6040, FAS6030A, FAS6030, FAS3170A, FAS3170, FAS3160A, FAS3160, FAS3140A, FAS3140, FAS3070A, FAS3070, FAS3040, FAS3040A, FAS2240A, FAS2240 FAS2040A, FAS2040, V6280, V6280A, V6240, V6240A, V6210, V6210A, V3270A, V3270, V3240A, V3240, V3210A, V3210, V6080A, V6080, V6070A, V6070, V6040A, V6040, V6030A, V6030, V3170A, V3170, V3160A, V3160, V3140A, V3140, V3070A, V3070, V3040, V3040A
Alternate NetApp Part Numbers	DS4243-1505-12S-PB-R5-C DS4243-1505-12S-PBR-R5-C DS4243-1505-12S-QS-R5 DS4243-1505-12S-R5-C DISK SHELF, 12x 450GB, 15K, 3Gb SAS, IOM3, PB, -C, R5 DISK SHELF, 12x 450GB, 15K, 3Gb SAS, IOM3, PBR, -C, R5 DISK SHELF, 12x 450GB, 15K, 3Gb SAS, IOM3, QS, R5 DISK SHELF, 12x 450GB, 15K, 3Gb SAS, IOM3, -C, R5

NetApp DS4243 Configuration

Size, Weight, Acoustic, Power - DS4243

Associated Part No.	Configuration	Rack Units	Weight	Sound Power	Sound Pressure	Line Voltage Actual (Min to Max)	Amps Typical	Amps Worst	Watts Typical	Watts Worst	BTU/Hr Typical	BTU/Hr Worst
Quickship Half Populated
DS4243-0706-12A-QS-R5	12x500GB 7.2K SATA	4	66.3 lb (30.1 kg)			100 (100 to 120)	1.83	2.74	179	268	611	915
DS4243-0706-12A-QS-R5	12x500GB 7.2K SATA	4	66.3 lb (30.1 kg)			200 (200 to 240)	.90	1.35	176	263	601	898
DS4243-0712-12A-QS-R5	12x1.0TB 7.2K SATA	4	66.3 lb (30.1 kg)			100 (100 to 120)	1.83	2.74	179	268	611	915
DS4243-0712-12A-QS-R5	12x1.0TB 7.2K SATA	4	66.3 lb (30.1 kg)			200 (200 to 240)	.90	1.35	176	263	601	898
DS4243-0724-12A-QS-R5	12x2.0TB 7.2K SATA	4	66.3 lb (30.1 kg)			100 (100 to 120)	1.83	2.74	179	268	611	915
DS4243-0724-12A-QS-R5	12x2.0TB 7.2K SATA	4	66.3 lb (30.1 kg)			200 (200 to 240)	.90	1.35	176	263	601	898
DS4243-0736-12A-QS-R5	12x3.0TB 7.2K SATA	4	62.6 lb (28.4 kg)	6.9 Bels	50 dBA	100 (100 to 120)	2.10	3.00	205	294	700	1004
DS4243-0736-12A-QS-R5	12x3.0TB 7.2K SATA	4	62.6 lb (28.4 kg)	6.9 Bels	50 dBA	200 (200 to 240)	1.03	1.48	201	289	686	987
DS4243-1504-12S-QS-R5	12x300GB 15K SAS	4	75.0 lb (34.0 kg)	6.9 Bels	50 dBA	100 (100 to 120)	2.73	2.95	269	290	917	989
DS4243-1504-12S-QS-R5	12x300GB 15K SAS	4	75.0 lb (34.0 kg)	6.9 Bels	50 dBA	200 (200 to 240)	1.31	1.44	254	282	866	962
DS4243-1505-12S-QS-R5	12x450GB 15K SAS	4	75.0 lb (34.0 kg)	6.9 Bels	50 dBA	100 (100 to 120)	3.29	3.54	324	349	1105	1190
DS4243-1505-12S-QS-R5	12x450GB 15K SAS	4	75.0 lb (34.0 kg)	6.9 Bels	50 dBA	200 (200 to 240)	1.56	1.72	306	339	1043	1156
DS4243-1507-12S-QS-R5	12x600GB 15K SAS	4	75.0 lb (34.0 kg)	6.9 Bels	50 dBA	100 (100 to 120)	3.70	3.95	364	392	1241	1337
DS4243-1507-12S-QS-R5	12x600GB 15K SAS	4	75.0 lb (34.0 kg)	6.9 Bels	50 dBA	200 (200 to 240)	1.75	1.94	344	381	1173	1299
DS4243-SL006-6A-QS-R5	6x100GB,SSD	4	68.6 lb (31.1 kg)	6.6 Bels		100 (100 to 120)	2.13	2.13	208	208	710	710
DS4243-SL006-6A-QS-R5	6x100GB,SSD	4	68.6 lb (31.1 kg)	6.6 Bels		200 (200 to 240)	1.27	1.28	204	204	697	697
DS4243-SL01-12A-QS-R5	12x100GB,SSD	4	76.5 lb (34.7 kg)	6.6 Bels		100 (100 to 120)	1.63	1.96	163	196	557	669
DS4243-SL01-12A-QS-R5	12x100GB,SSD	4	76.5 lb (34.7 kg)	6.6 Bels		200 (200 to 240)	.90	1.00	180	200	615	683
DS4243-SL01-12A-QS-R5	12x100GB,SSD	4	76.5 lb (34.7 kg)	6.6 Bels		215 (200 to 240)	.84	.95	180	205	615	700
Quickship Fully Populated
DS4243-0712-24A-QS-R5	24x500GB 7.2K SATA	4	101.3 lb (45.9 kg)			100 (100 to 120)	2.58	3.47	252	340	861	1161
DS4243-0712-24A-QS-R5	24x500GB 7.2K SATA	4	101.3 lb (45.9 kg)			200 (200 to 240)	1.27	1.71	247	334	843	1140
DS4243-0724-24A-QS-R5	24x1.0TB 7.2K SATA	4	110.0 lb (49.9 kg)	6.6 Bels		100 (100 to 120)	4.42	4.41	438	439	1495	1499
DS4243-0724-24A-QS-R5	24x1.0TB 7.2K SATA	4	110.0 lb (49.9 kg)	6.6 Bels		200 (200 to 240)	2.27	2.21	424	429	1448	1465
DS4243-0724-24A-QS-R5	24x1.0TB 7.2K SATA	4	110.0 lb (49.9 kg)	6.6 Bels		215 (200 to 240)	2.10	1.90	452	409	1542	1395
DS4243-0748-24A-QS-R5	24x2.0TB 7.2K SATA	4	101.0 lb (45.8 kg)	6.6 Bels		100 (100 to 120)	4.62	4.72	458	469	1561	1599
DS4243-0748-24A-QS-R5	24x2.0TB 7.2K SATA	4	101.0 lb (45.8 kg)	6.6 Bels		200 (200 to 240)	2.42	2.42	456	470	1554	1602
DS4243-0772-24A-QS-R5	24x3.0TB 7.2K SATA	4	99.2 lb (45.0 kg)	6.6 Bels		100 (100 to 120)	4.60	4.95	456	495	1557	1690
DS4243-0772-24A-QS-R5	24x3.0TB 7.2K SATA	4	99.2 lb (45.0 kg)	6.6 Bels		200 (200 to 240)	2.38	2.50	448	483	1529	1649
DS4243-1507-24S-QS-R5	24x300GB 15K SAS	4	110.0 lb (49.9 kg)	7.0 Bels		100 (100 to 120)	6.00	5.50	600	550	2048	1878
DS4243-1507-24S-QS-R5	24x300GB 15K SAS	4	110.0 lb (49.9 kg)	7.0 Bels		200 (200 to 240)	3.00	2.80	600	560	2048	1912
DS4243-1507-24S-QS-R5	24x300GB 15K SAS	4	110.0 lb (49.9 kg)	7.0 Bels		215 (200 to 240)	2.80	2.60	602	559	2055	1908
DS4243-1511-24S-QS-R5	24x450GB 15K SAS	4	110.0 lb (49.9 kg)	7.0 Bels		100 (100 to 120)	6.30	6.00	630	600	2150	2047
DS4243-1511-24S-QS-R5	24x450GB 15K SAS	4	110.0 lb (49.9 kg)	7.0 Bels		200 (200 to 240)	3.20	3.00	640	600	2184	2047
DS4243-1511-24S-QS-R5	24x450GB 15K SAS	4	110.0 lb (49.9 kg)	7.0 Bels		215 (200 to 240)	3.00	2.80	645	602	2201	2054
DS4243-1514-24N-QS-R5	24x600GB 15K NSE	4	110.0 lb (49.9 kg)	7.0 Bels		100 (100 to 120)	5.71	5.98	567	595	1833	2028
DS4243-1514-24N-QS-R5	24x600GB 15K NSE	4	110.0 lb (49.9 kg)	7.0 Bels		200 (200 to 240)	2.87	2.99	547	584	1865	1991
DS4243-1514-24S-QS-R5	24x600GB 15K SAS	4	110.0 lb (49.9 kg)	7.0 Bels		100 (100 to 120)	5.71	5.98	567	595	1833	2028
DS4243-1514-24S-QS-R5	24x600GB 15K SAS	4	110.0 lb (49.9 kg)	7.0 Bels		200 (200 to 240)	2.87	2.99	547	584	1865	1991
