    NetApp ATTO FiberBridge 7500N


    Price: Request a Quote

    Brand:
    MPN:
    FB7500N
    Type:
    Switches
    Condition:
    ECS Refurbished & Tested

    Request Quote

    Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.


    -PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
    -SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

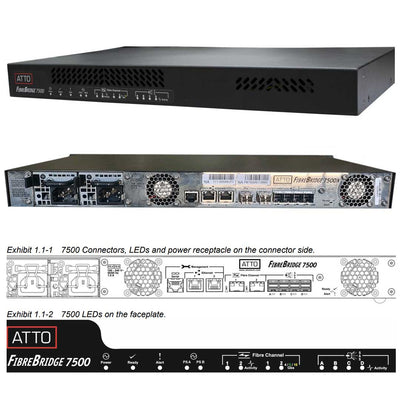

    NetApp ATTO FiberBridge 7500N

    Dimensions
    Width:17 inches
    Length: 11 inches
    Height: 1.7 inches (1U)
    Weight: approximately 10 pounds

    Power
    The 7500 features two hot swappable power supplies and can be operated with only a single power supply inserted. Each power supply has a standard IEC320 power receptacle and cooling fan. The power requirements of the ATTO FibreBridge 7500 plus the power draw of other equipment in the rack must not overload the supply circuit and or wiring of this rack. Input voltage: 100-240; VAC 1A; 50/60Hz.

    Fibre Channel ports
    The dual independent 16Gb/s Fibre Channel ports connect the FastStream 7500 to Fibre Channel hosts using optical SFP+ connectors and multimode fiber optic cable. Make sure all cables are anchored securely at both ends with the proper connectors.

    SAS/SATA ports
    The four (x4) 12Gb/s SAS/SATA connectors connect storage devices into the Storage Area Network (SAN) using mini-SAS HD cable plug connectors.

    Management ports
    Management is provided using the dual 100/1000BASE-T Ethernet ports accessible from two right angle RJ-45 connectors, or the RS-232 serial header console port accessible from the serial RJ-45 connector.

    NetApp ATTO FiberBridge 7500N Spec Sheet

    Manuals

    NetApp ATTO FiberBridge 7500N Spec Sheet

    Manuals

    Product Specs
