Netapp Ds460C Expansion Shelf 60X 8Tb 7.2K Nl-Sas 12Gbps Hdd (X376A) | DS460C-07-8.0-60B-QS
Condition: Refurbished ✓ Pulled from working servers & Tested. ✓ 1-year Parts Warranty.
Warranty | Return Policy
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
NetApp DS460C with 60x 8TB 7.2K NL-SAS 12Gbps HDD (X376A) Disk Shelf achieves both storage and performance in a 4U form factor. The DS460C has the ability to use performance SAS drives, SSD's or Self-Encrypting drives. This DS460C is populated with 60x 8TB 7.2K NL-SAS 12Gbps HDD (X376A), comes with all necessary parts and a 1-Year Parts Replacement Warranty as standard.
- Parts Included:
- 1x DS460C Disk Shelf
- 60x 8TB 7.2K NL-SAS 12Gbps HDD (X376A)
- 2x IOM12 Controller (X5720A)
- 2x Power Supplies with Fans (X5241A) - 750W, AC (X5240A)
- 2x .5 MiniSAS HD to MiniSAS HD SAS Cables (X66030A)
- 1x Rail Kit II, Cab, R6 (X877B-R6)
- 2x Power Cable (NA), -C, R6 (X800E-R6-C)
| NETAPP DS460C DISK SHELF SPECIFICATIONS | |
|---|---|
| Rack units | 4U |
| Drives per enclosure | 60 |
| Drives per rack unit | 15 |
| Drive form factor | 3.5" large form factor |
| Drive carrier | Single drive |
| High-capacity disk drives | 4TB, 8TB, 10TB at 7.2K RPM |
| Performance disk drives | N/A |
| Self-encrypting drives | 10TB at 7.2K RPM AES-256, FIPS 140-2 compliant |
| Solid state drives (full and mixed shelf) | 960GB + 4TB, 960GB + 8TB, 960GB + 10TB |
| Controller Support | FAS9000, FAS8700, FAS8300, FAS8200, FAS8000 series, FAS2700, FAS2600 |
| Shelf I/O modules | Dual IOM12 modules |
| Optical SAS support | ✓ |
| Power supply/cooling fans | Dual, hot-pluggable power supply; independent fan assemblies |
| AC input power voltage (autoranging, VRMS) |
200-240V |
| AC input power frequency | 50–60 Hz |
| DC input power | N/A |
| Weight—fully loaded | 246.9 lbs (112 kg) |
| Dimensions | Height: 7 in. (17.8 cm) Width: 19 in. (48.3 cm) Depth: 36 in. (91.4 cm) |
| Clearance dimensions | Front—cooling: 6 in. (15.3 cm) Front—maintenance: 30 in. (76 cm) Rear—cooling: 6 in. (15.3 cm) Rear—maintenance: 20 in. (50.8 cm) |
| Operating acoustic noise | 7.2 bels LwAd (2 PCMs) |
| Temperature | Operating: 50° F to 104° F (10° C to 40° C) Nonoperating: –40° F to 158° F (–40° C to 70° C) |
| Relative humidity | Operating: 20% to 80% noncondensing; Nonoperating: 10 to 95% noncondensing |
| Altitude | Operating: 0 to 10,000 ft (0 to 3,045 m) Nonoperating: –1,000 to 40,000 ft (–305 to 12,192 m) |

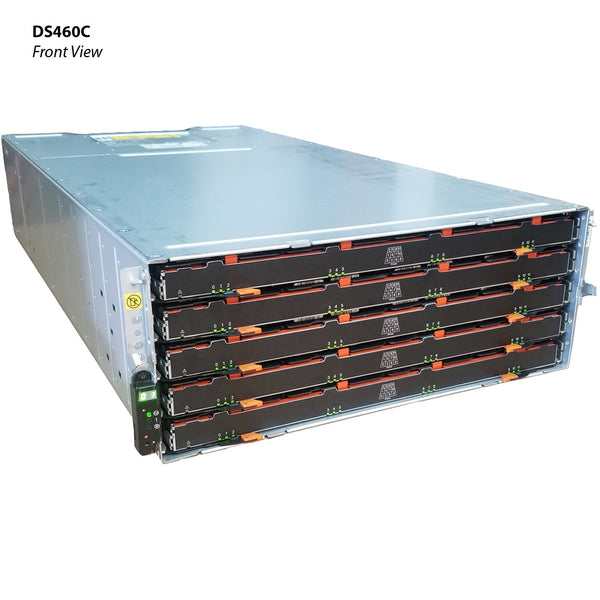

- NetApp DS460C
