Netapp Ds4246 Expansion Shelf 24X 6Tb 7.2K Nl-Sas Hdd (X316A-R6) | DS4246-07A1-24A-QS-R6
Condition: Refurbished ✓ Pulled from working servers & Tested. ✓ 1-year Parts Warranty.
Warranty | Return Policy
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
**OPTIONAL IOM12 12gbps X5720A UPGRADE - ASK FOR PRICE**
- 1x DS4246 Disk Shelf
- 24x 6TB 7.2K NL-SAS Drives 12g (X316A-R6)
- 2x IOM6 Controller (X5713A-R6)
- 2x Power Supplies with Fans - AC (X518A-R6)
- 2x .5 QSFP to QSFP SAS Cables (X6557-R6)
- 1x Universal 19" 4 Post Railkit w/Mounting Hardware
- 2x Power Cable NA (C13-C14), -C, R6 (X800-42U)
NetApp DS4246 with 24x 6TB NL-SAS 7.2K 12g (X316A-R6) Disk Shelf achieves both large capacity storage and performance in a 4U form factor. The DS4246 utilizes SATA and NL-SAS Drives up to 8TB in size to offer a large capacity storage as well as SSD + NL-SAS/SATA performance options for Enterprise businesses. This DS4246 is populated with twenty-four 8TB 7.2K NL-SAS Drives (X318A-R6).
| NETAPP DS4246 DISK SHELF SPECIFICATIONS | |
|---|---|
| Form Factor | 4U |
| Drives per Enclosure | 24 |
| Drives per Rack Unit | 6 |
| Supported Drive Types |
3.5" 100GB SSD X441A-R5 3.5" 1TB 7.2K SATA X302A-R5 3.5" 3TB SED 7.2K NL-SAS X309A-R6 3.5" X488A-R5 900GB 10K SAS
|
| Supported Controllers | FAS9000, FAS8700, FAS8300. FAS8200, FAS2750, FAS2720, FAS2650, FAS2620, FAS8080, FAS8060, FAS8040, FAS8020, FAS6290, FAS6280, FAS6250, FAS6240, FAS6220, FAS6210, F6080, FAS6040, FAS6070, FAS6030, FAS3250, FAS3220, FAS3270, FAS3240, FAS3210, FAS3170, FAS3160, FAS3140, FAS3070, FAS3040, FAS2554, FAS2552, FAS2520, FAS2240-4, FAS2240-2, FAS2220, FAS2040, V6220, V6250, V6290, V6210, V6240, V6280 |
| Min Data ONTAP Version Required | 8.2.4 |
| Shelf I/O modules | Dual IOM6 modules (optional IOM12 module) |
| Optical SAS Support | Yes |
| Power Supplies and Cooling | Dual redundant hot-pluggable power supplies and fan assembly. Dual Power Supplies required for high-capacity disk drives and SSD's. |
| AC input Power Voltage | 50 - 60 Hz |
| Weight (Fully Loaded) | 110 lbs |
| Dimensions | Height: 7.00" Width: 19.00" Depth: 24.00" |
| Temperature | Operating Temp: 50ºF to 104ºF Non-Operating Temp: -40ºF to 158ºF |
| Operating Acoustic Noise | 7.0 bels LwAd (4 PCMs) |
| Relative Humidity |
Operating: 20% to 80% noncondensing Non-operating: 10% to 95% noncondensing |
| Altitude |
Operating: 0 to 10,000ft (0 to 3,045m) Non-operating: -1000ft to 40,000ft (-305m to 12,192m) |
| Compatible Filers | FAS9000, FAS8700, FAS8300. FAS8200, FAS2750, FAS2720, FAS2650, FAS2620, FAS8080, FAS8060, FAS8040, FAS8020, FAS6290, FAS6280, FAS6250, FAS6240, FAS6220, FAS6210, F6080, FAS6040, FAS6070, FAS6030, FAS3250, FAS3220, FAS3270, FAS3240, FAS3210, FAS3170, FAS3160, FAS3140, FAS3070, FAS3040, FAS2554, FAS2552, FAS2520, FAS2240-4, FAS2240-2, FAS2220, FAS2040, V6220, V6250, V6290, V6210, V6240, V6280 |
| Alternate NetApp Part Number(s) |
DS4246-07A1-24A-QS-R6
DS4246-07A1-24A-2P-C
DS4246-07A1-24A-1P-SK-R6 DS4246-07A1-24A-0P-R6-C
DSK SHLF,24x6.0TB,7.2K,6G,0P,-C
DSK SHLF,24x6.0TB,7.2K,6G,1P,SK
Disk Shelf,24x6.0TB,7.2K,6G,2P,-C
DSK SHLF,24x6.0TB,7.2K,6G,QS
|

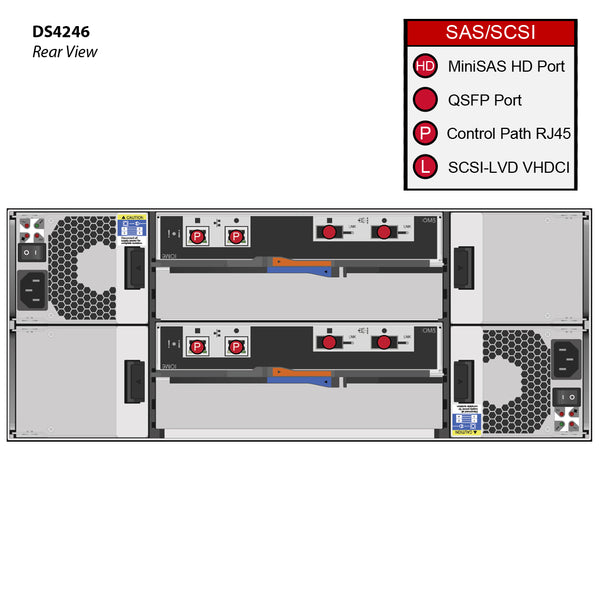

- NetApp DS4246
