Netapp Ds224C Expansion Shelf 12X 30.6Tb Sas 12Gbps Ssd (X359A) | DS224C-SL-30.6-12S-QS
Thanks for the request. We'll get back to you with in 24 hours.
Condition: Refurbished ✓ Pulled from working servers & Tested. ✓ 1-year Parts Warranty.
Warranty | Return Policy
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
NetApp DS224C with 12x 30.6TB SAS 12Gbps SSD (X359A) Disk Shelf achieves both storage and performance in a 2U form factor. The DS224C has the ability to use performance SAS drives, SSD's or Self-Encrypting drives. This DS224C is populated with twelve 30.6TB SAS 12Gbps SSD (X359A), comes with all necessary parts and a 1-Year Parts Replacement Warranty as standard.
Parts Included:
- 1x DS224C Disk shelf
- 12x 30.6TB SAS 12Gbps SSD (X359A)
- 2x X5720A IOM12 Controller 12gbps
- 2x X526A-R6 913W AC PSU
- 1x X5529A-R6 Railkit 19” 4 Post Universal (or sub)
- 2x X66030A .5m HD Mini SAS – HD Mini SAS (longer cables available please ask for custom order)
- 2x X800-42U C13-C14 Power Cables
| Technical Specifications | |
|---|---|
| Drive Count | 24 |
| Physical Characteristics | |
Rack Units |
2 |
Weight (Empty) |
35.27 lb (16 kg) |
Height |
3.35'' (8.5 cm) |
Width with Mounting |
18.9'' (48 cm) |
Width without Mounting Flanges |
17.6'' (44.7 cm) |
Depth with Cable Mgmt |
20.2'' (51.3 cm) |
Depth without Cable Mgmt |
19.06'' (48.4 cm) |
| Clearance Dimensions | |
Front Clearance (Cooling/Maintenance) |
6.02'' (15.3 cm) 22.01'' (55.9 cm) |
Rear Clearance (Cooling/Maintenance) |
12.01'' (30.5 cm) 12.01'' (30.5 cm) |
| Environmental Requirements | |
Operating Temperature Range |
50 to 104 deg F 10 to 40 deg C |
Storage Temperature Range |
-40 to 158 deg F -40 to 70 deg C |
Transit Temperature Range |
-40 to 158 deg F -40 to 70 deg C |
Operating Relative Humidity |
20 to 80 % |
Storage Relative Humidity |
10 to 95 % |
Transit Relative Humidity |
10 to 95 % |
Operating Altitude Range |
0 to 9987.6 ft 0 to 3045 m |
Storage Altitude Range |
-1000.4 to 39989.76 ft -305 to 12192 m |
Transit Altitude Range |
-1000.4 to 39989.76 ft -305 to 12192 m |
Acoustic Noise - Sound Power |
- |
Acoustic Noise - Sound Pressure |
- |
Input Power Voltage |
100 to 120, 200 to 240 |

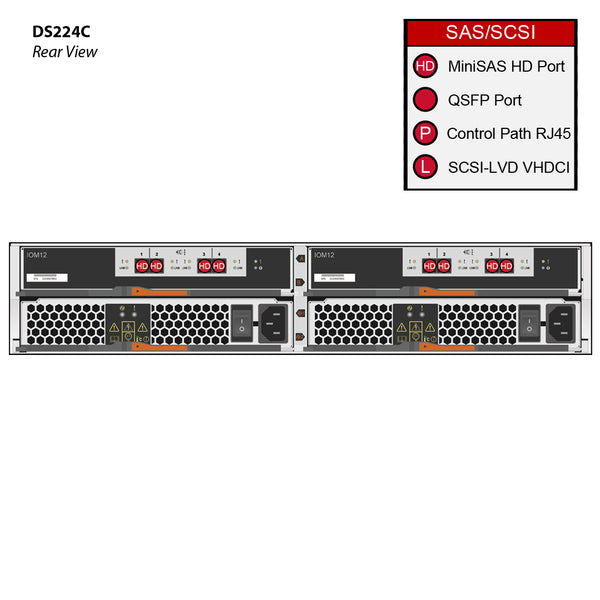

- NetApp DS224C
