Netapp Ds212C Expansion Shelf 12X 10Tb 7.2K Nl-Sas 12Gbps Nse Hdd (X322A) | DS212C-07-10-12N-QS
Condition: Refurbished ✓ Pulled from working servers & Tested. ✓ 1-year Parts Warranty.
Warranty | Return Policy
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Refurbished NetApp DS212C with 12x 10TB 7.2K NL-SAS 12Gbps NSE HDD (X322A) Disk Shelf achieves both storage and performance in a 4U form factor. The DS212C has the ability to use performance SAS drives, SSD's or high-capacity SATA disk drives. This DS212C is populated with twelve 10TB 7.2K NL-SAS 12Gbps NSE HDD (X322A) and comes with a 1-Year Parts Replacement Warranty and all necessary parts.
Parts Included:
- 1x DS212C Disk shelf
- 12x 10TB 7.2K NL-SAS 12Gbps NSE HDD (X322A)
- 2x X5720A IOM12 Controller 12gbps
- 2x X526A-R6 913W AC PSU
- 1x X5529A-R6 Railkit 19” 4 Post Universal (or sub)
- 2x X66030A .5m HD Mini SAS – HD Mini SAS (longer cables available please ask for custom order)
- 2x X800-42U C13-C14 Power Cables
| NetApp DS212C Disk Shelf Specifications | |
|---|---|
| Rack units | 2U |
| Drives per enclosure | 12 |
| Drives per rack unit | 6 |
| Drive form factor | 3.5" large form factor |
| Drive carrier | Single drive |
| High-capacity disk drives | 4TB, 8TB, 10TB at 7.2K RPM |
| Performance disk drives | N/A |
| Self-encrypting drives | 6TB and 10TB at 7.2K RPM AES-256, FIPS 140-2 compliant |
| Solid state drives (full and mixed shelf) | 960GB + 4TB, 960GB + 8TB, 960GB + 10TB |
| Controller Support | FAS9000, FAS8700, FAS8300, FAS8200, FAS8000 series, FAS2700, FAS2600 |
| Shelf I/O modules | Dual IOM12 modules |
| Power supply/cooling fans | Dual, hot-pluggable, integrated power supply/fan assemblies |
| AC input power voltage (autoranging, VRMS) |
100–120V or 200–240V |
| AC input power frequency | 50–60 Hz |
| DC input power | Not available |
| Weight—fully loaded | 60lbs (27.2 kg) |
| Dimensions | Height: 3.4 in. (8.5 cm) Width: 19 in. (48.0 cm) Depth: 19.1 in. (48.4 cm) |
| Clearance dimensions | Front—cooling: 6 in. (15.3 cm) Front—maintenance: 12 in. (30.5 cm) Rear—cooling and maintenance: 25 in. (63.5 cm) |
| Operating acoustic noise | 6.3 bels LwAd (2 PCMs) |
| Temperature | Operating: 50° F to 104° F (10° C to 40° C) Nonoperating: –40° F to 158° F (–40° C to 70° C) |
| Relative humidity | Operating: 20% to 80% noncondensing; Nonoperating: 10 to 95% noncondensing |
| Altitude | Operating: 0 to 10,000 ft (0 to 3,045 m) Nonoperating: –1,000 to 40,000 ft (–305 to 12,192 m) |

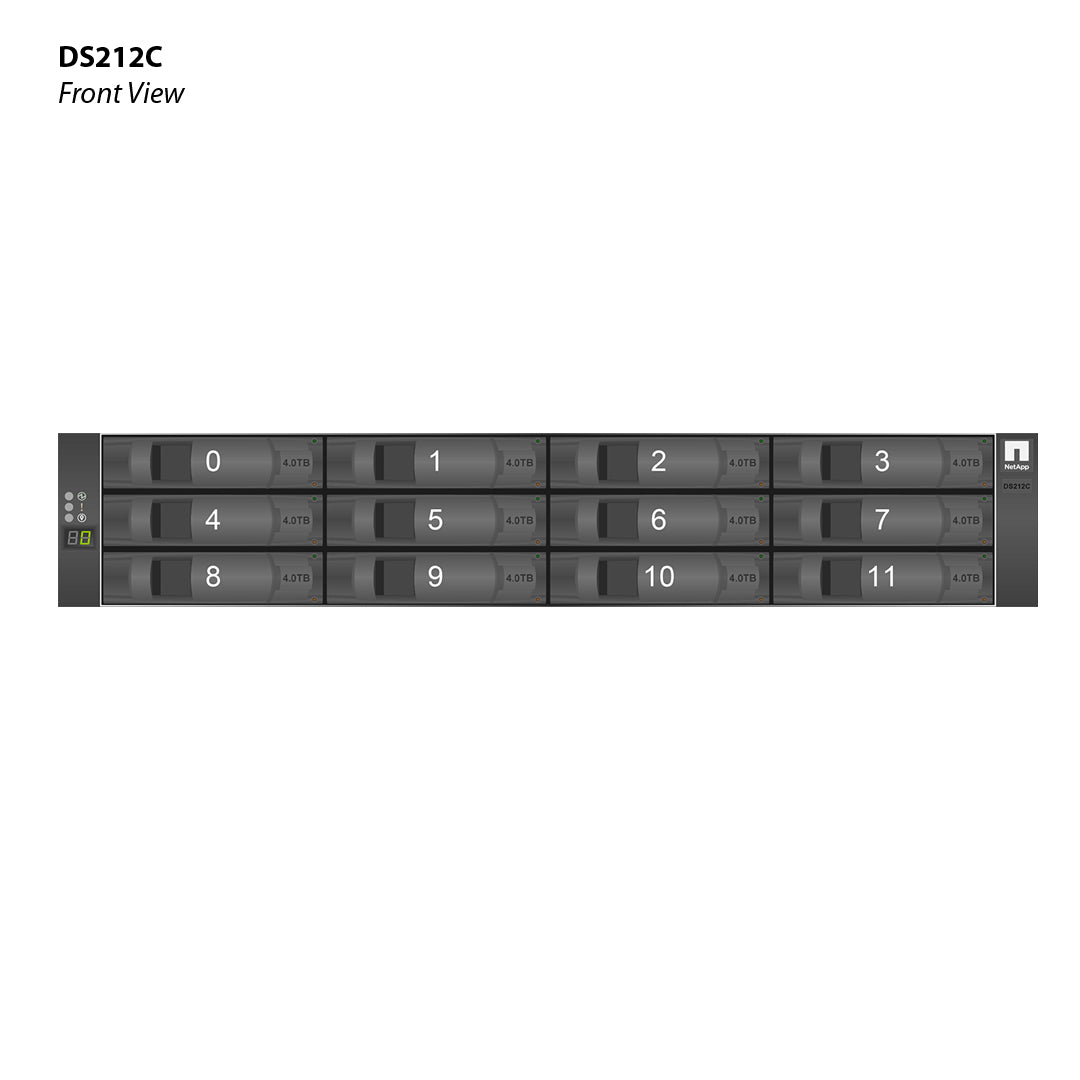

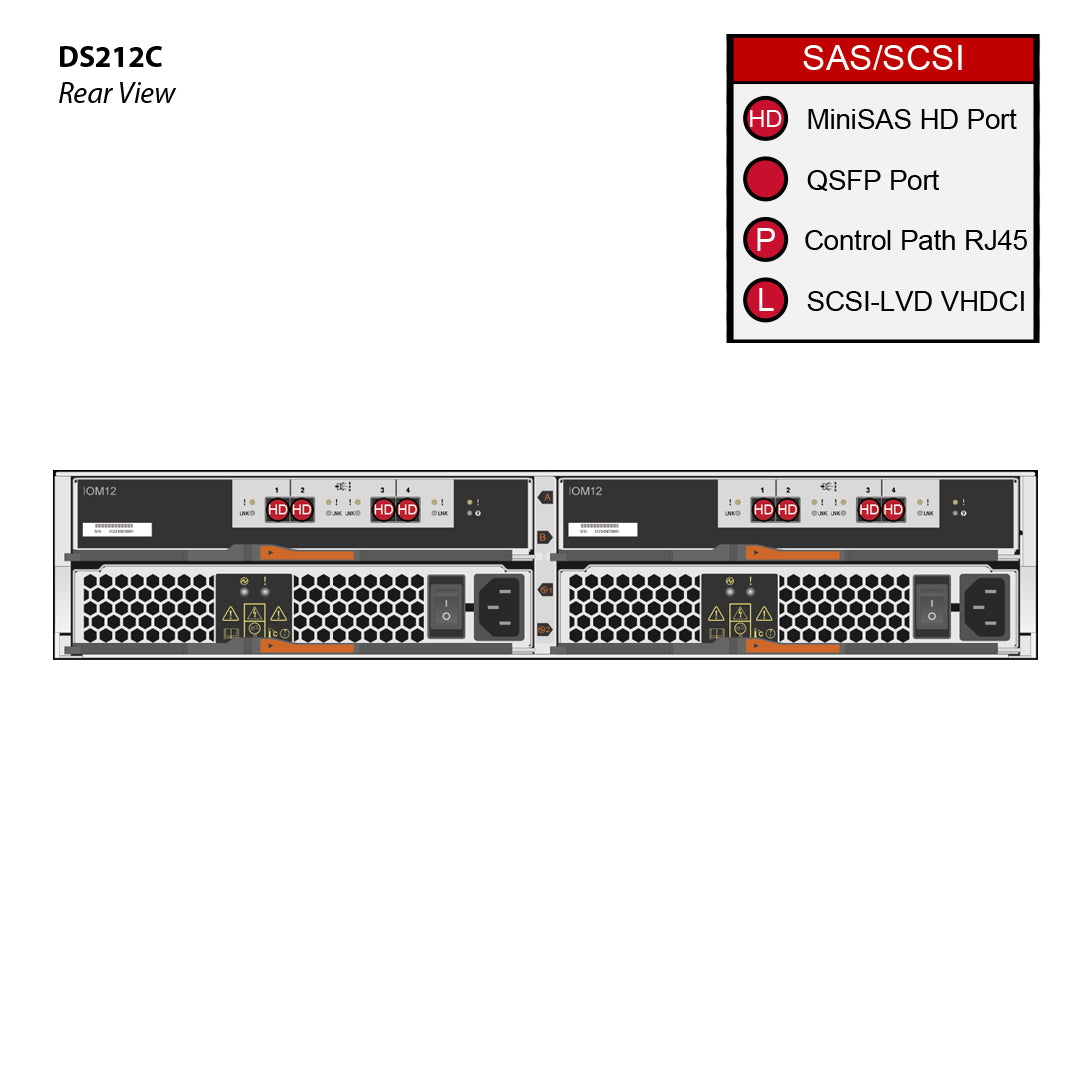

- NetApp DS212C
