NetApp AFF C190A 10GBASE-T Single Chassis HA Pair Filer Head (AFF-C190A-10GBASE-T)

NetApp All Flash Filer (AFF) C190A 10GBASE-T Single Chassis HA Pair Filer Head (AFF-C190A-10GBASE-T)

Price: Request a Quote

Brand:

NetApp

MPN:

AFF-C190A-10GBASE-T

Type:

Flash Filer Head

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

NetApp All Flash Filer (AFF) C190A 10GBASE-T Single Chassis HA Pair Filer Head (AFF-C190A-10GBASE-T)

NetApp All Flash Filer (AFF) C190 Entry-Level Storage

Organizations large and small are navigating at arapid pace of change in a data-driven economy.Delivering data simply, quickly, and cost-effectivelyis essential to driving business growth, and hybridcloud has emerged as the most efficient way to meetchanging business needs. Every IT organization istrying to determine how to modernize with hybridcloud, and all-flash storage systems are criticalon premises to speed up enterprise applications.However, small enterprises have continued to usehard disk storage systems because of the high costof all-flash solutions.

All-flash storage systems are no longer out of reach.The NetApp® AFF C190 storage system poweredby NetApp ONTAP® data management software,offers a simple, smart, and secure enterprise-classflash system for an affordable price. Designed forIT generalists, it helps you meet new businessrequirements with a modern all-flash array thatprovides comprehensive data services, integrateddata protection, seamless scalability, new levels ofperformance, and cloud integration.

One system to rule every workloadAll-flash storage systems are critical for speeding up enterprise applications and creating a modern hybrid cloudinfrastructure. They provide comprehensive data services, integrated data protection, seamless scalability, new levelsof performance, and cloud integration. That said, the high cost of all-flash systems forces most small enterprises tostick with hard disk storage. Or at least it used to. With NetApp’s AFF C190 entry-level storage system, the benefits ofall-flash are no longer out of reach. Not only is it easy to install and deploy, it provides the security you need withthe flexibility to connect to cloud—all at a lovely little price.

Key benefitsSimple

Provision storage in minutes.
Manage file and block data on a single system.
Effortlessly connect to any public cloud.

Smart

Lower TCO with data reduction.
Accelerate application performance and improve response time.
Optimize availability and performance.

Secure

Safeguard your data.
Protect your data at rest and in transit.
Never lose data with zero-data-loss protection.

NetApp All Flash Filer (AFF) C190 Entry-Level Storage Array Specifications

Controllers	Active-Active Dual Controller 2U Chassis
Capacity	Up to 24 960GB SSDs, 50TB Total
Connectivity	4 ports—12Gb/6Gb SAS 1GbE management port, USB port 8 ports—FC target (16Gb) 8 ports—FCoE target, UTA2 12 ports—10GbE ports, UTA2 12 ports—10GBASE-T
Operating System	ONTAP 9.6 GA or later
Protocols	FC, FCoE, iSCSI, NFS, pNFS, SMB

Storage Limits

Max # of Drives (Total)	Max # of Internal Drives	Max # of MSATA Drives	Max # of NL-SAS Drives	Max # of SAS Drives	Max # of SATA Drives	Max # of NVMe SSD Drives	Max # of SSD Drives	Max # of DS212C Shelves	Max # of DS2246 Shelves	Max # of DS224C Shelves	Max # of DS4243 Shelves	Max # of DS4246 Shelves	Max # of DS4486 Shelves	Max # of DS460C Shelves	Max # of FS424C Shelves	Max # of NS224 Shelves
24	24	-	-	-	-	-	24	-	-	1 internal + 0 external	-	-	-	-	-	-

Capacity Limits

Marketing Max Raw Capacity - Node	HA Pair	Cluster	Effective Capacity - Node	HA Pair	Cluster
23040	23040	-	102263.04	102263.04	-

Core Cluster Limits

Max SVM's - NAS	Max LIF's - NAS	Max Connections - NAS	Max Flexible Volumes - NAS	Max Flexible Volumes with DPO - NAS	Max Lock Manager Locked Objects	Max Intercluster LIFs - Node	Min Root Aggregate (MiB) - Node	Min Root Aggregate (with core dump device) (MiB)	Min Root Volume (GiB) - Node	Min Root Volume (with core dump device) (GiB)	Max IPsec Policies	Max # of IPspaces	Max Auditing-Enabled SVMs - Cluster
Node:- HA Pair:- Cluster:512	Node:512 HA Pair:512 Cluster:3072	Node:100000 HA Pair(Non-Scalable):100000	Aggregate (Single data Agg. per Node):- Aggregate (Multiple data Agg. per Node):- Node:1000 HA Pair:2000 Cluster:15000	Node:1500 HA Pair:3000 Cluster:12000	Node:1200000 HA Pair:1200000 Cluster:12288000	8	191488	-	150	-	SVM:256 Cluster:1500	-	50

System Maximums and Limits

Max Nodes per Cluster (NAS / SAN)	Max FabricPool Size	Max FlexGroup Data Constituent Size	Max Infinite Volume Data Constituent Size	Min Root Volume Size	NetApp Volume Encryption
24 / 12	16800 TiB	100 TiB	Not Supported	150 GiB [1]	Supported

Processor

Processor Model	Processor Architecture	Processor Speed	Processor Count (Per Node)	Processor Count (Per Config)	Processor Cores (Per CPU)	Processor Cores (Per Node)	Processor Cores (Per Config)
64-bit 8-core 1.50 Ghz	64 bit	1.50 Ghz	1	2	8	8	16

Memory

NVRAM (Per Node)	NVRAM (Per Config)	NVME (Per Node)	NVME (Per Config)	NVMEM (Per Node)	NVMEM (Per Config)	RAM (Per Node)	RAM (Per Config)
-	-	-	-	4 GB	8 GB	32 GB	64 GB

Onboard Ports

Ethernet Ports	Fibre Channel	Ports UTA2 Ports	Expansion Slots	SAS Ports
8 x RJ45 (10Gb) + 4 x SFP+ (10Gb)	-	-	-	4 x MiniSAS HD (12Gb)

Physical Characteristics

Rack Units	Chassis Height	Chassis Width with Mounting Flanges	Chassis Width without Mounting Flanges	Chassis Depth with Cable Mgmt	Chassis Depth without Cable Mgmt	Chassis Weight
2	3.35" (8.5 cm)	18.9" (48 cm)	17.6" (44.7 cm)	24.13" (61.3 cm)	19.02" (48.3 cm)	See Weights by configuration

System Clearance Dimensions

Front Clearance (Cooling)	Front Clearance (Maintenance)	Rear Clearance (Cooling)	Rear Clearance (Maintenance)
6.03" (15.3 cm)	24.03" (61 cm)	6.03" (15.3 cm)	13" (33 cm)

Environmental Requirements

Operating	Storage	Transit	Acoustic Noise	Input Power Voltage
Tempature: 41 to 113 deg F - 5 to 45 deg C Humidity: 8 to 90 % Altitude: Up to 10000.0 ft - Up to 3048.0 m	Tempature: -40 to 158 deg F - -40 to 70 deg C Humidity: 10 to 95 % Altitude: Up to 40000.0 ft - Up to 12192.0 m	Tempature: -40 to 158 deg F - -40 to 70 deg C Humidity: 10 to 95 % Altitude: Up to 39989.8 ft - Up to 12192 m	Sound Power: 6.9 bels Sound Pressure: 51 dBA	100 to 120 200 to 240

Storage OS Requirements

Full OS Matrix	Recommended Version	Minimum OS	Maximum OS
View Full OS Report Below	9.11.1, 9.11.1P1	9.11.1RC1	9.11.1P1

Storage and Firmware

Full Firmware Matrix	BIOS	BMC
Full Firmware Report Below	11.15*	11.8*

Product Standards Compliance

Full Compliance and Certificates Report	Cert. EMC/EMI	Cert. Safety	Cert. Safety/EMC/EMI	Cert. Safety/EMC/EMI/RoHS	Standard Safety/EMC/EMI	Standard Safety
Compliance and Certificates Report Below	AMCA, FCC, ICES, KC, Morocco, VCCI	BIS, CB, CSA, G_K_U-SoR, IRAM, NOM, NRCS, SONCAP, TBS	EAC, UKRSEPRO	BSMI, CE DoC, UKCA DoC	BS-EN-55024, BS-EN55035, CISPR 32, EN55022, EN55024, EN55032, EN55035, EN61000-3-2, EN61000-3-3, FCC Part 15 Class A, IC more...	ANSI/UL60950-1, ANSI/UL62368-1, BS-EN62368-1, CAN/CSA C22.2 No. 60950-1, CAN/CSA C22.2 No. 62368-1, CNS 14336, EN60825-1 more...

NFS Cluster Limits

Max Export Policies - Cluster	Max Export Rules - Cluster	Max NFSv4 Access Control Entries	Max Client Objects	Max pNFS objects
24000	200000	1024	Node:10000 HA Pair:10000	Node:524288 HA Pair:524288 Cluster:1048576

WAFL Cluster Limits - All Maximums

Size 64-bit Aggregate (TiB)	Size 64-bit Volume (TiB)	File size 64-bit Volume (TiB)	Volume Snapshot Copies	Character length for Snapshot copy names	Hard links - File	inodes/files - Volume	Number of qtrees	Concurrent DataMotion for Volumes ops
50	100	16	Volume:1023 Node:1023000 HA Pair:2046000	255	100000	2000000000	Volume:4995 Node:100000 HA Pair:200000 Cluster:400000	Node:16 HA Pair:16

Quality of Service Cluster Limits

Max Policy Groups - Cluster	Max QoS User Workloads - Cluster
12000	40000

SAN Cluster Limits - All Maximums

# of storage virtual machines (SVMs) - SAN	# of flexible volumes - SAN	# of Flexible Vol with DPO -	# of LUNs	LUN mappings	LUN size (TiB) - LUN	FC queue depth available	# of SAN Hosts (ITNs)	# of LIFS - iSCSI	# of LIFS - FCP	# of igroups	# of Initiators	# of Portsets	# of iSCSI sessions
Node:125 HA Pair:250 Cluster:1000	Single data Aggregate:- Multiple data Aggregates:- Node:1000 HA Pair:2000 Cluster:12000	Node:1500 HA Pair:3000 Cluster:12000	Valume:1024 Node:8192 HA Pair:16384 Cluster:65536	Node:8192 HA Pair:16384 Cluster:65536	16	2048	Port:512 Node:4096 HA Pair:8192 Cluster:32768	Port:32 Portset:32 Node:512 HA Pair:1024 Cluster:4096	Port:32 Portset:32 Node:512 HA Pair:1024 Cluster:4096	Node:2048 HA Pair:4096 Cluster:16384	igroup:256 Node:2048 HA Pair:4096 Cluster:16384	Node:2048 HA Pair:4096 Cluster:16384	Node:4096 HA Pair:8192 Cluster:32768

CIFS Cluster Limits - All Maximums

# of Connected Shares	# of Regular Shares	# of Open files	# of Local users - Cluster	# of Local groups - Cluster	# of Local group members - Cluster
Node:800000 HA Pair:800000	Node:- HA Pair:- Cluster:60000	Connection:65536 Node:600000 HA Pair:600000	5000	10000	30000

Data Protection Cluster Limits - All Maximums

NDMP Sessions	Data Protection Mirrors	Load Sharing Mirrors - NAS SVM	Concurrent Snap Mirror / SnapVault transfers - Node	DP Mirror fan-out - Volume	LS Mirror fan-out - NAS SVM	# of Clusters that can be peered - Cluster	Volumes, SnapMirror relationship	SnapMirror Synchronous relationships	# of Consistency Groups in SM-BC relationships	# of Constituent Volumes in SM-BC relationships	Flexible Volumes in SVM DR	SVM Disaster recovery - Cluster	# of Concurrent SVM Migration - Cluster	# of Volumes with SVM Migration - SVM	# of Cluster for SVM Migration - Cluster
Node:36 HA Pair (Non-Scalable):36	Volume:1 Node:1000 HA Pair:2000 Cluster:15000	2	100	8	2	255	FlexGroup:200 FlexGroup-Node:50 HA Pair:1000 Cluster:6000	Volume:1 Node:400 HA Pair (Non-Scalable):400	HA Pair (Non-Scalable):50	Consistency group:16 HA Pair (Non-Scalable):400	SVM:300 HA Pair:1000	128	1	100	6

NVMe/oF Cluster Limits - All Maximums

# of Storage virtual machines (SVMs), NVMe/oF - Cluster	# of Flexible volumes, NVMe/oF	# of Flexible volumes with DPO, NVMe/oF	# of Namespaces	# of Subsystems	# of Namespace Mappings	Namespace Size	I/O queue depth available - NVMe/FC - Queue	I/O queue count available - NVMe/FC - Controller	Hosts - Subsystem	LIFS, NVMe/oF	# of Controllers - NVMe/FC - Port	I/O Queue Count, NVMe/TCP - Controller	I/O Queue Depth - NVMe/TCP	Controllers, NVMe/TCP - Node
32	Node:1000 HA Pair:2000 Cluster:12000	Node:1500 HA Pair:3000 Cluster:12000	Volume:1024 Node:8192 HA Pair:16384 Cluster:65536	Node:512 Node:512	Subsystem:1024 Node:8192 HA Pair:16384 Cluster:65536	16	-	-	64	Port:16 SVM:8 Node:32 HA Pair:32 Cluster:32	-	2	128	1024

FlexCache Cluster Limits - All Maximums Cache

Degree of fan-out - Origin	Origin Volumes	Constituent Volumes	Volumes	Origin ConstituentVolumes
100	Node:100 HA Pair:200	Node:800 HA Pair:1600	Node:100 HA Pair:200	Node:800 HA Pair:1600

S3 Cluster Limits -

Max # of Buckets	Max # of Objects - Bucket	Max # of Users	Max Size of the Bucket (PB) - Vserver
Vserver:12000 Cluster:12000	400000000000	Vserver:4000 Cluster:96000	20

Consistency Groups - All Maximums

Number of Consistency Groups - Cluster	Consistency Groups and Parents Consistency Groups - Cluster	Number of Parent Consistency Groups - Cluster	Child Consistency Groups in a Parent Consistency Groups - Parent Group	Flexible Volumes in a Consistency Group	Flexible Volumes for Child Consistency Groups under a Parent Group	Flexible Volumes in a Child Consistency Group
15000	15000	15000	5	80	80	80

Flex Array Specifications

Third Party Array Compatibility	Array LUN Absolute Min Raw Capacity	Array LUN Block Size	Default Array LUN RAID Group Size	Array LUN Max RAID Groups Per Aggregate	Max Array LUN Size	Max Array LUN Raid Group Size	Min Array LUN Size	Min Array LUN Root Vol Size	Min Array LUN RAID Group Size	Min Array LUN Aggregate Size	Array LUN neighborhood Visible Assigned Devices	Array LUN Recommended Min RAW Capacity	Spare Core Array LUN Min Size
-	-	-	-	-	-	-	-	-	-	-	-	-	-

Footnotes -

Notes ID	Notes Description
[1]	The root volume and aggregate on this system are significantly smaller than on previous generation systems. Core dump files that used to be written to the root volume are now written to the controller’s boot media, instead.

Platform LED for AFF C190A 10GBASE-T Single Chassis HA Pair

LED Label	LED Name	Type	Status Indicator	Description
1	Chassis Power Config	-	On Green	At least one of the two PSUs is delivering power to the system.
-	-	-	Off	Neither PSU is delivering power to the system.
2	Chassis Attention LED, front	-	On Amber	The system halted or a fault occurred in the chassis.
-	-	-	Off	The system is operating normally.
3	Location LED on chassis front	-	On or flashing blue	The LED has been manually activated to aid in physically locating equipment
-	-	-	Off	The LED has not been manually activated to aid in physically locating equipment

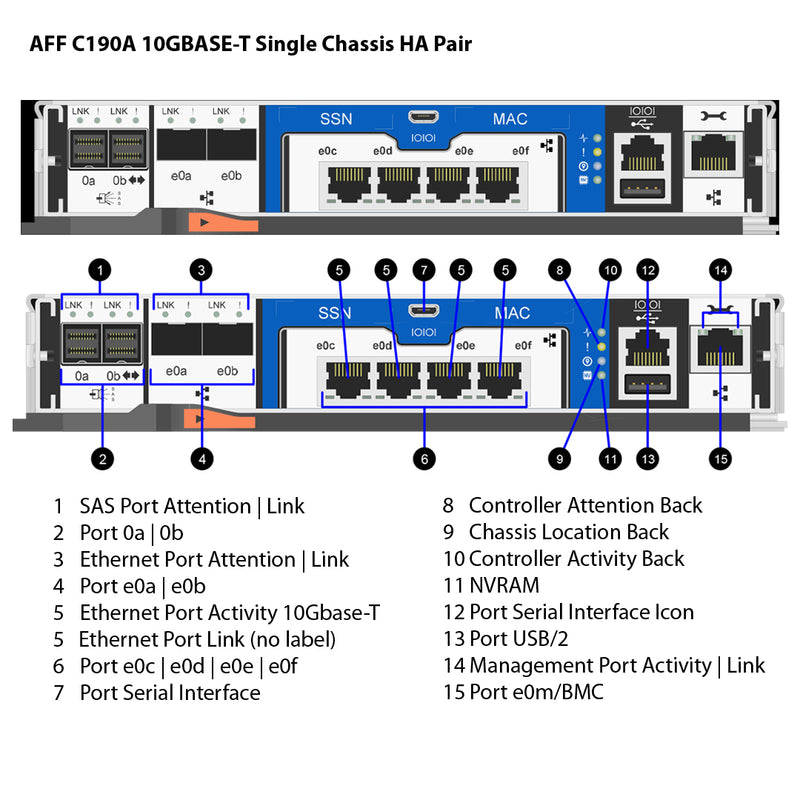

Back View
0a	Port SAS 2 LED Onboard Config	Attention	Yellow	SAS link requires attention
-	-	-	Off	SAS link operates as normal
-	-	Link	Green	Link is established on at least one external SAS lane
-	-	-	Off	No link is established on any external SAS lane
0b	Port SAS 2 LED Onboard Config	Attention	Yellow	SAS link requires attention
-	-	-	Off	SAS link operates as normal
-	-	Link	Green	Link is established on at least one external SAS lane
-	-	-	Off	No link is established on any external SAS lane
e0a	Port Ethernet SFP Config	Attention	Yellow	Ethernet Port requires attention.
-	-	-	Off	Ethernet port operates as normal
-	-	Link	Green	A connection is established to the port.
-	-	-	Off	No connection is established on the port.
e0b	Port Ethernet SFP Config	Attention	Yellow	Ethernet Port requires attention.
-	-	-	Off	Ethernet port operates as normal
-	-	Link	Green	A connection is established to the port.
-	-	-	Off	No connection is established on the port.
e0c	Port Ethernet Config	Port Link	Green	A connection is established on the port
-	-	-	Off	No connection is established on the port.
e0d	Port Ethernet Config	Port Link	Green	A connection is established on the port
-	-	-	Off	No connection is established on the port.
e0e	Port Ethernet Config	Port Link	Green	A connection is established on the port
-	-	-	Off	No connection is established on the port.
e0f	Port Ethernet Config	Port Link	Green	A connection is established on the port
-	-	-	Off	No connection is established on the port.
e0m/BMC	Port Remote Management Config	-	Blinking amber	Traffic is flowing over the connection.
-	-	-	Green	A link is established between the port and some upstream device.
-	-	-	Off	No link is established.

Supported Shelves Drives for AFF C190A 10GBASE-T Single Chassis HA Pair

Part No.	Capacity	RPM	Drive Type	Encryption	Root-Data Partitioning	Root-Data-Data Partitioning	Storage Pool Partitioning	Max Drive Count	FlexArray
AFF C190A 10GBASE-T Internal Drives
X371A	960GB	50K	SSD	No	No	Yes	No	24	No
X382A	960GB	50K	SSD	No	No	Yes	No	24	No

Supported RAID Configurations - AFF C190A 10GBASE-T Single Chassis HA Pair

Drive Type	Drive Capacity Min	Drive Capacity Max	Minimum	Default	Maximum
Data Aggregate
RAID4
SSD	0 TB	0.96 TB	3	8	14
RAID-DP
SSD	0 TB	0.96 TB	5	24	24
RAID-TEC
SSD	0 TB	0.96 TB	7	24	24
Root Aggregate
RAID-DP
SSD	0 TB	0.96 TB	3[1]	-	24
RAID-TEC
SSD	0 TB	0.96 TB	7	-	24
Footnote:
[1] The minimum number of disks in a RAID-DP group is three: at least one data disk, one regular parity disk, and one double-parity (dParity) disk. However, for non-root aggregates with only one RAID group, you must have at least 5 disks (three data disks and two parity disks).

Supported Adapter Cards - AFF C190A 10GBASE-T Single Chassis HA Pair

Priority	Category	Bus Type	Mktg Part No.	Mfg Part No	Description	Plug Type	Optical Module Included?	Cables	Supported Protocol(s)	Min ONTAP	Max Qty [1]	Priority Slot Assignment
1	No Supported Cards	-	-	-	-	-	-	-	-	-	-

Supported Connections for AFF C190A 10GBASE-T Single Chassis HA Pair

Configuration Type	Port Configuration	Image	Cluster Ports per Node	Switch Ports per Node
Cluster Interconnect

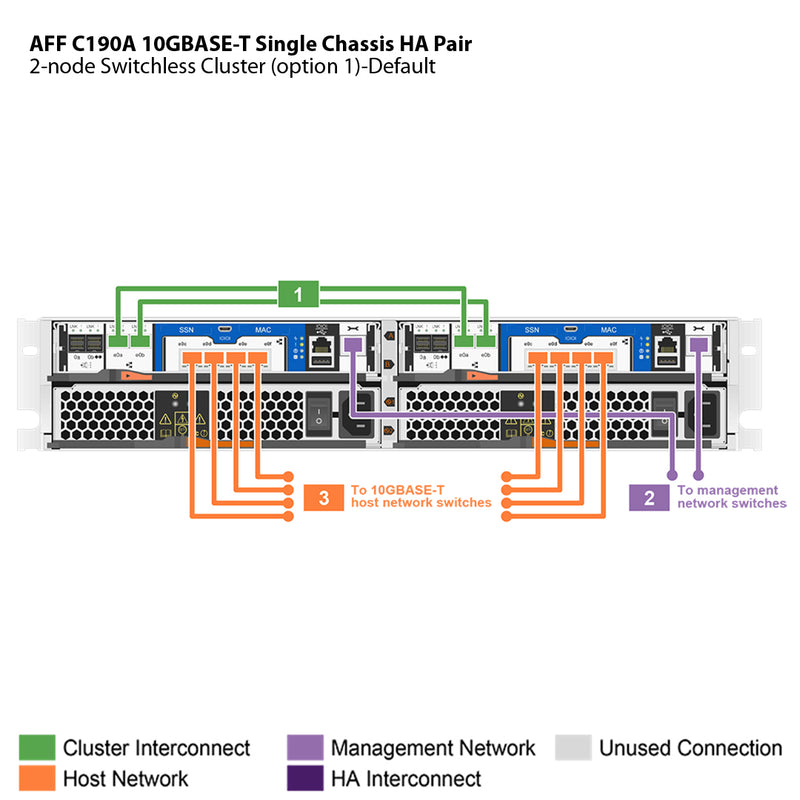

2-node Switchless Cluster (option 1)	Default	View Image	2	None

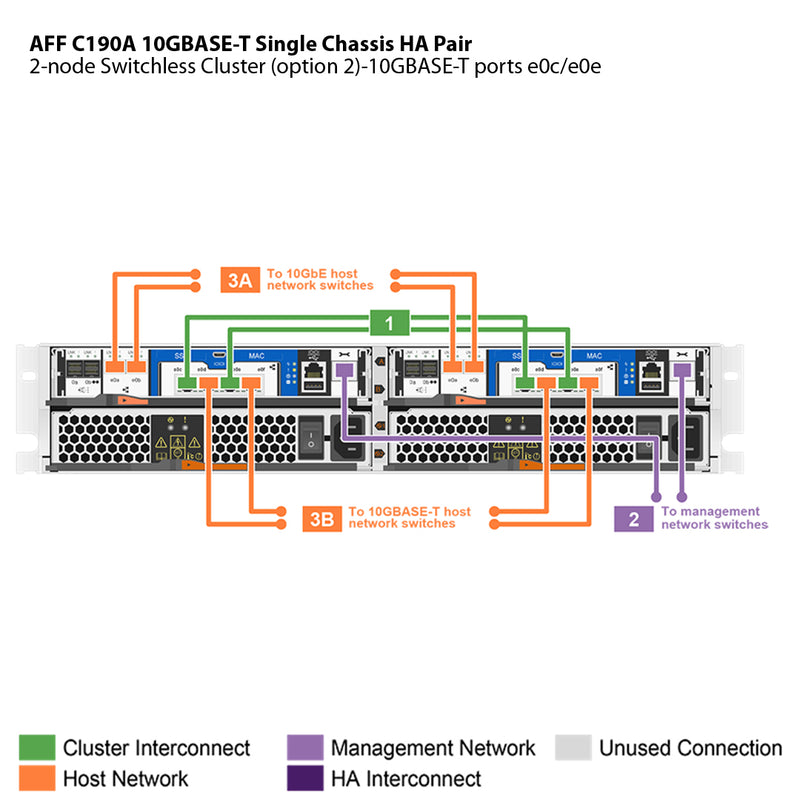

2-node Switchless Cluster (option 2)	10GBASE-T ports e0c/e0e	View Image	2	None
2-node Switchless Cluster (option 3)	10GBASE-T ports e0d/e0f	View Image	2	None

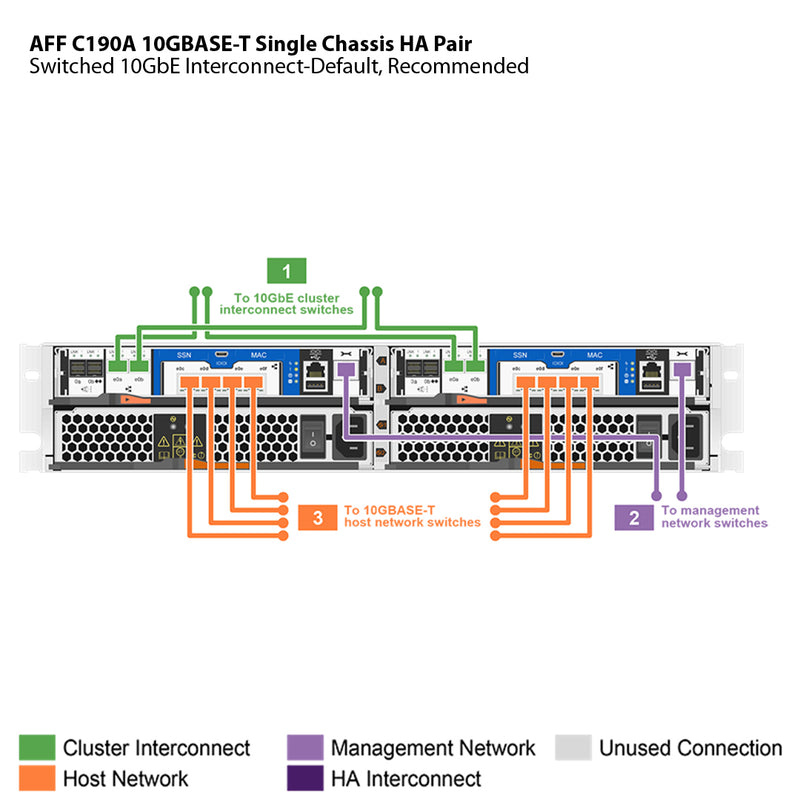

Switched 10GbE Interconnect	Default, Recommended	View Image	2	2

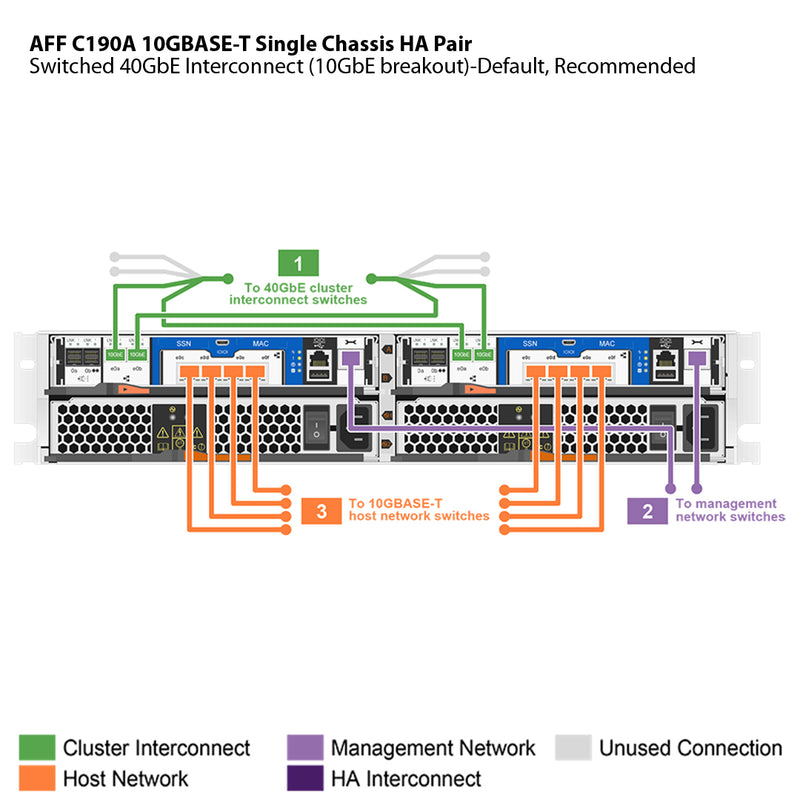

Switched 40GbE Interconnect (10GbE breakout)	Default, Recommended	View Image	2	1

Platform Mixing Rules: AFF C190A 10GBASE-T Single Chassis HA Pair

Platform Configuration Type	Maximum Nodes (NAS) [1]	Maximum Nodes (SAN) [1]	Min ONTAP Version for Platform Mixing
FAS - Current Configuration(s)
FAS2720A 10GBASE-T	24 Nodes	12 Nodes	9.6RC2
FAS2720A UTA2	24 Nodes	12 Nodes	9.6RC2
FAS2750A 10GBASE-T	24 Nodes	12 Nodes	9.6RC2
FAS2750A UTA2	24 Nodes	12 Nodes	9.6RC2
FAS500fA	24 Nodes	12 Nodes	9.8RC1
FAS8300A Ethernet Bundle	24 Nodes	12 Nodes	9.7RC1
FAS8300A FC Bundle	24 Nodes	12 Nodes	9.7RC1
FAS8700A Ethernet Bundle	24 Nodes	12 Nodes	9.7RC1
FAS8700A FC Bundle	24 Nodes	12 Nodes	9.7RC1
FAS9000A	24 Nodes	12 Nodes	9.6RC2
FAS9500A	24 Nodes	12 Nodes	9.10.1P3
AllFlashFAS - Current Configuration(s)
AFF A250A	24 Nodes	12 Nodes	9.8RC1
AFF A250A 100V	24 Nodes	12 Nodes	9.8P4
AFF A400A Ethernet Bundle	24 Nodes	12 Nodes	9.7RC1
AFF A400A FC Bundle	24 Nodes	12 Nodes	9.7RC1
AFF A700A	24 Nodes	12 Nodes	9.6RC2
AFF A800A	24 Nodes	12 Nodes	9.6RC2
AFF A900A	24 Nodes	12 Nodes	9.10.1
AFF C190A 10GBASE-T	24 Nodes	12 Nodes	9.6RC2
AFF C190A UTA2	24 Nodes	12 Nodes	9.6RC2
FAS - Legacy EOA Configuration(s)
FAS8200A	24 Nodes	12 Nodes	9.6RC2
AllFlashFAS - Legacy EOA Configuration(s)
AFF A220A UTA2	24 Nodes	12 Nodes	9.6RC2
AFF A300A	24 Nodes	12 Nodes	9.6RC2
AFF A320A	24 Nodes	12 Nodes	9.6RC2
AFF A700s	24 Nodes	12 Nodes	9.6RC2
Footnote:
[1] Maximum number of nodes within a cluster is determined by platform which supports the fewest number of nodes

Product Standard Compliance - AFF C190A 10GBASE-T Single Chassis HA Pair

Standard	Description
Certifications EMC/EMI
AMCA	Australia and New Zealand (EMC covered by ACMA DoC)
FCC	Federal Communications Commission (EMI Declaration of Conformity covering United States and Canada)
ICES	ICES
KC	Korea Communications Commission (EMC certificate for South Korea)
Morocco	Morocco Declaration of Conformity
VCCI	EMI Certificate for Japan
Certifications safety
BIS	Bureau of Indian Standard (Safety cert for India)
CB	Certificate Body issued safety certificate covering International
CSA	Canadian Standards Association issued Safety certificate covering North America
G_K_U-SoR	Safety certificate for Gabon, Kenya and Uganda
IRAM	Instituto Argentino de Normalización y Certificación (safety certificate for Argentina)
NOM	Norma Oficial Mexicana (Safety cert for Mexico)
NRCS	National Regulator for Compulsory Specifications (Safety cert for South Africa)
SONCAP	Standards Organisation of Nigeria Conformity Assessment Programme (Safety cert for Nigeria)
TBS	Tanzanian Bureau of Standards (Safety certificate for Tanzania)
Certifications Safety/EMC/EMI
EAC	Euro Asia Conformity (EMC and Safety Cert) covering (Russia, Kazakhstan, Belarus, Armenia, Kyrgyzstan Countries)
UKRSEPRO	EMC/Safety certificate for Ukraine
Certifications Safety/EMC/EMI/RoHS
BSMI	Certificate for Taiwan
CE DoC	European Union Declaration of Conformity
UKCA DoC	UK Declaration of Conformity
Standards EMC/EMI
BS-EN-55024	EMC standard for Great Britain
BS-EN55035	EMC standard for Great Britain
CISPR 32	EMI
EN55022	EMC Standard fo European Union
EN55024	EMC Standard fo European Union
EN55032	EMI Standard fo European Union
EN55035	EMC Standard for European Union
EN61000-3-2	EMC Standard for European Union
EN61000-3-3	EMC Standard for European Union
FCC Part 15 Class A	EMI standard for United States
ICES-003	EMI Standard for Canada
KS C 9832	EMI Standard for South Korea
KS C 9835	EMC Standard for South Korea
Standards Safety
ANSI/UL60950-1	Safety standard for United States
ANSI/UL62368-1	Safety standard for United States
BS-EN62368-1	Safety standard for Great Britain
CAN/CSA C22.2 No. 60950-1	Safety Standard for Canada
CAN/CSA C22.2 No. 62368-1	Safety Standard for Canada
CNS 14336	Safety Standard for Taiwan
EN60825-1	Laser Safety standard for European Union
EN62368-1	Safety standard for European Union
IEC 62368-1	Safety Standard for International
IEC60950-1	Safety standard for International
IS 13252(part 1)	Safety Standard for India

Supported OS Version - AFF C190A 10GBASE-T Single Chassis HA Pair

OS Major Version	Supported OS Version	Supported Milestones	Recommend Version
Currently Supported OS
ONTAP 9.11.1	9.11.1P1, 9.11.1, 9.11.1RC1	End of Full Support: 31-Jul-2025 End of Limited Support: 31-Jul-2027 End of Self-Service Support: 31-Jul-2030	9.11.1P1, 9.11.1
ONTAP 9.10.1	9.10.1P5, 9.10.1P7, 9.10.1P6, 9.10.1P4, 9.10.1P3, 9.10.1P2, 9.10.1P1, 9.10.1, 9.10.1RC1	End of Full Support: 31-Jan-2025 End of Limited Support: 31-Jan-2027 End of Self-Service Support: 31-Jan-2030	9.10.1P7, 9.10.1P6
ONTAP 9.9.1	9.9.1P11, 9.9.1P10, 9.9.1P9, 9.9.1P8, 9.9.1P7, 9.9.1P6, 9.9.1P5, 9.9.1P4, 9.9.1P3, 9.9.1P2, 9.9.1P1, 9.9.1, 9.9.1RC1	End of Full Support: 30-Jun-2024 End of Limited Support: 30-Jun-2026 End of Self-Service Support: 30-Jun-2029	9.9.1P11, 9.9.1P10, 9.9.1P9
ONTAP 9.8	9.8P13, 9.8P12, 9.8P11, 9.8P10, 9.8P9, 9.8P8, 9.8P7, 9.8P6, 9.8P5, 9.8P4, 9.8P3, 9.8P2, 9.8P1, 9.8, 9.8RC1	End of Full Support: 31-Dec-2023 End of Limited Support: 31-Dec-2025 End of Self-Service Support: 31-Dec-2028	9.8P13, 9.8P12
ONTAP 9.7	9.7P19, 9.7P18, 9.7P17, 9.7P16, 9.7P15, 9.7P14, 9.7P13, 9.7P12, 9.7P11, 9.7P10, 9.7P9, 9.7P8, 9.7P7, 9.7P6, 9.7P5, 9.7P4, 9.7P3, 9.7P2, 9.7P1, 9.7, 9.7RC1	End of Full Support: 31-Jan-2023 End of Limited Support: 31-Jan-2025 End of Self-Service Support: 31-Jan-2028	9.7P19
EOS OS
ONTAP 9.7	9.7P19, 9.7P18, 9.7P17, 9.7P16, 9.7P15, 9.7P14, 9.7P13, 9.7P12, 9.7P11, 9.7P10, 9.7P9, 9.7P8, 9.7P7, 9.7P6, 9.7P5, 9.7P4, 9.7P3, 9.7P2, 9.7P1, 9.7, 9.7RC1	End of Full Support: 31-Jan-2023 End of Limited Support: 31-Jan-2025 End of Self-Service Support: 31-Jan-2028	9.7P19
Definitions:
[1]End of Full Support: The date marking the end of Full Support for a particular feature version of a NetApp system software and the beginning of Limited Support. Abbreviated as EOES.
[2]End of Limited Support: The date marking the end of Limited Support for a particular feature version of a product and transition to Self-Service Support. Abbreviated as EOVS.
[3]End of Self-Service Support: NetApp does not provide support for a version of a software product, but related documentation is still available on the NetApp Support Site. NetApp customers are expected to utilize documentation to resolve issues.

Supported Power Cords for AFF C190A 10GBASE-T Single Chassis HA Pair

Marketing Part No.	End 1 / End 2	Length	Description
Non-Cabinet Power Cords
X-50617-00	IEC60320-C20 / IEC60320-C13	2.00 m	Power Cords,In-Cabinet,2m,C20-C13,E-Series
X800B-R6	CEE 7/7 (Schuko) / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Cont Europe/Korea,10A/250V
X800C-R6	BS1363 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,UK/Ireland,10A/250V
X800D-R6	JIS-C-8303 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Japan,15A/125V
X800E-R6	NEMA 5-15P / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,North America,15A/125V
X800F-R6	AS/NZS 3112 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Aus/NZ,10A/250V
X800G-R6	SEV 1011 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Switzerland,10A/250V
X800H-R6	IRAM 2073 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Argentina,10A/250V
X800I-R6	GB2099 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,China,10A/250V
X800J-R6	DHCR107-2-D1 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Demark,10A/250V
X800K-R6	SANS 164-1 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,India/S.Africa,10A/250V
X800L-R6	SI32 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Israel,10A/250V
X800M-R6	CEI 23-16 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Italy,10A/250V
X800N	EL208 / IEC60320-C13	2.50 m	Pwr Cord,10A,250V,2.5m,India
X800P-R6	NEMA 6-15P / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,North America,15A/250V
X800T-R6	CNS 10917-3 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Taiwan,BSMI,15A/125V
X800VB-R6	NBR14136 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Brazil,10A/250V
X800W-R6	CNS10917/CNS690 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Taiwan,10A/250V
X800Y-R6	JIS-C-830 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Japan,15A/250V
In-Cabinet Power Cords
X-50617-00-0E-C	IEC60320-C13 / IEC60320-C20	1.83 m	Power Cord,In-Cabinet,2m,C20-C13,E-Series,0E,-C
X1558A-R6	IEC60320-C14 / IEC60320-C13	1.20 m	Pwr Cord,In-Cabinet,48-In,C13-C14,10A/250V
X800-42U-35	IEC60320-C14 / IEC60320-C13	0.89 m	Pwr Cord,In-Cabinet,C13-C14,35-inch
X800-42U-43	IEC60320-C14 / IEC60320-C13	1.09 m	Pwr Cord,In-Cabinet,C13-C14,43-inch
X800-42U-64	IEC60320-C14 / IEC60320-C13	1.63 m	Pwr Cord,In-Cabinet,C13-C14,64-inch
X800-42U-R6	IEC60320-C14 / IEC60320-C13	0.68 m	Pwr Cord,In-Cabinet,27-In,C13-C14,10A/250V

Onboard Ports Configuration: AFF C190A 10GBASE-T Single Chassis HA Pair

Port Address	Description	Supported Protocols	Port Icon	Port Type
0a	Serial-Attached SCSI	SAS 6/12 Gb	Circle	MiniSAS HD
0b	Serial-Attached SCSI	SAS 6/12 Gb	Square	MiniSAS HD
e0a	Ethernet	Ethernet 10Gb	Ethernet	SFP+
e0b	Ethernet	Ethernet 10Gb	Ethernet	SFP+
e0c	Ethernet	Ethernet 1/10 Gb	Ethernet	RJ45
e0d	Ethernet	Ethernet 1/10 Gb	Ethernet	RJ45
e0e	Ethernet	Ethernet 1/10 Gb	Ethernet	RJ45
e0f	Ethernet	Ethernet 1/10 Gb	Ethernet	RJ45
e0m/BMC	Management	Ethernet 10/100/1000 Mb	Wrench	RJ45
Serial Interface	USB Serial Console	RS-232 115200bps	USB 2.0	USB 2.0 Micro-B
Serial Interface Icon	Serial Console	RS-232 115200bps	Serial Interface	RJ45
USB/2	Storage Host Port	USB 2.0	USB 2.0	USB Type A

Supported Platform Configurations - AFF C190A 10GBASE-T Single Chassis HA Pair

Platform Configuration	Description	Chassis Configuration	Chassis Count	Controller Count (per chassis)	IOXM Count (per chassis)	Rack Units (Per System)	Weight (Per Chassis)	Min ONTAP
HA Pair
AFF C190A 10GBASE-T	AFF C190A 10GBASE-T Single Chassis HA Pair	CC	1	2	0	2	42.77 lb (19.4 kg)	9.6RC2, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
AFF C190A UTA2	AFF C190 UTA2 Single Chassis HA Pair	CC	1	2	0	2	42.77 lb (19.4 kg)	9.6RC2, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1

Platform Memory Specifications - AFF C190A 10GBASE-T Single Chassis HA Pair

Part Number	Description	Mfg Part Number	Non-Volatile	Qty	Capacity (GB)	NVRAM/NVMEM Used Capacity (GB)	RAM Used Capacity (GB)
X3222A	R7,IC,SODIMM,16GB,x8,ECC,REG	107-00172	no	4	16	8	64

Supported Rail Kit for AFF C190A 10GBASE-T Single Chassis HA Pair

Marketing Part No.	Manufacturing Part No.	Description
NetApp System Cabinet Rail Kits
X877B-R6	111-00596	Rail Kit II, NetApp Cabinet, R6
X8783A-R6	111-01110	Rail Kit III, NetApp Cabinet, R6
Third-Party Cabinet Rail Kits
X-02659-00	113-00232	Kit,4-Post,Square or Round-Hole, 24"-32" Rail
X5526A-R6	111-00593	Kit,4-Post.Square-Hole, 24"-32" Rail
X5527A-R6	111-00864	Kit,2-Post,Round-Hole
X5529A-R6	111-00310	Kit,4-Post,Swift,Square-Hole, 24"-32" Rail

Field Replacement Unit Parts - AFF C190A 10GBASE-T Single Chassis HA Pair

Marketing Part No.	Manufacturing Part No.	Description
Battery
X1847	271-01847	Lithium System Battery CR2032
X1847-R6	271-01847	Lithium System Battery CR2032,R6
X3152A	111-02499	ASSY,BATT,2CELL,HLDR,NV,FAS2650
Boot Media
X3320A	501-01119	DRIVE,SSD,128GB,mSATA
Cable Management Guide
X3322A	111-02809	SUB ASSY,SM,BKT,CBL MGMNT SET,FAS2650
Chassis
X5721A	111-02889	SHELF,EMPTY,2 PSU,913W,MIDPLANE II,DS224C
Data Cable
X-SFP-H10GB-CU1M-R6	112-00210	Cable,10GBase Copper SFP+ 1m
X-SFP-H10GB-CU1M-R6-C	112-00210	Cable,10GBase Copper SFP+ 1m,-C
X-SFP-H10GB-CU1M-R6-N-C	112-00210	Cable,10GBase Copper SFP+ 1m,-C
X-SFP-H10GB-CU3M-R6	112-00211	Cable,10GBase Copper SFP+ 3m
X-SFP-H10GB-CU3M-R6-C	112-00211	Cable,10GBase Copper SFP+ 3m,-C
X-SFP-H10GB-CU3M-R6-N-C	112-00211	Cable,10GBase Copper SFP+ 3m,-C
X-SFP-H10GB-CU5M-R6	112-00212	Cable,10GBase Copper SFP+ 5m
X-SFP-H10GB-CU5M-R6-C	112-00212	Cable,10GBase Copper SFP+ 5m,-C
X-SFP-H10GB-CU5M-R6-N-C	112-00212	Cable,10GBase Copper SFP+ 5m,-C
X1983-1-R6	112-00210	Cable,Twinax CU,SFP+,1M,X1962/X1963/X1967
X1983-3-R6	112-00211	Cable,Twinax CU,SFP+,3M,X1962/X1963/X1967
X1983-5-R6	112-00212	Cable,Twinax CU,SFP+,5M,X1962/X1963/X1967
X6536-R6	112-00090	Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op
X6536-R6-C	112-00090	Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op,-C
X6536-R6-N-C	112-00090	Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op,-C
X6537-R6	112-00091	Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op
X6537-R6-C	112-00091	Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op,-C
X6537-R6-N-C	112-00091	Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op,-C
X65420	112-00508	Cable,ASSY,USB 2.0 MICRO-B,USB-A,2M
X6546-R6	112-00074	Cable,Cntlr-Shelf/Switch,30m,LC/SC,Op
X6547-R6	112-00073	Cable,Cntlr-Shelf/Switch,5m,LC/SC,Op
X6553-R6	112-00188	Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op
X6553-R6-C	112-00188	Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op,-C
X6553-R6-N-C	112-00188	Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op,-C
X6554-R6	112-00189	Cable,Cntlr-Shelf/Switch,15m,LC/LC,Op
X6554-R6-C	112-00189	Cable,OPT,50u,2GHz/KM,MM,LC/LC,15M,-C,R6
X6554-R6-N-C	112-00189	Cable,OPT,50u,2GHz/KM,MM,LC/LC,15M,-C,R6,-C
X6560-R6	112-00194	Cable,Ethernet,0.5m RJ45 CAT6
X6560-R6-C	112-00194	Cable,Ethernet,0.5m RJ45 CAT6,-C
X6560-R6-N-C	112-00194	Cable,Ethernet,0.5m RJ45 CAT6
X6561-R6	112-00195	Cable,Ethernet,2m RJ45 CAT6
X6561-R6-C	112-00195	Cable,Ethernet,2m RJ45 CAT6,-C
X6561-R6-N-C	112-00195	Cable,Ethernet,2m RJ45 CAT6,-C
X6562-R6	112-00196	Cable,Ethernet,5m RJ45 CAT6
X6562-R6-C	112-00196	Cable,Ethernet,5m RJ45 CAT6,-C
X6562-R6-N-C	112-00196	Cable,Ethernet,5m RJ45 CAT6,-C
X6566B-05-N-C	112-00297	Cable,Direct Attach CU SFP+ 10G,0.5M,-C
X6566B-05-R6	112-00297	Cable,Direct Attach CU SFP+ 10G,0.5M
X6566B-05-R6-C	112-00297	Cable,Direct Attach CU SFP+ 10G,0.5M,-C
X6566B-2-N-C	112-00299	Cable,Direct Attach CU SFP+ 10G,2M,-C
X6566B-2-R6	112-00299	Cable,Direct Attach CU SFP+ 10G,2M
X6566B-2-R6-C	112-00299	Cable,Direct Attach CU SFP+ 10G,2M,-C
X6566B-3-N-C	112-00300	Cable,Direct Attach CU SFP+ 10G,3M,-C
X6566B-3-R6	112-00300	Cable,Direct Attach CU SFP+ 10G,3M
X6566B-3-R6-C	112-00300	Cable,Direct Attach CU SFP+ 10G,3M,-C
X6566B-5-N-C	112-00301	Cable,Direct Attach CU SFP+ 10G,5M,-C
X6566B-5-R6	112-00301	Cable,Direct Attach CU SFP+ 10G,5M
X6566B-5-R6-C	112-00301	Cable,Direct Attach CU SFP+ 10G,5M,-C
X6577-R6	112-00238	Cable,Ethernet,30m RJ45 CAT6
X6577-R6-C	112-00238	Cable,Ethernet,30m RJ45 CAT6,-C
X6577-R6-N-C	112-00238	Cable,Ethernet,30m RJ45 CAT6,-C
X6584-R6	112-00290	Cable,Ethernet,1m RJ45 CAT6
X6584-R6-C	112-00290	Cable,Ethernet,1m RJ45 CAT6,-C
X6584-R6-N-C	112-00290	Cable,Ethernet,1m RJ45 CAT6,-C
X6585-R6	112-00291	Cable,Ethernet,3m RJ45 CAT6
X6585-R6-C	112-00291	Cable,Ethernet,3m RJ45 CAT6,-C
X6585-R6-N-C	112-00291	Cable,Ethernet,3m RJ45 CAT6,-C
X6592-R6	112-00246	Cable,Ethernet,10m RJ45 CAT6
X6592-R6-N-C	112-00246	Cable,Ethernet,10m RJ45 CAT6,-C
X6593-R6	112-00247	Cable,Ethernet,20m RJ45 CAT6
X6593-R6-C	112-00247	Cable,Ethernet,20m RJ45 CAT6,-C
X6593-R6-N-C	112-00247	Cable,Ethernet,20m RJ45 CAT6,-C
X66030A	112-00435	Cable,12Gb,Mini SAS HD,0.5m
X66030A-C	112-00435	Cable,12Gb,Mini SAS HD,0.5m,-C
X66030A-K-N	112-00435	Cable,12Gb,Mini SAS HD,0.5m
X66030A-N	112-00435	Cable,12Gb,Mini SAS HD,0.5m
X66030A-N-C	112-00435	Cable,12Gb,Mini SAS HD,0.5m,-C
X66120-3	112-00545	Cable,Direct Attach CU 40G QSFP/4x10G SFP,3m
X66120-3-C	112-00545	Cable,Dir. Attach CU 40G QSFP/4x10G SFP,3m,-C
X66120-3-N-C	112-00545	Cable,Dir Attach CU 40G QSFP/4x10G SFP,3m,-C
X66120-5	112-00546	Cable,Direct Attach CU 40G QSFP/4x10G SFP,5m
X66120-5-C	112-00546	Cable,Dir. Attach CU 40G QSFP/4x10G SFP,5m,-C
X66120-5-N-C	112-00546	Cable,Dir Attach CU 40G QSFP/4x10G SFP,5m,-C
X66205-30	112-00261	Cable,Cntlr-Switch OM4,MPO/4x10G LC,30m
X66205-30-C	112-00261	Cable,Cntlr-Switch OM4,MPO/4x10G LC,30m,-C
X66205-30-N-C	112-00261	Cable,Cntlr-Switch OM4,MPO/4x10G LC,30m,-C
X66205-5	112-00260	Cable,Cntlr-Switch OM4,MPO/4x10G LC,5m
X66205-5-C	112-00260	Cable,Cntlr-Switch OM4,MPO/4x10G LC,5m,-C
X66205-5-N-C	112-00260	Cable,Cntlr-Switch OM4,MPO/4x10G LC,5m,-C
X66250-15	112-00346	Cable,LC-LC,OM4,15m
X66250-15-C	112-00346	Cable,LC-LC,OM4,15m,-C
X66250-15-N-C	112-00346	Cable,LC-LC,OM4,15m,-C
X66250-2	112-00342	Cable,LC-LC,OM4,2m
X66250-2-C	112-00342	Cable,LC-LC,OM4,2m,-C
X66250-2-N-C	112-00342	Cable,LC-LC,OM4,2m,-C
X66250-30	112-00347	Cable,LC-LC,OM4,30m
X66250-30-C	112-00347	Cable,LC-LC,OM4,30m,-C
X66250-30-N-C	112-00347	Cable,LC-LC,OM4,30m,-C
X66250-5	112-00344	Cable,LC-LC,OM4,5m
X66250-5-C	112-00344	Cable,LC-LC,OM4,5m,-C
X66250-5-N-C	112-00344	Cable,LC-LC,OM4,5m,-C
Disk Drive Blank-Filler
X5054-R6	108-00224	BLANK,DSK DRV FILLER,DS2246,R6
Drive
X371A	108-00546	SSD,960GB,12G,DS224C,W/MSW
Memory Module
X3222A	107-00172	SODIMM,16GB,ECC,FAS2650
Power Cord
X-50617-00	N/A	Jumper Crd,In-Cab,2m,C20-C13,E-Series
X-50617-00-0E-C	N/A	Jumper Crd,In-Cab,2m,C20-C13,E-Series,0E,-C
X1558A-R6	N/A	Jumper Crd,In-Cab,48-IN,C13-C14
X1558A-R6-C	N/A	Jumper Crd,In-Cab,48-IN,C13-C14-C
X800-42U-35	N/A	Jumper Crd,In-Cab,C13-C14,35-inch
X800-42U-35-C	N/A	Jumper Crd,In-Cab,C13-C14,35-inch,-C
X800-42U-35-K-N	N/A	Jumper Crd,In-Cab,C13-C14,35-inch
X800-42U-35-N	N/A	Power Cable,In-Cabinet,C13-C14,35-inch
X800-42U-43	N/A	Jumper Crd,In-Cab,C13-C14,43-inch
X800-42U-43-C	N/A	Jumper Crd,In-Cab,C13-C14,43-inch,-C
X800-42U-43-K-N	N/A	Jumper Crd,In-Cab,C13-C14,43-inch
X800-42U-43-N	N/A	Power Cable,In-Cabinet,C13-C14,43-inch
X800-42U-64	N/A	Jumper Crd,In-Cab,C13-C14,64-inch
X800-42U-64-C	N/A	Jumper Crd,In-Cab,C13-C14,64-inch,-C
X800-42U-64-K-N	N/A	Jumper Crd,In-Cab,C13-C14,64-inch
X800-42U-64-N	N/A	Power Cable,In-Cabinet,C13-C14,64-inch
X800-42U-R6	N/A	Jumper Crd,In-Cab,C13-C14
X800-42U-R6-C	N/A	Jumper Crd,In-Cab,C13-C14,-C
X800B-R6	N/A	Power Cable,Continental Europe,R6
X800B-R6-C	N/A	Power Cable,Continental Europe,-C,R6
X800C-R6	N/A	Power Cable,UK and Ireland,R6
X800C-R6-C	N/A	Power Cable,UK and Ireland,-C,R6
X800D-R6	N/A	Power Cable,Japan,R6
X800D-R6-C	N/A	Power Cable,Japan,-C,R6
X800E-R6	N/A	Power Cable,North America,R6
X800E-R6-C	N/A	Power Cable,North America,-C,R6
X800F-R6	N/A	Power Cable,Australia/New Zealand,R6
X800F-R6-C	N/A	Power Cable,Australia/New Zealand,-C,R6
X800G-R6	N/A	Power Cable,Switzerland,R6
X800G-R6-C	N/A	Power Cable,Switzerland,-C,R6
X800H-R6	N/A	Power Cable,Argentina,R6
X800H-R6-C	N/A	Power Cable,Argentina,-C,R6
X800I-R6	N/A	Power Cable,China,R6
X800I-R6-C	N/A	Power Cable,China,-C,R6
X800J-R6	N/A	Power Cable,Denmark,R6
X800J-R6-C	N/A	Power Cable,Denmark,-C,R6
X800K-R6	N/A	Power Cable,India,South Africa,R6
X800K-R6-C	N/A	Power Cable,India,South Africa,-C,R6
X800L-R6	N/A	Power Cable,Israel,R6
X800L-R6-C	N/A	Power Cable,Israel,-C,R6
X800M-R6	N/A	Power Cable,Italy,R6
X800M-R6-C	N/A	Power Cable,Italy,-C,R6
X800N	N/A	POWER CABLE,INDIA BIS
X800N-C	N/A	Power Cable,India BIS,-C
X800P-R6	N/A	Power Cable,North America,250V,R6
X800P-R6-C	N/A	Power Cable,North America,250V,-C,R6
X800T-R6	N/A	Power Cable,Taiwan,BSMI,R6
X800T-R6-C	N/A	Power Cable,Taiwan,BSMI,-C,R6
X800VB-R6	N/A	Power Cable,Brazil,IEC-60906-1-Plug
X800W-R6	N/A	Power Cable,Taiwan,250V,BSMI,R6
X800W-R6-C	N/A	Power Cable,Taiwan,250V,BSMI,-C
X800Y-R6	N/A	Power Cable,Japan,250V/15A
X800Y-R6-C	N/A	Power Cable,Japan,250V/15A,-C
Power Supply Unit
X5726A	114-00148	PSU,913W
Processor Controller Module (PCM)
X3218A	111-03965, 111-04373	Controller,No MEM,CNA,C190,FAS2700
X3219A	111-04043	Controller,No MEM,RJ45,FAS2700
PSU
X5726A	114-00148	PSU,913W
Transceiver
X6567-R6	332-00378, AFBR-5710PZ-NA1, AFBR-5710PZ-NA2, AFBR-5718PZ, AFBR-5718PZ-NA1, AFBR-5718PZ-NA2, FTLF8519P3BTL-N1, FTLF8519P3BTL-NQ	SFP Optical 1GB Shortwave Multimode
X6567-R6-C	332-00378, AFBR-5710PZ-NA1, AFBR-5710PZ-NA2, AFBR-5718PZ, AFBR-5718PZ-NA1, AFBR-5718PZ-NA2, FTLF8519P3BTL-N1, FTLF8519P3BTL-NQ	SFP Optical 1GB Shortwave Multimode,-C
X6567-R6-N-C	332-00378, AFBR-5710PZ-NA1, AFBR-5710PZ-NA2, AFBR-5718PZ, AFBR-5718PZ-NA1, AFBR-5718PZ-NA2, FTLF8519P3BTL-N1, FTLF8519P3BTL-NQ	SFP Optical 1GB Shortwave Multimode,-C
X6568-R6	332-00374, FCLF8522P2BTL-N1, FCLF8522P2BTL-NQ	SFP Copper 1GB RJ-45
X6568-R6-C	332-00374, FCLF8522P2BTL-N1, FCLF8522P2BTL-NQ	SFP Copper 1GB RJ-45,-C
X6568-R6-N-C	332-00374, FCLF8522P2BTL-N1, FCLF8522P2BTL-NQ	SFP Copper 1GB RJ-45,-C
X6588-R6	332-00278R6, AFBR-57D7AMZ-NA1, AFBR-57D7AMZ-NA2, AFBR-57D7APZ-NA1, AFBR-57D7APZ-NA2, AFBR-57D9AMZ-NA1, AFBR-57D9AMZ-NA2, FTLF8528P2BNV-(N1), FTLF8528P2BNV-(NQ), FTLF8528P3BNV-(N1), FTLF8528P3BNV-N1, FTLF8528P3BNV-NQ	SFP+Optical 8Gb Shortwave
X6588-R6-C	332-00278R6, AFBR-57D7AMZ-NA1, AFBR-57D7AMZ-NA2, AFBR-57D7APZ-NA1, AFBR-57D7APZ-NA2, AFBR-57D9AMZ-NA1, AFBR-57D9AMZ-NA2, FTLF8528P2BNV-(N1), FTLF8528P2BNV-(NQ), FTLF8528P3BNV-(N1), FTLF8528P3BNV-N1, FTLF8528P3BNV-NQ	SFP+Optical 8Gb Shortwave,-C
X6588-R6-N-C	332-00278R6, AFBR-57D7AMZ-NA1, AFBR-57D7AMZ-NA2, AFBR-57D7APZ-NA1, AFBR-57D7APZ-NA2, AFBR-57D9AMZ-NA1, AFBR-57D9AMZ-NA2, FTLF8528P2BNV-(N1), FTLF8528P2BNV-(NQ), FTLF8528P3BNV-(N1), FTLF8528P3BNV-N1, FTLF8528P3BNV-NQ	SFP+Optical 8Gb Shortwave,-C
X6589-N-C	332-00279R6, AFBR-703SMZ-NA1, AFBR-703SMZ-NA2, AFBR-709SMZ-NA1, AFBR-709SMZ-NA2, AFBR-710SMZ, AFBR-710SMZ-NA1, AFBR-710SMZ-NA2, FTLX8571D3BCL-(NQ), FTLX8574D3BCL-N1, FTLX8574D3BCL-NQ, XP-8596-02D-NS	SFP+Optical 10Gb Shortwave,-C
X6589-R6	332-00279R6, AFBR-703SMZ-NA1, AFBR-703SMZ-NA2, AFBR-709SMZ-NA1, AFBR-709SMZ-NA2, AFBR-710SMZ, AFBR-710SMZ-NA1, AFBR-710SMZ-NA2, FTLX8571D3BCL-(NQ), FTLX8574D3BCL-N1, FTLX8574D3BCL-NQ, XP-8596-02D-NS	SFP+Optical 10Gb Shortwave
X6589-R6-C	332-00279R6, AFBR-703SMZ-NA1, AFBR-703SMZ-NA2, AFBR-709SMZ-NA1, AFBR-709SMZ-NA2, AFBR-710SMZ, AFBR-710SMZ-NA1, AFBR-710SMZ-NA2, FTLX8571D3BCL-(NQ), FTLX8574D3BCL-N1, FTLX8574D3BCL-NQ, XP-8596-02D-NS	SFP+ Optical 10Gb Shortwave,-C
X6596-R6	332-00331, AFBR-57F5MZ-NA1, AFBR-57F5MZ-NA3, FTLF8529P3BCVAN1, FTLF8529P3BCVA-N1, FTLF8529P3BCVA-NQ, FTLF8529P4BCVAN1, FTLF8529P4BCVA-NQ	SFP+ FC Optical 16Gb
X6596-R6-C	332-00331, AFBR-57F5MZ-NA1, AFBR-57F5MZ-NA3, FTLF8529P3BCVAN1, FTLF8529P3BCVA-N1, FTLF8529P3BCVA-NQ, FTLF8529P4BCVAN1, FTLF8529P4BCVA-NQ	SFP+ FC Optical 16Gb,-C
X6596-R6-N-C	332-00331, AFBR-57F5MZ-NA1, AFBR-57F5MZ-NA3, FTLF8529P3BCVAN1, FTLF8529P3BCVA-N1, FTLF8529P3BCVA-NQ, FTLF8529P4BCVAN1, FTLF8529P4BCVA-NQ	SFP+ FC Optical 16Gb,-C

Supported Firmware Matrix - AFF C190A 10GBASE-T Single Chassis HA Pair

Major OS Version	OS Version	Firmeware
BIOS
ONTAP 9.11.1	9.11.1P1, 9.11.1RC1	11.16, 11.15*
ONTAP 9.11.1	9.11.1	11.15*
ONTAP 9.10.1	9.10.1P7, 9.10.1P5-P6	11.16, 11.15*
ONTAP 9.10.1	9.10.1P3-P4, 9.10.1P2, 9.10.1P1	11.16, 11.15, 11.13*
ONTAP 9.10.1	9.10.1, 9.10.1RC1	11.16, 11.15, 11.13, 11.11*
ONTAP 9.9.1	9.9.1P11, 9.9.1P10	11.16, 11.15*
ONTAP 9.9.1	9.9.1P8-P9, 9.9.1P7	11.16, 11.15, 11.13*
ONTAP 9.9.1	9.9.1P4-P6, 9.9.1P3, 9.9.1P2, 9.9.1P1, 9.9.1, 9.9.1RC1	11.16, 11.15, 11.13, 11.11*
ONTAP 9.8	9.8P13	11.16, 11.15*
ONTAP 9.8	9.8P11-P12	11.16, 11.15, 11.13*
ONTAP 9.8	9.8P10, 9.8P9, 9.8P8, 9.8P7, 9.8P6, 9.8P5, 9.8P4	11.16, 11.15, 11.13, 11.11*
ONTAP 9.8	9.8P3, 9.8P2, 9.8P1, 9.8, 9.8RC1	11.16, 11.15, 11.13, 11.11, 11.9*
ONTAP 9.7	9.7P19, 9.7P17-P18, 9.7P16, 9.7P15, 9.7P14	11.16, 11.15, 11.13, 11.11*
ONTAP 9.7	9.7P13, 9.7P12, 9.7P11, 9.7P10, 9.7P9, 9.7P8	11.16, 11.15, 11.13, 11.11, 11.9*
ONTAP 9.7	9.7P7, 9.7P6, 9.7P5, 9.7P4, 9.7P3, 9.7P2, 9.7P1, 9.7, 9.7RC1	11.16, 11.15, 11.13, 11.11, 11.9, 11.7*
ONTAP 9.6	9.6P18, 9.6P17, 9.6P16, 9.6P15	11.16, 11.15, 11.13, 11.11*
ONTAP 9.6	9.6P13-P14, 9.6P12	11.16, 11.15, 11.13, 11.11, 11.9*
ONTAP 9.6	9.6P10-P11	11.16, 11.15, 11.13, 11.11, 11.9, 11.7*
ONTAP 9.6	9.6P9, 9.6P7-P8, 9.6P5-P6, 9.6P4, 9.6P3	11.16, 11.15, 11.13, 11.11, 11.9, 11.7, 11.5*
ONTAP 9.6	9.6P2, 9.6, 9.6P1, 9.6RC2	11.16, 11.15, 11.13, 11.11, 11.9, 11.7, 11.5*
BMC
ONTAP 9.11.1	9.11.1P1, 9.11.1, 9.11.1RC1	11.8*
ONTAP 9.10.1	9.10.1P7, 9.10.1P5-P6	11.8*
ONTAP 9.10.1	9.10.1P3-P4, 9.10.1P2, 9.10.1P1, 9.10.1, 9.10.1RC1	11.8, 11.7*
ONTAP 9.9.1	9.9.1P11	11.8*
ONTAP 9.9.1	9.9.1P10, 9.9.1P8-P9, 9.9.1P7, 9.9.1P4-P6	11.8, 11.7*
ONTAP 9.9.1	9.9.1P3, 9.9.1P2, 9.9.1P1, 9.9.1, 9.9.1RC1	11.8, 11.7, 11.6*
ONTAP 9.8	9.8P13	11.8*
ONTAP 9.8	9.8P11-P12, 9.8P10, 9.8P9, 9.8P8	11.8, 11.7*
ONTAP 9.8	9.8P7, 9.8P6, 9.8P5, 9.8P4, 9.8P3	11.8, 11.7, 11.6*
ONTAP 9.8	9.8P2, 9.8P1	11.8, 11.7, 11.6, 11.5P1*
ONTAP 9.8	9.8, 9.8RC1	11.8, 11.7, 11.6, 11.5P1, 11.5*
ONTAP 9.7	9.7P19, 9.7P17-P18	11.8, 11.7*
ONTAP 9.7	9.7P16, 9.7P15, 9.7P14, 9.7P13	11.8, 11.7, 11.6*
ONTAP 9.7	9.7P12, 9.7P11	11.8, 11.7, 11.6, 11.5P1*
ONTAP 9.7	9.7P10, 9.7P9, 9.7P8, 9.7P7, 9.7P6	11.8, 11.7, 11.6, 11.5P1, 11.5*
ONTAP 9.7	9.7P5, 9.7P4, 9.7P3, 9.7P2, 9.7P1, 9.7, 9.7RC1	11.8, 11.7, 11.6, 11.5P1, 11.5, 11.4*
ONTAP 9.6	9.6P18, 9.6P17	11.8, 11.7*
ONTAP 9.6	9.6P16, 9.6P15	11.8, 11.7, 11.6*
ONTAP 9.6	9.6P13-P14	11.8, 11.7, 11.6, 11.5P1*
ONTAP 9.6	9.6P12, 9.6P10-P11	11.8, 11.7, 11.6, 11.5P1, 11.5*
ONTAP 9.6	9.6P9, 9.6P7-P8, 9.6P5-P6	11.8, 11.7, 11.6, 11.5P1, 11.5, 11.4*
ONTAP 9.6	9.6P4, 9.6P3	11.8, 11.7, 11.6, 11.5P1, 11.5, 11.4, 11.3P2*
ONTAP 9.6	9.6P2	11.8, 11.7, 11.6, 11.5P1, 11.5, 11.4, 11.3P2, 11.3P1*
ONTAP 9.6	9.6, 9.6P1, 9.6RC2	11.8, 11.7, 11.6, 11.5P1, 11.5, 11.4, 11.3P2, 11.3P1
Footnote:
[1]* Indicates that firmware is bundled with Storage OS Version

Product Certificates - AFF C190A 10GBASE-T Single Chassis HA Pair

Certificate Name	Geo / Region / Country	Associated Products
Battery Pack safety reports
Lithium Battery Safety Doc-Section II/Section IB Shipments,Inventus Power Product Model#271-00045AWB	Global	Platforms : AFF A220, AFF A320, AFF A400, AFF A700s, AFF A800, AFF C190, FAS2620, FAS2650, FAS2720, FAS2750, FAS8300, FAS8700
EMI and Safety certificates
Lithium Battery Safety Doc-Section II/Section IB Shipments,Inventus Power Product Model#271-00045AWB	Global	Platforms : AFF A220, AFF A320, AFF A400, AFF A700s, AFF A800, AFF C190, FAS2620, FAS2650, FAS2720, FAS2750, FAS8300, FAS8700
Declaraion of Similarity NAJ-1501	Global	Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 G-K-U-SoR	Gabon,Kenya,SaudiArabia,Uganda	Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 (FXN Mexico) BIS	BIS - India	Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 (FXN Taiwan) BIS	BIS - India	Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 (Jabil Mexico) BIS	BIS - India	Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 60950-CB	CB - International	Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 62368-CB	CB - International	Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 ACMA	ACMA - Australia, New Zealand	Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 BSMI	BSMI - Taiwan	Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 CSA	CSA - United States, Canada	Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 DoC CE	CE - European Union DoC	Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 EAC	EAC - Armenia, Belarus, Kazakhstan, Kyrgyzstan, Russia	Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 FCC	FCC - United States	Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 IRAM	IRAM - Argentina	Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 KC	KC - South Korea	Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 Morocco	Morocco	Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 NOM	NOM - Mexico	Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 NRCS	NRCS - South Africa (Safety)	Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 SONCAP	SONCAP - Nigeria	Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 TBS	TBS - Tanzania	Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 UKRSep	UKRSepro - Ukraine	Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 VCCI	VCCI - Japan	Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 UKCA DOC	VCCI - Japan	Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 (Jabil Singapore) BIS	TBS - Tanzania	Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
PSU 80+ Platinum Certificates
NAJ-1501 (Jabil Singapore) BIS	TBS - Tanzania	Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
DCJ9133-01 Energy Star Report	Global	PSU : X5726A
TDPS-900AB A Energy Star Report	Global	PSU : X5726A
Voluntary Product Accessibility Template
TDPS-900AB A Energy Star Report	Global	PSU : X5726A

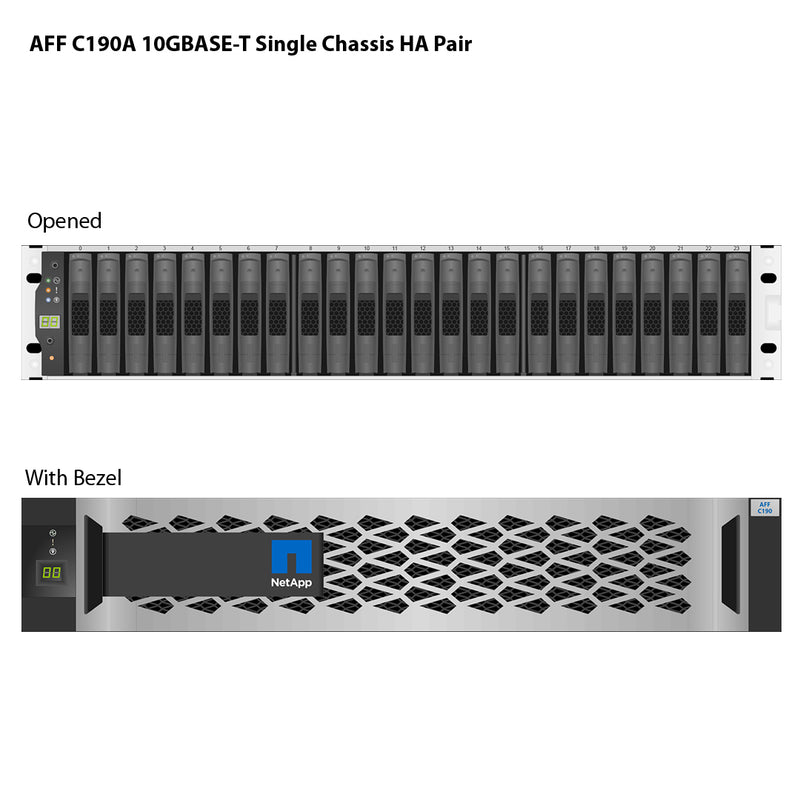

Size, Weight, Acoustic, Power AFF C190A 10GBASE-T Single Chassis HA Pair

Associated Part No.	Configuration	Rack Units	Weight	Sound Power	Sound Pressure	Line Voltage Actual (Min to Max)	Amps Typical	Amps Worst	Watts Typical	Watts Worst	BTU / Hr Typical	BTU / Hr Worst
AFF C190
AFF C190A 10GBASE-T	AFF C190 2 PCM 10GBASE-T 12x960GB SSD	2	51.8 lb (23.5 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.24	4.67	317	457	1082	1560
AFF C190A 10GBASE-T	AFF C190 2 PCM 10GBASE-T 12x960GB SSD	2	51.8 lb (23.5 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.59	2.29	311	448	1062	1529
AFF C190A 10GBASE-T	AFF C190 2 PCM 10GBASE-T 18x960GB SSD	2	56.4 lb (25.6 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.45	4.88	338	478	1152	1630
AFF C190A 10GBASE-T	AFF C190 2 PCM 10GBASE-T 18x960GB SSD	2	56.4 lb (25.6 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.7	2.4	331	468	1130	1598
AFF C190A 10GBASE-T	AFF C190 2 PCM 10GBASE-T 24x960GB SSD	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.75	5.18	367	507	1253	1731
AFF C190A 10GBASE-T	AFF C190 2 PCM 10GBASE-T 24x960GB SSD	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.84	2.54	360	497	1229	1697
AFF C190A 10GBASE-T	AFF C190 2 PCM 10GBASE-T 8x960GB SSD	2	46.7 lb (21.2 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.03	4.45	296	436	1011	1489
AFF C190A 10GBASE-T	AFF C190 2 PCM 10GBASE-T 8x960GB SSD	2	46.7 lb (21.2 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.49	2.19	291	428	994	1461
AFF C190A UTA2	AFF C190 2 PCM UTA2 12x960GB SSD	2	51.8 lb (23.5 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.24	4.67	317	457	1082	1560
AFF C190A UTA2	AFF C190 2 PCM UTA2 12x960GB SSD	2	51.8 lb (23.5 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.59	2.29	311	448	1062	1529
AFF C190A UTA2	AFF C190 2 PCM UTA2 18x960GB SSD	2	56.4 lb (25.6 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.45	4.88	338	478	1152	1630
AFF C190A UTA2	AFF C190 2 PCM UTA2 18x960GB SSD	2	56.4 lb (25.6 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.7	2.4	331	468	1130	1598
AFF C190A UTA2	AFF C190 2 PCM UTA2 24x960GB SSD	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.75	5.18	367	507	1253	1731
AFF C190A UTA2	AFF C190 2 PCM UTA2 24x960GB SSD	2	60.8 lb (27.6 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.84	2.54	360	497	1229	1697
AFF C190A UTA2	AFF C190 2 PCM UTA2 8x960GB SSD	2	46.7 lb (21.2 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.03	4.45	296	436	1011	1489
AFF C190A UTA2	AFF C190 2 PCM UTA2 8x960GB SSD	2	46.7 lb (21.2 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.49	2.19	291	428	994	1461

Category: 2u, aff-c190, aff-c190-series, chassis_amount_1, controller_amount_dual, drive-count-24, dual, netapp, sff

Shipping Information

Express Computer Systems can ship to virtually any address in the world and provides you with the best shipping rates possible. Cost of shipping varies depending on what service you require, your destination and size of the shipment. Shipping costs will be calculated separately from your order and billed to you post purchase. In the notes section of your order please provide us with your preferred shipping method and we will get back to you.

Custom configured orders ship within 2 business days after all required products are in stock.

Please allow 3 business days for products that are not in stock to arrive to our facility in Irvine, California.

Domestic Shipments

Standard Ground
- Shipping time: 2-7 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-10 business days
- Excludes weekends, holidays or weather delays.
3 Business Days
- Shipping time: 3 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 3-6 business days
- Excludes weekends, holidays or weather delays.
2 Business Days
- Shipping time: 2 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-5 business days
- Excludes weekends, holidays or weather delays.
Overnight / Next Business Day
- Shipping time: 1 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 1-4 business days
- Excludes weekends, holidays or weather delays.

International Shipments

International Economy
- Shipping time: 4-6 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 5-9 business days
- Excludes weekends, holidays or weather delays.
International Priority
- Shipping time: 1-3 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-6 business days
- Excludes weekends, holidays or weather delays.

For more information on shipping view our Shipping Information page or send us a message

ECS Warranty Information

Express Computer Systems (ECS) provides a 1 year parts warranty against defects in material or workmanship that will affect the products functionality. All refurbished items are tested prior to shipping to guarantee up-time upon arrival. If you are having issues with an item we provided please Contact Us and we will do our best to assist you.

What does our ECS warranty cover?
We offer 1 year warranty as standard and additional years can be added to fit your needs. Please reach out to a sales associate via the Contact Us page or live chat for more information on extended coverage options. During the coverage period if your product fails we will offer a Next Business Day replacement. If we are unable to replace the product we will refund its original selling price. Shipping costs and tax are not refundable. Express Computer Systems retains the right to decide whether the goods will be replaced or refunded.

What is not covered by our warranty?
Our warranty does not cover any problem caused by the following conditions:

accidents; misuse; carelessness; electrostatic discharge; shock; temperature or humidity beyond the specifications of the product; improper installation; operation; modification;
any improper use that contravenes the instructions in the user manual;
problems caused by other equipment. Our warranty is void if the product is returned with damaged, removed, counterfeit labels, or any modifications (including any component or external cover removal). Our warranties do not cover data loss or damages to any other equipment. In addition, our warranties do not cover incidental damages, consequential damages, or costs related to data recovery, removal, and installation.

Important notes:

Please ask for additional warranty/coverage that you may require in addition to the standard 1 ECS warranty prior to final purchase. Requesting additional warranty after your purchase can be denied.
FREE technical support is provided on purchased items via phone, email, or live chat.

About Express Computer Systems

Express Computer Systems is committed to transforming our customers’ IT infrastructure with high quality products at affordable costs. Our sales reps and customer support engineers understand our customers rely heavily on advanced technology to run their business but need to do so without breaking the bank.

We specialize in building custom server configurations, custom storage solutions, networking solutions, and components from top manufacturers including HPE, Dell, Cisco, NetApp, Dell EMC, HPE Nimble and many others.

Same-Day Shipping

At Express Computer Systems, we know hardware emergencies can happen at anytime. We also understand that you want to receive the best hardware as quickly as possible. At Express Computer Systems we'll ship the majority of our orders out the same day payment is made. Curious if the item you need will make it out on time? Feel free to contact us directly via the Contact Us link at the bottom, Live Chat feature or (800) 327-0730.

Buy, Sell, Rent, Lease, Trade-In

At Express Computer Systems we not only will sell you equipment at a great value, but we'll also purchase your used Dell, Cisco, NetApp or other networking equipment. Feel free to contact us with the model of the items you're looking to sell and we'll get you a quote ASAP. We also have flexible financing options for your purchasing needs.

In-House Configuration and Testing Lab

Every item we sell is tested on-site in our state-of-the-art hardware engineering lab. We use certified technicians to test every piece of equipment as well as updating all necessary firmware. The highest quality of testing and certification is guaranteed. We warranty all of our items we sell. Ask us today about warranty for a specific item.

NetApp All Flash Filer (AFF) C190A 10GBASE-T Single Chassis HA Pair Filer Head (AFF-C190A-10GBASE-T)

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

NetApp All Flash Filer (AFF) C190A 10GBASE-T Single Chassis HA Pair Filer Head (AFF-C190A-10GBASE-T)

NetApp All Flash Filer (AFF) C190 Entry-Level Storage

Product Specs

Storage Limits

Capacity Limits

Core Cluster Limits

System Maximums and Limits

Processor

Memory

Onboard Ports

Physical Characteristics

System Clearance Dimensions

Environmental Requirements

Storage OS Requirements

Storage and Firmware

Product Standards Compliance

NFS Cluster Limits

WAFL Cluster Limits - All Maximums

Quality of Service Cluster Limits

SAN Cluster Limits - All Maximums

CIFS Cluster Limits - All Maximums

Data Protection Cluster Limits - All Maximums

NVMe/oF Cluster Limits - All Maximums

FlexCache Cluster Limits - All Maximums Cache

S3 Cluster Limits -

Consistency Groups - All Maximums

Flex Array Specifications

Footnotes -

Platform LED for AFF C190A 10GBASE-T Single Chassis HA Pair

Supported Shelves Drives for AFF C190A 10GBASE-T Single Chassis HA Pair

Supported RAID Configurations - AFF C190A 10GBASE-T Single Chassis HA Pair

Supported Adapter Cards - AFF C190A 10GBASE-T Single Chassis HA Pair

Supported Connections for AFF C190A 10GBASE-T Single Chassis HA Pair

Platform Mixing Rules: AFF C190A 10GBASE-T Single Chassis HA Pair

Product Standard Compliance - AFF C190A 10GBASE-T Single Chassis HA Pair

Supported OS Version - AFF C190A 10GBASE-T Single Chassis HA Pair

Supported Power Cords for AFF C190A 10GBASE-T Single Chassis HA Pair

Onboard Ports Configuration: AFF C190A 10GBASE-T Single Chassis HA Pair

Supported Platform Configurations - AFF C190A 10GBASE-T Single Chassis HA Pair

Platform Memory Specifications - AFF C190A 10GBASE-T Single Chassis HA Pair

Supported Rail Kit for AFF C190A 10GBASE-T Single Chassis HA Pair

Field Replacement Unit Parts - AFF C190A 10GBASE-T Single Chassis HA Pair

Supported Firmware Matrix - AFF C190A 10GBASE-T Single Chassis HA Pair

Product Certificates - AFF C190A 10GBASE-T Single Chassis HA Pair

Size, Weight, Acoustic, Power AFF C190A 10GBASE-T Single Chassis HA Pair

Shipping Information

ECS Warranty Information

About Express Computer Systems

Related Items

Your Recently Viewed Items

Subscribe

Shop with Confidence
