SKU: 764283-B21

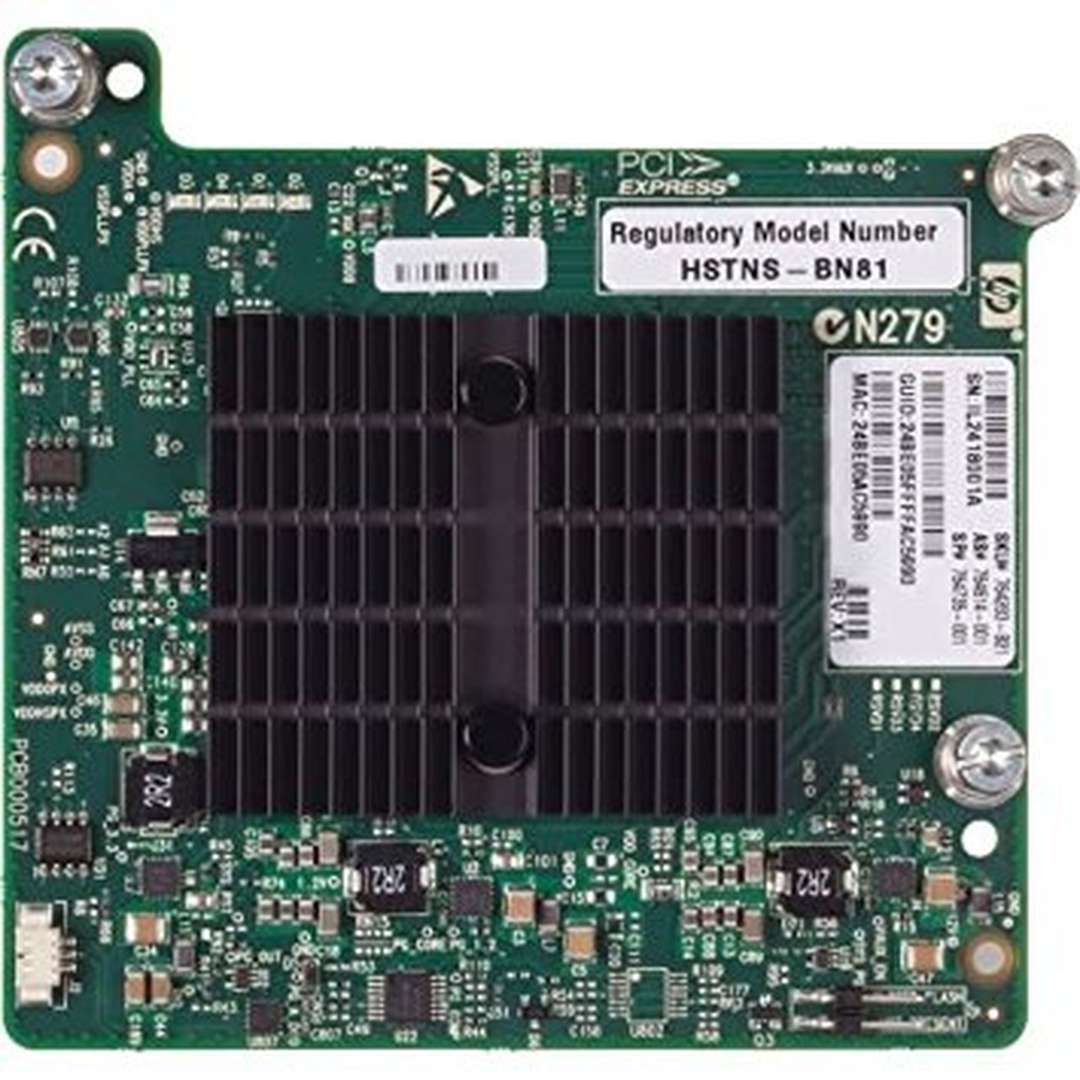

HPE InfiniBand FDR/Ethernet 10Gb/40Gb 2-port 544+M Mezz Adapter (764735-001) | 764283-B21

Name: HPE InfiniBand FDR/Ethernet 10Gb/40Gb 2-port 544+M Mezz Adapter (764735-001) | 764283-B21
Brand: HPE
SKU: 764283-B21
Availability: InStock

HPE

| Adapter

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Adapter Specs

Technology: Mellanox ConnectX-3 Pro
Port Type: Dual Port
Data Transfer Speed: 10Gb/40Gb
PCIe: 3.0x8 Mezzanine Card
Protocol:
- Ethernet
- Dual port FDR InfiniBand in HPE BLc7000 Platinum Enclosures
- Dual-port QDR InfiniBand
- Dual-port 40 Gb Ethernet
- Dual-port 10 Gb Ethernet

The 544+M Mezzanine adapters for HPE BladeSystem c-Class are based on the Mellanox ConnectX-3 Pro technology. The 544+M Mezzanine adapters utilize the PCI Express 3.0 x8 interface. The 544+M Mezzanine adapters are dual function adapters that are capable of support dual InfiniBand ports or dual Ethernet ports when connected to supported Ethernet switches in c7000 enclosure (a mix mode of one InfiniBand port and one Ethernet port is not supported on 544+M Mezzanine adapters).

InfiniBand FDR provides a data rate of 56 Gbps (gigabits per second), which is twice the speed of its predecessor, QDR (Quad Data Rate) InfiniBand. The higher data rate enables faster data transfers between HPC nodes and can improve the overall performance of HPC applications. The 544+M Mezzanine adapter are supported on HPE BladeSystem c-Class Gen 9 blade servers.

Performance Bandwidth:

All ports on FDR HCA cards and switch are capable of supporting 56Gbps signaling rate, with a peak data rate of 52 Gbps in each direction.
All ports on QDR HCA card and switch are capable of supporting 40Gbps signaling rate, with a peak data rate of 32 Gbps in each direction.
The 544+M: Mellanox ConnectX-3 Pro

Compatible With:

HPE BL460c
HPE BL660c
HPE ws460c

(Click to View)
