-*Image may differ from actaul product

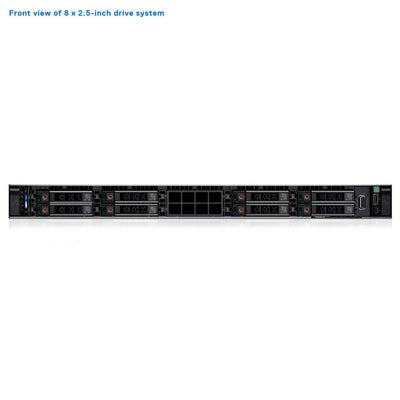

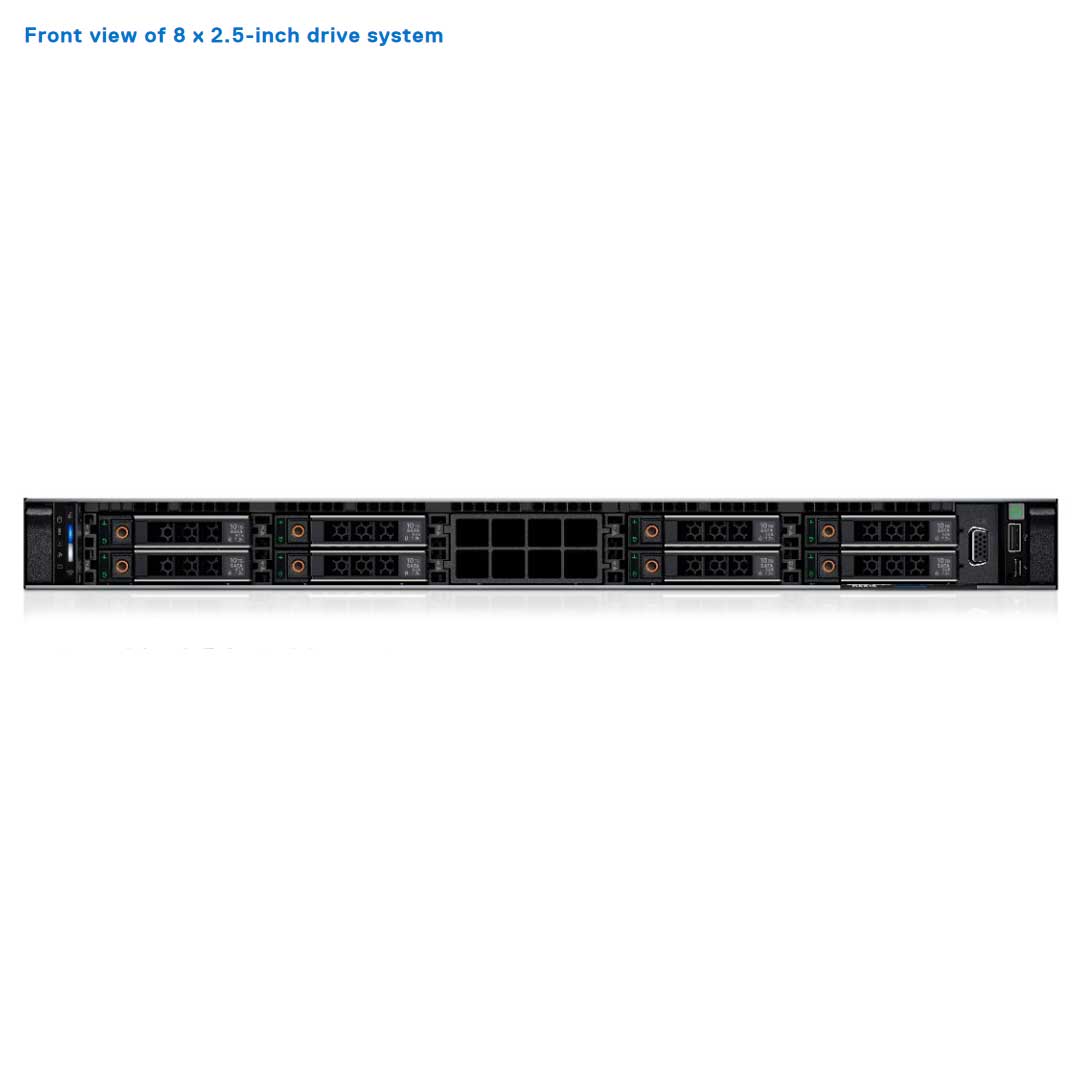

Dell PowerEdge R6625 Rack Server Chassis (8x 2.5" NVMe)

Dell PowerEdge R6625 Rack Server Chassis (8x 2.5" NVMe)

Price: Request a Quote

Brand:

Dell

MPN:

DPE-R6625-8NVMe-Chassis

Type:

Chassis

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Dell PowerEdge R6625 Rack Server Chassis (8x 2.5" NVMe)

Quick Specs

Form Factor:

1U rack server

Processor | Max: 128 Cores

2x 4th Gen AMD 9004 Series

Memory | Max: 6TB

24 ECC DDR5 RDIMM 4800Mhz

Storage | Max: 153.6TB

8x SFF NVMe SSD | Max: 122.88TB

Rear Drives | Max: 30.72TB

2x SFF SAS/SATA (HDD/SSD) NVMe | Max: 30.72TB
2x EDSFF E3.S Gen5 NVMe (SSD) | Max: 12.8TB

Storage Controller:

S160(SW RAID)
H965i, H755, H755N, H355, HBA355i, HBA355e, HBA465e, H965e

Boot Options:

BOSS-N1 (hot Swap)
Internal USB

Networking Options (NOC):

1 x OCP card 3.0 (supported by x8 PCIe lanes)
2x 1Gb with BCM5720 LAN controller
Note: The system allows either LOM card or an OCP card or both to be installed in the system.

Remote Management:

iDRAC9 with Lifecycle Controller

PCIe Slots:

2x or 3x PCIe 4.0 & 5.0

GPU:

Up to 3 x 75 W SW

Other Versions:

Ideal for:

High-Performance Computing (HPC)
Virtual Desktop Interface (VDI)
Virtualization

The new Dell PowerEdge R6625 is a 1U, dual-socket rack server. Designed to be the backbone of your data center, this powerful server provides ample performance and flexible, low-latency storage options in a dense air or Direct Liquid Cooling (DLC) configuration.

Extreme performance in a platform that grows with your business

Using AMD EPYC 4th generation processor to deliver up to 50% more core count per single socket platform in an innovative air or liquid-cooled chassis.
Enables DDR5 at 4800 MT/s memory and PCIe Gen5 with double the speed of previous Gen4 for faster access and transport of data optimizing application output.
Optional DLC is available to more efficiently cool high-performance processors

Stay ahead of the curve

Delivering breakthrough innovation using the latest performance, density and optional acceleration for traditional and emerging workloads including high-performance compute (HPC), virtual desktop integration (VDI) and virtualization.

Cyber Resilient Architecture for Zero Trust IT environment & operations

Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations.

Experience more virtual machine density to support the most demanding applications

Deliver more virtual machines per physical host using increased core count and higher memory footprint than previous generations.
Improve responsiveness or reduce app load time for power users with up to 3 x single-wide full-length GPUs.

Expect increased expandability by storing more data in one server, saving space in your data center

Scale your storage using up to 60% more E3.S NVMe drives and reduce your carbon footprint.
Deliver more memory density with DDR5 (up to 6 TB of RAM) providing greater memory capacity.
Support lower latency higher performance NVMe SSD in a hardware RAID solution helps maximize compute performance.

Drive Bay Options

The R6625 has 2 Processors and 24 DIMMs of DDR5 Memory. Supports up to 3 PCIe slots with 1 LOM and 1 OCP slot. This system can be either Air-cooled or Direct Liquid Cooled depending on the configuration or the CPUs TDP. The Gen 16 Rack Server by dell can handle up to 3 Single Width 75W GPUs.

Chassis Options

Front bays:

Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 80 TB
Up to 8 x 2.5-inch NVMe max 122.88 TB
Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153.6 TB (Universal)
Up to 14 x E3.S (NVMe Gen5 ) max 89.6 TB
Up to 16 x E3.S (NVMe Gen5 ) max 102.4 TB

Rear bays:

Only the 4 LFF and the 10 Universal Chassis support rear drive cages.

Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 30.72 TB
Up to 2 x E3.s (NVMe Gen5) max 12.8 TB

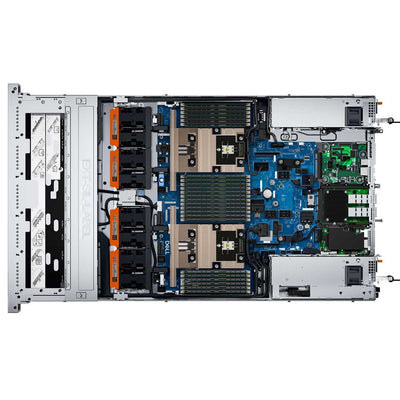

Processors and Heatsinks

Processor

Two AMD EPYC 4th Generation 9004 series processors with up to 128 cores. For CPU power > 240 W, DIMM Blank is required to be installed in all empty DIMM slots.

Heatsink & Fans

Up to four sets (dual fan module) Standard (STD) / High Performance Gold (HPR Gold) hot plug fans. For cooling purposes, OCP Shroud is required to be installed with No Riser Configuration (RC0) when OCP card is present. For air cooling with 2 x 2.5-inch rear-drive configuration, it is required to install Rear Drive Shroud in the system.

Memory

Up to 24 RDIMMs with up to 6 TB of memory and speeds up to 4800 MT/s. 256 GB RDIMM is not supported in 4 x 3.5-inch chassis configuration. Mixing of DIMMs is not supported.

DIMM type	Rank	Capacity	Operating Speed
DIMM type	Rank	Capacity	1 DIMM per channel (DPC)
DDR5 RDIMM	1 R	16 GB	4800 MT/s
	2 R	32 GB, 64 GB	4800 MT/s
	4 R	128 GB	4800 MT/s
	8 R	256 GB	4800 MT/s

Expansion Slots

3x PCI Express® (PCIe) 4.0 / 5.0 enabled expansion slots support 2 x 75 W (SW) GPUs and the configurations below. If the rear drive cages are installed it will take up most of the PCIe slots.

Config #	RSR Configuration	# of CPUs / # of PCIe Slots	PERC type supported	Rear Storage Possible
0	NO RSR	2 / 0	Front PERC	No
1	R2A + R3A	2 / 3	Front PERC	No
2	R2P + R3P	2 / 3	Front PERC	No
3	R1P + R4P	2 / 2	Front PERC	No
4	R2Q	2 / 2	Front PERC	No
5	R3P	2 / 1	Front PERC	Yes
6	R2S+R3S	2 / 2	Front PERC	Yes
7	R2A	1 / 1	Front PERC	No
8	R2A+ R4-E3 Paddle card	2 / 2	Front PERC	No

Networking Adapters (LOM + OCP 3.0)

Expanding the Network on the R6625 Dell Rack Server can be done in 3 different ways. The PCIe slots, the onBoard LOM, or the OCP 3.0 slot.

The R6625 is limited to only 3 PCIe slots. These slots will go fast. That is why the system has two other options for installing a Network Adapter. The LOM slot can support up to 2 Ports at 1GB of speed (LOM board, 2 x1Gb with BCM5720 LAN controller). Lastly, the OCP slot which supported 4 Ports up to 25Gb/s.

NOTE: Both the LOM card and OCP can be installed at the same time.

Feature	OCP 3.0
Form factor	SFF
PCIe Gen	Gen4
Max PCIe width	x8
Max no.of ports	2
Port type	BT/SFP+/SFP28
Max port speed	25 GbE
NC-SI	Yes
WoL	Yes
Power consumption	35 W

Storage Controllers

New to 16G

New to 16G is the Harpoon-based Premium Performance tier offering. This high-end offering drives IOPs performance and enhanced SSD performance.

fPERC Solution

Dell's RAID controller options offer performance improvements, including the fPERC solution. fPERC provides a base RAID HW controller without consuming a PCIe slot by using a small form factor and high-density connector to the base planar.

8 SFF NVMe Chassis

If you choose the 8 SFF NVMe Chassis with RAID, it requires the installation of the H755N Storage Controller. This H755N supports NVMe drives.

BOSS-N1

The BOSS-N1 Hot-Swap Boot Device comes with 2x M.2 480GB NVMe SSD drives. The BOSS card has a dedicated slot on the motherboard and when installed will handle the booting of the OS system. If not installed you must fill the spot with the BOSS blank.

Performance Level	Controller and Description
Entry	S160 (SATA, NVMe), SW RAID SATA, NVMe
Value	H355, HBA355 (internal/External), HBA465 (external)
Premium Performance	H755, H755N, H965 (internal/external)

Power & Dimensions

Power

PSU	Class
800 W Mixed Mode	Platinum
1100 W Mixed Mode	Titanium 100-240 V AC
1100 W DC	N/A -48-(-60V) DC
1400 W Mixed Mode	Platinum
1400 W Mixed Mode	Titanium
1800 W Mixed Mode	Titanium

Dimensions:

Width: 42.8mm (1.685")
Height: 482.0mm (18.97")
Length w/ Bezel: 822.89mm (32.4")
Length w/o Bezel: 809.05mm (31.85")

Weight

With drives 20.4 kg (44.97lbs)

Without drives and PSU installed 15.8 kg (34.83lbs)

Looking to Customize?

Need assistance with customization? Our sales experts will help you choose the best setup for your needs.

Start Customizing Today!

Dell PowerEdge R6625 Rack Server Chassis (8x 2.5

Manuals

Base Standard Capabilities

Feature	Technical Specifications
Processor	Up to two AMD EPYC 4th Generation 9004 Series with up to 128 cores per processor
Memory	• 24 DDR5 DIMM slots, supports RDIMM 6 TB max, speeds up to 4800 MT/s • Supports registered ECC DDR5 DIMMs only
Storage controllers	• Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB • External HBAs (non-RAID): HBA355e • Software RAID: S160
Drive Bays	Front bays: • Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 80 TB • Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB • Up to 10 x 2.5-inchSAS/SATA/NVMe (HDD/SSD) max 153.6 TB • Up to 14 x E3.S NVMe direct drives max 89.6 TB • Up to 16 x E3.S NVMe direct drives max 102.4 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 30.72 TB • Up to 2 x E3.S NVMe direct drives max 12.8 TB
Power Supplies	• 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant • 1400 W Mixed mode 100—240 VAC or 240 HVDC, hot swap redundant • 1100 W Mixed mode 100—240 VAC or 240 HVDC, hot swap redundant • 1100 W LVDC -48 — -60 VDC, hot swap redundant • 800 W Platinum 100—240 VAC or 240 HVDC , hot swap redundant
Cooling Options	• Air cooling • Optional Direct Liquid Cooling (DLC) Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate.
Fans	• Standard (STD) fans/High performance Gold (VHP) fans • Up to 4 sets (dual fan module) hot plug fans
Dimensions	• Height – 42.8 mm (1.685 inches) • Width – 482.0 mm (18.97 inches) • Depth – 822.89 mm (32.4 inches) with bezel - 809.05 (31.85 inches) without bezel
Form Factor	1U Rack server
Embedded Management	• iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Manual • Quick Sync 2 wireless module
Bezel	Optional LCD bezel or security bezel
OpenManage Software	• OpenManage Enterprise • OpenManage Power Manager plugin • OpenManage Service plugin • OpenManage Update Manager plugin • CloudIQ for PowerEdge plug in • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center
Mobility	OpenManage Mobile
OpenManage Integrations	• BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow • Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager
Security	• AMD Secure Encrypted Virtualization (SEV) • AMD Secure Memory Encryption (SME) • Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secured Component Verification (Hardware integrity check) • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC	2 x 1 GbE LOM card (optional)
Network options	1 x OCP 3.0 card (optional) Note: The system allows either LOM card or an OCP card or both to be installed in the system.
GPU Options	3 x 75 W SW
Ports	Front Ports • 1 x iDRAC Direct (Micro-AB USB) port • 1 x USB 2.0 • 1 x VGA	Rear Ports • 1 x Dedcated iDRAC Ethernet port • 1 x USB 3.0 • 1 x USB 2.0 • 1 x Serial (optional) • 1 x VGA (optional for Direct Liquid Cooling configuration)
Ports	Internal Ports • 1 x USB 3.0 (optional)
PCIe	Up to three PCIe slots • Slot 1: 1 x16 Gen5 or 1 x16 Gen4 Low profile, Half length or 1 x16 Gen5 Full height, Half length • Slot 2: 1 x16 Gen5 or 1 x16 Gen4 Low profile, Half length or 1 x16 Gen5 Full height, Half length • Slot 3: 1 x16 Gen5 or1 x16 Gen4 Low profile, Half length
Operating System and Hypervisors	• Canonical Ubuntu Server LTS • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi

Compare 16G Servers

Rack Server	R760	R660	R7625	R6625	R7615	R6615
Key attributes	Provides performance and versatility for demanding applications	Provides performance and versatility for demanding applications	Breakthrough performance	Breakthrough performance	Powerful performance and scalability	Peak performance and excellent TCO
Target workloads	Mixed Workload Standardization Database and Analytics Virtual Desktop Infrastructure	High Density Virtualization, Dense Database Analytics, Mixed Workload Standardization	High Performance Computing (HPC), Virtual Desktop Infrastructure (VDI), Virtualization	High Performance Computing (HPC), Virtual Desktop Infrastructure (VDI), Virtualization	Software-Defined Storage (SDS), Virtualization, Data Analytics	Virtualization, Hyper-Converged Infrastructure (HCI), Network Functions Virtualization (NFV)
Type of processor	2 x 4th Generation Intel® Xeon® Scalable processors; up to 56 cores per processor		2 x AMD EPYC™ 4th Generation 9004 Series Processor, up to 96 cores per processor		1 x AMD EPYC™ 4th Generation 9004 series processor; up to 96 cores
Memory (DDR5 DIMM slots & max)	32 (8 TB)		24 (1.5 TB*)		12 (768 GB*)
Disk drives up to:	12 x 3.5” 8 x 2.5” 16 x 2.5” 24 x 2.5” 2 x 2.5” or 4 x 2.5” (rear)	8 x 2.5” 10 x 2.5” 2 x 2.5” (rear)	8 x 3.5” 12 x 3.5” 8 x 2.5” 16 x 2.5” 24 x 2.5” 2 x 2.5” or 4 x 2.5”(rear)	4 x 3.5” 8 x 2.5” 10 x 2.5” 2 x 2.5” (rear)	8 x 3.5” 12 x 3.5” 8 x 2.5” 16 x 2.5” 24 x 2.5” 2 x 2.5” or 4 x 2.5”(rear)	4 x 3.5” 8 x 2.5” 10 x 2.5” 2 x 2.5” (rear)
NVMe drives up to:	24	10	24	10	24	10
Gen5 PCIe slots up to:	4	2	4	2	4	2
Gen4 PCIe slots up to:	8	3	8	3	4	3
Accelerator support up to:	2 x 350 W DW or 6 x 75 W SW	2** x 75 W SW	2 x 300 W DW or 6 x 75 W SW	3 x 75 W SW	3 x 300 W DW or 6 x 75 W SW	3 x 75 W SW
Rack height (U)	2	1	2	1	2	1
Integrated security	TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ, Cryptographically Signed Firmware, Chassis Intrusion Alert, Secure Boot being standard security, Silicon Root of Trust, System Lockdown (requires iDRAC9 Enterprise or Datacenter), Data at Rest Encryption (SEDs with local or external key mgmt) Secured Component Verification (Hardware integrity check) and System Erase on all racks.			TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ, Cryptographically Signed Firmware, Secure Boot, Secure Erase, Silicon Root of Trust, System Lockdown (requires iDRAC9 Enterprise or Datacenter), AMD Secure Memory Encryption (SME) and AMD Secure Encrypted Virtualization (SEV)
* Future releases will include additional system capacity for DDR5 memory in R7625, R6625, R7615 and R6615. ** Future releases will include additional GPU slots in R660.

Compare Servers

Features	PowerEdge R6625 (2S1U)		PowerEdge R6525 (2S1U)
Processors	Two AMD® EPYC 4th Generation Genoa (SP5) processors		Two AMD® EPYC™ Generation 2 or Generation 3 processors.
Processor interconnect	Inter-chip global memory interconnect (xGMI) 32GT/sec		Inter-chip global memory interconnect (xGMI) 16GT/sec
Memory	24x DDR5 RDIMM, 3DS DIMM DDR5 with ECC, bandwidth up to 4800 MT/s		32x DDR4 RDIMM, LRDIMM, 3DS
Storage Controllers	● PERC 11: HBA355i, H355, H755, H755N ● PERC 12: H965i ● Software RAID: S160 ● BOSS-N1		● PERC: H755N, H840, H745, HBA345, H345, HBA355, HBA355e ● Software RAID: S150 ● BOSS-S1 ● BOSS-S2
PCIe SSD	● Up to 12 (10+2) NVMe direct attach ● Up to 16 x E.3 Gen.5		Up to 10+2 PCIe SSD
Drive Bays	Front bays: ● Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 80 TB ● Up to 8 x 2.5-inch NVMe max 122.88 TB ● Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153.6 TB ● Up to 14 x E3.S (NVMe Gen5 ) max 89.6 TB ● Up to 16 x E3.S (NVMe Gen5 ) max 102.4 TB Rear bays: ● Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 30.72 TB ● Up to 2 x E3.s (NVMe Gen5) max 12.8 TB		Front bays: ● Up to 4 x 3.5-inch SAS/SATA drives ● Up to 8 x 2.5-inch SAS/SATA drives ● Up to 10 x 2.5-inch SAS/SATA/NVMe drives Rear bays: ● Up to 2 x 2.5-inch SAS/SATA/NVMe drives
Power Supplies	● 1800 W Mixed Mode 100-240 VAC or 240 HVDC, hot swap redundant ● 1400 W Mixed Mode 100-240 VAC or 240 HVDC, hot swap redundant ● 1100 W Mixed Mode 100-240 VAC or 240 HVDC, hot swap redundant ● 1100 W LVDC -48 - -60 VDC, hot swap redundant ● 800 W Platinum 100-240 VAC or 240 HVDC , hot swap redundant		● 1400 W Mixed Mode 100-240 VAC or 240 HVDC, hot swap redundant ● 1100 W Mixed Mode 100-240 VAC or 240 HVDC, hot swap redundant ● 1100 W LVDC -48 - -60 VDC, hot swap redundant ● 800 W Platinum 100-240 VAC or 240 HVDC , hot swap redundant
Cooling Options	● Air Cooling ● Optional Direct Liquid Cooling (DLC)		● Air Cooling
Fans	Up to four sets (dual fan module) Standard (STD) / High Performance Gold (HPR Gold) hot plug fans		Up to four Standard (STD)/ High performance silver grade (HPR Gold (Silver)), or high performance gold grade (HPR Gold (Gold))
Dimension	Height - 42.8 mm (1.685 inches)		Height - 42.8 mm (1.685 inches)
	Width - 482.0 mm (18.97 inches)		Width - 482.0 mm (18.97 inches)
	Depth - 822.89 mm (32.4 inches) with bezel		Depth - 822.89 mm (32.4 inches) with bezel
	Depth - 809.05 (31.85 inches) without bezel		Depth - 809.05 (31.85 inches) without bezel
Form Factor	1U rack server		1U rack server
Embedded Management	● iDRAC9 ● iDRAC Direct ● iDRAC RESTful API with Redfish ● iDRAC Service Manual ● Quick Sync 2 wireless module		● iDRAC9 ● iDRAC Direct ● iDRAC RESTful API with Redfish ● iDRAC Service Manual ● Quick Sync 2 wireless module
Bezel	Optional LCD bezel or security bezel		Optional LCD bezel or security bezel
OpenManage Software	● OpenManage Enterprise ● OpenManage Power Manager plug-in ● OpenManage Services plug-in ● OpenManage Update Manager plug-in		● OpenManage Enterprise ● LC 3.x ● OpenManage Power Manager plug-in ● OpenManage Services plug-in ● OpenManage Update Manager plug-in
Mobility	OpenManage Mobile		OpenManage Mobile
Integrations and Connections	OpenManage Integrations ● BMC Truesight ● Microsoft System Center ● OpenManage Integration with ServiceNow ● Red Hat Ansible Modules ● Terraform Providers ● VMware vCenter and vRealize Operations Manager		OpenManage Integrations ● Microsoft System Center ● Windows Admin Center (WAC) ● ServiceNow ● Red Hat Ansible Modules ● VMware vCenter	● OM Integration with Microsoft System Center (OMIMSC) ● OM Integration with Vcenter/vROps
Security	● AMD Secure Encrypted Virtualization (SEV) ● AMD Secure Memory Encryption (SME) ● Cryptographically signed firmware ● Data at Rest Encryption (SEDs with local or external key mgmt ● Secure Boot ● Secured Component Verification (Hardware integrity check) ● Secure Erase ● Silicon Root of Trust ● System Lockdown (requires iDRAC9 Enterprise or Datacenter) ● TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ		● Cryptographically signed firmware ● Secure Boot ● Secure Erase ● Silicon Root of Trust ● System Lockdown (requires iDRAC9 Enterprise or Datacenter) ● TPM 1.2/2.0 (optional), TCM 2.0 optional ● AMD Secure Memory Encryption (SME) ● AMD Secure Encrypted Virtualization (SEV)
Embedded NIC	2 x 1GbE LOM (optional)		No LOM riser supported on R6525.
Networking Options	1 x OCP card 3.0 (optional) NOTE: The system allows either LOM card or an OCP card or both to be installed in the system.		OCP 3.0 SCFF (Small Card Form Factor)
GPU Options	2 x 75 W (SW)		● 2 x 75 W (SW/FH) ● 1 x 75 W (SW/FH) ● 3 x 75 W (SW/LP)
Ports	Front Ports ● 1 x iDRAC Direct (Micro-AB USB) port ● 1 x USB 2.0 ● 1 x VGA	Rear Ports ● 1 x Dedicated iDRAC Ethernet port ● 1 x USB 2.0 ● 1 x USB 3.0 ● 1 x Serial (optional) ● 1 x VGA (optional for Direct Liquid Cooling configuration)	Front Ports ● 1 x iDRAC USB (Micro-AB USB) ● 1 x USB 2.0	Rear Ports ● 1 x USB 3.0 ● 2 x USB 2.0
Ports	Internal Port: 1 x USB 3.0		Internal Port: 1 x USB 3.0
PCIe	Up to three PCIe slots on Riser cards ● 2 x PCIe Gen5 slots ● 3 x PCIe Gen4 slots		Up to three PCIe slots (4.0 x16)
Operating System and Hypervisors	● Canonical Ubuntu Server LTS ● Microsoft Windows Server with Hyper-V ● Red Hat Enterprise Linux ● SUSE Linux Enterprise Server ● VMware ESXi		● Canonical Ubuntu Server LTS ● Red Hat Enterprise Linux ● SUSE Linux Enterprise Server ● VMware ESXi ● Cent OS

Shipping Information

Express Computer Systems can ship to virtually any address in the world and provides you with the best shipping rates possible. Cost of shipping varies depending on what service you require, your destination and size of the shipment. Shipping costs will be calculated separately from your order and billed to you post purchase. In the notes section of your order please provide us with your preferred shipping method and we will get back to you.

Custom configured orders ship within 2 business days after all required products are in stock.

Please allow 3 business days for products that are not in stock to arrive to our facility in Irvine, California.

Domestic Shipments

Standard Ground
- Shipping time: 2-7 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-10 business days
- Excludes weekends, holidays or weather delays.
3 Business Days
- Shipping time: 3 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 3-6 business days
- Excludes weekends, holidays or weather delays.
2 Business Days
- Shipping time: 2 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-5 business days
- Excludes weekends, holidays or weather delays.
Overnight / Next Business Day
- Shipping time: 1 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 1-4 business days
- Excludes weekends, holidays or weather delays.

International Shipments

International Economy
- Shipping time: 4-6 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 5-9 business days
- Excludes weekends, holidays or weather delays.
International Priority
- Shipping time: 1-3 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-6 business days
- Excludes weekends, holidays or weather delays.

For more information on shipping view our Shipping Information page or send us a message

ECS Warranty Information

Express Computer Systems (ECS) provides a 1 year parts warranty against defects in material or workmanship that will affect the products functionality. All refurbished items are tested prior to shipping to guarantee up-time upon arrival. If you are having issues with an item we provided please Contact Us and we will do our best to assist you.

What does our ECS warranty cover?
We offer 1 year warranty as standard and additional years can be added to fit your needs. Please reach out to a sales associate via the Contact Us page or live chat for more information on extended coverage options. During the coverage period if your product fails we will offer a Next Business Day replacement. If we are unable to replace the product we will refund its original selling price. Shipping costs and tax are not refundable. Express Computer Systems retains the right to decide whether the goods will be replaced or refunded.

What is not covered by our warranty?
Our warranty does not cover any problem caused by the following conditions:

accidents; misuse; carelessness; electrostatic discharge; shock; temperature or humidity beyond the specifications of the product; improper installation; operation; modification;
any improper use that contravenes the instructions in the user manual;
problems caused by other equipment. Our warranty is void if the product is returned with damaged, removed, counterfeit labels, or any modifications (including any component or external cover removal). Our warranties do not cover data loss or damages to any other equipment. In addition, our warranties do not cover incidental damages, consequential damages, or costs related to data recovery, removal, and installation.

Important notes:

Please ask for additional warranty/coverage that you may require in addition to the standard 1 ECS warranty prior to final purchase. Requesting additional warranty after your purchase can be denied.
FREE technical support is provided on purchased items via phone, email, or live chat.

About Express Computer Systems

Express Computer Systems is committed to transforming our customers’ IT infrastructure with high quality products at affordable costs. Our sales reps and customer support engineers understand our customers rely heavily on advanced technology to run their business but need to do so without breaking the bank.

We specialize in building custom server configurations, custom storage solutions, networking solutions, and components from top manufacturers including HPE, Dell, Cisco, NetApp, Dell EMC, HPE Nimble and many others.

Same-Day Shipping

At Express Computer Systems, we know hardware emergencies can happen at anytime. We also understand that you want to receive the best hardware as quickly as possible. At Express Computer Systems we'll ship the majority of our orders out the same day payment is made. Curious if the item you need will make it out on time? Feel free to contact us directly via the Contact Us link at the bottom, Live Chat feature or (800) 327-0730.

Buy, Sell, Rent, Lease, Trade-In

At Express Computer Systems we not only will sell you equipment at a great value, but we'll also purchase your used Dell, Cisco, NetApp or other networking equipment. Feel free to contact us with the model of the items you're looking to sell and we'll get you a quote ASAP. We also have flexible financing options for your purchasing needs.

In-House Configuration and Testing Lab

Every item we sell is tested on-site in our state-of-the-art hardware engineering lab. We use certified technicians to test every piece of equipment as well as updating all necessary firmware. The highest quality of testing and certification is guaranteed. We warranty all of our items we sell. Ask us today about warranty for a specific item.

Leave a Message

Dell PowerEdge R6625 Rack Server Chassis (8x 2.5" NVMe)

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Dell PowerEdge R6625 Rack Server Chassis (8x 2.5" NVMe)

Quick Specs

Ideal for:

Looking to Customize?

Manuals

Manuals

Product Specs

Base Standard Capabilities

Compare 16G Servers

Compare Servers

Shipping Information

ECS Warranty Information

About Express Computer Systems

Shop with Confidence

Dell PowerEdge R6625 Rack Server Chassis (8x 2.5" NVMe)

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Dell PowerEdge R6625 Rack Server Chassis (8x 2.5" NVMe)

Quick Specs

Ideal for:

Looking to Customize?

Manuals

Manuals

Product Specs

Base Standard Capabilities

Compare 16G Servers

Compare Servers

Shipping Information

ECS Warranty Information

About Express Computer Systems

Related Items

Your Recently Viewed Items

Subscribe

Shop with Confidence
