Quick Specs
- Category Dell Controller
- Max Storage Devices Qty 16
- RAID Level RAID 0 1 5 6 10 50 60
Overview:

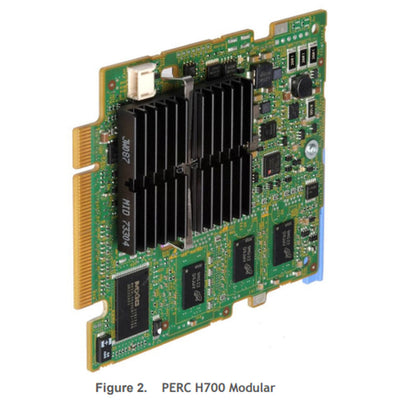

The Dell PERC H700 RAID controller has a PCIe interface and throughput of 6Gb/s. PERC H700 RAID controllers are compatible with select Dell PowerEdge servers. The PERC H700 with two x4 internal mini-SAS ports supports the PCIe 2.0 x8 host interface.
Compatible With:
- Dell M710
- Dell R210
- Dell R210ii
- Dell R510
- Dell R610
- Dell T710
(Click to View)
Spec Sheet 4
| Feature/Spec | PERC H700 | PERC 6/I | PERC H800 | PERC 6/E |
|---|---|---|---|---|
| Interface | 6Gb (SAS 2.0) | 3Gb (SAS 1.1) | 6Gb (SAS 2.0) | 3Gb (SAS 1.1) |
| Bus support | x8 PCIe 2.0 | x8 PCIe 1.0 | x8 PCIe 2.0 | x8 PCIe 1.0 |
| Ports / Channels | 8 (2 x4) | 8 (2 x4) | 8 (2 x4) | 8 (2 x4) |
| Int/Ext Connectors | 2 internal | 2 internal | 2 external | 2 external |
| Cache Memory | 512MB BBU 512MB Non-Volatile Cache (800 MHz DDR2) | 256MB (667 MHz DDR2) | 512MB TBBU 512MB TNVC 1GB TNVC (800 MHz DDR2) | 256MB / 512MB (667 MHz DDR2) |
| Battery-Backed Cache | Yes | Yes | Yes Transportable | Yes Transportable |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60 | 0, 1, 5, 6, 10, 50, 60 | 0, 1, 5, 6, 10, 50, 60 | 0, 1, 5, 6, 10, 50, 60 |
| Max physical drives in Large RAID volume (R10, R50, R60) | 16 | 10 | 192 (8x MD1220) | 144 (6x MD1120) |
| HDD Support | SAS and SATA | SAS and SATA | SAS only | SAS and SATA |
| SSD Support | SAS and SATA | SATA | SAS only | Not Supported |
| SED Support | Yes (Local Key Management) | Not Supported | Yes (Local Key Management) | Not Supported |
| Controller Firmware (latest rev) | 7.1 | 6.2 | 7.1 | 6.2 |
| Redundant Path | No | No | Yes | Yes |
| I/O Load Balancing | No | No | Yes | Yes |
| Cluster Support | No | No | No | No |
| Storage Management | OpenManage™ 6.2 (minimum rev) | OpenManage™ 5.4 (minimum rev) | OpenManage™ 6.2 (minimum rev) | OpenManage™ 5.4 (minimum rev) |
