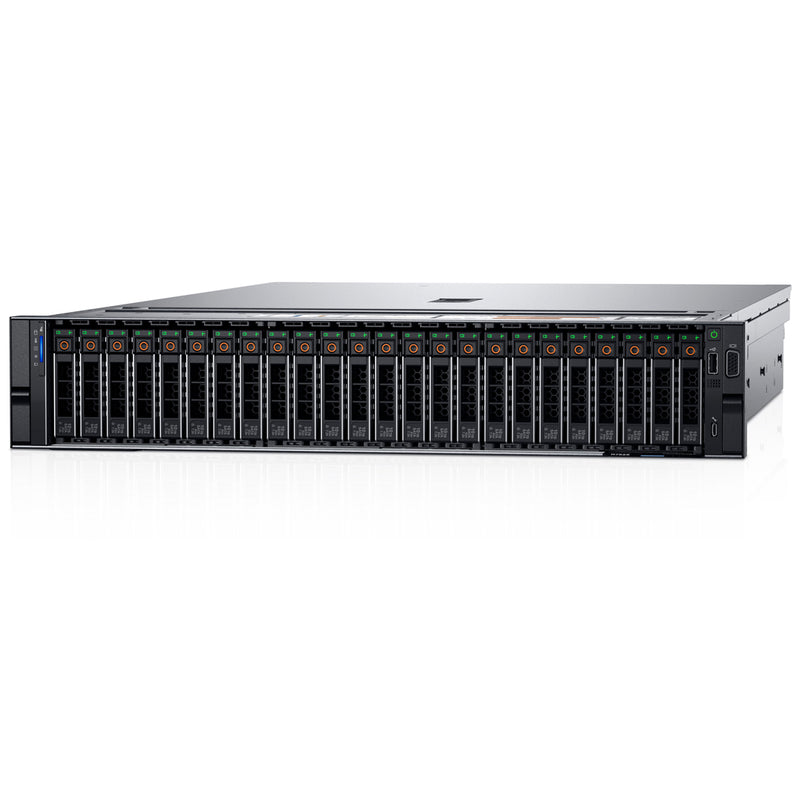

Dell PowerEdge R7525 Rack Server Chassis (24x2.5" NVMe)

Dell

| Chassis
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor:

2U rack server

Processor Max: 64 Cores

2x 2nd or 3rd Gen AMD EPYC

Memory Max: 2TB RDIMM 4TB LRDIMM

32 ECC DDR4 RDIMM/LRDIMM 3200Mhz

Storage Max: N/A

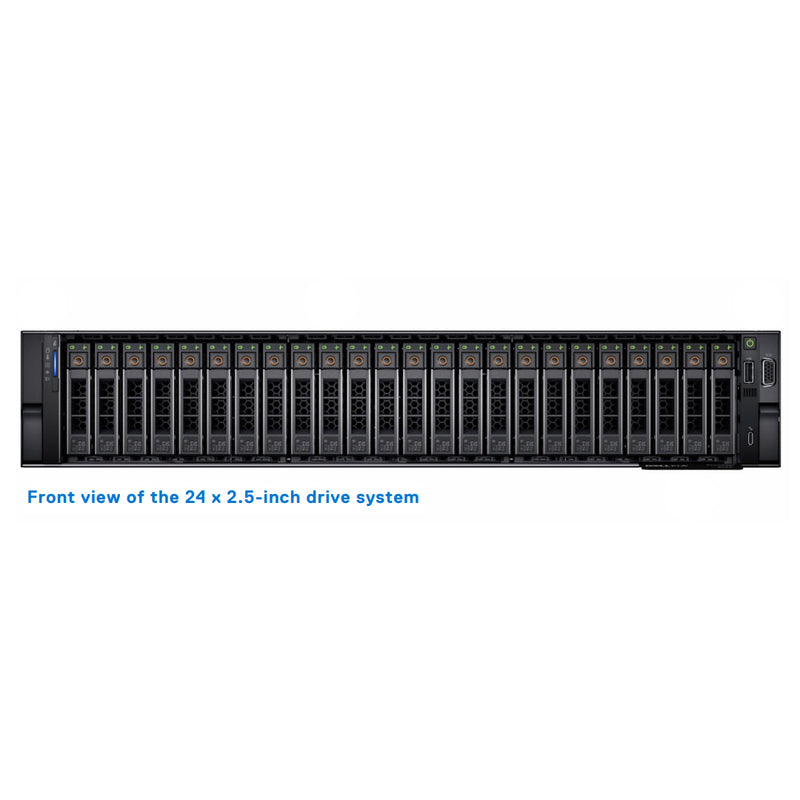

Front bays:
Up to 24 x 2.5” NVMe
Rear bays:
2 or 4x 2.5” SAS/SATA (HDD/SSD)

Boot Options

Boot Optimized Server Storage (BOSS-S2) Hot-Swap
Boot Optimized Server Storage (BOSS-S1) Cold-Swap
IDSDM

RAID Controller: (fPERC)

S150 (SATA SW RAID 0, 1, 5 and 10.)
H345, H745, H755, H755N, H840, 12Gb/s SAS HBA

NIC/LOM

2 x 1GE LOM with BCM5720 lan controller

Networking Options

OCP 3.0 x16 Mezz 3.0

Remote Management:

iDRAC9 with Lifecycle Controller

PCIe Slots:

Up to 8 x PCIe Gen4 slots

GPU:

Up to three double wide 300W
Or six single wide 75W accelerators

Other Versions

Ideal for:

  • Data Analytics
  • Virtual Desktop Interface (VDI)
Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

FeatureTechnical Specification
ProcessorTwo 2nd or 3rd Generation AMD EPYCTM Processors with up to 64 cores per processor
MemoryDDR4: Up to 32 x DDR4 RDIMM (2TB), LRDIMM (4TB), bandwidth up to 3200 MT/S
Storage controllers
  • HBA345, PERC H345, PERC H745, H840, 12Gbps SAS HBA
  • Chipset SATA/SW RAID(S150): Yes
  • PERC11 – H755, H755N
Drive baysFront bays:
  • Up to 8 x 3.5” SAS/SATA (HDD)
  • Up to 12 x 3.5” SAS/SATA (HDD)
  • Up to 16 x 2.5” SAS/SATA (SSD/HDD)
  • Up to 24 x 2.5” with up to 24 NVMe, SAS/SATA (SSD/HDD)

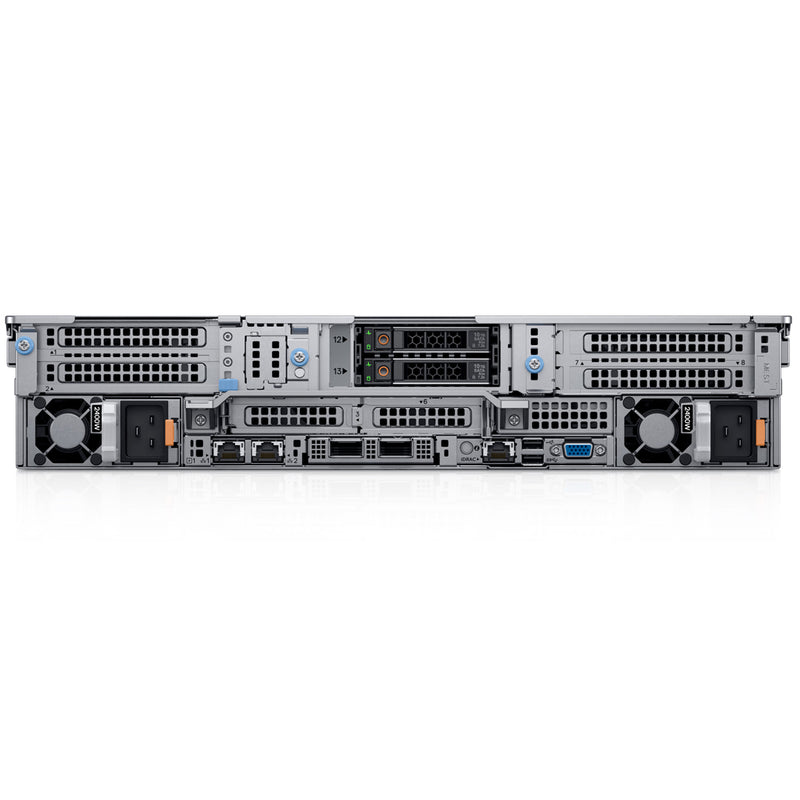

Rear Bays:
  • Up to 2 x 2.5” SAS/SATA (HDD/SSD)
Power supplies
  • 800W Platinum
  • 1400W Platinum
  • 2400W Platinum
FansStandard/High Performance/Very High Performance
Hot Plug Fans
DimensionsHeight: 86.8mm (3.42”)
Width: 434.0mm (17.09”)
Depth: 736.29mm (28.99”)
Weight: 36.3KG (80lb)
Form Factor2U Rack Server
Embedded mgmt
  • iDRAC9
  • iDRAC RESTful API with Redfish
  • iDRAC Direct
  • Quick Sync 2 BLE/wireless module
BezelOptional LCD bezel or security bezel
OpenManage™ SoftwareConsoles
  • OpenManage Enterprise
  • OpenManage Enterprise Power Manage
  • OpenManage Mobile
Integrations & ConnectionsOpenManage Integrations
  • BMC Truesight
  • Microsoft System Center
  • Red Hat Ansible Modules
  • VMware® vCenter™
OpenManage Connections
  • IBM Tivoli Netcool/OMNIbus
  • IBM Tivoli Network Manager IP Edition
  • Micro Focus Operations Manager
  • Nagios Core
  • Nagios XI
Security
  • Cryptographically signed firmware
  • Secure Boot
  • Secure Erase
  • Silicon Root of Trust
  • System Lockdown
  • TPM 1.2/2.0, TCM 2.0 optional
  • AMD Secure Memory Encryption (SME)
  • AMD Secure Encrypted Virtualization (SEV)
Embedded NIC2 x 1GE LOM
Networking OptionsOCP x16 Mezz 3.0
GPU OptionsUp to three double wide 300W
Or six single wide 75W accelerators
PortsFront Ports:
  • 1 x Dedicated iDRAC direct micro-USB
  • 1 x USB 2.0
  • 1 x VGA
Internal Ports:
  • 1 x USB 2.0

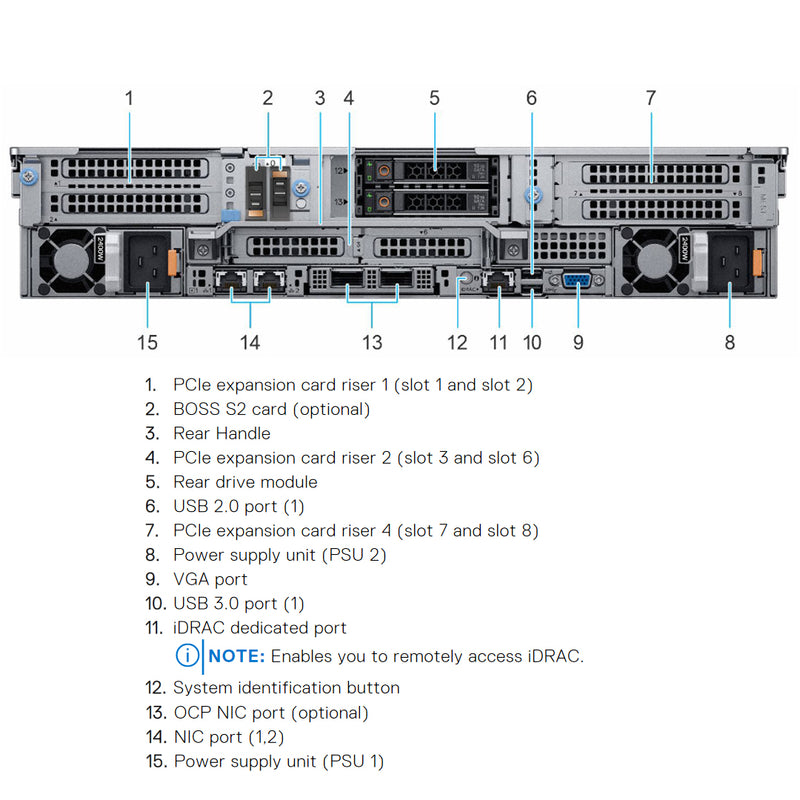

Rear Ports
  • 1 x Ethernet
  • 1 x Serial (optional)
  • 1 x USB 2.0
  • 1 x USB 3.0
  • 1 x VGA
  • 1 x Power Button

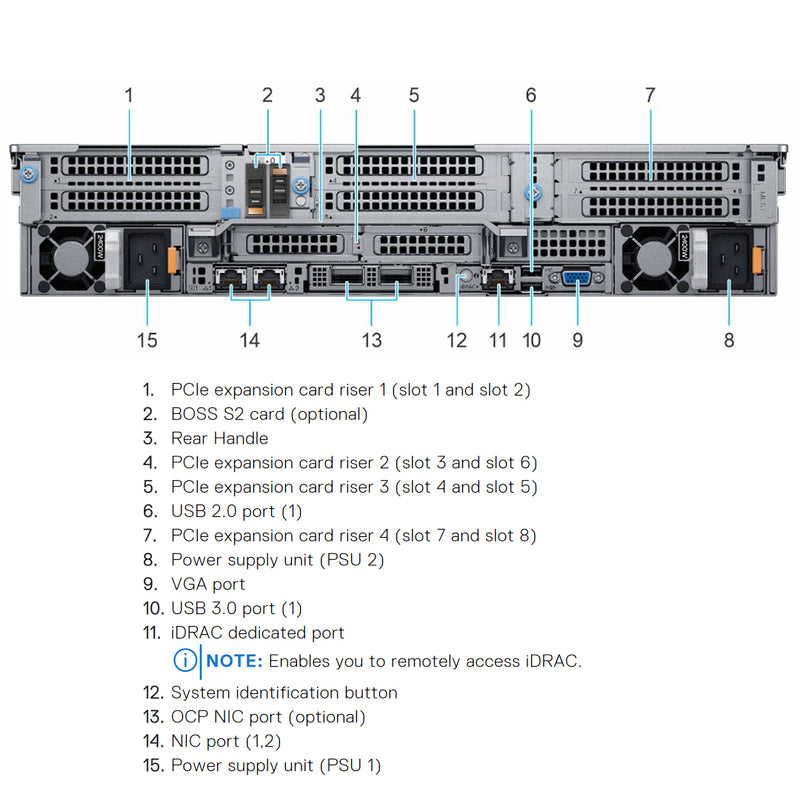

PCIeUp to 8 x PCIe Gen4 slots
Operating System and Hypervisors
  • Canonical Ubuntu Server LTS
  • Citrix Hypervisor
  • Microsoft Windows Server with Hyper-V
  • SUSE Linux Enterprise Server
  • Red Hat Enterprise Linux
  • VMware ESXi

Spec Sheet 4

Feature PowerEdge R7525 PowerEdge R7425
Processor Two AMD® EPYC™ Generation 2 or Generation 3 processors. Two AMD Naples™ socket SP3 compatible processors
CPU Interconnect Inter-chip global memory interconnect (xGMI-2) AMD Socket to Socket Global Memory Interface (xGMI)
Memory 32x DDR4 RDIMM, LRDIMM, 3DS 32x DDR4 RDIMM, LRDIMM
Disk Drives 3.5-inch, 2.5-inch: 12G SAS, 6G SATA, NVMe HDD 3.5-inch, 2.5-inch: 12G SAS, 6G SATA HDD
Storage Controllers H755, H755N, H745, HBA345, HBA355, HBA355E, H345, H840, 12G SAS HBA
SW RAID: S150		 Adapters: H330, H730P, H740P, H840 , HBA330, 12G SAS HBA
SW RAID: S140
PCIe SSD Up to 24x PCIe SSD Up to 24x PCIe SSD
PCIe Slots Up to 8 (PCIe 4.0) Up to 8(Gen3 x16)
rNDC 2 x 1 GB Select Network Adapter NDC: 4 x 1 GB, 4 x 10 GB, 2 x 10 GB + 2 x 1 GB, or 2 x 25 GB
OCP Yes for OCP 3.0 NA
USB Ports Front: 1 x USB 2.0, 1 x iDRAC USB (Micro-AB USB)
Rear: 1 x USB 3.0, 1 x USB 2.0
Internal: 1 x USB 3.0		 Front: 1 x USB2.0, 1 x iDRAC USB(Micro USB) , Optional 1xUSB 3.0 front port
Rear: 2 x USB3.0
Internal: 1 xUSB3.0
Rack Height 2U 2U
Power Supplies Mixed Mode (MM) AC/HVDC (Platinum) 800 W, 1400 W, 2400 W, Titanium 1100 W Mixed Mode AC/HVDC, (-48 V) 1100 W DC PSU AC Platinum : 2400 W, 2000 W, 1600 W, 1100 W, 495 W
750 W AC Platinum: Mixed Mode HVDC ( for China only), Mixed Mode AC, DC ( DC for China only)
1100 W -48 V DC Gold
System Management LC 3.x, OpenManage, QuickSync2.0, OMPC3, Digital License Key, iDRAC Direct (dedicated micro-USB port), Easy Restore LC 3.x, OpenManage, QuickSync 2.0, Digital License Key, iDRAC9, iDRAC Direct (dedicated micro-USB port), Easy Restore, vFlash
GPU 3 x 300 W (DW) or 6 x 75 W (SW) 3 x 300 W (DW) or 6 x 150 W (SW)
Availability Hot-plug drives, Hot-plug redundant power supplies, BOSS, IDSDM Hot-plug drives, Hot-plug redundant power supplies, BOSS, IDSDM
