Home / 4GB / Dell PowerVault MD3660f (60x3.5") Chassis
SKU: DPV-MD3660f-Chassis

Dell PowerVault MD3660f (60x3.5") Chassis

Dell

| Chassis
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor:

4U rack server

Storage | Max: 120

60 LFF SAS, NL-SAS (HDD/SSD)

Mix and match drives:

Supported

Controllers:

Supports up to 2

Cache Per Controller:
Single controller:

2GB, 4GB

Dual controller:

2GB, 4GB. 8GB

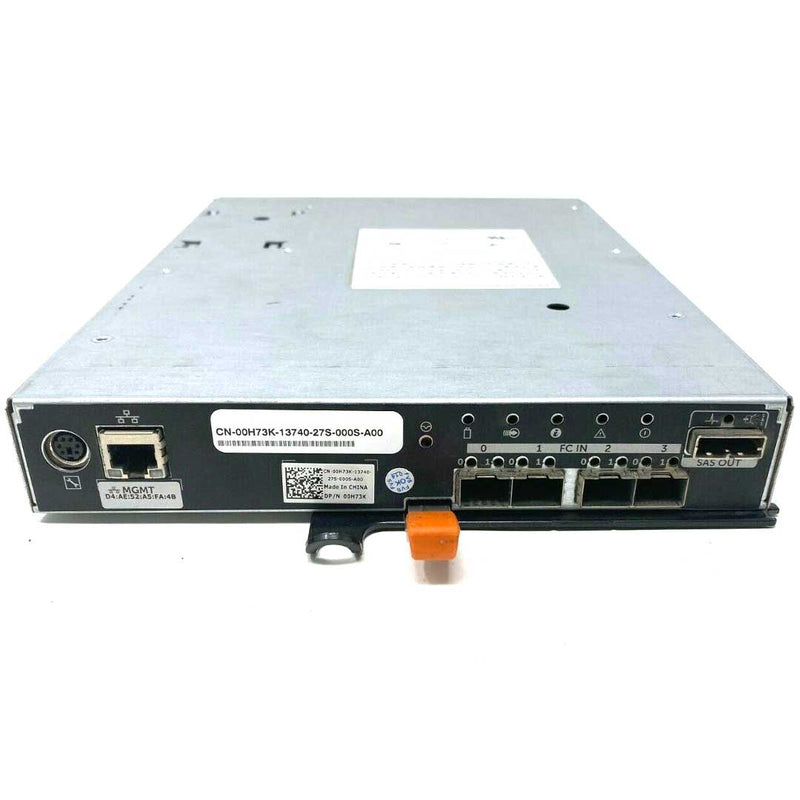

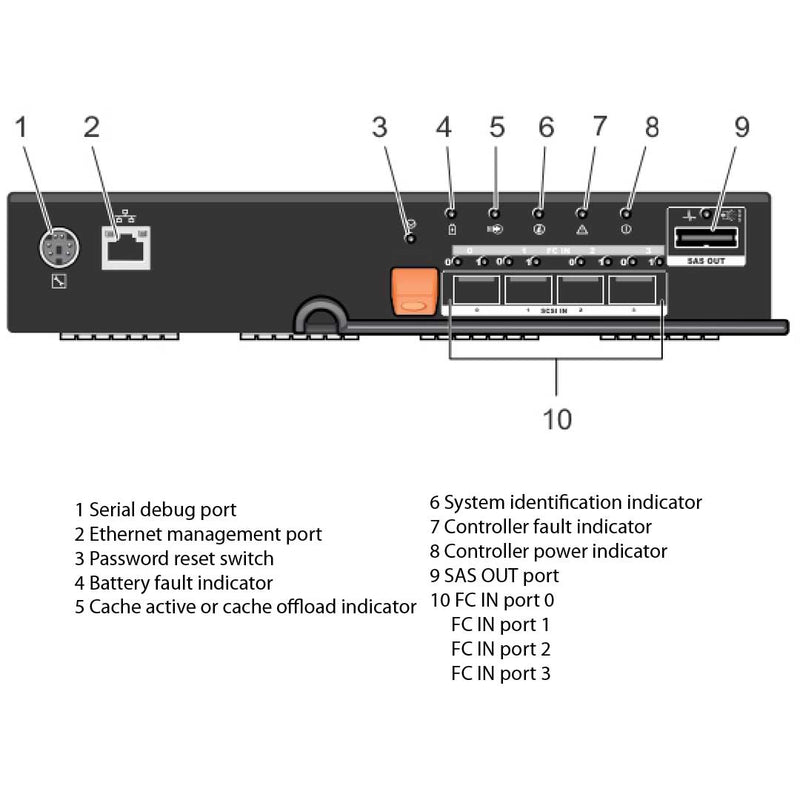

Ports Per Controller:
  • Four 8Gb/s FC Fibre Channel Host Connectivity
  • One x4 6Gb SAS Expansion Connectivity
  • One RJ-45 1Gb Ethernet Remote Management
Host Connectivity:
Single Controller Models:

N/A

Dual Controller Models:

N/A

Expansion Storage:

Up to 120 drives using MD3060e dense enclosures

Other Storage Arrays in the MD Series (JBOD)

MD3200 Series

Data Speeds

1Gb iSCSI

6Gb SAS

Server Options

MD3060e

MD3200 12 Bay SAS

MD3200i 12 Drive iSCSI

MD3220 24 Drives SAS

MD3220i 24 Drives iSCSI

MD3400 Series

Speeds

12Gb SAS

10GBase-T iSCSI

16Gb FC

Server Options

MD3400 12 Drives

MD3420 24 Drives

MD3460 60 Drives

MD3600 Series

Speeds

10GBase-T iSCSI

8Gb FC

Server Options

MD3600i 12 Drives iSCSI

MD3600f 12 Drives Fibre

MD3620i 24 Drives iSCSI

MD3620f 24 Drives Fibre

MD3660i 60 Drives iSCSI

MD3660f 60 Drives Fibre

MD3800 Series

Speeds

10GBase-T iSCSI + 12Gb SAS

16 FC + 12Gb SAS

Server Options

MD3800i 12 Drives iSCSI

MD3800f 12 Drives Fibre

MD3820i 24 Drives iSCSI

MD3820f 24 Drives Fibre

MD3860i 60 Drives iSCSI

MD3860f 60 Drives Fibre

The Refurbished Dell PowerVault MD3660f, a high-density storage array that is perfect for businesses seeking to optimize their storage needs. With the ability to support up to 60 3.5" HDD/SSD and 8Gb Fibre Channel (FC) connectivity, this storage array can efficiently manage data-intensive applications and virtual environments.

Gain a new level of management efficiency

The MD3660f offers the flexibility to mix and match drive types, enabling businesses to create a tiered storage environment that can meet their specific storage requirements. With the capability to scale up to 120 drives with MD3060e expansion enclosures, you can easily expand your storage capacity as your business grows.

This storage array from Dell is equipped with advanced MD Storage Manager software, which simplifies the management of administrative tasks, including configuration, re-configuration, expansion, maintenance, and performance tuning. The software offers two different management paths and features an enterprise window that can monitor multiple systems through a single interface.

With the Refurbished Dell PowerVault MD3660f, you can reduce the effort required to store and manage your data, allowing you to focus on growing your business. Additionally, this storage array is available at an affordable price, making it a cost-effective solution for businesses seeking to optimize their storage needs.

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

No Specs Found
