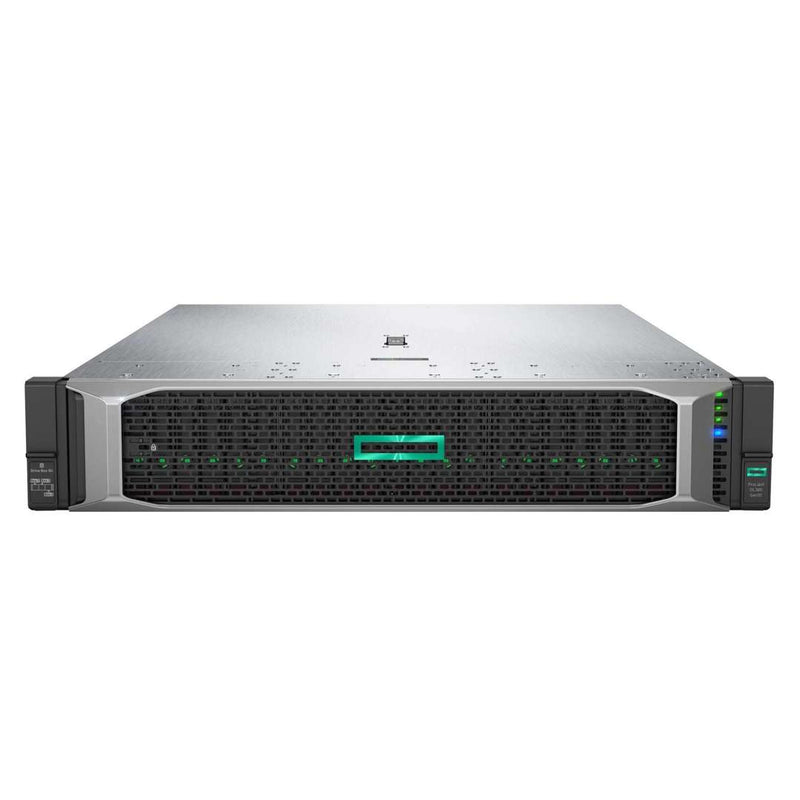

HPE ProLiant DL380 Gen10 4208 2.1GHz 8-Core 1P 32GB-R P408i-a 24SFF 800W RPS Server | P02467-B21
HP P02467-B21 ProLiant DL380 Gen10 server with one Intel Xeon Silver 4208 processor, 2x 16 GB dual rank memory, P408i-a storage controller, Smart Storage Battery to support multiple controllers/devices, twenty four small form factor drive bays, six performance fans, two 800W Platinum power supply, and a 1 Year NBD ECS Parts Replacement Warranty. Rail kit and cable management arm available upon request.
Included Parts List
Type |
Quantity
|
Title |
Chassis |
1
|
HPE ProLiant DL380 Gen10 24SFF Server Chassis
|
Processor |
1 |
Intel Xeon-Silver 4208 (2.1GHz/8-core/85W) Processor
|
Memory |
2 |
HPE 16GB (1x16GB) 2RX4 DDR4-2400 CAS 17-17-17 Registered Memory
|
RAID |
1 |
HPE Smart Array P408i-a SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS Modular Controller |
PSU |
1 |
HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply
|
*Ask for additional upgrade options
Specifications for P02467-B21
Processor Core Available 8, per processor
Processor Cache Installed L3
Memory Type HPE DDR4 SmartMemory
NVDIMM Type Not applicable
NVDIMM Rank Not applicable
NVDIMM Capacity HPE Persistent Memory featuring Intel® Optane™ DC persistent memory not supported on this processor model
Network Controller 1 Integrated 4 x Gigabit Ethernet
Remote Management Software HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView Advanced (optional)
System Fan Features 6 single-rotor, performance fans included
Power Supply Type 1 HPE 800W Flex Slot Universal Hot Plug Low Halogen Power Supply Kit
Expansion Slots 3 PCIe 3.0, for detailed descriptions reference the QuickSpecs
Storage Controller 1 HPE Smart Array P408i-a/2GB with Smart Storage Battery and 1 HPE Smart Array S100i
Processor Name Intel® Xeon® Scalable 4208
Processor Number 1
Processor Speed 2.1 GHz
Standard Memory 32 GB (2x 16GB) RDIMM
Hard Drive Number (included) None ship standard, 24 SFF drives supported
Optical Drive Type Optional via Universal Media Bay
Security Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0
Form Factor 2U
Weight (imperial) 32.6 lb
Weight (metric) 14.76 kg
Product Dimensions (imperial) 17.54 x 28.75 x 3.44 in
Product Dimensions (metric) 44.55 x 73.03 x 8.74 cm
