    NetApp FAS6070 Single Controller Filer Head (Stand Alone)


    Price: Request a Quote

    Brand:
    MPN:
    FAS6070
    Type:
    Filer Head
    Condition:
    ECS Refurbished & Tested

    Request Quote

    Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.


    -PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
    -SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

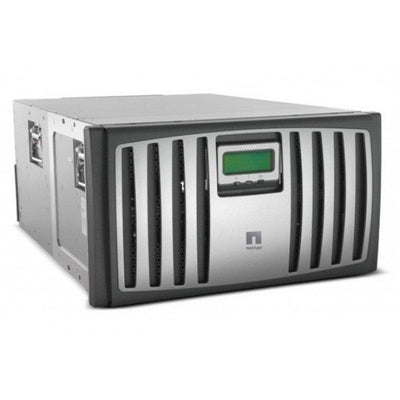

    NetApp FAS6070 Single Controller Filer Head (Stand Alone)

    The NetApp FAS6070 is a 6U, single-chassis storage system designed for enterprise environments that demand both performance and scalability. Featuring a single controller with four 64-bit, 1-core 2.80GHz processors, it delivers robust performance for mission-critical workloads. Its architecture supports up to 32GB of memory and RAID 4 or RAID-DP, providing a dependable framework for data protection.

    Connectivity options include six 1Gb Ethernet ports and eight 2Gb Fibre Channel ports, making it adaptable to diverse network infrastructures. With a mix of PCI-X and PCIe expansion slots (three PCI-X plus five PCIe), administrators can add additional network or storage interfaces as needed. Remote management capabilities simplify setup, monitoring, and maintenance.

    Supporting up to 1,008 drives and a maximum raw capacity of 4,032TB (4PB), the FAS6070 scales to accommodate growing data requirements. It works seamlessly with various NetApp disk shelves—DS14-Mk2-AT, DS14-Mk2-FC, DS14-Mk4-FC, DS2246, DS4243, DS4246, and DS4486—offering a range of drive interfaces (FC, MSATA, NL-SAS, SAS, SATA, SSD) for tailored performance and capacity. This blend of expandability and reliability makes the FAS6070 a strong choice for organizations seeking a single-controller storage solution.


    System Config
    • Model: NetApp FAS6070
    • Chassis: Single Chassis
    • Total Rack Height: 6U
    • Controllers: Single Controller (Stand Alone)
    • Memory (HA): 32GB
    • Processor Model: 4x 64-bit 1-core 2.80 Ghz
    • Ethernet Ports: 6 x RJ45 (1Gb)
    • Fibre Channel Ports: 8 x SFP (2Gb)
    • PCIe Expansion Slots: 3 x PCI-X + 5 x PCIe
    • Max Drives (total): 1008
    • Max Capacity: 4,032TB (4PB)
    • Disk Shelves: DS14-Mk2-AT, DS14-Mk2-FC, DS14-Mk4-FC, DS2246, DS4243, DS4246, DS4486
    • Filer Heads: N/A
    Dimensions & Weight
    • Chassis Rack Height: 6U
    • Chassis Heights: 10.32" (26.21 cm)
    • Chassis Width w/o Mounting Flanges: 17.53" (44.52 cm)
    • Chassis Depth w/ Cable Mgmt: 29" (73.66 cm)
    • Chassis Weight: up to 121.9 lb (55.3 kg)
    Controller Specs
    • Max Controllers: 1 (Per Chassis)
    • PCI Slot (per): 3 x PCI-X + 5 x PCIe
    • Ethernet Ports (per): 6 x RJ45 (1Gb)
    • Fibre Channel Ports (per): 8 x SFP (4Gb)
    • UTA2 Ports (per): N/A
    • SAS Ports (per): N/A
    • Remote Management: Yes
    • Processor Model (per): 4x 64-bit 1-core 2.80 Ghz
    • Memory (Single/HA): 32GB/64GB
    • NVRAM (Single/HA): 2GB/4GB
    Storage
    • Max Number of Internal Drives: 0
    • Max Number Drives (total): 1008
    • Max Capacity: 4,032TB (4PB)
    • Max Number of FC Drives: 1008
    • Max Number of MSATA Drives: 1008
    • Max Number of NL-SAS Drives: 1008
    • Max Number of SAS Drives: 1008
    • Max Number of SATA Drives: 1008
    • Max Number of SSD Drives: 240
    • Drive Interface: FC, MSATA, NL-SAS, SAS, SATA, SSD
    • RAID: RAID 4, RAID 6 (RAID-DP)
    • Max # of DS14-Mk2-AT Shelves: 72 external
    • Max # of DS14-Mk2-FC Shelves: 72 external
    • Max # of DS14-Mk4-FC Shelves: 72 external
    • Max # of DS2246 Shelves: 42 external
    • Max # of DS4243 Shelves: 42 external
    • Max # of DS4246 Shelves: 42 external
    • Max # of DS4486 Shelves: 21 external

    FAS6070 Parts Lists
