-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Quick Specs
What's New for Apollo 4200 Gen10
- 2U (28 LFF or 60 SFF) Chassis Options
- 3 Front Facing Drive Cages
- Optional rear drive up to 6 SFF/NVMe or 4 LFF
- (2) Intel Xeon 3rd Gen Scalable processors
- (24) 3200MT/s DDR4 DIMMs | 12 DIMMs per processor
- HPE Persistent Memory Support
- Supports up to 4.0TB of DDR4 memory
- Tri-Mode Controller Support
- OCP 3.0 Support
- (6) PCIe 4.0 slots
- HPE iLO 5
- NVMe U.3 Drives Support (Dirve Cage 3, 4, or 5)
- GPU Supported
Other Versions:
- HPE ProLiant Apollo 2000 G9 | G10
- HPE ProLiant Apollo 4200 G9 | G10 | G10+
- HPE ProLiant Apollo 4500 G9 | ---
- HPE ProLiant Apollo 6500 G9 | G10 | G10+
- HPE ProLiant Apollo pc40
- HPE ProLiant Apollo sx40
(Click to View)
Ideal for:
- Artificial Intelligence (AI)
- Big Data Analytics
- Data Analytics
- Database
- Deep Learning (DL)
- High-Performance Computing (HPC)
- Hyper-Converged infrastructure (HCI)
- Language Model
- Machine Learning (ML)
- Video Analytics
- Video Streaming
- Virtualization

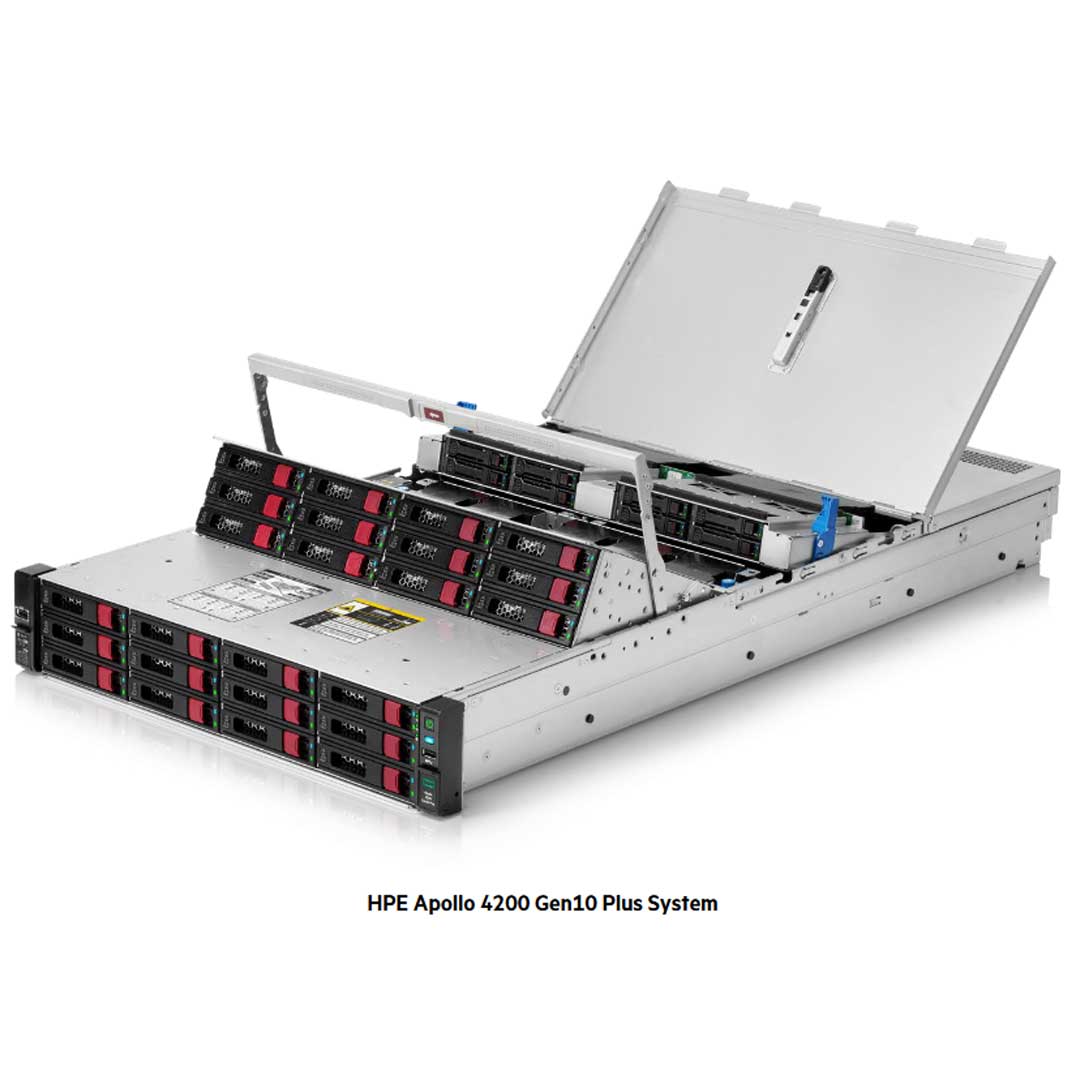

The HPE Apollo 4200 Gen10 Plus Server combines cutting-edge technology with exceptional storage density and performance in a 2U form factor, purpose-built for data-intensive workloads. It supports up to three front-facing drive cages, accommodating 28 LFF or 60 SFF hot-plug drives, including NVMe, SAS, and SATA options. This configuration provides up to 560 TB of storage with 20 TB drives, scaling to over 11 PB in a 42U rack.
Powered by 3rd Generation Intel® Xeon® Scalable processors with up to 32 cores per CPU, the server delivers enhanced compute capabilities. It supports up to 24 DDR4 DIMM slots for a maximum of 4 TB of memory at 3200 MT/s. With six PCIe Gen4 slots, the system offers increased I/O bandwidth, enabling high-speed connectivity and expansion for accelerators, storage controllers, and networking.
The HPE Apollo 4200 Gen10 Plus introduces a balanced architecture, improved thermal efficiency, and support for select GPU and FPGA accelerators, ensuring it excels in modern workloads like AI, machine learning, big data analytics, and hyperconverged infrastructure.
Looking to Customize?
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Spec Sheet 4
| Technical specifications | HPE Apollo 4200 Gen10 Plus System |
|---|---|
| Chassis fan | Hot-plug redundant system fans shipped as standard |
| Memory | 24 DIMM slots for HPE DDR4 SmartMemory, maximum 4.0 TB per processor |
| Memory protection features | HPE Advanced Memory Error Detection Technology, including Fast Fault Tolerance (selected memory options) |
| Power | Up to 2 power supplies, choice of 800W or 1600W hot-plug and redundant |
| Network | Optional OCP 3.0 or PCIe NICs up to 200 Gb/s |
| Storage | Standard 24 LFF SAS/SATA/SSD and 48 SFF SAS/SATA/SSD CTO models, optional storage upgrade 4 LFF SAS/SATA/SSD Cage 3, 8 SFF SAS/SATA/NVMe U.3 Tri-mode Cage 3, 2 SFF SAS/SATA/NVMe U.3 Tri- mode Cage 4, or 2 SFF SAS/SATA/NVMe U.3 Tri-mode Cage 5 |
| Form factor | 2U Rack |
| System configuration(s) | Front 24 LFF model supports optional 4 LFF Cage 3 or 8 SFF cage3, and front 48 SFF model supports optional 8 SFF Cage 3. The optional Cage 3 cannot be configured with CPU higher than 165W or Intel® Optane™ Persistent Memory. The 2 SFF Cage 4 and 2 SFF Cage 5 are available for both CTO models. |
| CPU | Intel® Xeon® Scalable 8300 series, Intel® Xeon® Scalable 6300 series, Intel® Xeon® Scalable 5300 series, Intel® Xeon® Scalable 4300 series |
| Boot capabilities | Optional HPE NS204i-p x2 Lanes NVMe PCIe3 x8 OS Boot Device or HPE Universal SATA 6G AIC HHHL M.2 SSD Enablement Kit |
| Accelerator type supported | NVIDIA T4 16GB Computational Accelerator for HPE (planned for late 2021) |
| Product dimensions (imperial) | 3.44 x 17.63 x 32.99 in (dimensions without bezel) |
| Weight | 41.06 lb (empty), 106.61 lb (fully-loaded) |
