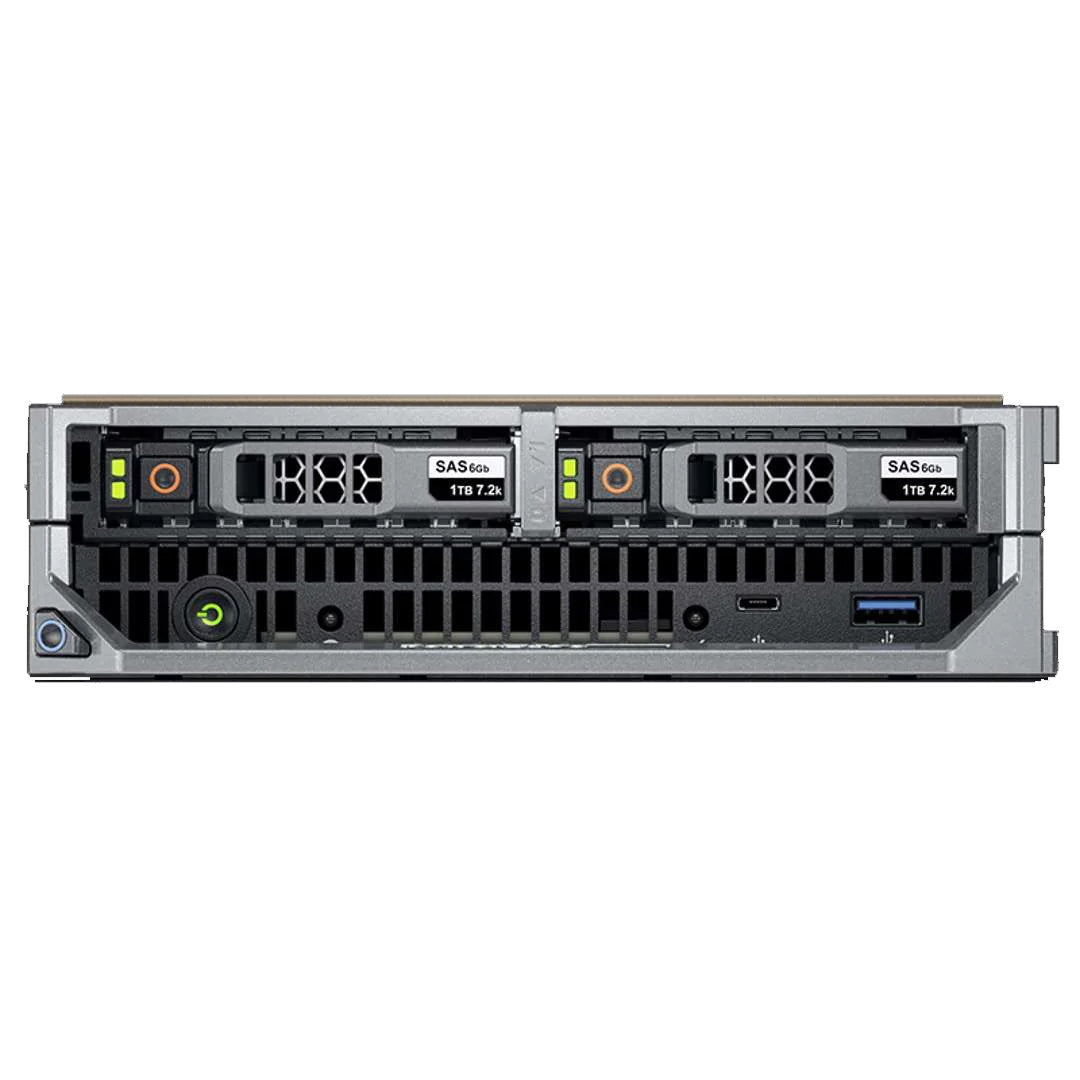

PEM640-2x2.5-VRTX | Refurbished Dell PowerEdge M640 Blade Server Chassis (2x2.5" VRTX)

Dell PowerEdge M640 Blade Server Chassis VRTX (2x2.5")

SKU: DPE-M640-VRTX-Chassis

Dell PowerEdge M640 Blade Server Chassis VRTX (2x2.5")

Name: Dell PowerEdge M640 Blade Server Chassis VRTX (2x2.5")
Brand: Dell
SKU: DPE-M640-VRTX-Chassis
Availability: InStock

Dell

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor:

Half Height Blade

Processor | Max: 28 Cores

2 x Intel Xeon Scalable

Memory | Max: 2TB

16x DDR4 RDIMM/LRDIMM 2666Mhz

Storage | Max: 12.8TB

2x 2.5" SAS/SATA/NVMe (HDD/SSD)

Storage Controllers

S140 (SW RAID SATA/NVMe)
PERC9 H330, H730P

Boot Option:

BOSS Dual M.2 Module
IDSDM Micro SD
Internal USB
Micro SD vFLash
Only 1 can be installed, BOSS or IDSDM

Networking Daughter Card (bNDC)

2 x 10GE + 4 X 1GE, 4 x 10GE

iDRAC

iDRAC9 with Lifecycle Controller

GPU:

None

Ideal for:

Cloud Servers
High-Performance Computing (HPC)
Virtualization
Anything as a service (Xaas)

This is one of the supported blade servers, each Modular Enclosure is a separate CTO you must configure.

Dell Supported M1000e & VRTx Blade Architecture

Dell M1000e Blade Architecture

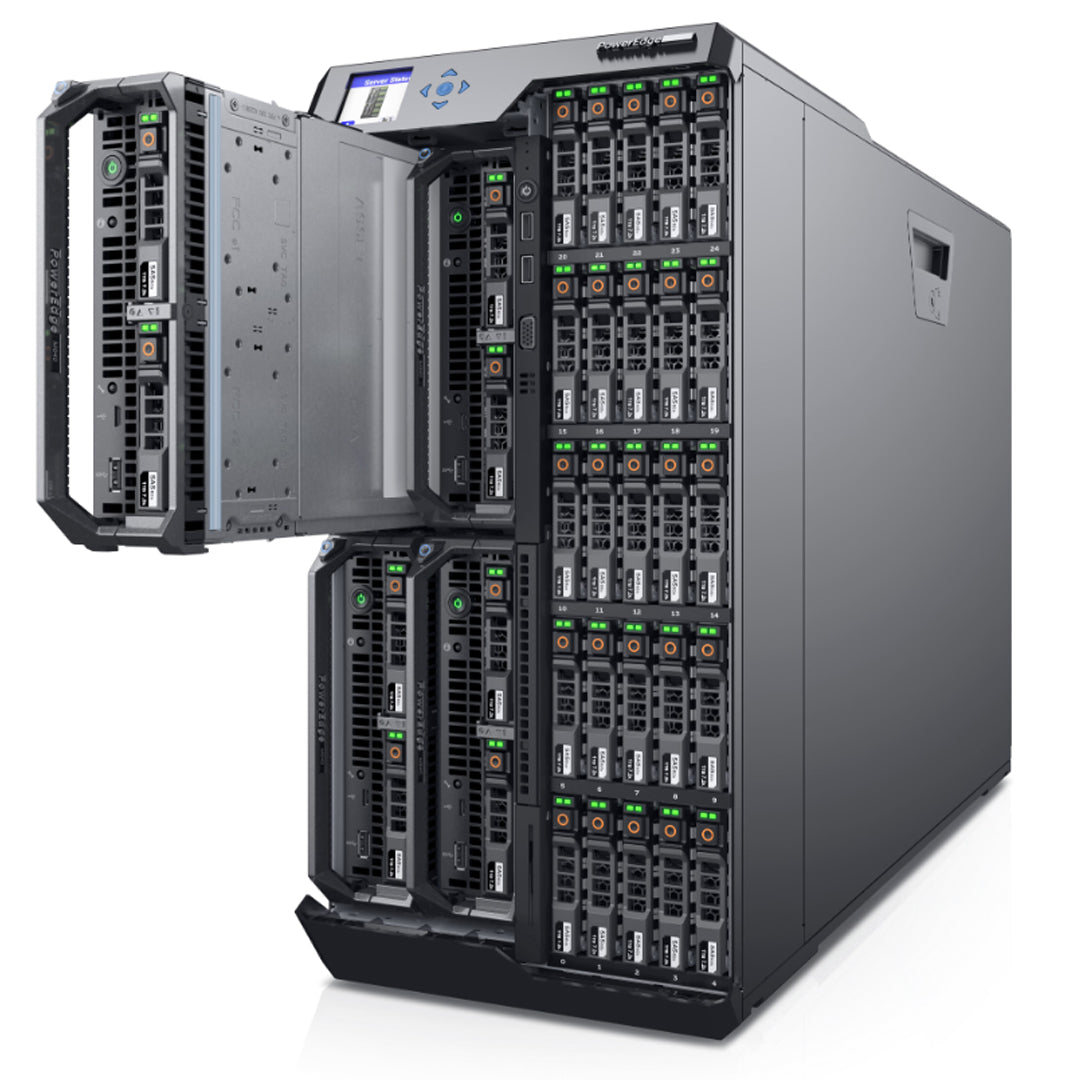

Dell VRTX Blade Architecture

High-performance modular compute with industry-leading density

Effectively meet dynamic business needs with the PowerEdge M640. This modular blade server is designed to scale out and enable increased performance – all inside a PowerEdge VRTX chassis. Get up to 16 2nd generation Intel® Xeon® Scalable processor dual-socket compute nodes in a single chassis. The M640 is an outstanding match for data center workloads that benefit from high density and power efficiency, and for multi-server and clustered architectures.

Dell PowerEdge M710HD CTO Blade Server (for PE M1000e)

Powerful 2-socket modular architecture server

The M640 server supports today’s dynamic business needs by enabling increased scale-out performance in a Dell EMC blade server chassis. Get up to 16 Intel Xeon Scalable dual-socket compute nodes in a single chassis. The M640 is an ideal solution for customers with High Performance Computing (HPC), Anything-as-a-Service (XaaS), and private cloud applications. In data center settings that need highly-scalable, multi-server, or clustering, the density optimized M640 is an efficient solution for those designs and their various workloads.

Innovative management with intelligent automation

The OpenManage portfolio delivers peak efficiency for PowerEdge servers through intelligent, automated management of routine tasks. Combined with the unique iDRAC agent-free management capabilities, the M640 is managed easily and effectively, freeing up time for business priorities.

Enable collective or individual management of your servers with the Dell EMC Chassis Management Controller (CMC), embedded in PowerEdge VRTX and M1000e systems.
Monitor Dell EMC and 3rd party hardware with OpenManage Essentials.
Use the OpenManage Mobile app to receive and take action on hardware alerts at the server or from anywhere, at any time.

Rely on PowerEdge with integrated security

Every PowerEdge server is made with a cyber-resilient architecture, infusing security into all parts of a server’s life cycle. The M640 uses these new security features so you can reliably and securely deliver the right data to where your customers are, no matter where they are. Dell EMC considers each part of server security, from design to end of life, to ensure trust and deliver worry-free, secure systems.

Rely on a secure supply chain that ensures server protection from factory to the data center.
Maintain data security with cryptographically signed firmware packages and Secure Boot.
Prevent unauthorized or malicious change with Server Lockdown.
Wipe all data from storage media including hard drives, SSDs and system memory quickly and securely with System Erase.

Speed IT transformation with the PowerEdge portfolio

Take the next step to modernize your data center with this modular compute platform. The PowerEdge M640 is a modular blade server built on a scalable business architecture that offers you choice and flexibility to meet performance demands easily.

Scale compute resources with Intel® 2nd Generation Xeon® Scalable processors.
Gain exceptional flexibility with a universal backplane and a choice of 2 x M.2 (BOSS) or dual SD cards.
Maximize storage with 16 DDR4 DIMM slots and support up to 1024GB maximum memory.

Memory

Memory Module Sockets	DIMM Type	DIMM Rank	DIMM Capacity	Single Processors		Dual Processors
Memory Module Sockets	DIMM Type	DIMM Rank	DIMM Capacity	Min Ram	Max Ram	Min Ram	Max Ram
Sixteen 288-pins	LRDIMM	Octa rank	128 GB	128 GB	1024 GB	256 GB	2048 GB
	LRDIMM	Octa rank	64 GB	64 GB	512 GB	128 GB	1028 GB
	RDIMM	Single rank	8 GB	8 GB	64 GB	16 GB	128 GB
		Dual rank	16 GB	16 GB	128 GB	32 GB	256 GB
		Dual rank	32 GB	32 GB	256 GB	64 GB	512 GB
		Dual rank	64 GB	64 GB	512 GB	128 GB	1024 GB

Storage Controller & Boot Options

Storage Controllers

The Storage Controller PCIe slot is located under the Drive cage near the front of the system. This slot only takes Blade Network Daughter Cards, and Mezzanine PERCs.

S140 (SW RAID SATA,NVME)
PERC H330
PERC H730
PERC H730p

Image of the BOSS/IDSDM PCIe Slots on the Dell M640 Blade Server

Boot Optimized Storage Subsystem (BOSS)

Two CPUs are required for the BOSS card to function.
The BOSS and IDSDM can't be installed together.

HWRAID 2 x M.2 SSDs 120GB, 240 GB with 6 Gbps. BOSS card has x8 connector using PCIe gen 2.0 x2 lanes, available only in the low-profile and half-height form factor.

IDSDM, Internal USB, vFLash

The IDSDM takes the same slot as the BOSS card and can't be installed together.

The vFlash slot is under the bNDC and only holds 1 Micro SD.

On the other side of the system board is a embedded USB slot for 1 internal USB.

PCIe Mezzanine Slots Fabric B & C

Your system supports two mezzanine cards:

Mezzanine C supports Fabric C.
This card must match the fabric type of I/O modules installed in I/O module bays C1 and C2.
Mezzanine B supports Fabric B.
This card must match the fabric type of I/O modules installed in I/O module bays B1 and B2.

Image of the Dual Mezzanine Slots on the Dell M640 Blade Server

Dimensions & Weight

Width: 197.92 mm (7.79")
Height: 50.35 mm (1.98")
Depth: 544.32 mm (21.43")
Weight: 6.4 kg (14.11 lb)

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Features	PowerEdge M640 technical specifications
Processors	Up to two Intel® Xeon® Scalable processors, up to 28 cores per processor
Memory	16 DDR4 DIMMs in total; Supports RDIMM /LRDIMM speeds up to 2666MT/s, 2TB Max ECC Registered DDR4
Drive Bays	Front: Up to 2 x 2.5” SAS/SATA (HDD/SSD), NVMe SSD, max 12.8 TB
Video	Integrated Matrox® G200
Power supplies	The M640 leverages the power supplies in the M1000e or VRTX enclosure. Hot plug fans with full redundancy provided in the M1000e or VRTX enclosure
Dimensions	D: 544.32 mm x W: 50.35 mm x H: 197.9 mm (Handle push in) D: 564.87 mm x W :50.35 mm x H: 197.9 mm (Handle pull out)
Embedded / At-Server	iDRAC9 with Lifecycle Controller iDRAC Direct iDRAC REST API with Redfish Chassis Management Controller (CMC)
Consoles & Mobile	OpenManage Enterprise OpenManage Essentials OpenManage Mobile OpenManage Power Center
Integrations	OpenManage integrations: Microsoft® System Center, VMware® vCenter™, BMC Software (available from BMC)
Connections	Nagios Core and Nagios XI, Oracle Enterprise Manager, HPE Operations Manager i (OMi)
Tools	Dell EMC Repository Manager Dell EMC System Update Dell EMC Server Update Utility Dell EMC Update Catalogs iDRAC Service Module OpenManage Server Administrator OpenManage Storage Services
Security	TPM 1.2/2.0 optional Cryptographically signed firmware Hardware Root of Trust Secure Boot System Lockdown System Erase
I/O & Ports	Network daughter card options 2 x 10GE + 4 X 1GE, 4 x 10GE Front ports: Power button System ID / Status LED 1 USB 2.0 MicroAB port with iDRAC management function 1 USB 3.0 port Rear ports: Video card: VGA controller integrated with iDRAC PCIe
Supported Operating Systems	Canonical® Ubuntu® LTS Citrix® XenServer® Microsoft Windows Server® with Hyper-V Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi
